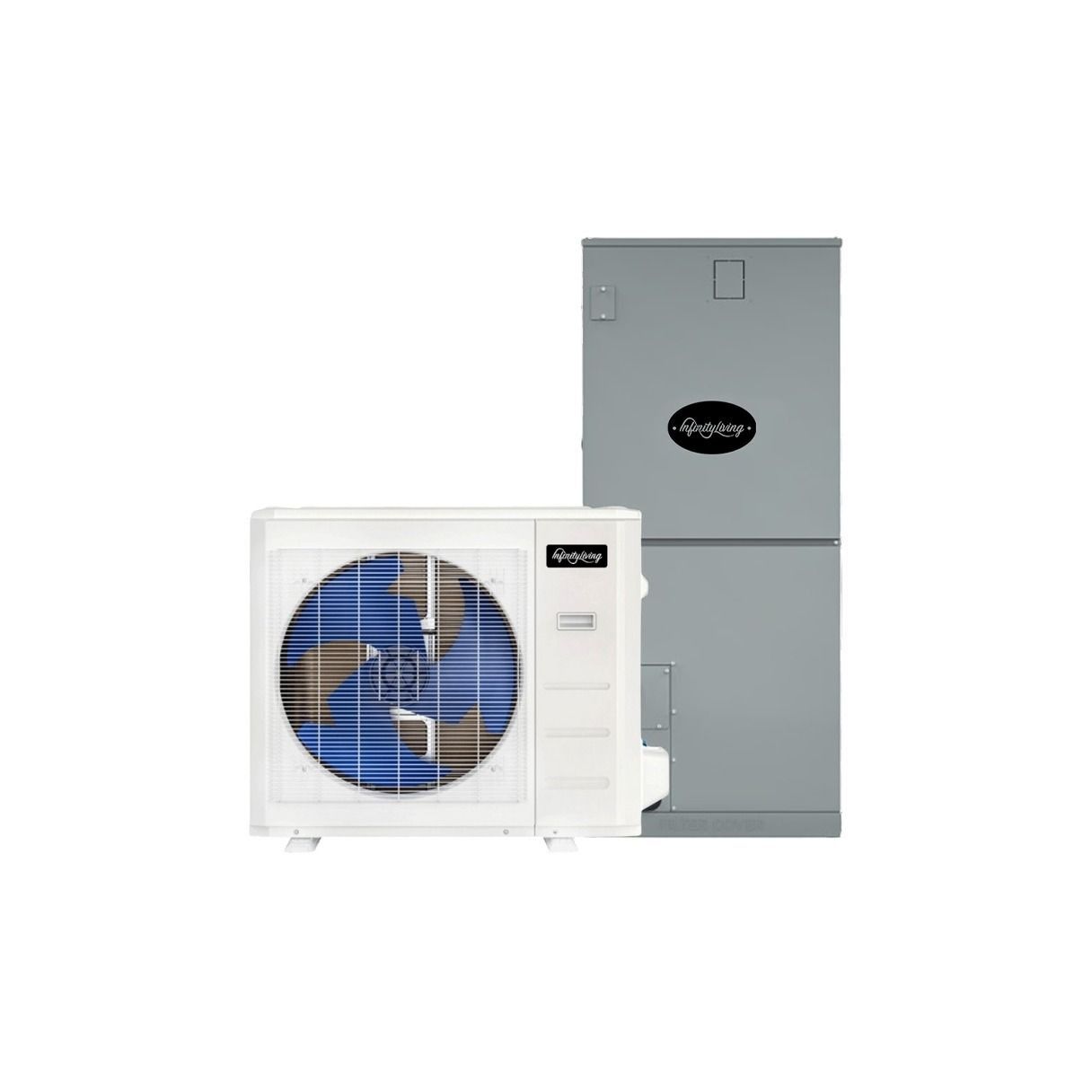

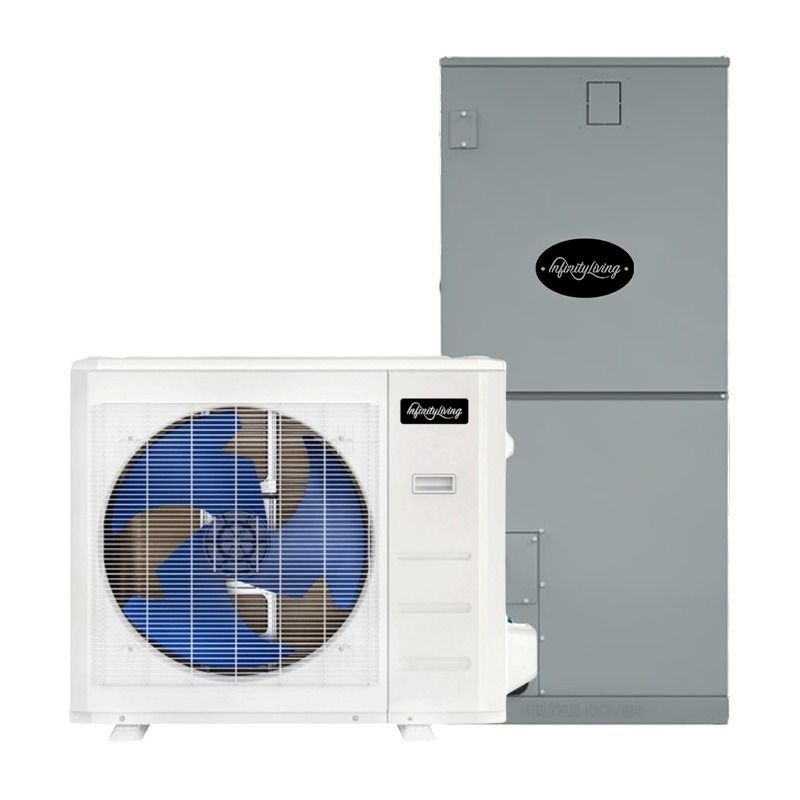

Infinity Living 2 Ton 18.4 SEER2 High Efficiency Heat Pump Split System - R454B Hyper Heat Inverter - Multi-Positional

SAVE $1,098.00

Required Fields *

By

Infinity Living

In stock

Model

EZ-24-HPB / EZ-24-AHB

ID

210226

Was $3,658.00
Your Low Price $2,560.00

Free Shipping
  • EZ Connect Installation
  • Includes 16ft Line Set
  • Heating & Cooling Year Round
  • Quiet Operation
  • Perfect for up to a 550ft room
  • Wi-Fi & Smartphone App Capabilities
Customize Infinity Living 2 Ton 18.4 SEER2 High Efficiency Heat Pump Split System - R454B Hyper Heat Inverter - Multi-Positional
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B   + $1,485.00
24,000 BTU Infinity Living Multi-Positional Central Ducted Air Handler - R454B
24,000 BTU Infinity Living Multi-Positional Central Ducted Air Handler - R454B
24,000 BTU Infinity Living Multi-Positional Central Ducted Air Handler - R454B   + $1,075.00
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 Feet - R454B
Installation Kit for Condensers
Wall Mount Bracket for Condensers 30"
Infinity Living 5 Kilowatt 16,200 BTU Heater Coil
Ecobee Smart WiFi Thermostat with Alexa
ez-24-hp / ez-24-ah

$2,560.00

OVERVIEW

The Infinity Living high-efficiency heat pump split-system is designed for year-round heating and cooling. This system features inverter technology for superior performance and a multi-positional air handler for flexible installation in various orientations. The system is designed for energy efficiency and is part of the Hyper Heat line, indicating its ability to provide reliable heating even in cold climates.

QUICK FACTS

  • 2 Ton, 18.4 SEER2, 10 HSPF2 heat pump split system
  • Can cool up to a small house in average conditions
  • Multi-positional air handler
  • Factory-charged with R454B refrigerant
  • 10 year parts and compressor warranty with online registration
  • AHRI certified

EZ Connect

One of the standout features of this system is the EZ Connect linesets, which significantly simplify the installation process. These pre-charged, no-flare linesets eliminate the need for specialized tools and brazing, reducing installation time and costs. This feature also minimizes the risk of refrigerant leaks, ensuring a clean and secure connection for lasting system performance. Perfect for both new installations and replacements, the EZ Connect linesets streamline your HVAC setup, making it faster and more efficient than traditional linesets.

Why Infinity Living?

Infinity Living is built around a simple concept: empowering homeowners with a single-source home improvement solution. Specializing in simple, stylish, and affordable options to enhance your home, we enable you to take charge of your home's comfort and aesthetics without the need for professional assistance.

With reliable performance, innovative design, and energy-saving benefits, this system is the ideal choice for anyone looking to upgrade their home’s HVAC system.

More Information
Infinity Living 2 Ton 17.5" Width Multi-Positional Central Ducted Air Handler - R454B
SKUEZ-24-AHB
Weight105.600000
ManufacturerInfinity Living
Cooling BTU24,000 BTU
Maximum CFM3000 CFM
ConfigurationMulti-Positional
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size15 Amps
Min. Breaker Size4 Amps
Tonnage2 Ton
Height45.00"
Width21.02"
Depth17.52"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Infinity Living 2 Ton 18.4 SEER2 High Efficiency Central Heat Pump Condenser | Inverter | Hyper Heat - R454B
SKUEZ-24-HPB
Weight105.600000
AHRI Certificate Number216980837
ManufacturerInfinity Living
HSPF210
Cooling BTU23,000 BTU
Heating BTU24,000 BTU
Decibel Level (dBA)60 Decibels
RefrigerantR454B
SEER218.4
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size20 Amps
Min. Breaker Size19 Amps
Tonnage2 Ton
Height45"
Width21.02"
Depth17.52"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ WiFi Programmable 3H/2C Heat Pump 2H/2C Conventional Touchscreen Thermostat
SKUSTN855W
Weight1.000000
ManufacturerACiQ
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ Non-Programmable 2H/1C Thermostat
SKUSTN1320
Weight1.000000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, Non Programmable, 2 Heat, 1 Cool
ResourcesBraeburn Brochure Braeburn User Guide
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 Feet - R454B
SKUEZ-50-3834-U
Refrigerant Charge19.44 oz
Weight54.000000
ManufacturerInfinity Living
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length50'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 Feet - R454B
SKUEZ-35-3834-U
Refrigerant Charge9.77 oz
Weight20.000000
ManufacturerInfinity Living
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length35'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 Feet - R454B
SKUEZ-25-3834-U
Refrigerant Charge3.17 oz
Weight15.000000
ManufacturerInfinity Living
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length25'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 Feet - R454B
SKUEZ-16-3834-U
Refrigerant Charge1.94 oz
Weight10.000000
ManufacturerInfinity Living
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length15'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
SKUTL04-1
Weight0.700000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, 2 Heat, 1 Cool, Programmable, WiFi, 1 Heat, 3 Heat, 2 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
SKUEB-STATE6P-01
Weight0.500000
Manufacturerecobee
Product FeaturesProgrammable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Infinity Living 8 kilowatt 26,000 BTU Heater Coil
SKUEAH-08B-IL
Weight8.000000
ManufacturerInfinity Living
Heating BTU26,000
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Infinity Living 10 Kilowatt 34,100 BTU Heater Coil
SKUEAH-10B-IL
Weight8.000000
ManufacturerInfinity Living
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Infinity Living 15 Kilowatt 51,150 BTU Heater Coil
SKUEAH-15B-IL
Weight10.000000
ManufacturerInfinity Living
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Infinity Living 5 Kilowatt 16,200 BTU Heater Coil
SKUEAH-05B-IL
Weight8.000000
ManufacturerInfinity Living
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Infinity Living 2 Ton 18.4 SEER2 High Efficiency Heat Pump Split System - R454B Hyper Heat Inverter - Multi-Positional
Your Rating
Customer Questions
How many cores do I need for the control cable between the indoor and outdoor units?
The EZ-24-HPB heat pump system typically requires a five-conductor (5-core) control cable for the communication and control signals between the indoor and outdoor units. If you have any further questions, please call us and we will be happy to assist you.
