Key Takeaways
- Best AC replacement for whole-home + extra spaces A central zoned mini split uses one outdoor unit with a ducted main zone and ductless heads for garages, attics, and additions—no costly ductwork extensions.
- Higher efficiency and lower energy bills Inverter heat-pump technology matches output to demand so you only condition the rooms you use, delivering better SEER2/HSPF2 performance than aging central AC systems.
- Precise comfort with zoning control Set different temperatures per zone—keep main living areas comfortable while independently controlling problem rooms for year-round comfort and quieter operation.
Article Contents
If you're dealing with an aging central air conditioning system that struggles to keep your entire home comfortable, you're not alone. Many homeowners find themselves facing rising energy bills, uneven temperatures, and the challenge of conditioning spaces that their old system simply can't reach. Whether it's that garage, sunroom addition, or bonus room that stays too hot in summer and too cold in winter, traditional central systems often fall short of delivering whole-home comfort. A central zoned mini split system is the solution you've been looking for.
If you're facing the cost of replacing an old system or just looking to upgrade, now's the time to consider a smarter, more flexible solution that can handle both your main living areas and those troublesome extra spaces.
What Is a Central Zoned Mini Split System?
A central zoned mini split system combines the best features of traditional central HVAC with the flexibility of ductless mini splits. Instead of choosing between all-ducted or all-ductless, a central zoned mini split gives you both: ducted comfort throughout most of the home plus a ductless unit for a single room that needs its own control.

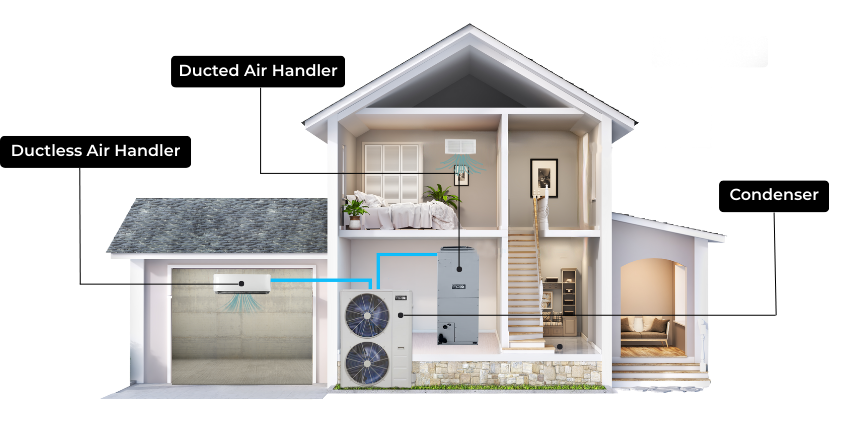

How Central Zoned Mini Split Systems Work

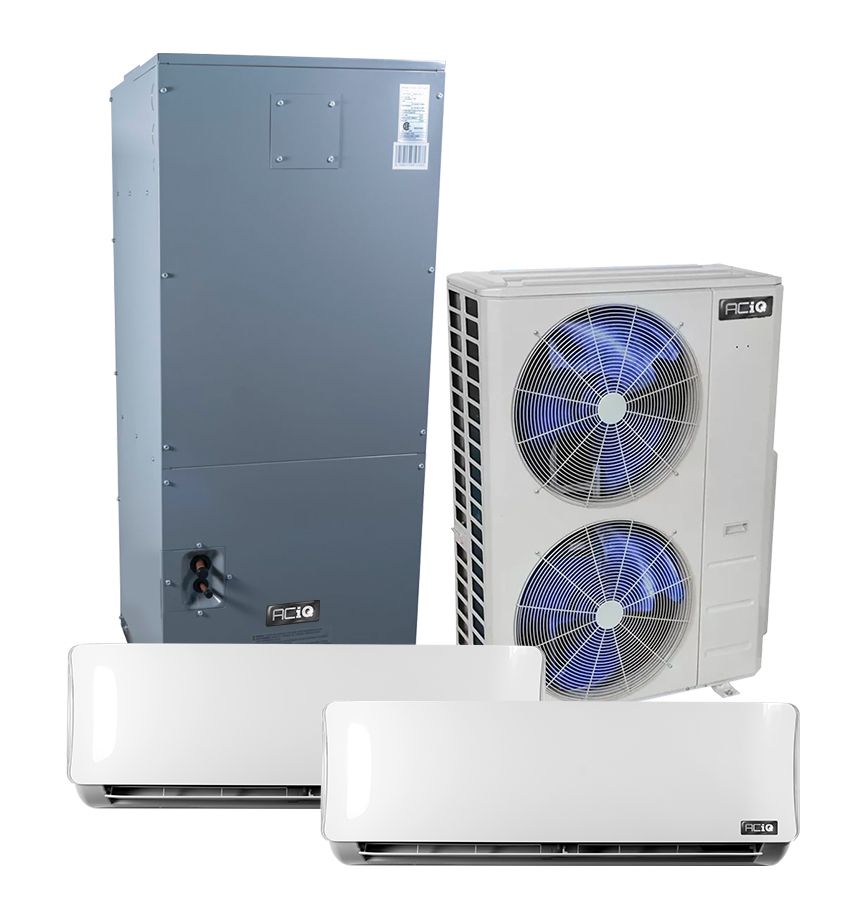

This system comes with a condenser (outdoor unit), a central ducted indoor air handler, and as many ductless mini split air handlers as you add.
- One powerful outdoor unit connects to a central ducted air handler that serves your main living areas, just like a traditional HVAC system
- The same outdoor unit also connects to additional ductless mini split air handlers that can be strategically placed in spaces like garages, sunrooms, home additions, or other places central heating won’t cover
- Smart zoning technology allows you to set different temperatures in each zone
This hybrid approach means you get the familiar comfort of ducted air in your primary living spaces while gaining the flexibility to condition extra rooms that are difficult to heat and cool.
Why Central Zoned Mini Splits Are the Best Replacement for Old Central AC Systems
Ever heard the phrase “kill two birds with one stone”? If you’re planning to buy a heat pump system, you can upgrade to a central zoned mini split for about the same price — and get both central heating and cooling as well as the ability to heat and cool an additional space that central doesn’t reach.
A central zoned mini split system is the best replacement for old central AC for several reasons:

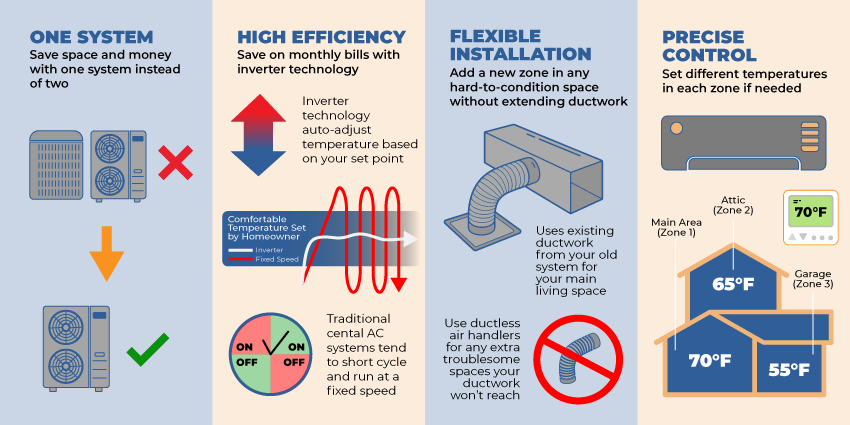

Complete Heating and Cooling in One System Saves Space and Money
Unlike older setups that might require two separate systems, such as an AC and furnace or AC and mini split, a central zoned mini split provides both heating and cooling in one unit. You’ll only pay installation costs once, and with a single system to maintain, you’ll save money on service and maintenance in the long run. Plus, having just one outdoor unit frees up valuable yard space.
Superior Energy Efficiency That Cuts Your Bills
Traditional central AC and heat pump systems, especially older models, can waste a lot of energy because they run at a fixed speed with on-off cycling. High-efficiency central zoned mini split systems solve this with inverter technology, which automatically ramps power up or down to match your exact heating and cooling needs.
You can run just the ducted system, just a mini split zone, or both together — and when you don’t need a zone, simply turn it off. This flexibility saves energy, reduces monthly bills, and ensures more consistent comfort compared to traditional electric systems.
Flexible Coverage for Every Space

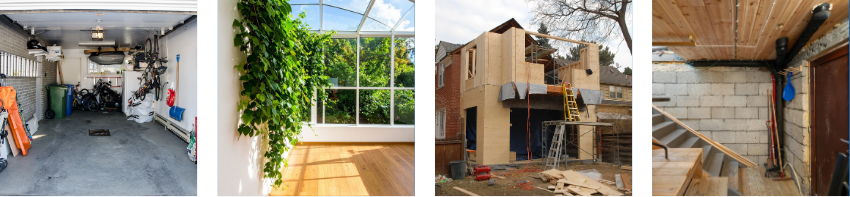

The biggest advantage over traditional central systems is the ability to add ductless zones wherever you need them. You can add a ductless air handler to heat and cool any space that your old system didn’t and couldn’t reach. Ductless zones also don’t require running new ductwork, so you can avoid the high costs and hassle of extending ducts into additions, basements, or garages.
Precise Comfort Control Through Zoning
Your central ducted system has its own air handler and thermostat, while each mini split zone comes with its own air handler and controls. This zoning lets you set one temperature for your main living space and different ones for problem areas like hot upstairs rooms, cold basements, or year-round garages.
Real-Life Solution: Transforming Your Florida Room
Mini Split for Florida Room Comfort
Consider this scenario: You have a beautiful Florida room or garage that your old central system simply can't handle effectively. You can’t heat and cool this room because it would require adding more ductwork, which is both complicated and expensive.
With a traditional system replacement, you'd face the same limitations – spending thousands on ductwork modifications or accepting that this space would just have to remain uncomfortable.
Solution: A central zoned mini split system is the fix — your central ducted system keeps the main living areas comfortable, while a ductless air handler is added to the Florida room for independent temperature control.
It can heat and cool this space without the need for any ductwork. Some perks include:
- Lower upfront cost compared to major ductwork renovations
- Independent temperature control for the sunroom for higher comfort
- Year-round comfort without affecting the rest of your home's climate
Whether you need a mini split for a garage, mini split for a sunroom, or a mini split for a Florida room in this example, a central zoned mini split system will have you covered.
Comparing Your Central AC Replacement Options
When your old central system needs replacement, you have several paths you can follow, but they're not all equal.
Replacing with Another Traditional Central Electric System
Choosing another standard central electric system means accepting the same limitations you've been living with. You'll still struggle with those hard-to-condition spaces, face the same efficiency challenges, and miss out on the flexibility that modern technology offers.
Going With All Ductless Mini Splits
An all-ductless approach offers excellent efficiency and zone control, but many homeowners prefer the traditional comfort of ducted air distribution in their main living areas with vents. Completely ductless systems also require multiple wall-mounted units throughout your home, which isn't always the preferred aesthetic choice.
Choosing a Central Zoned Mini Split System
This flexible solution delivers the best of both worlds – traditional ducted comfort where you want it in your main living spaces, combined with ductless flexibility where you need it most. You maintain the familiar feel and simplicity of central air while gaining the ability to heat and cool those extra spaces that were previously problematic.
When you replace central AC with mini split technology, you gain flexibility and added comfort that traditional systems simply can’t match.
| Central AC Replacement Options Comparison | |||
|---|---|---|---|
| Feature | Central AC | All Ductless Mini Splits | Central Zoned Mini Split |
| Energy Efficiency | Poor/Fair | High | Very High |
| Zone Control | Poor | Excellent | Excellent |
| Covers Extra Spaces | No | Yes | Yes |
| Ducted Air Distribution | Yes | No | Yes |
| Installation Cost | Low to moderate if already have ductwork | High upfront cost; Depends on # of zones | Moderate |
| Aesthetic Appeal | Minimal impact | Multiple visible air handlers inside | A couple visible air handlers inside |
| Future Flexibility | Limited | Excellent | Excellent |
| Overall Rating / Recommendation | Not very efficient, but does the job; Homes with existing ducts, basic cooling only | Great flexibility but can be expensive depending on size of home; Homes without ducts, add-on spaces | Best of both worlds; Whole-home solution + flexibility for extra spaces |
Selecting the Right Central Zoned Mini Split for Your Home
System Sizing and Capacity Considerations
Proper sizing is crucial for the getting the best performance and efficiency. The BTU capacity should match your home's total square footage while accounting for:
- Primary living areas that will be served by ducted air handlers (often the largest zone, covering 60–80% of your square footage)
- Additional zones (up to 5 on HVACDirect.com) that will use ductless units, typically ranging from 250–800 sq. ft., each depending on the space (though there are systems that cover up to 2,000 sq. ft. if needed)
- Your local climate and specific heating requirements
You can learn more about what zones are and sizing by reading our mini split sizing guide.
Determining Your Zoning Needs
Most homeowners benefit from a main zone covering primary living areas plus up to three additional zones for:
- Converted garages or workshops
- Sunrooms and Florida rooms
- Home additions or bonus rooms
- Basement or attic spaces
On HVACDirect.com, you can use our filtering system to narrow down products – just start by selecting the size of your first extra room first, then second, then third.
Climate Considerations When Sizing
Your climate affects how much heating and cooling capacity your central zoned mini split system will need. In colder climates, you may need a higher-capacity or cold-climate rated system to keep up in freezing temperatures. Hotter regions will also need a higher capacity to handle extremely hot seasons.

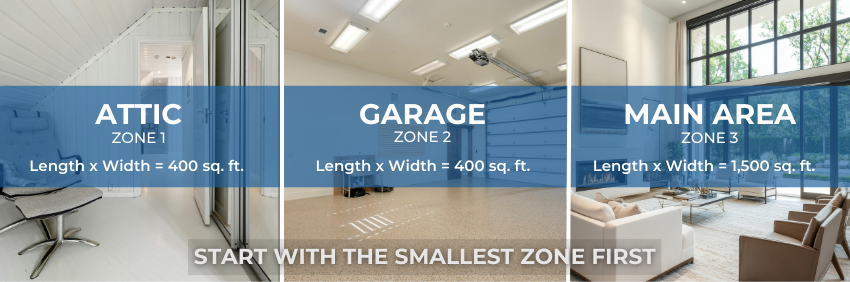

Central Zoned Mini Split Sizing Example
| Breakdown of BTU Needed for Each Zone | ||||
|---|---|---|---|---|
| Climate | 400 sq. ft. Attic | 400 sq. ft. Garage | 1,500 sq. ft. Main | Total Needed |
| Cold, Dry | 6,000–9,000 BTU | 6,000–9,000 BTU | 22,000–24,000 BTU | ~36,000 BTU |
| Moderate | 9,000 BTU | 9,000 BTU | 28,000–30,000 BTU | ~42,000–48,000 BTU |
| Hot, Humid | 9,000–12,000 BTU | 9,000–12,000 BTU | 34,000–36,000 BTU | ~48,000–60,000 BTU |
Professional Guidance Makes the Difference
Professional guidance ensures you choose a system that matches your specific needs, budget, and home configuration. Our team at HVACDirect.com helps you select the right system — you don’t have to guess or go it alone.
Why Choose HVACDirect.com for Your Central Zoned Mini Split
When you're ready to upgrade from your old central AC system, HVACDirect.com offers several compelling advantages:
- Comprehensive Product Selection: Our inventory of central zoned mini split systems includes options for homes of all sizes and configurations, ensuring you'll find the perfect match for your needs.
- Expert Product Guidance: Our knowledgeable team provides professional sizing recommendations and product selection assistance, helping you choose the ideal system without the uncertainty of going it alone.
- Competitive Pricing and Fast Shipping: We offer affordable wholesale pricing, backed by fast shipping.
- Trusted Brand Partners: We sell trusted brands that homeowners like you recognize.
Transform Your Home Comfort Today
Ready to replace your old central system with something more efficient and flexible? For homeowners seeking the best replacement for old central AC systems, central zoned mini splits offer unmatched versatility and efficiency. You’ll get consistent comfort in every room – from your main living areas to that garage or sunroom that's been neglected for too long.
Explore our selection of central zoned mini split systems today and discover how this innovative system can transform your home's comfort while reducing your energy costs. With the right system, you'll enjoy efficient heating and cooling throughout your entire home, in every season, for years to come.
