Closed Until MondayiON Sewage Pump | 1/2 HP | 2" NPT | 90 GPM | 25 Ft Head | SHV40i+
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
SHV40i+
ID
240204
Was $942.00 Your Low Price Special Price $633.00
Product Features
- 1/2 HP Motor: Reliable performance for demanding sewage applications.
- 90 GPM Capacity: Delivers high-flow pumping performance.
- Heavy-Duty Design: Built for reliable sewage pumping.
- High Water Alarm: Alerts you when water levels rise.
- Durable Construction: Built to withstand demanding conditions.
- 3-Year Warranty: Residential coverage for added peace of mind.
High-Capacity Sewage Pumping with Automatic Control & High-Water Alerts

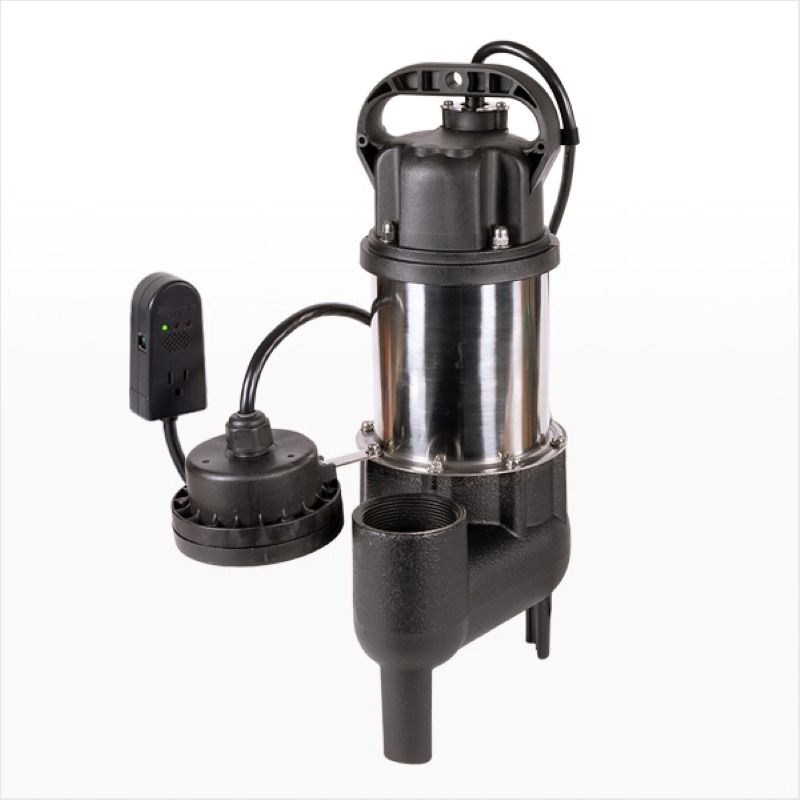

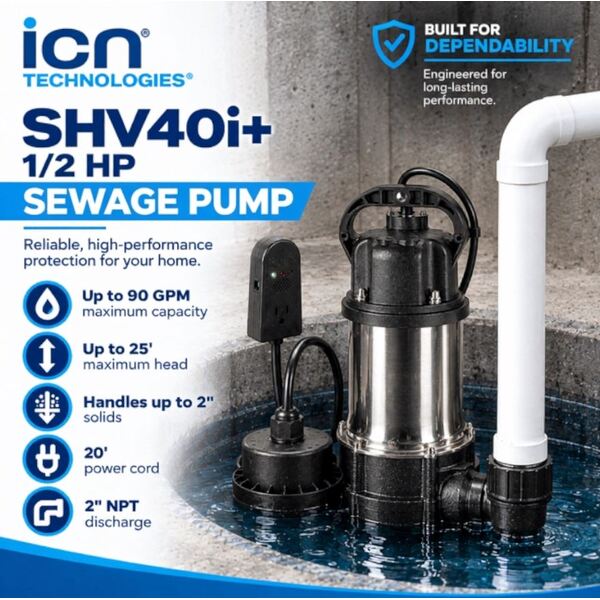

Handle demanding wastewater removal with the iON SHV40i+, a 1/2 HP submersible sewage pump designed for residential sewage, light commercial sewage, septic tank effluent, and high-capacity sump applications. With up to 90 GPM capacity, up to 25 feet of maximum head, and 2-inch solids handling, it provides dependable performance for demanding pumping systems.
The SHV40i+ includes the iON+ Switch with an integrated high-water alarm, providing automatic level control with visual and audible alerts when elevated water levels are detected. Its cast iron and stainless steel construction, vortex impeller, and durable motor design support reliable operation in demanding wastewater environments.
Product Features:
- 1/2 HP Motor: Provides dependable pumping performance for residential and light commercial sewage, septic effluent, and high-capacity sump applications.
- Up to 90 GPM & 25 Ft. Head: Delivers high-volume pumping capacity with the lift needed for demanding wastewater installations.
- iON+ Switch with High-Water Alarm: Provides automatic level control with solid-state sensing and visual and audible alerts for elevated water conditions.
- 2-Inch Solids Handling: Handles solids up to 2 inches for reliable sewage and wastewater pumping.
- Durable Cast Iron & Stainless Steel Construction: Provides strength and corrosion resistance, while the cast iron vortex impeller supports dependable wastewater pumping.
Residential and Light Commercial Sewage Applications
The iON SHV40i+ is designed for applications requiring dependable, high-volume sewage and wastewater removal. It is suitable for residential sewage, light commercial sewage, septic tank effluent, and high-capacity sump applications.
Its 2-inch solids-handling capability makes it well suited for sewage systems where larger solids may be present. The vortex impeller design helps move wastewater while allowing solids to pass through the pump.
Built-In High-Water Alarm
The included iON+ Switch provides automatic level control using solid-state sensing without moving parts or contact points. This provides a dependable alternative to conventional mechanical float switches.
The integrated high-water alarm provides visual and audible notification when elevated water levels are detected, helping users identify abnormal conditions and respond promptly.
Heavy-Duty Sewage Pump Construction
The SHV40i+ combines cast iron and stainless steel construction with a cast iron vortex impeller for dependable performance in demanding sewage and wastewater environments.
The oil-filled motor, automatic reset thermal overload protection, lower single-row ball bearing, and carbon ceramic mechanical seal provide additional support for reliable pump operation.
Pump Sizing and Installation
The SHV40i+ provides up to 90 GPM of maximum pumping capacity and up to 25 feet of maximum head. Actual performance will vary according to total system head, discharge configuration, and operating conditions.
The pump features a 2-inch NPT discharge and includes a 20-foot power cord. An 18-inch by 30-inch minimum basin is recommended. The pump is designed for intermittent pumped-liquid temperatures up to 130°F.
Always follow the manufacturer's installation instructions and applicable plumbing, electrical, sewage, and wastewater codes when installing or servicing the pump.
Warranty
The iON SHV40i+ includes a 3-year warranty. For proper installation and long-term performance, verify the required basin dimensions, discharge piping, electrical supply, pump configuration, solids-handling requirements, pumped-liquid temperature, and applicable local codes before installation. Refer to the manufacturer's operation manual for complete installation, operation, maintenance, and safety requirements.
High-Capacity 1/2 HP Sewage & Sewage Pump with High Water Alarm
The iON SHV40i+ is a 1/2 HP submersible sewage pump designed for dependable water and wastewater removal in high-capacity sump, residential sewage, light commercial sewage, and septic tank effluent applications. Operating at 115V with a standard 20-foot power cord, the SHV40i+ delivers up to 90 GPM of maximum pumping capacity and provides up to 25 feet of maximum head.
Built with durable cast iron and stainless steel construction, the SHV40i+ features a cast iron vortex impeller, carbon ceramic mechanical seal, automatic reset thermal overload protection, and lower single-row ball-bearing construction. The pump comes standard with the iON+ Switch and an integrated high-water alarm, providing precise automatic level control with no moving parts or contact points.
Why Choose the iON SHV40i+ Sewage Pump?
High-Capacity Water & Wastewater Removal
- 1/2 HP motor delivers up to 90 GPM of maximum pumping capacity.
- Provides up to 25 feet of maximum head for demanding pumping applications.
- Designed for high-capacity sump, residential sewage, light commercial sewage, and septic tank effluent applications.
- Handles solids up to 2 inches for dependable wastewater and sewage pumping.
- Comes standard with the iON+ Switch and integrated high-water alarm for added protection against elevated water levels.
- Solid-state level control operates without moving parts or mechanical contact points.
- Designed to provide precise automatic pump level control for dependable operation.
- Integrated alarm helps provide an additional warning when water levels rise beyond normal operating conditions.
- Cast iron and stainless steel construction is designed for durability in demanding pumping environments.
- Cast iron vortex impeller supports reliable water and wastewater removal.
- 2-inch solids-handling capability helps reduce concerns associated with typical sewage pumping applications.
- Heavy-duty construction is suited for residential and light commercial wastewater applications.
Reliable & Protected Motor Design
- Features a 1/2 HP, 3450 RPM motor rated at 8.5 FLA at 115V.
- Automatic reset thermal overload protection helps protect the motor against overheating.
- Lower single-row ball-bearing construction supports smooth and reliable pump operation.
- Carbon ceramic mechanical seal helps provide dependable sealing and long-lasting performance.
- Includes a standard 20-foot power cord for flexible installation.
- Features a 2-inch NPT discharge connection.
- Recommended for a minimum 18-inch x 30-inch basin.
- Designed for intermittent liquid temperatures up to 130°F.
- Cast iron vortex impeller is designed for dependable performance when handling wastewater and sewage.
- 2-inch solids handling helps support reliable operation in sewage applications.
- High-capacity performance provides up to 90 GPM of maximum pumping capacity.
- Up to 25 feet of maximum head supports a wide range of pumping requirements.
