Closed Until MondayiON Sewage Pump | 3/4 HP | 2" NPT | 120 GPM | 28 Ft Head | SHV75i-11
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
SHV75i-11
ID
240092
Was $1,060.00 Your Low Price Special Price $712.00
Product Features
- 3/4 HP Motor: Reliable performance for demanding sewage applications.
- 120 GPM Capacity: Delivers high-flow pumping performance.
- Vortex Impeller: Provides efficient, clog-resistant pumping.
- Heavy-Duty Design: Built for reliable sewage pumping.
- Thermal Overload: Provides automatic motor protection.
- 3-Year Warranty: Residential coverage for added peace of mind.
Heavy-Duty Vortex Pumping for High-Volume Wastewater Removal

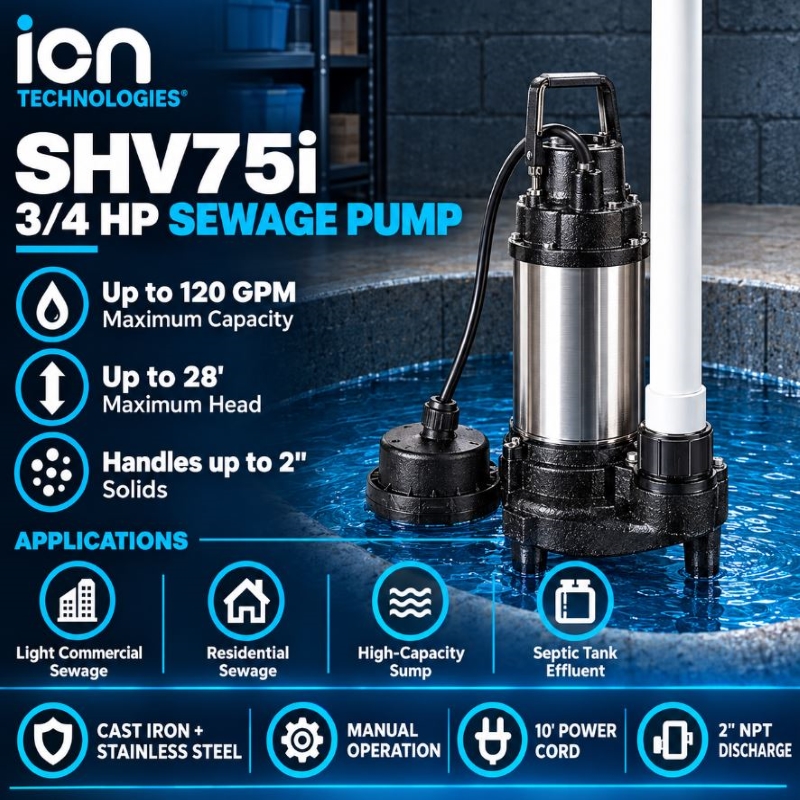

Handle demanding wastewater applications with the iON SHV75i-11, a 3/4 HP sewage pump designed for residential sewage, septic tank effluent, and high-capacity sump systems. With up to 120 GPM capacity and 2-inch solids handling, it provides the pumping performance needed for demanding wastewater removal.

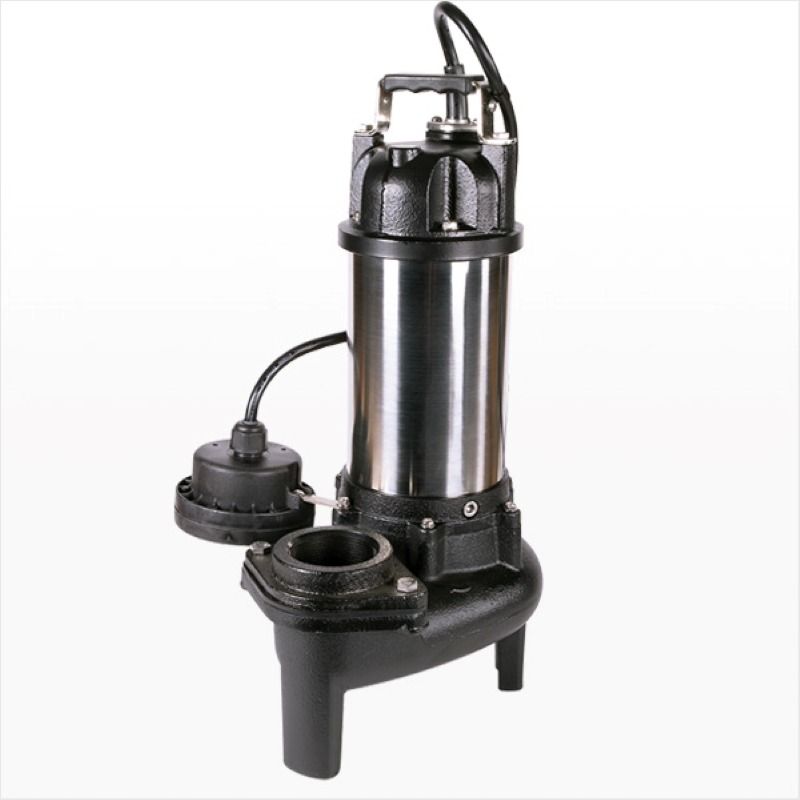

The SHV75i-11 features cast iron and stainless steel construction, a cast iron vortex impeller, and a 10-foot power cord. Its standard iON Digital Level Control provides automatic pump operation using solid-state sensing without moving parts or contact points.
Product Features:
- 3/4 HP Motor: Provides powerful pumping performance for demanding wastewater applications.
- Up to 120 GPM Capacity: Delivers high-volume pumping performance for sewage and high-capacity sump systems.
- 2-Inch Solids Handling: Handles larger solids for residential and light commercial sewage applications.
- iON Digital Level Control: Provides automatic pump operation using solid-state sensing without moving parts or contact points.
- Cast Iron and Stainless Steel Construction: Provides durable construction for demanding wastewater environments.
High-Capacity Sewage Pump
The iON SHV75i-11 is designed for light commercial sewage, residential sewage, high-capacity sump, and septic tank effluent applications. Its high flow capacity makes it suitable for systems requiring increased wastewater pumping performance.
iON Digital Level Control
The standard iON Digital Level Control uses solid-state sensing to automatically control pump operation. Its stationary design eliminates the moving parts and contact points commonly found in traditional mechanical switches.
Durable Pump Construction
The SHV75i-11 combines cast iron and stainless steel construction with a cast iron vortex impeller. It also features a carbon ceramic mechanical seal, automatic reset thermal overload protection, and lower single-row ball-bearing construction.
Pump Sizing and Installation
The SHV75i-11 provides up to 28 feet of maximum head and features a 2-inch NPT discharge, with a 3-inch discharge available as an option. It includes a standard 10-foot power cord and has a recommended minimum basin size of 18 inches by 30 inches.
Always follow the manufacturer's installation instructions and applicable plumbing, electrical, sewage, and wastewater codes when installing or servicing the pump.
Warranty
The iON SHV75i-11 includes a 3-year warranty. For proper installation and long-term performance, always refer to the manufacturer's operation manual for complete installation, operation, maintenance, and safety requirements. Verify that the pump is properly sized for the application and that all installation requirements are satisfied before placing the pump into service.
Reliable 3/4 HP Sewage Pump Performance
The iON SHV75i-11 is a 3/4 HP submersible pump designed for dependable water and wastewater removal in high-capacity sump, residential sewage, light commercial sewage, and septic tank effluent applications. Operating at 115V with a 10-foot power cord, it delivers up to 105 GPM of maximum pumping capacity and provides up to 28 feet of maximum head.
Built with durable cast iron and stainless steel construction, the SHV75i-11 features a cast iron vortex impeller, carbon ceramic mechanical seal, automatic reset thermal overload protection, and single-row ball-bearing construction. Its manual configuration provides straightforward pump operation for applications where manual control is preferred.
Why Choose the iON SHV75i-11 Sewage Pump?
High-Capacity Water & Wastewater Removal
- 3/4 HP motor delivers up to 105 GPM of maximum pumping capacity.
- Provides up to 28 feet of maximum head for demanding pumping applications.
- Suitable for high-capacity sump, residential sewage, light commercial sewage, and septic tank effluent applications.
- Handles solids up to 2 inches for dependable wastewater and sewage pumping.
- Manual configuration provides direct pump operation without an automatic level control switch.
- Ideal for applications where manual pump control is preferred.
- Designed for reliable pumping performance in demanding residential and light commercial applications.
- Cast iron and stainless steel construction provides durability for demanding pumping environments.
- Cast iron vortex impeller is designed for reliable water and wastewater removal.
- 2-inch solids-handling capability helps support dependable operation in sewage applications.
Reliable & Protected Motor Design
- Features a 3/4 HP, 3450 RPM motor designed for dependable pumping performance.
- Automatic reset thermal overload protection helps protect the motor against overheating.
- Single-row ball-bearing construction supports smooth and reliable pump operation.
- Carbon ceramic mechanical seal helps support long-lasting performance.
- 115V, single-phase electrical configuration supports compatible residential and light commercial applications.
- Includes a 10-foot power cord for flexible installation.
- Features a 2-inch NPT discharge connection.
- Recommended for a minimum 18-inch x 30-inch basin.
- Designed for intermittent liquid temperatures up to 130°F.
- Carbon ceramic mechanical seal helps provide dependable sealing and long-term pump performance.
- Cast iron vortex impeller is designed for reliable operation in demanding wastewater applications.
- Automatic reset thermal overload provides added motor protection.
- Backed by a 3-year warranty for added confidence.
