Koldwave 1 Ton 13,200 BTU Air-Cooled Portable Air Conditioner | 115V - R32

Efficient 1 Ton Portable Air Conditioner with 13,200 BTU/h Cooling Capacity for Commercial and Industrial Spot Cooling – Koldwave K9KK14BE

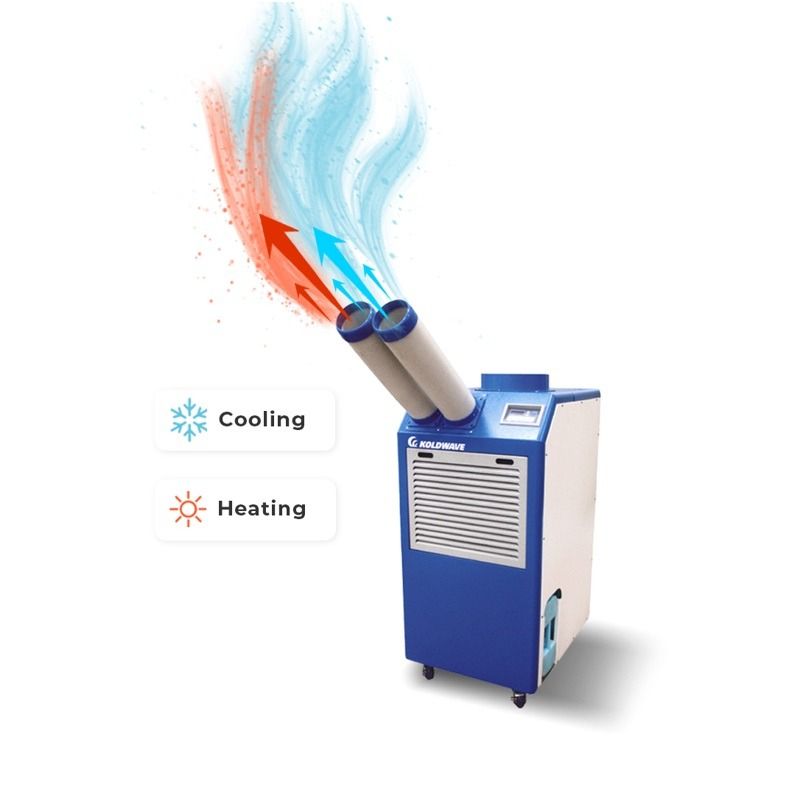

The Koldwave K9KK14BE is a 13,200 BTU/h air-cooled portable air conditioner designed to provide targeted cooling for commercial, industrial, and temporary cooling applications. Combining a compact refrigeration system, dedicated spot-cooling and room-cooling modes, multiple fan speeds, and an integrated control panel with self-diagnostic functionality, this portable cooling system provides supplemental temperature control without requiring a permanent HVAC installation. Its portable design and directional cold-air outlets support flexible cooling for workplaces, computer rooms, industrial kitchens, manufacturing areas, and emergency cooling applications.

Key Benefits

• 13,200 BTU/h Cooling Capacity – Provides approximately 1 tons of cooling for localized heat loads and supplemental cooling applications.
• Spot and Room Cooling Modes – Allows users to direct cooling toward specific equipment or work areas or maintain a target temperature based on room-return air.
• Two Cold-Air Outlets – Supports targeted distribution of conditioned air toward employees, equipment, or designated workstations.
• Three-Speed Fan Operation – Offers low, high, and automatic fan settings to accommodate changing airflow and cooling requirements.
• Portable Caster-Wheel Design – Supports relocation between suitable work areas as cooling requirements change.
• Integrated Condensate Collection – Uses a built-in condensate tank with a full-tank safety switch to help manage moisture collected during cooling operation.
• Standard 115V Electrical Connection – Operates on a 115V, single-phase, 60Hz power supply with a NEMA 5-15P plug.
• Self-Diagnostic Controls – Displays operating modes, temperatures, and fault indications to assist with troubleshooting and maintenance.

Cooling Performance and Energy Efficiency

The Koldwave K9KK14BE delivers a rated cooling capacity of 13,200 BTU/h, equivalent to approximately 1 tons of refrigeration. The air-cooled refrigeration system uses R-32 refrigerant and has a published energy efficiency ratio (EER) of 12 BTU/Wh. Manufacturer-listed electrical specifications include power consumption of 1,100 watts and rated current of 9.9 amps. The specified ambient operating range is 64°F to 113°F. Room-cooling temperature settings range from 64°F to 86°F, while spot-cooling operation uses the discharge-air temperature as the control reference, with a default target of 32°F. These capabilities support supplemental cooling in commercial and industrial environments where localized temperature control is required. Actual cooling performance depends on ambient conditions, heat load, ventilation, duct configuration, and installation.

Spot Cooling and Targeted Temperature Control

The Koldwave K9KK14BE features dedicated spot-cooling and room-cooling modes to accommodate different application requirements. Spot-cooling mode regulates operation according to the temperature of the discharged air, helping provide targeted cooling for employees, equipment, and concentrated heat loads. Room-cooling mode uses the incoming air temperature to regulate the selected room-temperature target. Two cold-air outlets support directional distribution of conditioned air toward designated areas. This flexibility is particularly useful in manufacturing facilities, computer rooms, industrial kitchens, and workplaces where cooling an entire building may be impractical. When operating in an enclosed space, the warm condenser air must be exhausted outside the conditioned area using the appropriate ducting arrangement to help maintain effective cooling performance.

Airflow and Distribution

The Koldwave K9KK14BE incorporates a multi-speed blower with low, high, and automatic operating settings. Its two cold-air outlets allow conditioned air to be distributed toward selected workstations, equipment, or occupied areas. The control system enables users to adjust fan operation according to the cooling application. The unit also provides a hot-air discharge connection for exhausting heat generated by the refrigeration system. Use manufacturer-approved ducting and installation accessories, and follow the specified duct diameter and maximum allowable length. Keep the intake and discharge openings unobstructed, and ensure that warm condenser air is directed away from the area being cooled to prevent heat recirculation.

Portable Design and Flexible Installation

The Koldwave K9KK14BE features a portable, molded-cabinet design with caster wheels for movement between suitable commercial and industrial work areas. Its published dimensions are approximately 21 inches wide, 27 inches deep, and 41 inches high, with a net weight of approximately 179 pounds. The compact footprint supports deployment in equipment rooms, production areas, workplaces, and temporary cooling locations. The unit requires appropriate clearance around the air intake, condenser, and service panels, as well as a suitable arrangement for hot-air exhaust. Position the air conditioner on a stable, level surface and verify that the electrical supply, ventilation, and duct connections meet the manufacturer's installation requirements. Use appropriate handling procedures when moving the unit.

Condensate Management

The Koldwave K9KK14BE incorporates a condensate collection tank with a listed capacity of approximately 4 gallons (15 liters). During cooling operation, moisture condenses on the evaporator and collects in the tank. A full-tank safety switch helps protect the unit by responding when the condensate level reaches its limit. The tank must be monitored and emptied as required to maintain continued operation. An optional condensate pump kit is available for compatible configurations where pumped drainage is preferred. Follow the manufacturer's instructions for condensate removal, pump installation, and drainage routing, and inspect the tank and drainage components periodically for obstructions, leaks, or buildup.

Controls, Comfort and Electrical Connection

The Koldwave K9KK14BE features an electronic control panel with a temperature display, spot-cooling and room-cooling modes, fan-speed selection, and an off-timer. The self-diagnostic system displays operating conditions and fault indications to support troubleshooting. Protective functions include compressor overload protection, an anti-freezing thermistor, a high-pressure safety switch, and a compressor time-delay program. Automatic restart supports recovery after a power interruption when electrical power is restored. The unit requires a 115V, single-phase, 60Hz electrical supply and uses a NEMA 5-15P plug. Published specifications list rated current of 9.9 amps, power consumption of 1,100 watts, and a 14 AWG power cord measuring approximately 10 feet long. Use a properly grounded receptacle and verify that the electrical circuit complies with the manufacturer's requirements and applicable electrical codes.

Commercial and Industrial Applications

The Koldwave K9KK14BE is designed for supplemental cooling in commercial and industrial environments, including factories, workplaces, industrial kitchens, computer rooms, equipment areas, manufacturing workstations, outdoor events with suitable protection, and emergency cooling applications. Its 13,200 BTU/h cooling capacity supports localized heat loads where additional cooling is needed or a permanent HVAC installation is impractical. The combination of spot-cooling and room-cooling modes allows the unit to accommodate different temperature-control requirements, while its portable caster-wheel design supports deployment as operating conditions change. Application suitability depends on the heat load, ambient temperature, ventilation, and availability of an appropriate condenser exhaust arrangement.

Mobility and Deployment

The Koldwave K9KK14BE includes caster wheels to support relocation within suitable facilities. Its portable construction allows supplemental cooling to be deployed where required without permanent HVAC integration. With a listed net weight of approximately 179 pounds, the unit should be moved using safe handling practices and an appropriate route that accommodates its size and weight. Before relocation, turn off the unit, disconnect the electrical supply, and secure or disconnect the exhaust duct and condensate connections as required. After positioning, verify that the unit is stable, air passages are unobstructed, and the exhaust arrangement is installed correctly before restarting the system.

Service and Maintenance

The Koldwave K9KK14BE incorporates a self-diagnostic control system, serviceable air filters, and protective monitoring functions to support routine maintenance. Regularly inspect and clean the filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep condenser air passages clear of dust and obstructions, inspect the exhaust duct for secure connections, and periodically check the condensate tank and drainage components. Review displayed fault indications and follow the manufacturer's troubleshooting procedures when abnormal operation occurs. Before cleaning or servicing the unit, turn it off and disconnect the electrical supply. Refrigeration-system repairs and electrical servicing should be performed by qualified personnel.

Warranty

Koldwave's published warranty information for this product series specifies two years of parts-only coverage and three years of compressor coverage, subject to the manufacturer's applicable terms, conditions, and exclusions. Warranty eligibility and claim requirements may depend on the purchase date, installation, and applicable warranty documentation. Refer to the official Koldwave warranty information supplied with the K9KK14BE to confirm the coverage period, registration requirements, and service procedures.

Recommended Accessories

• KSA057-0072 Condensate Pump Kit – Optional 115V condensate pump kit for compatible configurations requiring pumped condensate removal; verify compatibility before ordering.
• KWPCREMOTEP Remote Controller – Optional remote control with a 26-foot connection cable for compatible Koldwave portable air conditioners; confirm compatibility with the K9KK14BE.
• KSA076-3635 Condenser Ducting Kit – Optional 12-inch condenser ducting kit with an 8-foot duct and ceiling panel for compatible installations.
• KSA076-4004 Return-Air Plenum – Optional return-air plenum for compatible ducted installation configurations.
• KWPCFLT-05EP Evaporator Filter – Replacement aluminum evaporator filter for compatible Koldwave models, including the 9KK14 series.
• KWPCFLT-06CM Condenser Filter – Replacement aluminum condenser filter specified for compatible 9KK14 configurations.
• Hot-Air Exhaust Ducting and Connection Accessories – Compatible ducting components for directing warm condenser air away from the conditioned space; verify the required diameter and installation arrangement against the manufacturer's documentation.

Targeted Portable Cooling with the Koldwave K9KK14BE

Experience flexible supplemental cooling with the Koldwave K9KK14BE portable air conditioner. Combining 13,200 BTU/h of cooling capacity with spot-cooling and room-cooling modes, two cold-air outlets, multi-speed fan operation, condensate collection, and self-diagnostic controls, this portable air-conditioning system provides targeted temperature control for commercial workspaces, computer rooms, industrial kitchens, manufacturing facilities, and temporary cooling requirements.
