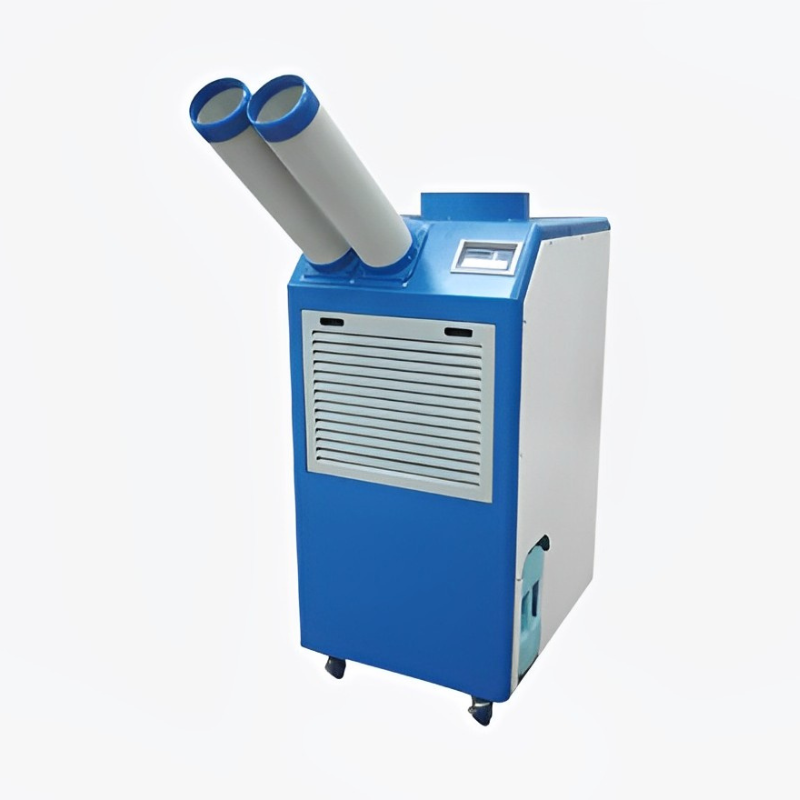

Koldwave 1 Ton 13,200 Cooling BTU / 14,300 BTU Air-Cooled Portable Heat Pump | 115V - R32

Compact 13,200 BTU Cooling & 14,300 BTU Heating Portable Heat Pump for Commercial & Industrial Spot Conditioning

The Koldwave K9HP13BE is a portable heat pump designed to provide 13,200 BTU/h of cooling and 14,300 BTU/h of heating for commercial and industrial spot-conditioning applications. Combining reversible heat pump technology with portable construction, thermostatic controls, and multi-speed airflow, this self-contained system provides supplemental temperature control for workstations, telecommunications rooms, industrial facilities, and other areas where conditioning an entire building is impractical. Its compact cabinet, caster wheels, 12-inch exhaust connection, and 115V single-phase electrical configuration support flexible deployment in suitable indoor environments.

Key Benefits

• Heating & Cooling Performance – Provides 13,200 BTU/h of cooling and 14,300 BTU/h of heating capacity for localized temperature control.
• Reversible Heat Pump Technology – Provides heating and cooling from one portable system, reducing the need for separate seasonal conditioning equipment.
• Portable Mobility – Heavy-duty twin-wheel casters support positioning and relocation between suitable work areas.
• Adjustable Airflow – Multi-speed fan control and two directional nozzles support flexible conditioned-air distribution.
• Flexible Installation – A self-contained design and 12-inch hot-air exhaust connection support temporary spot-conditioning applications without permanent HVAC installation.
• Condensate Management – An internal condensate collection system helps manage moisture generated during operation; an optional condensate pump kit is available for compatible installations.
• Thermostatic Controls & Electrical Connection – Temperature control, multiple fan speeds, and a 115V single-phase power connection support convenient operation.
• Service & Maintenance – Washable air filters and self-diagnostic functions support routine maintenance and troubleshooting.

14,300 BTU Heating Performance for Supplemental Temperature Control

The Koldwave K9HP13BE provides 14,300 BTU/h of heating capacity to help maintain comfortable temperatures in suitable commercial and industrial environments. Its heat pump system delivers supplemental warmth for localized work areas, equipment spaces, and temporary workstations. Thermostatic control allows the unit to regulate operation according to the selected temperature setting. Actual heating performance depends on ambient conditions, installation configuration, and the thermal load of the conditioned space. Operate the unit within the manufacturer's specified temperature range and follow the applicable installation and operating instructions.

13,200 BTU Cooling Performance for Commercial & Industrial Spaces

The Koldwave K9HP13BE provides 13,200 BTU/h of cooling capacity for spot cooling and supplemental room conditioning. Its approximately one-ton cooling capacity is suitable for localized cooling applications where conditioning an entire building or large facility is impractical. The manufacturer lists an approximate cooling area of 376 square feet under suitable conditions. Actual coverage varies with room configuration, insulation, ambient temperature, equipment heat loads, ventilation, and exhaust duct arrangement. Proper exhaust routing and unobstructed air inlets and outlets are essential for maintaining cooling performance.

Reversible Heat Pump Technology with R-32 Refrigerant

The Koldwave K9HP13BE uses heat pump technology to provide both heating and cooling from a single portable system. In cooling mode, the refrigeration cycle removes heat from the conditioned space and transfers it to the exhaust air. In heating mode, the cycle reverses to deliver warm air. The unit uses R-32 refrigerant, supporting an integrated heating and cooling solution without requiring separate portable equipment for each function. Refrigerant servicing must be performed by qualified personnel using procedures and equipment appropriate for R-32.

Airflow & Distribution for Targeted Conditioning

The Koldwave K9HP13BE features thermostatically controlled airflow with multiple selectable fan speeds and an automatic fan-speed option. Two directional nozzles allow conditioned air to be directed toward the target area, supporting spot cooling and heating at workstations and equipment locations. A 12-inch hot-air exhaust connection directs heat away from the unit during cooling operation. Proper exhaust duct routing, adequate clearances, and unobstructed airflow are essential for maintaining efficient operation. Follow the manufacturer's instructions for exhaust duct installation and maximum permitted duct length.

Portable Design for Flexible Installation & Deployment

The self-contained Koldwave K9HP13BE is designed for portable deployment in suitable indoor commercial and industrial environments. Published product dimensions are approximately 21 inches wide by 26 inches deep by 41 inches high, with a net weight of approximately 185 lb. Heavy-duty twin-wheel casters support movement and positioning between work areas. The 12-inch exhaust connection allows hot air to be discharged through the designated duct arrangement during cooling operation. Place the unit on a stable, level surface, maintain the manufacturer's required clearances, and route the exhaust duct according to the installation instructions. Due to the unit's weight, relocation should be performed using appropriate handling procedures.

Condensate Management for Moisture Control

The Koldwave K9HP13BE manages moisture produced during cooling and dehumidifying operation through its condensate collection arrangement. An optional condensate pump kit with overflow protection is available for compatible installations requiring an alternative condensate-removal method. Follow the manufacturer's instructions for condensate handling, drainage connections, and optional pump installation. Inspect the condensate system regularly to help prevent overflow and maintain reliable operation.

Thermostatic Controls, Comfort Settings & Electrical Connection

The Koldwave K9HP13BE incorporates thermostatic controls for temperature regulation and multi-speed fan operation. The control system supports spot-conditioning and room-conditioning applications, while the off-timer and self-diagnostic functions provide additional operating convenience. The unit operates on a 115V, 60Hz, single-phase electrical supply and uses a NEMA 5-15P plug. Connect the unit to a properly grounded receptacle with the required electrical rating. Confirm the exact equipment nameplate, circuit requirements, and manufacturer's installation documentation before connecting the unit. Electrical installation must comply with applicable codes.

Commercial & Industrial Applications for Supplemental HVAC

The Koldwave K9HP13BE is designed for spot heating and cooling in commercial and industrial environments where permanent HVAC installation is impractical or conditioning an entire area is unnecessary. Potential applications include telecommunications rooms, data centers, industrial workstations, workshops, production facilities, and other localized work areas requiring supplemental temperature control. Its heating and cooling capabilities, portable construction, and directional air delivery support temporary conditioning where heat-generating equipment or localized occupancy creates additional thermal loads. Evaluate the space heat load, ambient conditions, electrical supply, exhaust routing, and required operating temperatures before deployment.

Mobility & Flexible Deployment Between Work Areas

The Koldwave K9HP13BE incorporates heavy-duty twin-wheel casters to support movement between suitable work areas. Its compact cabinet allows positioning near the target zone while the exhaust duct routes hot air away from the unit during cooling operation. Because the equipment weighs approximately 185 lb, use appropriate handling procedures when relocating it. Follow the manufacturer's transportation and setup instructions before restarting the unit after movement.

Service & Maintenance for Reliable Operation

The Koldwave K9HP13BE includes washable air filters to help maintain airflow and protect internal components from accumulated dust and debris. Inspect and clean the filters at the intervals specified by the manufacturer, and ensure that all filters are completely dry before reinstalling them. Keep air inlets, outlets, and the exhaust duct unobstructed. The self-diagnostic function supports troubleshooting of certain operating faults. Inspect the condensate collection arrangement regularly, and maintain any optional condensate pump according to its instructions. Refrigeration-system servicing and electrical repairs must be performed by qualified service personnel.

Warranty

The Koldwave K9HP13BE is subject to the manufacturer's applicable written warranty terms. Confirm the warranty period, coverage, exclusions, proof-of-purchase requirements, and service procedures in the warranty documentation supplied with the purchased unit.

Recommended Accessories

• 12-Inch Hot-Air Exhaust Duct – Compatible ducting for exhaust-air discharge; verify the required length and connection configuration.
• Optional Condensate Pump Kit – Manufacturer-listed accessory with overflow protection for compatible condensate-removal installations.
• Replacement Washable Air Filters – Compatible replacement filters for routine maintenance when required.
• Compatible Exhaust Duct Accessories – Verify duct dimensions and accessory compatibility against the manufacturer's installation documentation before ordering.

Flexible Year-Round Temperature Control with the Koldwave K9HP13BE

Experience flexible spot heating and cooling with the Koldwave K9HP13BE portable heat pump. Combining 13,200 BTU/h of cooling capacity and 14,300 BTU/h of heating capacity with reversible heat pump technology, directional airflow, portable mobility, and thermostatic controls, this self-contained system provides supplemental temperature management for commercial and industrial work areas.

No Return Policy

All KoldWave commercial unit sales are final and are non-refundable.
