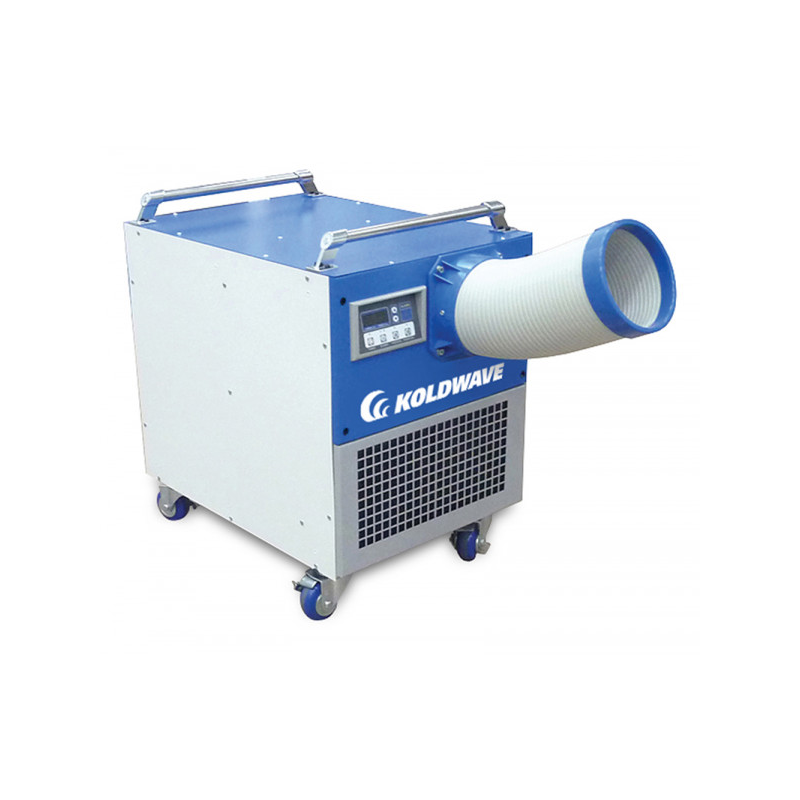

Koldwave 1 Ton 10,000 BTU Portable Air Conditioner Air-Cooled | 115V - R32

Efficient 1 Ton Portable Air Conditioner with 10,000 BTU/h Cooling Capacity for Commercial and Industrial Spot Cooling – Koldwave K8CC10BE

The Koldwave K8CC10BE is a 10,000 BTU/h air-cooled portable air conditioner designed to provide targeted cooling for commercial, industrial, and temporary cooling applications. Combining a compact refrigeration system, spot-cooling and room-cooling thermostat settings, adjustable fan operation, and an integrated condensate pump, this self-contained cooling unit provides supplemental temperature control without requiring a permanent HVAC installation. Its modular design supports flexible installation configurations, making it suitable for workplaces, computer rooms, industrial kitchens, equipment areas, and emergency cooling applications. The K8CC10BE is supplied without casters or a directional cooling nozzle, allowing compatible optional accessories to be selected according to the intended installation.

Key Benefits

• 10,000 BTU/h Cooling Capacity – Provides approximately 1 ton of supplemental cooling for small commercial spaces and localized heat loads.
• Spot and Room Cooling Modes – Supports targeted cooling for employees or equipment and temperature control based on room conditions.
• Adjustable Fan Speeds – Provides high- and low-speed airflow settings to accommodate changing cooling requirements.
• Modular Installation Design – Supports compatible optional accessories for different air-distribution and installation arrangements.
• Integrated Condensate Pump – Automatically removes collected condensate to reduce the need for manual water-tank emptying.
• Standard 115V Electrical Connection – Operates on a single-phase, 60Hz power supply with a NEMA 5-15P plug.
• Self-Diagnostic Controls – Displays operating modes, temperatures, and fault indications to support troubleshooting.
• Washable Air Filters – Supports routine maintenance and helps maintain airflow through the refrigeration system.

Cooling Performance and Energy Efficiency

The Koldwave K8CC10BE delivers 10,000 BTU/h of rated cooling capacity for supplemental cooling in commercial and industrial environments. Its air-cooled refrigeration system uses R-32 refrigerant and provides an energy efficiency ratio (EER) of 10.5 BTU/Wh. The unit consumes approximately 950 watts and draws a rated current of 8.49 amps. Its specified ambient operating range is 64°F to 113°F. In room-cooling mode, the thermostat setting range is 64°F to 86°F, while spot-cooling mode supports settings from 32°F to 86°F. The manufacturer lists an approximate room-cooling application area of 256 square feet; actual performance depends on the heat load, ambient conditions, ventilation, and installation configuration.

Spot Cooling and Targeted Temperature Control

The Koldwave K8CC10BE features spot-cooling and room-cooling thermostat settings to accommodate different application requirements. Spot-cooling mode is designed to provide localized cooling for employees, equipment, and designated work areas, while room-cooling mode regulates operation according to the temperature of the air returning to the unit. An optional directional nozzle can be used to direct cooled air toward a specific location. This flexibility makes the unit suitable for computer rooms, industrial workstations, production areas, and other environments where cooling an entire building is impractical. When operating in an enclosed room, warm condenser air must be exhausted outside the conditioned space to prevent heat buildup and maintain effective cooling performance.

Airflow and Distribution

The Koldwave K8CC10BE provides indoor airflow rated at 320 CFM on high speed and 220 CFM on low speed. Its multi-speed fan allows users to select an airflow setting appropriate for the cooling application. The unit features a 6-inch hot-air exhaust duct connection with a maximum specified duct length of 10 feet. An optional directional nozzle can be used for targeted supply-air delivery, while other compatible accessories can support alternative installation configurations. Follow the manufacturer's duct-routing and clearance requirements to maintain airflow, prevent exhaust recirculation, and support reliable cooling performance.

Portable and Flexible Installation

The Koldwave K8CC10BE features a compact, modular design intended for flexible installation in commercial and industrial environments. Its published dimensions are approximately 17.25 inches wide, 24 inches deep, and 20.5 inches high, with a listed net weight of approximately 119 pounds. The base model does not include caster wheels or a directional nozzle. An optional portable kit is available with four casters, handles, and a nozzle to support relocation and targeted cooling. The unit can also accommodate compatible installation accessories for alternative configurations. Position the air conditioner on a stable surface, maintain appropriate clearances around the air intake and exhaust, and route the hot-air duct according to the manufacturer's installation instructions.

Condensate Management

The Koldwave K8CC10BE includes a built-in condensate pump to remove moisture collected during cooling operation. As warm air passes over the evaporator, moisture condenses and must be discharged through the drainage system. The integrated pump supports automatic condensate removal, reducing the need for manual tank emptying. Ensure that the condensate discharge line is installed according to the manufacturer's instructions and that the hose remains free of kinks and obstructions. Inspect the drainage arrangement periodically for leaks or blockages to support reliable operation.

Controls, Comfort and Electrical Connection

The Koldwave K8CC10BE incorporates an electronic control panel with temperature display, spot-cooling and room-cooling modes, fan-speed selection, and an off-timer. Its self-diagnostic system displays operating conditions and fault indications to assist with troubleshooting. Additional protective functions include compressor overload protection, an anti-freezing thermistor, a high-pressure switch, and a compressor time-delay program. Automatic restart allows the unit to resume operation after a power interruption when electrical power is restored. The unit requires a 115V, 60Hz, single-phase electrical supply and uses a NEMA 5-15P plug. Its rated current is 8.49 amps, power consumption is 950 watts, and power cord specification is 14 AWG with a 10-foot length. Use a properly grounded receptacle and verify that the electrical circuit meets the manufacturer's requirements and applicable electrical codes.

Commercial and Industrial Applications

The Koldwave K8CC10BE is designed for supplemental cooling in commercial and industrial environments, including workplaces, computer rooms, industrial kitchens, equipment areas, production workstations, and emergency cooling applications. Its 10,000 BTU/h cooling capacity and compact dimensions make it suitable for localized cooling where a permanent HVAC installation is impractical or additional cooling is needed temporarily. The spot-cooling and room-cooling modes allow the unit to accommodate different cooling requirements, while its modular design provides flexibility when selecting compatible accessories for the installation.

Mobility and Deployment

The Koldwave K8CC10BE is designed for flexible deployment, with optional accessories available to support movement between suitable work areas. The base model does not include caster wheels or handles, so the optional portable kit should be considered when relocation is required. The unit weighs approximately 119 pounds, and appropriate handling procedures should be used during transportation and installation. Before moving the unit, switch it off, disconnect the electrical supply, and secure or disconnect the exhaust duct and condensate line as required. Once positioned, verify that the unit is stable, the air intake is unobstructed, and the exhaust and drainage connections are properly installed.

Service and Maintenance

The Koldwave K8CC10BE features washable air filters and a self-diagnostic control system to support routine maintenance and troubleshooting. Regularly inspect and clean the filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep the condenser air passages free of dust and obstructions, inspect the exhaust duct for secure connections, and periodically check the condensate pump and discharge line. Before cleaning or servicing the unit, turn it off and disconnect the electrical supply. Follow the manufacturer's maintenance schedule and refer refrigeration-system or electrical repairs to qualified service personnel.

Warranty

Koldwave provides a limited manufacturer warranty subject to the applicable terms, conditions, and exclusions. The published product warranty information for this model series specifies two years of parts-only coverage and three years of compressor coverage. Confirm the applicable warranty terms, registration requirements, and coverage start date using the official warranty documentation supplied with the K8CC10BE.

Recommended Accessories

• KSA076-4013 Portable Kit – Includes four caster wheels, handles, and a directional nozzle to support portability and targeted cooling.
• KSA076-4012 Server Rack Kit – Includes a diffuser and rack attachment for compatible server-rack cooling installations.
• KSA076-4014 Stack Kit – Provides a bracket attachment for compatible stacking configurations.
• KSA076-4015 Hanging Kit – Includes evaporator and condenser air outlet components for compatible suspended installations.

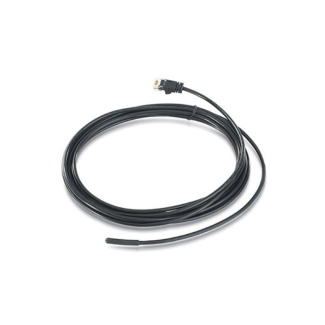

• KSA076-4007 Remote Temperature Sensor – Provides a 16-foot remote temperature-sensing option for compatible configurations.
• K81.0200.34 Exhaust Flange – Provides a compatible 6-inch exhaust duct connection.
• KWPCFLT-06E Evaporator Filter – Replacement filter for the evaporator air intake.
• KWPCFLT-07C Aluminum Condenser Filter – Replacement condenser filter for routine maintenance.

Compact, Targeted Cooling with the Koldwave K8CC10BE

Experience flexible supplemental cooling with the Koldwave K8CC10BE portable air conditioner. Combining 10,000 BTU/h of cooling capacity with spot-cooling and room-cooling modes, adjustable fan speeds, an integrated condensate pump, and modular accessory options, this compact air-conditioning system provides targeted temperature control for commercial workspaces, computer rooms, industrial applications, and temporary cooling requirements.

No Return Policy

All KoldWave commercial unit sales are final and are non-refundable.
