LG 60,000 BTU Multi F Multi Zone Mini Split Heat Pump Condenser - R32 | 230V

SAVE $1,212.00
In Stock - Ready to Ship
Free Shipping
By

LG

In stock
Model

KUMXB601A

ID

226319

Was $6,059.00 Your Low Price Special Price $4,847.00

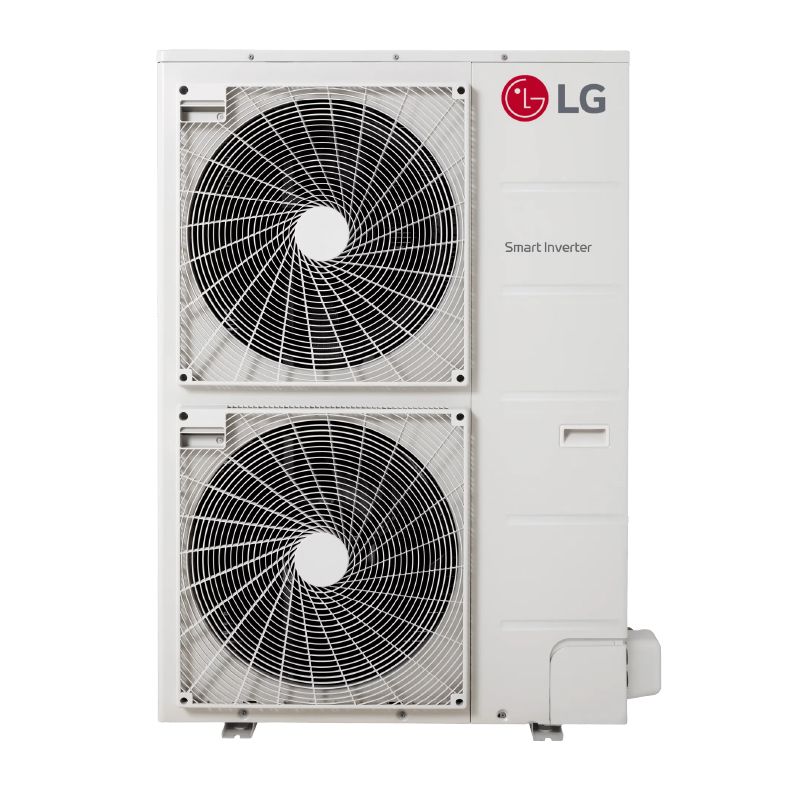

60,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V

This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 2100-2600sq ft.

Key Features

  • High-efficiency inverter-driven performance
  • 60,000 BTU capacity for single-zone systems
  • Compact outdoor design for flexible placement
  • Engineered for quiet outdoor operation
  • Pairs with compatible Carrier Infinity air handlers

Warranty

LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

More Information
LG 60,000 BTU Multi F Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
FeatureSpec
SKUKUMXB601A
Weight (in lbs)218.3
AHRI Certificate Number215402343
Brand/ManufacturerLG
UPC195174087220
Cooling BTU56,000
Heating BTU64,000
Maximum CFM2119
Decibel Level (dBA)58
Energy StarYes
RefrigerantR32
HSPF210
SEER2 (Efficiency)20.5
EER212
Compressor TypeScroll
Liquid Line3/8"
Suction Line3/4"
Electrical230V | 1 Phase | 60Hz
Max Breaker Size40 Amps
Min. Breaker Size33.3 Amps
BTU/Tonnage60,000 BTU/5 Ton
Min/Max Outdoor Temp for Heating‐4 to +64 F
Min/Max Outdoor Temp for Cooling14 to 118 F
Zone CompatibilityMulti Zone
Height54.344"
Width37.406"
Depth13"
WarrantyLG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
