LG - PREMTBB11 - Standard III Wired Remote Controller

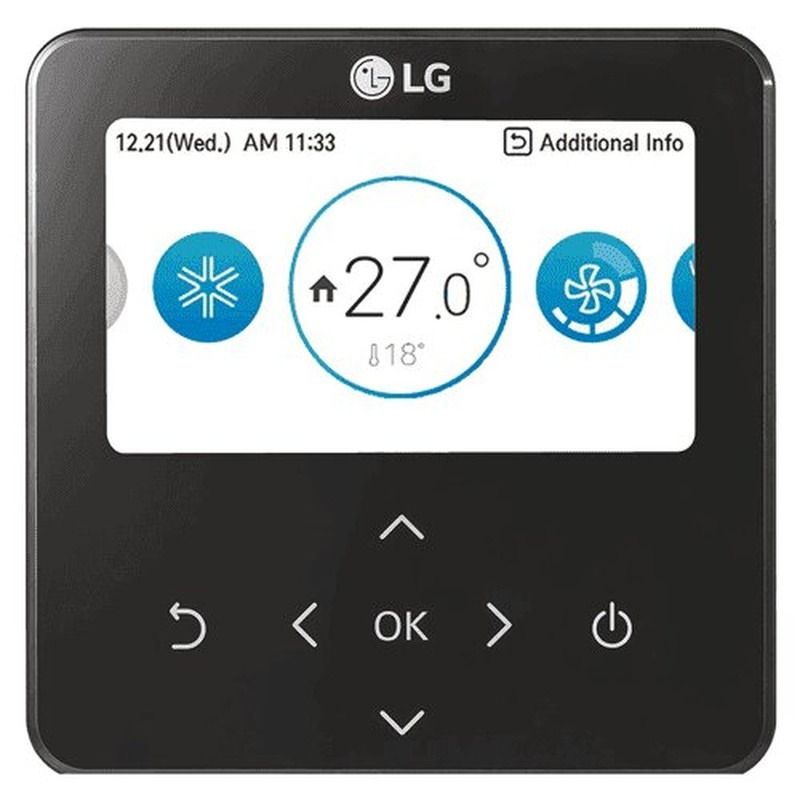

LG PREMTBB11 Standard III Black Wired Remote Controller

The LG PREMTBB11 Standard III Black Wired Remote Controller provides control and monitoring functions for compatible LG HVAC systems. It features a 4-5/16-inch color display, touch-button operation, room temperature and humidity sensing, and scheduling capabilities.

Features:

• 4-5/16-inch color display with touch-button operation
• Time display and operation status LED
• Room temperature and humidity sensing and display
• On/off operation control
• Operating modes: Auto, Cool, Dry, Heat, and Fan Only
• Ventilation mode for compatible ventilator units
• Occupied and unoccupied heating and cooling temperature setpoints
• Fan speeds: Auto, Low, Medium, and High
• Air quality monitoring
• AI Smart Care
• Controller lock function
• Static pressure installer setting
• Error-code display and automatic restart after power failure
• Time-of-day scheduling with up to five events per day
• Two-setpoint automatic changeover for compatible heat recovery systems
• Adjustable setpoint deadband from 0 to 10 degrees
• Home Leave function for temporary unoccupied periods
• External equipment control through one digital output
• Time limit control from 30 to 540 minutes
• AP mode setting for LG Wi-Fi modem installation
• Server room application

Specifications:

• Brand: LG
• Model: PREMTBB11
• Controller type: Standard III wired remote controller
• Display: 4-5/16-inch color display
• Dimensions: 4-3/4" W × 4-3/4" H × 5/8" D
• Power supply: 12 V DC from the indoor unit
• Communication: One-channel LG V-Net
• Maximum communication cable length: 164 feet
• Maximum controllers per indoor unit: 2
• Operating temperature: 32°F to 104°F
• Storage temperature: -4°F to 140°F
• Operating humidity: 0% to 90% RH

Connectivity:

LG ThinQ connectivity requires the optional PWFMDD200 Wi-Fi modem or an indoor unit with built-in Wi-Fi capability. Energy target display requires a compatible centralized controller (AC Smart or ACP Series) and Premium PDI.

Note: Available functions and features may vary depending on the connected system. Follow the applicable LG installation instructions for compatibility and installation requirements.
