Today's Hours 8am - 11pm estMacroAir AVD370 8 FT HVLS Ceiling Fan Covers 2,400 sq ft 110-120 Volts 1 Phase
By
MacroAir
In stock
Model
AVD370-8
ID
134870
$4,595.00
Product Features
- Propeller Diameter: 8 Ft
- Drive Type: Direct Drive
- Electrical: 110-120V 1 Phase
- CFM: 38,000 CFM
- Included: 2 Ft. Drop tube, 50 ft CAT5e cable, 25 ft motor cable, Safety Cable Kit, Digital wall controller
- Material: Anodized Aluminum
- Application: Gym/Fitness, Restaurant/Hospitality, Commercial/Public Spaces
High-Volume HVLS Fan Delivering Powerful Airflow with Quiet, Energy-Efficient Performance

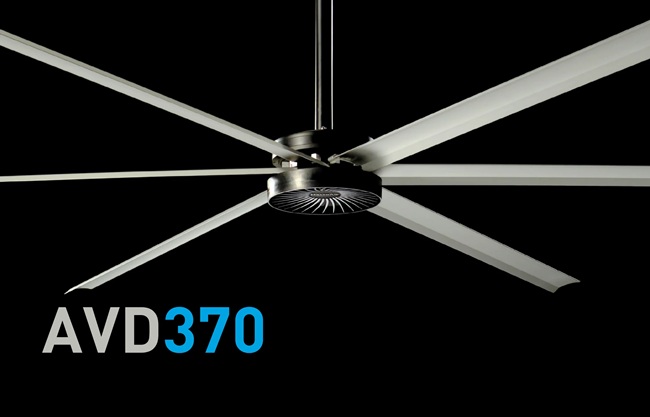

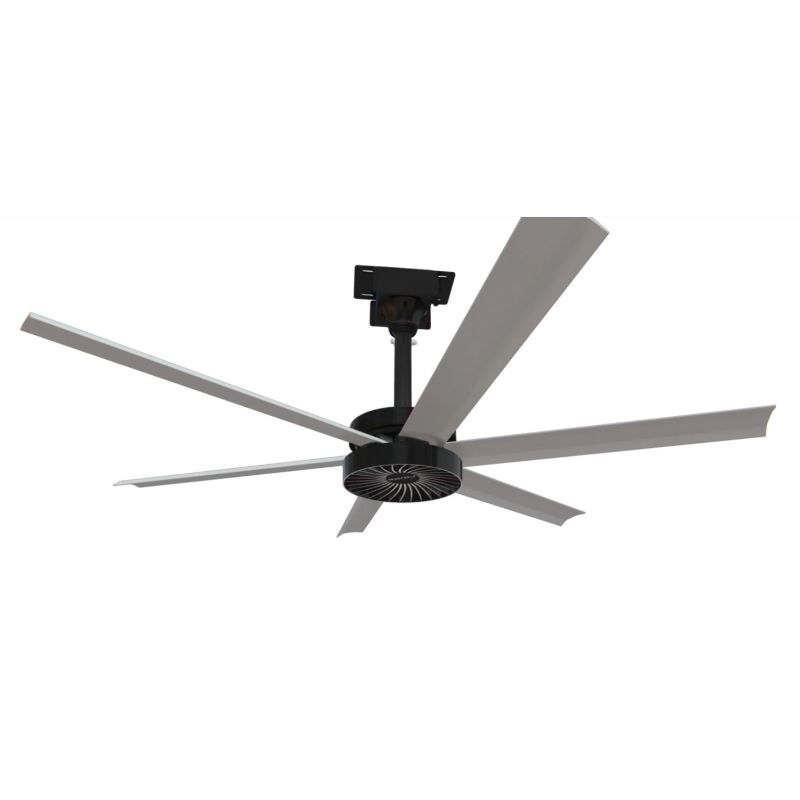

Create a comfortable environment in your industrial facility with the MacroAir AVD370 8 FT HVLS Fan with an 8-foot diameter. It operates at 140 RPM, powered by a 110-120V operating voltage and a 3/4 HP motor. This high-volume, low-speed fan provides a consistent airflow for optimal cooling and ventilation, making it suitable for spaces with high ceilings.
This Industrial HVLS Fan covers an area up to 2,400 square feet.
MacroAir AVD370 HVLS Fan Features & Benefits
- HVLS Technology: High Volume Low Speed (HVLS) technology for efficient and effective air movement.
- 8-Foot Diameter: Suitable for coverage of small to medium-sized spaces such as workshops, retail spaces, classrooms, restaurants, cafes, small offices, and fitness studios.
- 140 RPM Operation: Provides effective air movement with a 110-120V voltage range for easy installation.
- 3/4 HP Motor: Provides reliable performance and an energy-efficient design for cost savings on energy bills.
- Low-Noise Operation: Provides quiet performance with minimal disruption to the work environment.
- Durable Construction: Built for long-lasting performance.
- Flexible Control Options: Available with a range of control options to meet different needs, including a variable frequency drive for precise speed control.
What's Included
Each MacroAir AVD370 HVLS fan package includes the fan, a 2 ft. drop tube for installation, a 50 ft. CAT5e cable for controller connectivity, a 25 ft. motor cable for connection between the fan and controller, a safety cable kit for added protection, and a digital wall controller for fan operation.
Safety Features
- Required Safety Cable: Every MacroAir AVD 370 fan must have the supplied safety cable properly installed. The fan should never be operated without the safety cable, and it must be installed for the warranty to be in effect.
- Secure Structural Mounting: The fan must be mounted to a suitable building structure capable of supporting approximately twice the stated hanging weight of the fan. The manual specifies I-beam, Glulam, or similar suitable structures and recommends consulting a structural engineer for mounting methods not covered in the manual.
- Guy Wire Stabilization: Guy wires are required when using the Universal Mount (UMH). They help stabilize the fan during earthquake conditions and outdoor installations where high-wind conditions may occur.
- Required Fan Clearance: Fan airfoils must be at least 10 feet above the floor and at least 3 feet from any area where a person could reach them. The minimum distance from a wall or similar obstruction should be at least 1.5 times the fan diameter.
- Electrical Safety Compliance: Installation, adjustment, repair, and maintenance must be performed by qualified personnel in accordance with the NEC and applicable local codes. Wiring between the control panel and fan must use MacroAir-supplied shielded cable.
- Power-Off Servicing: Remove all power to the fan before servicing or troubleshooting, install all covers before applying power, and keep all body parts clear of moving parts during operation.
Warranty Information
MacroAir provides a limited warranty for the AirVolution-D 370 against defects in materials and workmanship under normal use and prescribed maintenance. The AVD370 is backed by a 10-year warranty for mechanical components (blades, hub, and frame), a 5-year warranty for standard electrical components (motor, electrical controls, and remote), and a 1-year labor warranty.
Warranty coverage applies to products installed in accordance with MacroAir's written installation instructions by a state-qualified or licensed electrical contractor and operated and maintained according to MacroAir's instructions. The product must also be purchased directly from MacroAir or a MacroAir Authorized Dealer. Additional terms, conditions, exclusions, and limitations apply.
For complete warranty coverage, terms, conditions, exclusions, and claim procedures, please refer to the MacroAir AirVolution-D 370 Warranty.

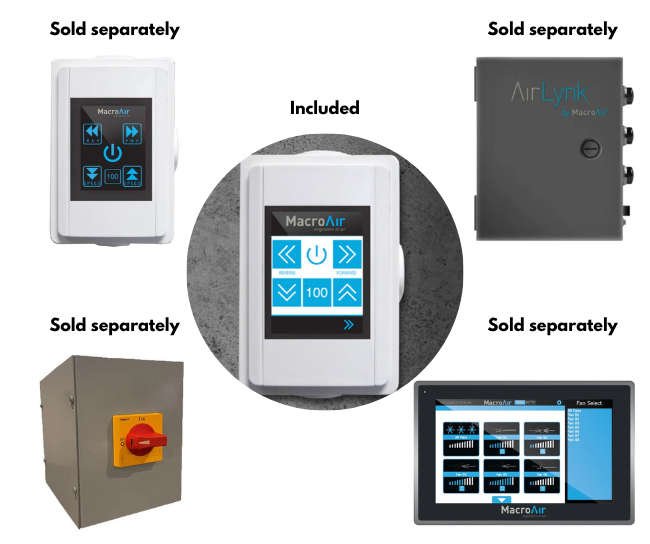

Fan Controller Features:
- On/Off Control via Digital Wall Controller: Easily power the fan on or off using the dedicated digital controller for simple and reliable operation.
- Precise Variable Speed Control: Adjust fan speed through the digital interface, allowing accurate airflow control to match changing comfort and ventilation needs.
- Reversible Airflow Function: Change the direction of airflow directly from the controller, supporting both cooling in warmer conditions and air circulation in cooler seasons.
- Built-In Diagnostics with Fault Code Access: Monitor system performance and quickly identify issues using the controller’s fault code display for easier troubleshooting and maintenance.
Engineered for Maximum Durability
The AVD370 HVLS Fan is built with aerodynamic anodized aluminum blades and a precision-balanced steel hub, ensuring maximum durability and smooth performance. Its direct-drive motor eliminates the need for belts or gears, reducing maintenance while offering whisper-quiet operation. With a sleek design and corrosion-resistant finish, this fan is built to withstand long-term use in demanding commercial, agricultural, and industrial applications.
Engineered with the same advanced HVLS (High Volume, Low Speed) technology as larger MacroAir models, the AVD370 delivers efficient, quiet, and powerful airflow while maintaining a compact size. The AVD370 combines innovation and efficiency to create a cooler, healthier, and more productive environment.

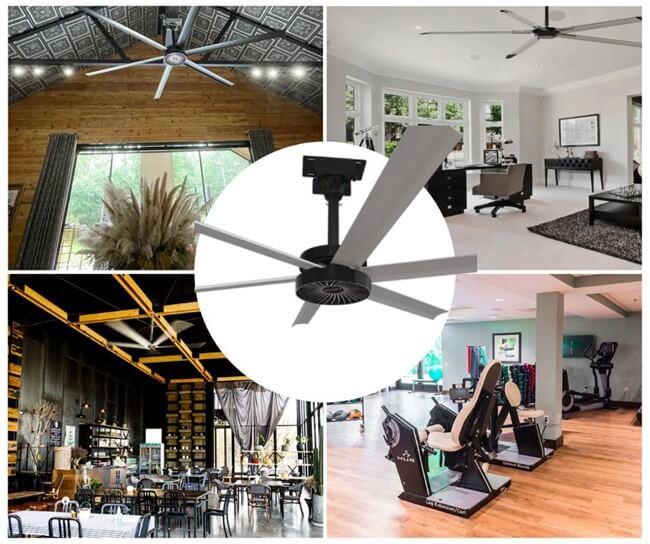

Suitable Applications for MacroAir AVD370 HVLS Fan
- Gymnasiums and fitness centers: Maintain continuous, quiet airflow to keep guests comfortable during workouts and activities.
- Restaurants and dining areas: Provide effective air circulation while preserving a peaceful, welcoming atmosphere.
- Retail showrooms and commercial lobbies: Combine modern aesthetics with powerful, efficient air movement for a pleasant customer experience.
- Workshops, service bays, and automotive facilities: Replace multiple small fans with one high-capacity unit for better coverage and performance.
- Educational facilities, auditoriums, and community centers: Ensure consistent airflow in large spaces with high ceilings and changing occupancy levels.
- Large residential living spaces or multipurpose halls: Add a statement piece that delivers both impressive airflow and visual appeal.
