Midea Inverter Terminal Board - 24 Volt Communication Board

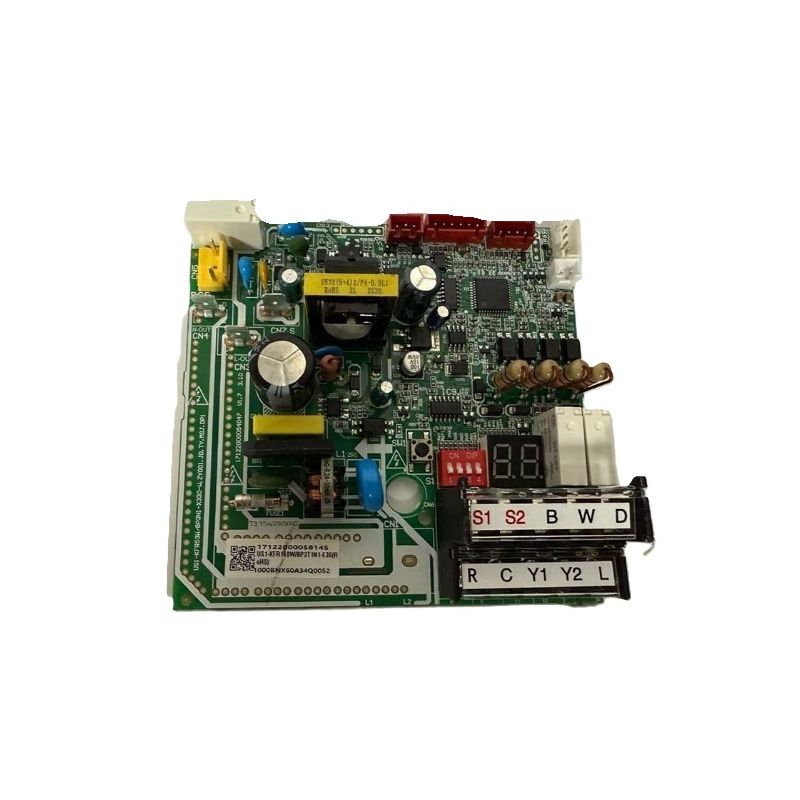

Midea OEM Outdoor Inverter Module – 17122000056145

This genuine OEM power-electronics assembly controls inverter output to the compressor and interfaces with the condenser's low-voltage communication system. High-voltage diagnosis and installation should be performed by a qualified HVAC technician.

Product Details

• Manufacturer: Midea
• Part Type: Outdoor inverter-module subassembly

Compatible ACiQ Models

• ACIQ-36-HPB
• ACIQ-36-HPC
• ACIQ-48-HPB

Compatible Blueridge Models

• BMAH3618C
• BMAH4816C
• BMAH6016C

Compatible Carrier Models

• 38MURAQ36
• 38MURAQ48
• 38MURAQ60

Compatible MRCOOL Models

• CENTRAL-36-HP-C-230A00
• CENTRAL-48-HP-C-230A00
• CENTRAL-60-HP-C-230A00

Additional Documented Models

• ComfortStar CPH36CDO

Before Ordering

Match the complete indoor-unit model and original part number before ordering. Filters and grille assemblies that look similar may have different dimensions, frames, tabs, or mounting points. Contact us with the model and serial number if your equipment is not listed.
