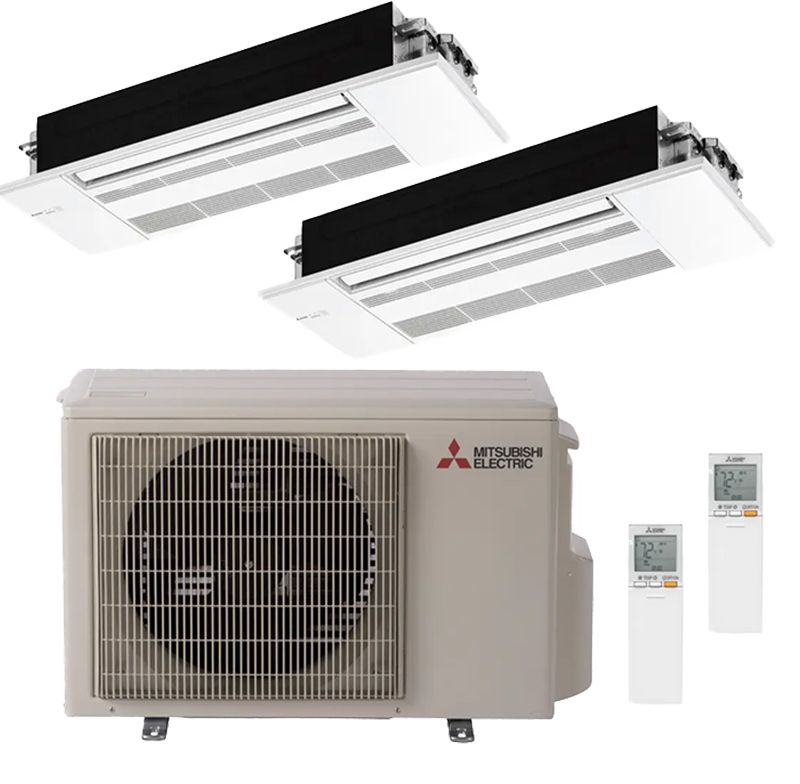

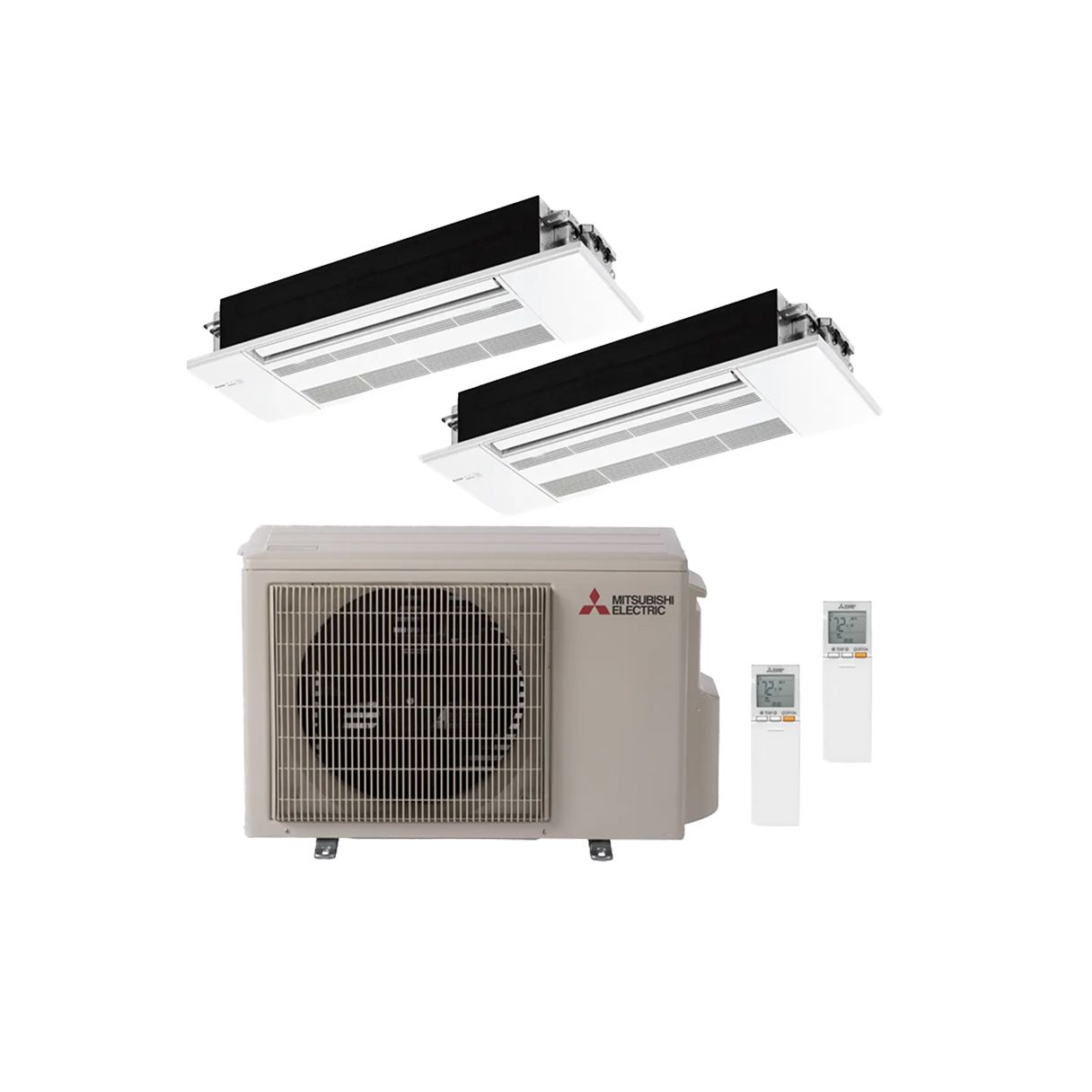

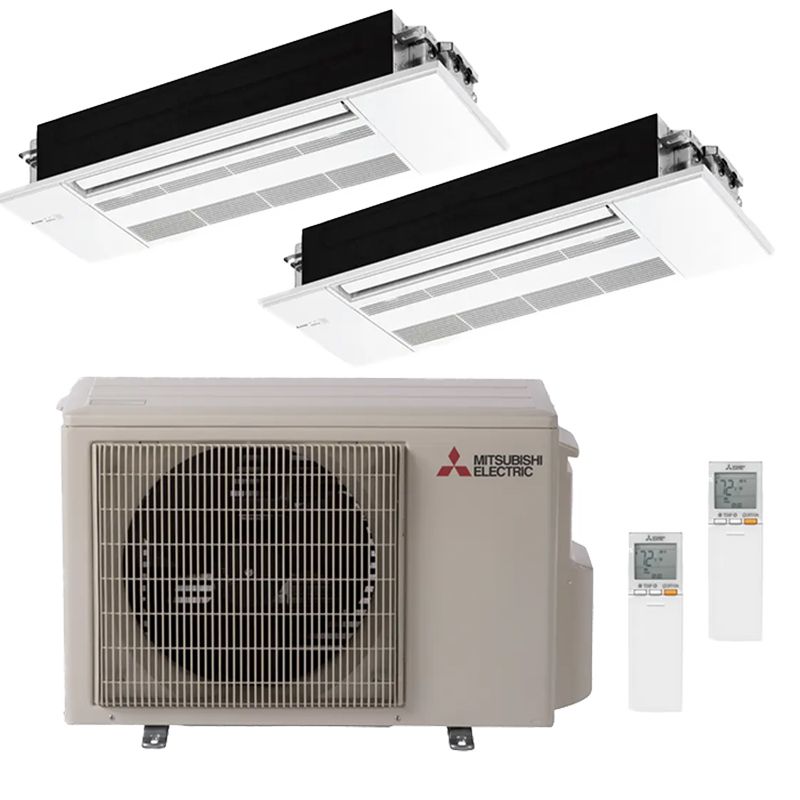

20,000 BTU 20 SEER Mitsubishi Dual Zone Mini Split Heat Pump System 12+12-R410A

Mitsubishi 20,000 BTU 20 SEER Dual Zone Heat Pump System 12+12 - MXZ-2C20NA2 / 2-MLZ-KP12NA
Mitsubishi 20,000 BTU 20 SEER Dual Zone Heat Pump System 12+12 - MXZ-2C20NA2 / 2-MLZ-KP12NA MLZ-KP12NA MLZ-KP12NA 87762 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MXZ-2C20NA2 MXZ-2C20NA2 MXZ-2C20NA2 MLP-444W 201813 366390 216740 366395 366396 MXZ-2C20NA2 MXZ-2C20NA2 MXZ-2C20NA2
20,000 BTU 20 SEER Mitsubishi Dual Zone Mini Split Heat Pump System 12+12-R410A

Required Fields *

By

Mitsubishi

In stock

Model

MXZ-2C20NA2 / 2-MLZ-KP12NA

ID

36969

Rating:
95% of 100
See 4  Reviews Add Your Review
In Stock - 73 Ready to Ship
Was $6,974.86
Your Low Price $4,514.87

Free Shipping
  • Delivers Maximum Performance at an Affordable Price
  • Heating & Cooling
  • Ductless Solution for two 400-600 sq ft Rooms/Zones
  • Includes Wireless Remote Control
  • 10-Year Warranty with Online Registration
  • Dual-Zone/Room Compatible
Customize 20,000 BTU 20 SEER Mitsubishi Dual Zone Mini Split Heat Pump System 12+12-R410A
22,000 BTU Multi Zone Condenser
22,000 BTU Multi Zone Condenser
22,000 BTU Multi Zone Condenser   + $2,199.99
12,000 BTU Slim Ceiling Cassette
12,000 BTU Slim Ceiling Cassette
12,000 BTU Slim Ceiling Cassette   + $950.00
12,000 BTU Slim Ceiling Cassette
12,000 BTU Slim Ceiling Cassette
12,000 BTU Slim Ceiling Cassette   + $950.00
Mitsubishi MLP-444W Grille for MLZ-KP Cassettes
Mitsubishi MLP-444W Grille for MLZ-KP Cassettes
Mitsubishi MLP-444W Grille for MLZ-KP Cassettes   + $207.44
Condenser Risers - 4" x 18" - 2 Pack
15 feet - 1/4" and 3/8" Line Set
15 feet - 1/4" and 3/8" Line Set
Mitsubishi 20,000 BTU 20 SEER Dual Zone Heat Pump System 12+12 - MXZ-2C20NA2 / 2-MLZ-KP12NA

$4,514.87

The Mitsubishi Dual Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

More Information
Mitsubishi 20,000 BTU Multi-Zone Ductless Heat Pump Condenser - MXZ-2C20NA3-R410A
SKUMXZ-2C20NA2
Refrigerant ChargePre-Charged For: 131'
Weight130.000000
AHRI Certificate Number201754642, 201754643, 201755013
ManufacturerMitsubishi
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Line Length: 164'
HSPF10
Cooling BTU18,000 BTU
Heating BTU22,000 BTU
Decibel Level (dBA)50-54
Energy StarYes
RefrigerantR410A
SEER18-20
EER12.7
Liquid Line1/4" (2)
Suction Line3/8" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size20
Min. Breaker Size17.2
Min/Max Outdoor Temp for Heating5°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height26"
Width33"
Depth13"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Ceiling Cassette Mitsubishi Mini Split Multi Zone KP Series - Air Handler-R410A
SKUMLZ-KP12NA
Weight34.000000
ManufacturerMitsubishi
ControllerWireless Included
Additional InformationDrain: 1"
Cooling BTU12,000 BTU
Heating BTU15,000 BTU
Maximum CFM212-350 CFM
Decibel Level (dBA)26-40
RefrigerantR410A
CapacityDehumidification Rate: 0.35 gal/hr
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeSlim Ceiling Cassette
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 7-5/16" | Grille: 1-7/16"
WidthIndoor Unit: 43-3/8" | Grille: 47-1/4"
DepthIndoor Unit: 14-3/16" | Grille: 16-11/16"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MLP-444W Grille for MLZ-KP Cassettes
SKUMLP-444W
Weight8.000000
ManufacturerMitsubishi
Electrical12v, supplied from indoor unit
Length47-1/4"
Height1-7/16"
Width16-11/16"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
SKU201813
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
SKU366395
Weight35.000000
ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
SKU366396
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
SKU366390
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
SKU216740
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
