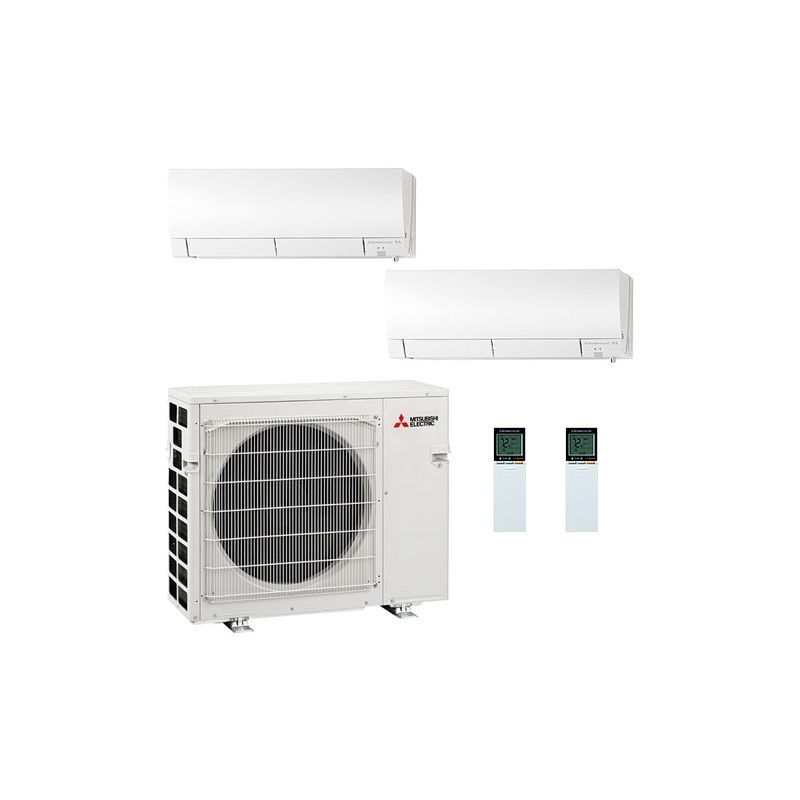

The Mitsubishi Dual Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 20 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.
The Mitsubishi MSZ-GL Series Wall Mount Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The MSZ-GL Series combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter captures offending particles while also breaking them down, cleaning the air as it is conditioned. Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided. When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space. Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
The Mitsubishi Ductless Mini Split MXZ Series Heat Pump and Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.
With the Mitsubishi Ductless Mini Split MXZ Series Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.
Buy more dual zone ductless mini split systems here!
The Mitsubishi MSZ-GL12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
The Mitsubishi MSZ-GL15NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL15NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler | |
---|---|
SKU | MSZ-GL12NA |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 12,000 BTU |
Heating BTU | 14,400 BTU |
Maximum CFM | 109-399 CFM |
Decibel Level (dBA) | 19-45 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.38 gal/hr |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230v 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-5/8" |
Width | 31-7/16" |
Depth | 9-1/8" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
15,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler | |
SKU | MSZ-GL15NA |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 14,000 BTU |
Heating BTU | 18,000 BTU |
Maximum CFM | 170-533 CFM |
Decibel Level (dBA) | 26-49 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.41 gal/hr |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230v 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 15,000 BTU/1.25 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-5/8" |
Width | 31-7/16" |
Depth | 9-1/8" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
Condenser Risers - 4" x 18" - 2 Pack | |
SKU | 87762 |
Weight (in lbs) | 397.000000 |
Brand/Manufacturer | Online Supply |
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
SKU | 87762 / EL1838-3 |
Weight (in lbs) | 25.000000 |
Brand/Manufacturer | Online Supply |
Height | 3" |
Width | 18" |
Depth | 38" |
Safety Information | PROPOSITION 65 WARNING |
