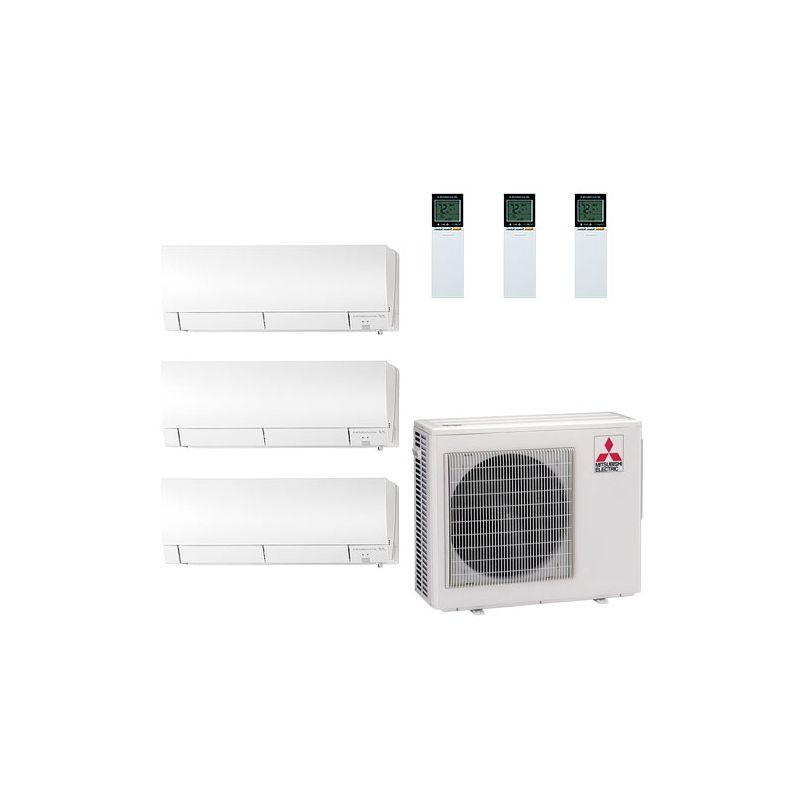

25,000 BTU 20 SEER Mitsubishi Tri Zone Mini Split Heat Pump System 6+6+12

By

Mitsubishi

Model

MXZ-3C24NA3 / 2-MSZ-GL06 / MSZ-GL12

ID

8063

Rating:
100% of 100

Authorized Mitsubishi Dealer

People that viewed this product purchased this instead:
  1. 27,000 BTU 24.6 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
    27,000 BTU 24.6 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
    Rating:
    100%
    Suggested Retail $4,295.00
    Special Price $2,760.00
  2. 36,000 BTU 23.9 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
    36,000 BTU 23.9 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
    Rating:
    100%
    Suggested Retail $5,155.00
    Special Price $3,277.00
27,000 BTU 24.6 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
SAVE $1,535.00
27,000 BTU 24.6 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
27,000 BTU 23 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System  - Extreme Heat - WiFi Enabled - 6+6+12
SAVE $1,759.00
27,000 BTU 23 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System  - Extreme Heat - WiFi Enabled - 6+6+12
36,000 BTU 23.9 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
SAVE $1,878.00
36,000 BTU 23.9 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System w/ WiFi - 6+6+12
36,000 BTU 22.2 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System  - Extreme Heat - WiFi Enabled - 6+6+12
SAVE $2,271.00
36,000 BTU 22.2 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System  - Extreme Heat - WiFi Enabled - 6+6+12

Description

The Mitsubishi Tri Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 20 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

Indoor Units

The Mitsubishi MSZ-GL Series Wall Mount Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The MSZ-GL Series combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter captures offending particles while also breaking them down, cleaning the air as it is conditioned. Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided. When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space. Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.

Outdoor Unit

The Mitsubishi Ductless Mini Split MXZ Series Heat Pump and Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

With the Mitsubishi Ductless Mini Split MXZ Series Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.

Checkout more Mitsubishi tri zone systems here!

12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

The Mitsubishi MSZ-GL12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .375 gallon per hour dehumidification rate
6,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 6,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .225 gallon per hour dehumidification rate

The Mitsubishi MSZ-GL06NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL06NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

Product Specifications

More Information
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
SKUMSZ-GL12NA
Weight (in lbs)26.000000
Brand/ManufacturerMitsubishi
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000 BTU
Heating BTU14,400 BTU
Maximum CFM109-399 CFM
Decibel Level (dBA)19-45
RefrigerantR410A
CapacityDehumidification Rate: 0.38 gal/hr
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini-Split TypeWall Mounted
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height11-5/8"
Width31-7/16"
Depth9-1/8"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
6,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
SKUMSZ-GL06NA
Weight (in lbs)26.000000
Brand/ManufacturerMitsubishi
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU6,000 BTU
Heating BTU7,200 BTU
Maximum CFM109-406 CFM
Decibel Level (dBA)19-43
RefrigerantR410A
CapacityDehumidification Rate: 0.23 gal/hr
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage6,000 BTU/0.5 Ton
Mini-Split TypeWall Mounted
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height11-5/8"
Width31-7/16"
Depth9-1/8"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)397.000000
Brand/ManufacturerOnline Supply
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 25,000 BTU Multi-Zone Ductless Heat Pump Condenser - MXZ-3C24NA3
SKUMXZ-3C24NA3
Refrigerant ChargePre-Charged For: 98'
Weight (in lbs)140.000000
AHRI Certificate Number209836182
Brand/ManufacturerMitsubishi
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Line Length: 230'
HSPF9.8
Cooling BTU22,000 BTU
Heating BTU25,000 BTU
Decibel Level (dBA)51-55
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)18-20
EER13.6
Liquid Line1/4" (3)
Suction Line1/2" (1), 3/8" (2)
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size25
Min. Breaker Size22.1
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating5°-65°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height31"
Width37"
Depth13"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
