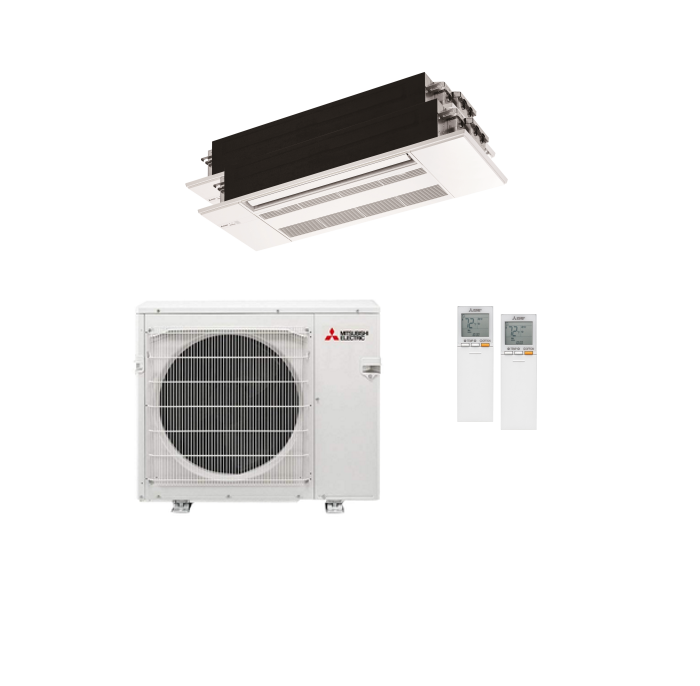

28,600 BTU 19 SEER Mitsubishi Dual Zone Mini Split Heat Pump System 12+12-R410A

OVERVIEW

The Mitsubishi MXZ-3C30NA2 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications.

FEATURES

• 30,000 BTU multi zone heat pump condenser
• Variable speed Inverter-driven compressor
• Quiet operation
• Supports enhanced comfort down to -4°F

30,000 BTU

The Mitsubishi MXZ-3C30NA2 is rated at 30,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time. Please note that in order to function, this heat pump condenser must be installed with compatible air handlers, controllers, and other installation equipment, available at an additional cost

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

With its variable speed compressor, the MXZ-3C30NA2 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

For ease of control, many air handlers that are compatible with the MXZ-3C30NA2 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control— the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP12NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

• Designed to be able to heat and cool a medium room (in an average climate)
• 12,000 BTU
• Quiet operation
• Dry mode setting

At 12,000 BTU BTU, the Mitsubishi MLZ-KP12NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

The MLZ-KP12NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP12NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP12NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

• Single Zone: SUZ-KA12NA2, SUZ-KA12NAHZ
• Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

The Mitsubishi MLP-444W is one of the grille options required to complete a KP cassette installation.

Features:

• Allows for direct service of unit from below.
• Overlaps a 1.5' x 4' area to hide the ceiling cassette body in a drop ceiling or recessed between 16" on center joists.

Compatible Indoor Units:

Ceiling Cassette

• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

• Insulated
• Flared Line Ends
• Heavy Duty Refrigerant Lines
