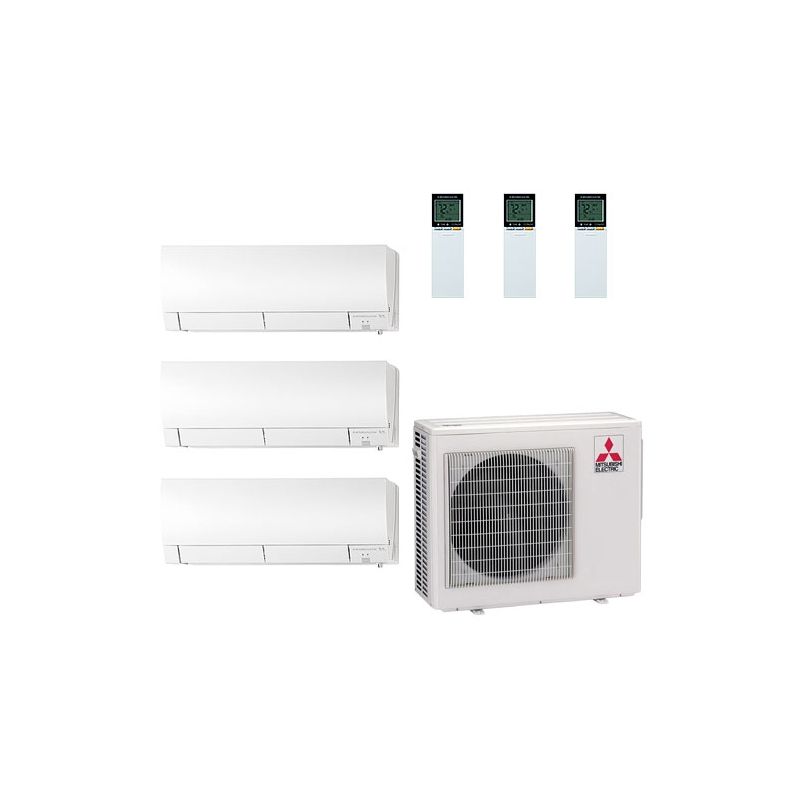

28,600 BTU 19 SEER Mitsubishi Tri Zone Heat Pump System 6+12+15

By

Mitsubishi

Model

MXZ-3C30NA2 / MSZ-GL06 / MSZ-GL12 / MSZ-GL15

ID

8083

Rating:
96 % of 100

Authorized Mitsubishi Dealer

Suggested Retail $4,780.00
Your Low Price $4,448.00

Free Shipping

Required Fields *

Customize 28,600 BTU 19 SEER Mitsubishi Tri Zone Heat Pump System 6+12+15
28,600 BTU Mult Zone Condenser   + $2,539.00
6,000 BTU Wall Mount   + $517.00
12,000 BTU Wall Mount   + $654.00
15,000 BTU Wall Mount   + $738.00
28,600 BTU 19 SEER Mitsubishi Tri Zone  Heat Pump System 6+12+15

$4,448.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Mitsubishi Tri Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 19 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

Indoor Units

The Mitsubishi MSZ-GL Series Wall Mount Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The MSZ-GL Series combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter captures offending particles while also breaking them down, cleaning the air as it is conditioned. Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided. When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space. Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.

Outdoor Unit

The Mitsubishi Ductless Mini Split MXZ Series Heat Pump and Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

With the Mitsubishi Ductless Mini Split MXZ Series Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.

Shop for more ductless mini split systems!

Mitsubishi 28,600 BTU Multi-Zone Ductless Heat Pump Condenser - MXZ-3C30NA2

OVERVIEW

The Mitsubishi MXZ-3C30NA2 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications.

FEATURES

  • 30,000 BTU multi zone heat pump condenser
  • Variable speed Inverter-driven compressor
  • Quiet operation
  • Supports enhanced comfort down to -4°F
30,000 BTU

The Mitsubishi MXZ-3C30NA2 is rated at 30,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time. Please note that in order to function, this heat pump condenser must be installed with compatible air handlers, controllers, and other installation equipment, available at an additional cost

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

Enhanced Comfort

With its variable speed compressor, the MXZ-3C30NA2 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

Intelligent Control

For ease of control, many air handlers that are compatible with the MXZ-3C30NA2 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control— the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

6,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 6,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .225 gallon per hour dehumidification rate

The Mitsubishi MSZ-GL06NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL06NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

The Mitsubishi MSZ-GL12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .375 gallon per hour dehumidification rate
15,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a medium-sized room in ideal conditions
  • 15,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .405 gallon per hour dehumidification rate

The Mitsubishi MSZ-GL15NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL15NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

Product Specifications

More Information
Mitsubishi 28,600 BTU Multi-Zone Ductless Heat Pump Condenser - MXZ-3C30NA2
SKU MXZ-3C30NA2
Refrigerant Charge Pre-Charged For: 98'
Weight (in lbs) 140.000000
AHRI Certificate Number 201755942, 201754907, 201755017
Brand/Manufacturer Mitsubishi
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 82'
Additional Information Maximum System Line Length: 230'
HSPF 10.6
Cooling BTU 28,400 BTU
Heating BTU 28,600 BTU
Decibel Level (dBA) 52-56
Energy Star No
Refrigerant R410A
SEER1 (Efficiency) 18-20
EER 10.6
Liquid Line 1/4" (3)
Suction Line 1/2" (1), 3/8" (2)
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 25
Min. Breaker Size 22.1
Tonnage 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Min/Max Outdoor Temp for Heating 5°-65°
Min/Max Outdoor Temp for Cooling 14°-115°
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 31"
Width 37"
Depth 13"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
6,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
SKU MSZ-GL06NA
Weight (in lbs) 26.000000
Brand/Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 6,000 BTU
Heating BTU 7,200 BTU
Maximum CFM 109-406 CFM
Decibel Level (dBA) 19-43
Refrigerant R410A
Capacity Dehumidification Rate: 0.23 gal/hr
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 6,000 BTU/0.5 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 11-5/8"
Width 31-7/16"
Depth 9-1/8"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
SKU MSZ-GL12NA
Weight (in lbs) 26.000000
Brand/Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 12,000 BTU
Heating BTU 14,400 BTU
Maximum CFM 109-399 CFM
Decibel Level (dBA) 19-45
Refrigerant R410A
Capacity Dehumidification Rate: 0.38 gal/hr
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
Phase Single Phase
BTU/Tonnage 12,000 BTU/1 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 11-5/8"
Width 31-7/16"
Depth 9-1/8"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
15,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
SKU MSZ-GL15NA
Weight (in lbs) 26.000000
Brand/Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 14,000 BTU
Heating BTU 18,000 BTU
Maximum CFM 170-533 CFM
Decibel Level (dBA) 26-49
Refrigerant R410A
Capacity Dehumidification Rate: 0.41 gal/hr
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230v 1 Phase 60 Hz
Phase Single Phase
BTU/Tonnage 15,000 BTU/1.25 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 11-5/8"
Width 31-7/16"
Depth 9-1/8"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU 87762
Weight (in lbs) 397.000000
Brand/Manufacturer Online Supply
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU 87762 / EL1838-3
Weight (in lbs) 25.000000
Brand/Manufacturer Online Supply
Height 3"
Width 18"
Depth 38"
Safety Information PROPOSITION 65 WARNING
