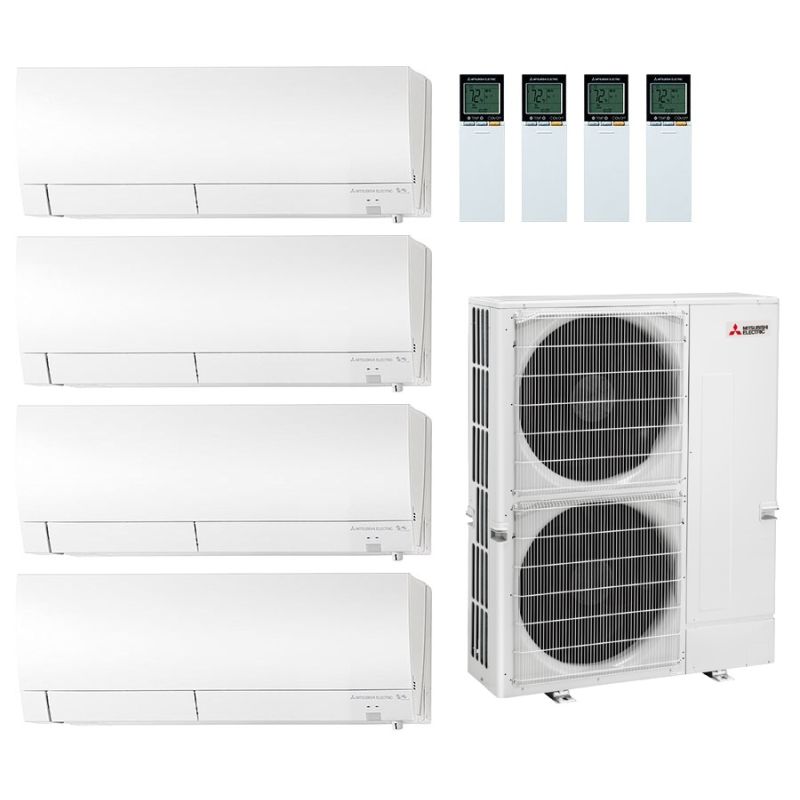

36,000 BTU 19.2 SEER Mitsubishi Quad Zone Heat Pump System 9+9+12+12 - Wall Mounted

By

Mitsubishi

Ships in 3-4 Weeks
Model

MXZ-4C36NA2-U1 / 2-MSZ-GL09NA-U1 / 2-MSZ-GL12NA-U1

ID

9503

Rating:
100 % of 100

Authorized Mitsubishi Dealer

Your Low Price $8,639.30
Bread Checkout


Please enter your room sizes to narrow your results

Room #1

Room #2

Room #3

Room #4

Type (optional)

Free Shipping

Required Fields *

Customize 36,000 BTU 19.2 SEER Mitsubishi Quad Zone Heat Pump System 9+9+12+12 - Wall Mounted
36,000 BTU Heat Pump Condenser (Ships in 3-4 Weeks)   + $4,793.00 View Item
36,000 BTU Heat Pump Condenser (Ships in 3-4 Weeks)   + $4,793.00
9,000 BTU Wall Mount (In Stock - Ready to Ship)   + $552.75 View Item
9,000 BTU Wall Mount (In Stock - Ready to Ship)   + $552.75
9,000 BTU Wall Mount (In Stock - Ready to Ship)   + $552.75 View Item
9,000 BTU Wall Mount (In Stock - Ready to Ship)   + $552.75
12,000 BTU Wall Mount (In Stock - Ready to Ship)   + $654.00 View Item
12,000 BTU Wall Mount (In Stock - Ready to Ship)   + $654.00
12,000 BTU Wall Mount (In Stock - Ready to Ship)   + $654.00 View Item
12,000 BTU Wall Mount (In Stock - Ready to Ship)   + $654.00
Mitsubishi MHK2 Wireless Remote Controller (In Stock - Ready to Ship)   + $358.20 View Item
Mitsubishi MHK2 Wireless Remote Controller (In Stock - Ready to Ship)   + $358.20
36,000 BTU 19.2 SEER Mitsubishi Quad Zone Heat Pump System 9+9+12+12 - Wall Mounted

$8,639.30

Accessories for this product

Description

The Mitsubishi Quad Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 17.6 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

36,000 BTU Ductless Mitsubishi Mini-Split Multi Zone MXZ-SM Series - Heat Pump Condenser

OVERVIEW

The Mitsubishi MXZ-SM36NAM-U1 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications.

FEATURES

  • 36,000 BTU multi zone heat pump condenser
  • Variable speed Inverter-driven compressor
  • Quiet operation
  • Supports enhanced comfort down to -13°F
36,000 BTU

The Mitsubishi MXZ-SM36NAM-U1 is rated at 36,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time.
Please note that in order to function, this heat pump condenser must be installed with compatible air handlers, controllers, and other installation equipment, available at an additional cost

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

Required Equipment

The Mitsubishi MXZ-SM36NAM-U1 is designed with only one set of line set ports, allowing it to support a higher BTU output than units with multiple sets. As such, at least one branch box is required for this unit to function to allow it to connect to multiple air handlers. Along with branch boxes, this condenser requires air handlers, controllers, and other basic installation equipment to function, all of which are available at an additional cost.

Enhanced Comfort

With its variable speed compressor, the MXZ-SM36NAM-U1 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

Intelligent Control

For ease of control, many air handlers that are compatible with the MXZ-SM36NAM-U1 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control— the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

9,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

The Mitsubishi MSZ-GL09NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL09NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 9,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .225 gallon per hour dehumidification rate
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler

The Mitsubishi MSZ-GL12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with remote
  • Automatic adjustments to match the thermostat’s needs
  • .375 gallon per hour dehumidification rate
Mitsubishi MHK2 Wireless Remote Controller

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

  • Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
  • Backlit display
  • Can sense temperature at indoor unit (default) or at controller
  • Fahrenheit °F / Celsius °C
  • No batteries required
  • Single zone compatible
  • Multi zone compatible
  • English, French, Spanish

Compatible Indoor Units:

Wall Mounted

  • GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
  • FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
  • EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
  • JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
  • WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
  • D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
  • P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

  • KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
  • P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

  • KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
  • KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
  • P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

  • MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

  • KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
  • P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

  • P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7

Product Specifications

More Information
36,000 BTU Ductless Mitsubishi Mini-Split Multi Zone MXZ-SM Series - Heat Pump Condenser
Weight (in lbs) 271.000000
Manufacturer Mitsubishi
Replaces MXZ-4C36NA2
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 82'
Additional Information Maximum System Line Length: 492'
HSPF 12.5
Cooling BTU 36,000
Heating BTU 42,000
Decibel Level (dBA) 49-53
Energy Star No
Refrigerant R410A
SEER 23-25
EER 15
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
Phase Single Phase
Max Breaker Size 40
Min. Breaker Size 30
Min/Max Outdoor Temp for Heating -13°-70°
Min/Max Outdoor Temp for Cooling 23°-115°
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 52"
Width 41"
Depth 16"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
9,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
Weight (in lbs) 26.000000
Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 9,000 BTU
Heating BTU 10,900 BTU
Maximum CFM 109-406 CFM
Decibel Level (dBA) 19-43
Refrigerant R410A
Capacity Dehumidification Rate: 0.23 gal/hr
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 11-5/8"
Width 31-7/16"
Depth 9-1/8"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler
Weight (in lbs) 26.000000
Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 12,000 BTU
Heating BTU 14,400 BTU
Maximum CFM 109-399 CFM
Decibel Level (dBA) 19-45
Refrigerant R410A
Capacity Dehumidification Rate: 0.38 gal/hr
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
Phase Single Phase
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Operating Mode Cooling, Heating
Height 11-5/8"
Width 31-7/16"
Depth 9-1/8"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
Weight (in lbs) 2.000000
Manufacturer Mitsubishi
Length Cable:39-23/64"
Height Thermostat: 4-5/64” | Receiver: 3-3/32”
Width Thermostat: 4-5/64” | Receiver: 1-3/4”
Depth Thermostat: 1-1/16" | Receiver: 39/64”
Warranty 5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
