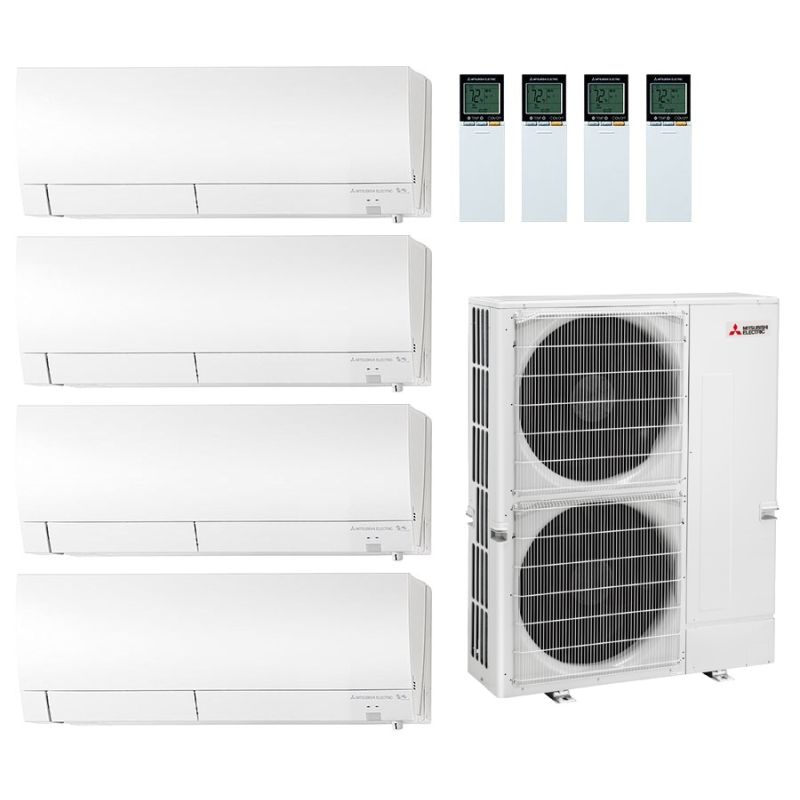

The Mitsubishi Quad Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 19.2 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.
The Mitsubishi MXZ-4C36NA2 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications.
The Mitsubishi MXZ-4C36NA2 is rated at 36,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time. Please note that in order to function, this heat pump condenser must be installed with compatible air handlers, controllers, and other installation equipment, available at an additional cost
Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.
With its variable speed compressor, the MXZ-4C36NA2 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.
For ease of control, many air handlers that are compatible with the MXZ-4C36NA2 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control— the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
The Mitsubishi MSZ-GL06NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL06NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.
The Mitsubishi MSZ-GL12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GL12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
Compatible Indoor Units:
Wall Mounted
Ducted
Ceiling Cassette
Floor Mounted
Multi Position Air Handler
Ceiling Suspended
36,000 BTU Ductless Mitsubishi Mini-Split Multi Zone MXZ-C Series - Heat Pump Condenser | |
---|---|
SKU | MXZ-4C36NA3 |
Weight (in lbs) | 271.000000 |
Brand/Manufacturer | Mitsubishi |
Additional Information | Heat Pump |
Additional Information | Maximum Line Set Length: 82' |
Additional Information | Maximum System Line Length: 492' |
HSPF | 11 |
Cooling BTU | 36,000 |
Heating BTU | 42,000 |
Decibel Level (dBA) | 56 |
Energy Star | No |
Refrigerant | R410A |
SEER (Efficiency) | 19 |
EER | 15 |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
Max Breaker Size | 40 |
Min. Breaker Size | 30 |
Tonnage | 3 Ton |
BTU/Tonnage | 36,000 BTU/3 Ton |
Min/Max Outdoor Temp for Heating | 5°-65° |
Min/Max Outdoor Temp for Cooling | 14°-115° |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 31" |
Width | 37" |
Depth | 13" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
6,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler | |
SKU | MSZ-GL06NA |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 6,000 BTU |
Heating BTU | 7,200 BTU |
Maximum CFM | 109-406 CFM |
Decibel Level (dBA) | 19-43 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.23 gal/hr |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230v 1 Phase 60 Hz |
BTU/Tonnage | 6,000 BTU/0.5 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-5/8" |
Width | 31-7/16" |
Depth | 9-1/8" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
12,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone GL - Air Handler | |
SKU | MSZ-GL12NA |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 12,000 BTU |
Heating BTU | 14,400 BTU |
Maximum CFM | 109-399 CFM |
Decibel Level (dBA) | 19-45 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.38 gal/hr |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230v 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-5/8" |
Width | 31-7/16" |
Depth | 9-1/8" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
Mitsubishi MHK2 Wireless Remote Controller | |
SKU | MHK2 |
Weight (in lbs) | 2.000000 |
Brand/Manufacturer | Mitsubishi |
Length | Cable:39-23/64" |
Height | Thermostat: 4-5/64” | Receiver: 3-3/32” |
Width | Thermostat: 4-5/64” | Receiver: 1-3/4” |
Depth | Thermostat: 1-1/16" | Receiver: 39/64” |
Warranty | 5 Years Parts Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
