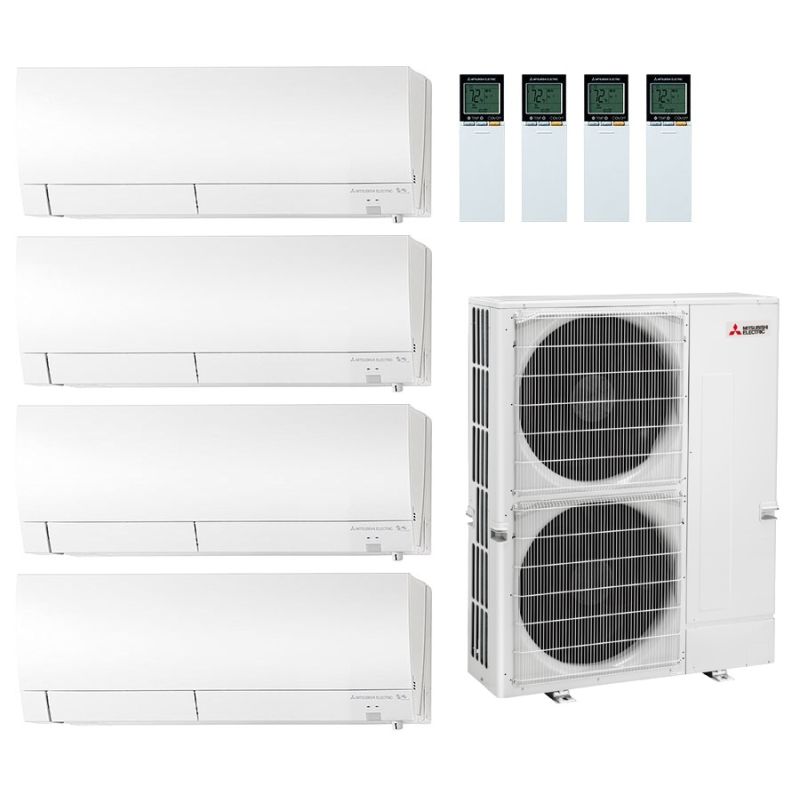

36,000 BTU 19.2 SEER Mitsubishi Quad Zone Heat Pump System 6+6+6+24 - Wall Mounted

OVERVIEW

The Mitsubishi MXZ-SM36NAM is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications.

FEATURES

• 36,000 BTU multi zone heat pump condenser
• Variable speed Inverter-driven compressor
• Quiet operation
• Supports enhanced comfort down to -13°F

36,000 BTU

The Mitsubishi MXZ-SM36NAM is rated at 36,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time. Please note that in order to function, this heat pump condenser must be installed with compatible air handlers, controllers, and other installation equipment, available at an additional cost

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

With its variable speed compressor, the MXZ-SM36NAM can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

For ease of control, many air handlers that are compatible with the MXZ-SM36NAM can use any Mitsubishi-brand thermostat or adapter. The most convenient to control— the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

This product requires the use of a branch box in order to function as needed. Branch boxes are sold separately.

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.
