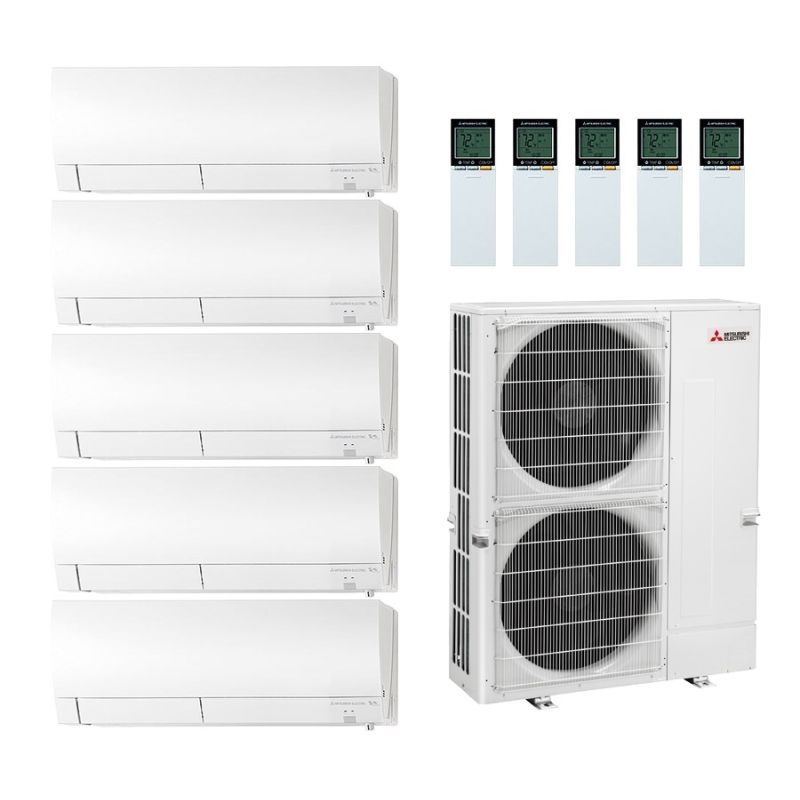

48,000 BTU 18.9 SEER Mitsubishi Five Zone H2i Hyper Heat Pump System 9+9+12+12+18 - Wall Mounted

Required Fields *

By

Mitsubishi

Out of stock

Model

MXZ-SM48NAMHZ / 2-MSZ-FS09NA / 2-MSZ-FS12NA / MSZ-FS18NA2

ID

9548

Out of stock

The Mitsubishi Five Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 18.9 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

18,000 BTU Mitsubishi FS Series Wall Mount Air Handler - R410A

No Return Policy: All sales of this product are final and are non-refundable.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Able to cover up to a medium-sized room in ideal conditions
  • 18,000 BTU wall-mounted air handler with remote
  • Built-in I-SEE sensor to direct airflow more effectively
  • .315 gallon per hour dehumidification rate

The Mitsubishi MSZ-FS18NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. With integrated I-SEE sensor technology, this air handler can constantly read the temperature from multiple directions in the room, allowing it to aim airflow in the direction that it is needed most. This allows your room to maintain a more constant temperature and decreases the unit’s run time. Keeping health in mind, Mitsubishi also factory-installed an enhanced filtration system.

More Information
48,000 BTU 23 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater-R410A
FeatureSpec
SKUMXZ-SM48NAMHZ
EER13.1
Depth16"
SEER2 (Efficiency)23
Width41 11/32"
Height52 11/16"
Weight (in lbs)278.000000
ReplacesMXZ-8C48NAHZ2
WarrantyLimited warranty: five years parts and seven years compressors
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Electrical208 / 230 V. 1 Phase 60 Hz
BTU/Tonnage48,000 BTU/4 Ton
Cooling BTU48,000
Heating BTU54,000
Liquid Line3/8"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line5/8"
Max Breaker Size45 amps
Min. Breaker Size40 amps
Tonnage4 Ton
Product FeaturesHyper Heat
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone FS Series - Air Handler
FeatureSpec
SKUMSZ-FS12NA
Maximum CFM117-398 CFM
Depth9-3/16"
Width36-7/16"
Height12-11/16"
Weight (in lbs)29.000000
Decibel Level (dBA)21-42
CapacityDehumidification Rate: 0.38 gal/hr
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
ControllerWireless Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 5/8"
BTU/Tonnage12,000 BTU/1 Ton
Cooling BTU12,000
Heating BTU13,600
Liquid Line1/4"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line3/8"
PhaseSingle Phase
Operating ModeCooling, Heating
Mini Split TypeWall Mounted
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone FS Series - Air Handler
FeatureSpec
SKUMSZ-FS12NA
Maximum CFM117-398 CFM
Depth9-3/16"
Width36-7/16"
Height12-11/16"
Weight (in lbs)29.000000
Decibel Level (dBA)21-42
CapacityDehumidification Rate: 0.38 gal/hr
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
ControllerWireless Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 5/8"
BTU/Tonnage12,000 BTU/1 Ton
Cooling BTU12,000
Heating BTU13,600
Liquid Line1/4"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line3/8"
PhaseSingle Phase
Operating ModeCooling, Heating
Mini Split TypeWall Mounted
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
9,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone FS Series - Air Handler
FeatureSpec
SKUMSZ-FS09NA
Maximum CFMC: 137-381 & H: 140-437
Depth9-3/16"
Width36-7/16"
Height12-11/16"
Weight (in lbs)29.000000
Decibel Level (dBA)C: 20-40& H: 20-42
CapacityDehumidification Rate: 0.23 gal/hr
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
ControllerWireless Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 5/8"
BTU/Tonnage9,000 BTU/0.75 Ton
Cooling BTU9,000
Heating BTU9,600
Liquid Line1/4"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line3/8"
Operating ModeCooling, Heating
Mini Split TypeWall Mounted
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
9,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone FS Series - Air Handler
FeatureSpec
SKUMSZ-FS09NA
Maximum CFMC: 137-381 & H: 140-437
Depth9-3/16"
Width36-7/16"
Height12-11/16"
Weight (in lbs)29.000000
Decibel Level (dBA)C: 20-40& H: 20-42
CapacityDehumidification Rate: 0.23 gal/hr
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
ControllerWireless Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 5/8"
BTU/Tonnage9,000 BTU/0.75 Ton
Cooling BTU9,000
Heating BTU9,600
Liquid Line1/4"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line3/8"
Operating ModeCooling, Heating
Mini Split TypeWall Mounted
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
Mitsubishi 18,000 BTU FS Series Multi Zone Wall Mounted Mini Split Air Handler R410A | 230V
FeatureSpec
SKUMSZ-FS18NA
Maximum CFM194-514 CFM
Depth9-3/16"
Width36-7/16"
Height12-11/16"
Weight (in lbs)29.000000
Decibel Level (dBA)25-47
CapacityDehumidification Rate: 0.32 gal/hr
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
ControllerWireless Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 5/8"
BTU/Tonnage18,000 BTU/1.5 Ton
Cooling BTU17,200
Heating BTU20,300
Liquid Line1/4"
RefrigerantR410A
Brand/ManufacturerMitsubishi
Suction Line1/2"
PhaseSingle Phase
Operating ModeCooling, Heating
Mini Split TypeWall Mounted
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
