Mitsubishi Kumo Cloud Wi-Fi Adapter

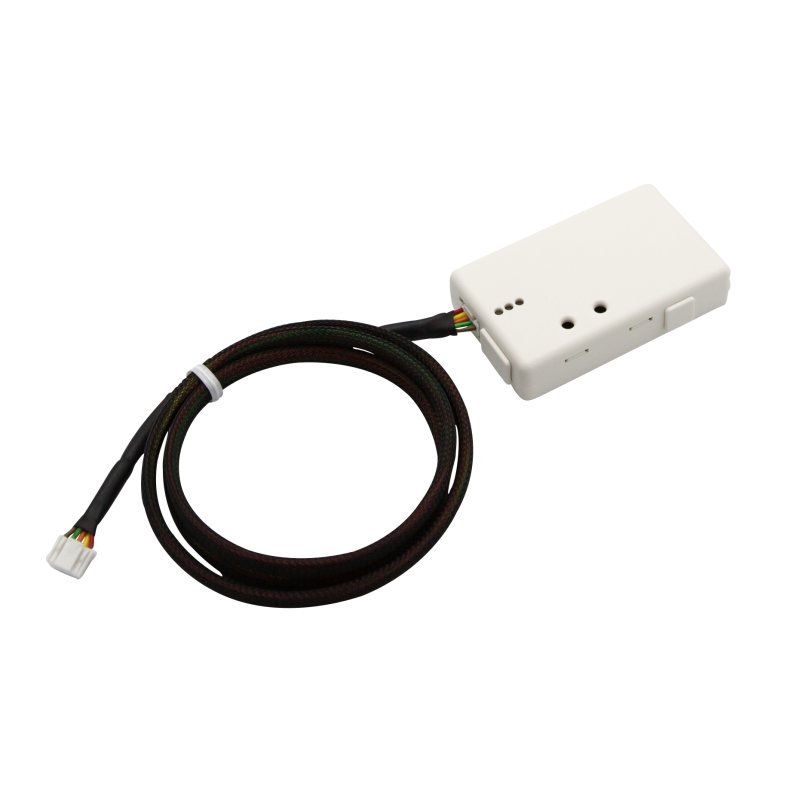

The Mitsubishi PAC-USWHS002-WF-2 is the second revision of Mitsubishi's Kumo Wireless adapter, now available for M & P Series residential and light commercial units. This revision has a CN105 pass through, allowing use of both the wireless adapter and the legacy MHK1* and the new MHK2 Kumo Touch wall mounted controller. No longer do you have to choose between internet and wireless control: you can use both!

The Mitsubishi Kumo Cloud app can connect to Google Assistant and Amazon Alexa for voice control when used with your smartphone, Google Home Speaker or Amazon Echo. It also has compatibility with IFTTT.

To view the Mitsubishi Kumo Cloud application, follow the links below.

• Apple App Store
• Google Play Store
• Amazon Appstore

Features:

• Plug and play

Compatible Indoor Units:

Wall Mounted

• GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
• FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
• EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
• JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
• WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
• D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
• P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

• KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
• P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

• KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
• P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

• MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

• KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
• P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

• P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7

*Due to power requirements with the MHK1 and PAC-USWHS002-WF-2, please see submittal for specific compatibility requirements.
