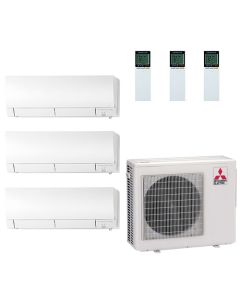

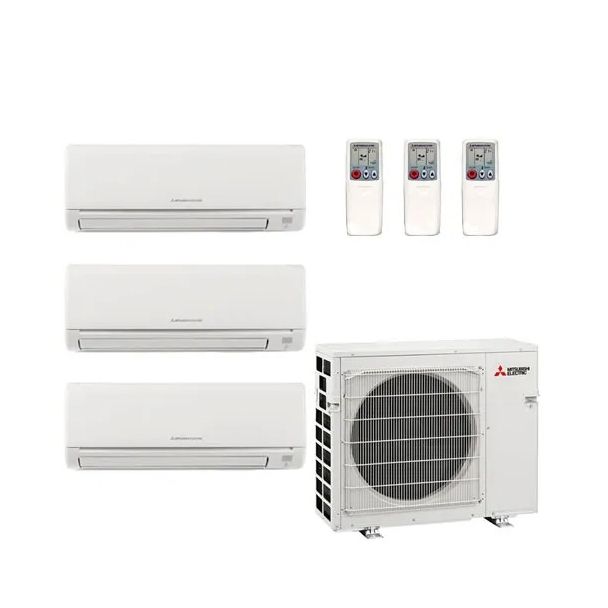

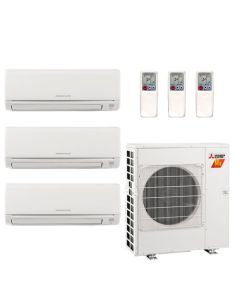

Mitsubishi Tri Zone Mini Split System - Design Your Own

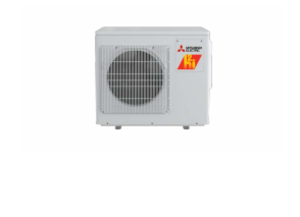

MXZ-2D20NLHZ - Hyper-Heating INVERTER® Heat Pump Outdoor Unit

The MXZ-2D20NLHZ is a high-performance, energy-efficient outdoor heat pump unit designed for residential and light commercial applications. Equipped with Mitsubishi Electric's advanced Hyper-Heating INVERTER® (H2i®) technology, it delivers reliable heating performance even in extremely cold climates. This unit is compatible with M-Series, P-Series, and CITY MULTI® indoor units (a branch box is required for M- and P-Series connections), offering versatile solutions for various building layouts. Below are the key features and specifications of this model:

Key Features:

• Hyper-Heating INVERTER® (H2i®) Technology: Provides 100% heating capacity at 5°F and maintains operation down to -13°F, ensuring comfort in colder climates.
• INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels of 51 dB(A) in cooling mode and 53 dB(A) in heating mode, minimizing noise disturbances.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
• Seacoast Protection: Features seacoast protection on the heat exchanger and base panel, rated for 2,000 hours in accordance with ASTM B117 testing, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum: 20,000 BTU/h
  • Rated: 18,000 BTU/h (Non-Ducted), 19,000 BTU/h (Mixed), 20,000 BTU/h (Ducted)
  • Minimum: 11,600 BTU/h (Non-Ducted), 13,800 BTU/h (Mixed), 16,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum: 25,500 BTU/h
  • Rated: 22,000 BTU/h
  • Minimum: 11,400 BTU/h (Non-Ducted), 13,850 BTU/h (Mixed), 16,300 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Maximum: 22,000 BTU/h
  • Rated: 14,300 BTU/h (Non-Ducted), 13,400 BTU/h (Mixed), 12,500 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum: 22,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum: 19,200 BTU/h
• Efficiency Ratings:
  • SEER2: 19.30 (Non-Ducted), 16.80 (Mixed), 14.30 (Ducted)
  • EER2: 13.50 (Non-Ducted), 12.30 (Mixed), 11.10 (Ducted)
  • HSPF2 (IV): 10 (Non-Ducted), 8.95 (Mixed), 7.90 (Ducted)
  • COP at 47°F: 4.00 (Non-Ducted), 3.90 (Mixed), 3.82 (Ducted)
  • COP at 17°F (Maximum Capacity): 1.94 (Non-Ducted), 1.92 (Mixed), 1.92 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.00 (Non-Ducted), 1.98 (Mixed), 1.98 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 21.7 A
  • Maximum Overcurrent Protection (MOCP): 38 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)

The MXZ-2D20NLHZ is ideal for applications requiring powerful and dependable performance in both heating and cooling. Its hyper-heating capabilities, quiet operation, and protective features make it a top choice for challenging environments and year-round comfort.

MXZ-SM60NL - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit

The MXZ-SM60NL is a high-capacity outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to eight indoor units when used with M- and P-Series, or up to twelve units with CITY MULTI indoor units, it offers flexible heating and cooling solutions for both residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 58 dB(A) during cooling and 59 dB(A) during heating, minimizing noise disturbances in your environment.
• Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
• Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
• Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
• ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 60,000 BTU/h
  • Rated Capacity: 60,000 BTU/h (Non-Ducted), 60,000 BTU/h (Mixed), 60,000 BTU/h (Ducted)
  • Minimum Capacity: 16,000 BTU/h (Non-Ducted), 16,000 BTU/h (Mixed), 16,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 66,000 BTU/h
  • Rated Capacity: 66,000 BTU/h (Non-Ducted), 66,000 BTU/h (Mixed), 66,000 BTU/h (Ducted)
  • Minimum Capacity: 13,500 BTU/h (Non-Ducted), 13,500 BTU/h (Mixed), 13,500 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated Capacity: 41,500 BTU/h (Non-Ducted), 41,000 BTU/h (Mixed), 40,500 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 46,500 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 30,000 BTU/h
• Efficiency Ratings:
  • SEER2: 20.0 (Non-Ducted), 18.2 (Mixed), 16.4 (Ducted)
  • EER2: 12.0 (Non-Ducted), 10.7 (Mixed), 9.4 (Ducted)
  • HSPF2 (IV): 10.5 (Non-Ducted), 10.0 (Mixed), 9.5 (Ducted)
  • COP at 47°F: 4.1 (Non-Ducted), 3.7 (Mixed), 3.3 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.18 (Non-Ducted), 2.16 (Mixed), 2.16 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.0 (Non-Ducted), 1.9 (Mixed), 1.8 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 50 A
  • Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 40 A
  • Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 55 A
  • Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 90 A
  • Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 45 A
  • Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 80 A
• Outdoor Unit Dimensions:
  • Width: 41-11/32 inches
  • Depth: 13 inches
  • Height: 52-11/16 inches
  • Weight: 302 lbs

The MXZ-SM60NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

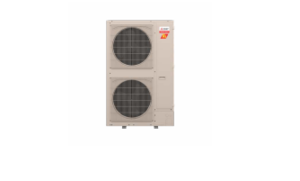

MXZ-SM48NLHZ - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit

The MXZ-SM48NLHZ is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to eight indoor units with a branch box, or up to twelve without, it offers flexible heating and cooling solutions for both residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) during cooling and 54 dB(A) during heating, minimizing noise disturbances in your environment.
• Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
• Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
• Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
• ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 48,000 BTU/h
  • Rated Capacity: 48,000 BTU/h (Non-Ducted), 48,000 BTU/h (Mixed), 48,000 BTU/h (Ducted)
  • Minimum Capacity: 15,000 BTU/h (Non-Ducted), 15,000 BTU/h (Mixed), 15,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 54,000 BTU/h
  • Rated Capacity: 54,000 BTU/h (Non-Ducted), 54,000 BTU/h (Mixed), 54,000 BTU/h (Ducted)
  • Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated Capacity: 38,000 BTU/h (Non-Ducted), 38,000 BTU/h (Mixed), 38,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 54,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 54,000 BTU/h
• Efficiency Ratings:
  • SEER2: 23.0 (Non-Ducted), 20.5 (Mixed), 18.0 (Ducted)
  • EER2: 13.1 (Non-Ducted), 11.55 (Mixed), 10.0 (Ducted)
  • HSPF2 (IV): 11.5 (Non-Ducted), 10.75 (Mixed), 10.0 (Ducted)
  • COP at 47°F: 4.0 (Non-Ducted), 3.6 (Mixed), 3.2 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.0 (Non-Ducted), 1.88 (Mixed), 1.76 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.0 (Non-Ducted), 1.9 (Mixed), 1.8 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 45 A
  • Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 40 A
  • Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 51 A
  • Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 86 A
  • Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 45 A
  • Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 80 A
• Outdoor Unit Dimensions:
  • Width: 41-11/32 inches
  • Depth: 13 inches
  • Height: 52-11/16 inches
  • Weight: 278 lbs

The MXZ-SM48NLHZ is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

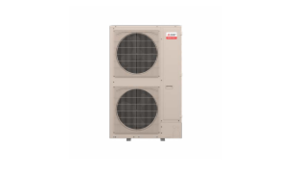

MXZ-SM48NL - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit

The MXZ-SM48NL is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to eight indoor units when used with M- and P-Series, or up to twelve units with CITY MULTI indoor units, it offers flexible heating and cooling solutions for both residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) during cooling and 54 dB(A) during heating, minimizing noise disturbances in your environment.
• Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
• Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
• Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
• ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 48,000 BTU/h
  • Rated Capacity: 48,000 BTU/h (Non-Ducted), 48,000 BTU/h (Mixed), 48,000 BTU/h (Ducted)
  • Minimum Capacity: 15,000 BTU/h (Non-Ducted), 15,000 BTU/h (Mixed), 15,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 50,000 BTU/h
  • Rated Capacity: 50,000 BTU/h (Non-Ducted), 50,000 BTU/h (Mixed), 50,000 BTU/h (Ducted)
  • Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Maximum Capacity: 43,000 BTU/h
  • Rated Capacity: 31,400 BTU/h (Non-Ducted), 32,400 BTU/h (Mixed), 33,400 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 35,400 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 22,800 BTU/h
• Efficiency Ratings:
  • SEER2: 23.0 (Non-Ducted), 20.0 (Mixed), 17.0 (Ducted)
  • EER2: 12.0 (Non-Ducted), 10.2 (Mixed), 8.4 (Ducted)
  • HSPF2 (IV): 10.4 (Non-Ducted), 9.95 (Mixed), 9.5 (Ducted)
  • COP at 47°F: 4.0 (Non-Ducted), 3.55 (Mixed), 3.10 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.0 (Non-Ducted), 1.88 (Mixed), 1.76 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.10 (Non-Ducted), 2.02 (Mixed), 1.96 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 40 A
  • Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 30 A
  • Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 42 A
  • Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 70 A
  • Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 36 A
  • Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 64 A
• Outdoor Unit Dimensions:
  • Width: 41-17/32 inches
  • Depth: 13 inches
  • Height: 52-11/16 inches
  • Weight: 278 lbs

The MXZ-SM48NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

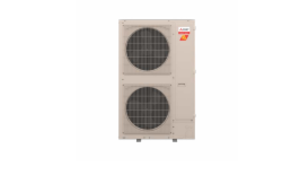

MXZ-SM36NLHZ - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit

The MXZ-SM36NLHZ is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to four indoor units with a branch box, it offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 49 dB(A) during cooling and 53 dB(A) during heating, minimizing noise disturbances in your environment.
• Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
• Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
• Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
• ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted and mixed configurations, promoting energy efficiency and potential cost savings.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 36,000 BTU/h
  • Rated Capacity: 36,000 BTU/h (Non-Ducted), 36,000 BTU/h (Mixed), 36,000 BTU/h (Ducted)
  • Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 42,000 BTU/h
  • Rated Capacity: 42,000 BTU/h (Non-Ducted), 42,000 BTU/h (Mixed), 42,000 BTU/h (Ducted)
  • Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Maximum Capacity: 42,000 BTU/h
  • Rated Capacity: 32,600 BTU/h (Non-Ducted), 29,600 BTU/h (Mixed), 26,600 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 42,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 42,000 BTU/h
• Efficiency Ratings:
  • SEER2: 23.0 (Non-Ducted), 20.35 (Mixed), 17.70 (Ducted)
  • EER2: 14.50 (Non-Ducted), 12.70 (Mixed), 10.90 (Ducted)
  • HSPF2 (IV): 12.0 (Non-Ducted), 11.25 (Mixed), 10.50 (Ducted)
  • COP at 47°F: 4.0 (Non-Ducted), 3.70 (Mixed), 3.40 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.04 (Non-Ducted), 1.92 (Mixed), 1.80 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.00 (Non-Ducted), 1.92 (Mixed), 1.86 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 45 A
  • Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 40 A
  • Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 51 A
  • Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 86 A
  • Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 45 A
  • Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 80 A
• Outdoor Unit Dimensions:
  • Width: 41-17/32 inches
  • Depth: 13 inches
  • Height: 52-11/16 inches
  • Weight: 278 lbs

The MXZ-SM36NLHZ is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

MXZ-SM36NL - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit

The MXZ-SM36NL is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to four indoor units with a branch box, it offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 49 dB(A), minimizing noise disturbances in your environment.
• Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
• Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
• Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
• ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 36,000 BTU/h
  • Rated Capacity: 36,000 BTU/h (Non-Ducted), 36,000 BTU/h (Mixed), 36,000 BTU/h (Ducted)
  • Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 41,000 BTU/h
  • Rated Capacity: 41,000 BTU/h (Non-Ducted), 41,000 BTU/h (Mixed), 41,000 BTU/h (Ducted)
  • Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Maximum Capacity: 36,000 BTU/h
  • Rated Capacity: 26,400 BTU/h (Non-Ducted), 26,400 BTU/h (Mixed), 26,600 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 29,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 18,600 BTU/h
• Efficiency Ratings:
  • SEER2: 23.0 (Non-Ducted), 20.6 (Mixed), 18.2 (Ducted)
  • EER2: 14.1 (Non-Ducted), 12.05 (Mixed), 10.0 (Ducted)
  • HSPF2 (IV): 11.0 (Non-Ducted), 10.5 (Mixed), 10.0 (Ducted)
  • COP at 47°F: 4.0 (Non-Ducted), 3.55 (Mixed), 3.10 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.04 (Non-Ducted), 1.92 (Mixed), 1.80 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.20 (Non-Ducted), 2.08 (Mixed), 1.98 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 40 A
  • Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 30 A
  • Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 42 A
  • Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 70 A
  • Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 36 A
  • Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 64 A
• Outdoor Unit Dimensions:
  • Width: 41-17/48 inches
  • Depth: 13 inches
  • Height: 52-11/16 inches
  • Weight: 276 lbs

The MXZ-SM36NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

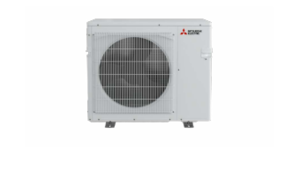

MXZ-5D36NL - Multi-Zone Heat Pump Outdoor Unit

The MXZ-5D36NL is a high-performance outdoor heat pump unit designed for multi-zone applications, capable of connecting up to five indoor units. This system offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 52 dB(A), minimizing noise disturbances in your environment.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes compressor overcurrent detection, fan motor overheating/voltage protection, compressor thermal protection, and high-pressure protection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 36,400 BTU/h
  • Rated Capacity: 35,400 BTU/h (Non-Ducted), 33,400 BTU/h (Mixed), 31,400 BTU/h (Ducted)
  • Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 43,000 BTU/h
  • Rated Capacity: 36,000 BTU/h (Non-Ducted), 35,200 BTU/h (Mixed), 34,400 BTU/h (Ducted)
  • Minimum Capacity: 12,800 BTU/h (Non-Ducted), 12,800 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated Capacity: 23,000 BTU/h (Non-Ducted), 22,400 BTU/h (Mixed), 22,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 24,000 BTU/h
• Efficiency Ratings:
  • SEER2: 19.20 (Non-Ducted), 17.70 (Mixed), 16.20 (Ducted)
  • EER2: 12 (Non-Ducted), 10.40 (Mixed), 8.80 (Ducted)
  • HSPF2 (IV): 9.30 (Non-Ducted), 8.80 (Mixed), 8.30 (Ducted)
  • COP at 47°F: 3.5 (Non-Ducted), 3.3 (Mixed), 3.1 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.26 (Non-Ducted), 2.08 (Mixed), 1.94 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.10 (Non-Ducted), 1.72 (Mixed), 1.34 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 29 A
  • Maximum Overcurrent Protection (MOCP): 49 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,306 CFM (Cooling), 2,306 CFM (Heating)
• Unit Dimensions:
  • Width: 37-13/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 152 lbs

The MXZ-5D36NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

MXZ-3D24NL - Heat Pump Outdoor Unit

The MXZ-3D24NL is a high-performance outdoor heat pump unit designed for residential and light commercial applications. It offers efficient heating and cooling capabilities, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) in cooling mode and 55 dB(A) in heating mode, minimizing noise disturbances.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours of spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum: 22,000 BTU/h
  • Rated: 22,800 BTU/h (Mixed), 23,600 BTU/h (Ducted)
  • Minimum: 11,600 BTU/h (Non-Ducted), 11,300 BTU/h (Mixed), 11,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum: 30,600 BTU/h
  • Rated: 25,200 BTU/h (Mixed), 25,400 BTU/h (Ducted)
  • Minimum: 13,200 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated: 15,600 BTU/h (Mixed), 16,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum: 19,800 BTU/h
• Efficiency Ratings:
  • SEER2: 18 (Mixed), 16 (Ducted)
  • EER2: 12.70 (Mixed), 11.70 (Ducted)
  • HSPF2 (IV): 9.30 (Mixed), 8.60 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 28.7 A
  • Maximum Overcurrent Protection (MOCP): 48 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)
• Unit Dimensions:
  • Width: 37-11/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 137 lbs

The MXZ-3D24NL is ideal for applications requiring efficient heating and cooling performance. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

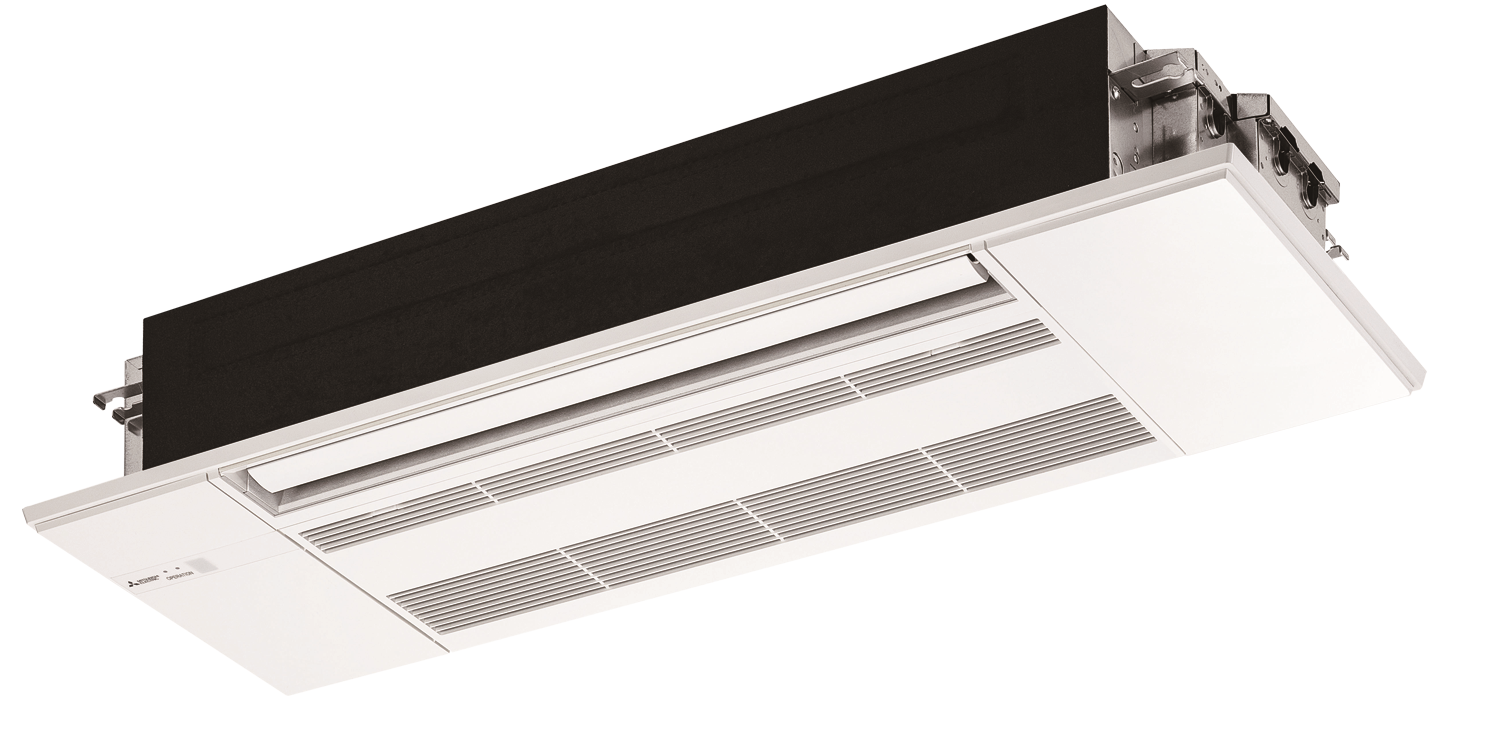

MLZ-KX12NL Ceiling-Mounted Air Handler

The MLZ-KX12NL is a high-efficiency ceiling-mounted air handler designed to provide reliable cooling and heating while maintaining a sleek, space-saving design. Engineered for quiet operation, this unit seamlessly integrates into a variety of indoor environments, making it ideal for residential and commercial applications.

Key Features:

• Compact Ceiling-Mounted Design: Fits between 16-inch joists for seamless integration into ceilings, optimizing space utilization.
• Adjustable Fan Speeds: Allows users to customize airflow settings for maximum comfort.
• Auto Vane Control: Automatically adjusts airflow direction to ensure even temperature distribution throughout the room.
• Built-in Condensate Lift Mechanism: Aids in effective moisture removal for enhanced system efficiency.
• Quiet Operation: Minimizes noise levels, making it suitable for bedrooms, offices, and other noise-sensitive areas.
• Wi-Fi Compatibility: Allows remote operation and scheduling via a smartphone app for enhanced convenience.
• Serviceability from Below: Simplifies maintenance and filter replacement with easy access from below the unit.
• Econo Cool Mode: Optimizes energy efficiency by adjusting temperature settings while maintaining comfort.
• Washable Antibacterial Filter: Ensures improved indoor air quality by capturing dust and airborne contaminants.

The MLZ-KX12NL offers a premium solution for efficient climate control, combining innovative features with energy savings and user-friendly operation.

MLZ-KX18NL Ceiling-Mounted Air Handler

The MLZ-KX18NL is a powerful and energy-efficient ceiling-mounted air handler designed for seamless integration into residential and commercial spaces. With its slim profile and quiet operation, it offers optimal comfort without compromising aesthetics or space.

Key Features:

• Compact Ceiling-Mounted Design: Fits between standard 16-inch joists, ensuring a sleek, space-saving installation.
• Adjustable Fan Speeds: Multiple speed options allow for customized airflow control to enhance comfort.
• Auto Vane Control: Automatically adjusts airflow direction for even temperature distribution throughout the space.
• Built-in Condensate Lift Mechanism: Enhances moisture removal, improving system efficiency and indoor air quality.
• Quiet Operation: Engineered for low sound levels, making it ideal for noise-sensitive environments like bedrooms and offices.
• Wi-Fi Compatibility: Supports remote control via a smartphone app for convenient operation and scheduling.
• Serviceability from Below: Allows for easy maintenance and filter cleaning without the need for complex access.
• Econo Cool Mode: Energy-saving mode optimizes temperature control for enhanced efficiency.
• Washable Antibacterial Filter: Captures airborne contaminants, ensuring cleaner and healthier indoor air.

The MLZ-KX18NL is designed for superior climate control, delivering quiet, efficient performance with smart connectivity options for added convenience.

Mitsubishi Electric MLZ-KX09NL Ceiling-Mounted Air Handler

The Mitsubishi Electric MLZ-KX09NL is a high-performance, ceiling-mounted air handler designed for energy-efficient heating and cooling. With a compact design that fits between 16" joists, advanced airflow control, and multiple control options, it provides superior comfort and convenience.

Key Features

• Adjustable Airflow Control: Auto vane control allows the outlet vanes to move left, right, up, and down to eliminate drafts and enhance comfort.
• Built-in Condensate Lift Mechanism: Includes a 19.6" lift mechanism to reduce the need for an additional condensate pump.
• Econo Cool Mode: Automatically adjusts airflow and temperature to improve energy efficiency while maintaining comfort.
• Quiet Operation: Operates as low as 26 dB(A) for whisper-quiet performance.
• Wi-Fi Enabled: Compatible with the Mitsubishi Comfort app for remote control, scheduling, and system monitoring.
• Antibacterial & Deodorizing Filter: A washable filter helps improve indoor air quality by reducing airborne contaminants and odors.
• Serviceable from Below: Electrical and refrigerant connections can be accessed from the bottom, simplifying maintenance.

Performance Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: Up to 13,000 BTU/h
• Fan Speeds: Multiple speeds for customized airflow
• Sound Pressure Levels: Ranges from 26-38 dB(A) depending on mode

Efficiency Ratings

• SEER2: 20.9
• EER2: 11.8
• HSPF2: 12.2
• ENERGY STAR® Certified: Yes

Dimensions and Installation

• Unit Dimensions: 43-3/8" W x 14-3/16" D x 7-5/16" H
• Weight: 34 lbs
• Mounting: Designed for recessed ceiling installation

The Mitsubishi Electric MLZ-KX09NL is an efficient and space-saving ceiling-mounted air handler, perfect for maintaining consistent indoor comfort with advanced airflow control, quiet operation, and smart connectivity options.

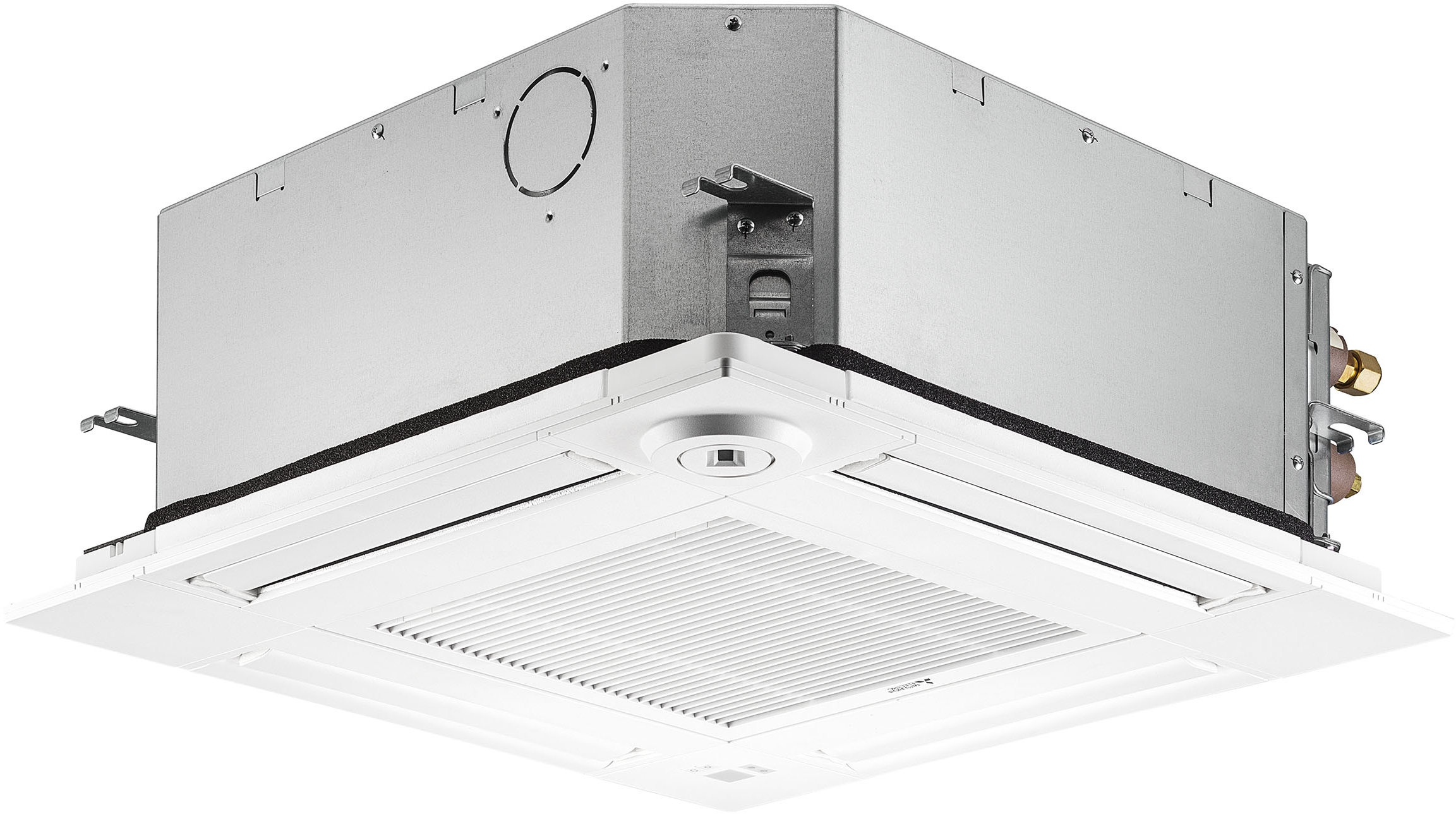

Mitsubishi Electric SLZ-AF18NL Ceiling Cassette Air Handler

SLZ-AF15NL Air Handler Overview

The SLZ-AF15NL air handler, paired with the SUZ-AA15NL outdoor unit, is designed to deliver high-efficiency comfort in both residential and light commercial applications. Its compact design and advanced features ensure optimal performance, even in spaces where installation space is limited. With quiet operation and a high-quality filtration system, the SLZ-AF15NL provides a comfortable and healthy indoor environment year-round.

Key Features

• Compact Design: The SLZ-AF15NL is designed with a low-profile and compact construction, allowing for easy installation in tight spaces such as ceilings or narrow areas.
• Quiet Operation: This air handler is equipped with noise-reducing components, ensuring quiet operation, making it ideal for use in bedrooms, offices, and other noise-sensitive environments.
• Energy-Efficient Performance: Designed to be energy-efficient, the SLZ-AF15NL helps reduce overall energy consumption while providing optimal comfort. It offers both heating and cooling functions for year-round comfort.
• Improved Air Quality: The air handler is equipped with an advanced filtration system that captures dust, allergens, and other airborne particles, promoting cleaner, healthier air indoors.
• Flexible Drainage Options: The SLZ-AF15NL offers versatile drainage options for both horizontal and vertical configurations, making it easy to accommodate various installation needs.

Specifications

• Cooling Capacity: 15,000 BTU/h
• Heating Capacity: 15,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 29-5/8" x 10-1/8" x 28-1/4”
• Weight: 50.7 lbs
• Refrigerant: R410A
• Airflow: 635 CFM

Benefits

• Space-Saving Design: The compact design allows the SLZ-AF15NL to fit in small and narrow spaces where conventional air handlers may not be feasible. It's ideal for residential and light commercial applications.
• Quiet and Comfortable: Designed to operate quietly, the SLZ-AF15NL ensures comfort without disruption. Its quiet performance makes it ideal for installation in noise-sensitive areas like living rooms and bedrooms.
• Energy Savings: By optimizing energy consumption, the SLZ-AF15NL offers lower operating costs and helps reduce overall electricity bills while maintaining optimal performance.
• Cleaner Air: The air filtration system helps remove dust and allergens from the air, ensuring improved air quality and a healthier indoor environment for all occupants.

Applications

• Residential Applications: The SLZ-AF15NL is a perfect solution for homes, apartments, and condominiums. Its compact size and energy-efficient design make it ideal for spaces where installation space is limited.
• Light Commercial Applications: Ideal for small businesses, offices, and retail spaces, the SLZ-AF15NL provides reliable and efficient climate control while keeping energy consumption low.

Maintenance

• Low Maintenance Requirements: The SLZ-AF15NL is easy to maintain with regular filter cleaning and routine service. These simple maintenance tasks ensure the air handler operates efficiently over time.
• Durable and Long-Lasting: Built with high-quality materials, the SLZ-AF15NL is designed to last, providing long-term reliability and performance.

The SLZ-AF15NL air handler, when paired with the SUZ-AA15NL outdoor unit, is an excellent solution for maintaining year-round comfort in residential and light commercial spaces. Its efficient performance, space-saving design, and quiet operation make it a dependable choice for those seeking reliable climate control. The combination of energy efficiency, improved air quality, and flexible installation options ensures that the SLZ-AF15NL is a smart investment for maintaining a comfortable and healthy indoor environment.

SLZ-AF12NL Air Handler Overview

The SLZ-AF12NL air handler, paired with the SUZ-AA12NL outdoor unit, is a high-efficiency solution designed for both residential and light commercial applications. With its compact design and reliable performance, this air handler provides optimal comfort and air quality. It offers flexible installation options, making it ideal for spaces with limited ceiling clearance or restricted installation areas.

Key Features

• Compact and Low-Profile Design: The SLZ-AF12NL features a slim, low-profile construction that allows for installation in tight spaces such as ceilings and narrow ducts. This makes it perfect for applications where space is at a premium.
• High Energy Efficiency: Designed with energy-saving technology, the SLZ-AF12NL ensures optimal performance while keeping operating costs low. It provides both heating and cooling functions to enhance year-round comfort.
• Quiet Operation: Equipped with sound-reducing components, the air handler ensures quiet operation, which is ideal for bedrooms, offices, and other noise-sensitive environments.
• Advanced Filtration System: The SLZ-AF12NL includes an efficient air filter that helps capture dust, allergens, and other airborne particles, improving indoor air quality and ensuring a healthier living or working environment.
• Flexible Drainage Options: With versatile installation options for horizontal or vertical drainage, this unit accommodates various building configurations and installation preferences.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 29-5/8" x 10-1/8" x 28-1/4”
• Weight: 46.3 lbs
• Refrigerant: R410A
• Airflow: 635 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF12NL is ideal for installations in tight spaces where conventional air handlers may not fit. It is suitable for both residential and light commercial use.
• Energy Efficiency: By optimizing energy consumption, the SLZ-AF12NL offers a cost-effective solution for heating and cooling. It helps reduce overall electricity bills while maintaining high performance.
• Quiet and Comfortable: The air handler is designed to minimize noise levels, making it ideal for use in areas that require minimal disruption, such as living rooms, bedrooms, and offices.
• Improved Air Quality: The advanced filtration system captures dust, allergens, and other particles, promoting a cleaner and healthier indoor environment for occupants.

Applications

• Residential Applications: The SLZ-AF12NL is perfect for residential properties, offering efficient and reliable climate control in apartments, homes, and condominiums, where space is limited.
• Light Commercial Applications: Ideal for small businesses, offices, and retail spaces, the SLZ-AF12NL provides efficient comfort while saving on energy consumption.

Maintenance

• Low Maintenance: The SLZ-AF12NL is designed for easy maintenance. Regular filter cleaning and occasional servicing ensure long-term reliability and optimal performance.
• Durable and Long-Lasting: Built with high-quality materials, the SLZ-AF12NL is designed for durability and longevity, making it a dependable choice for both residential and commercial environments.

The SLZ-AF12NL air handler, paired with the SUZ-AA12NL outdoor unit, offers a high-performance and energy-efficient solution for both residential and light commercial spaces. Its compact design, quiet operation, and advanced features make it an excellent choice for those seeking comfort and efficiency in smaller or more confined areas. With its reliable performance and flexible installation options, the SLZ-AF12NL provides year-round comfort while helping to reduce energy consumption and improve indoor air quality.

SLZ-AF09NL Air Handler Overview

The SLZ-AF09NL is a high-performance air handler designed for residential and light commercial use. Paired with the SUZ-AA09NL outdoor unit, this air handler offers reliable and efficient heating and cooling solutions. It features a compact, low-profile design that allows for easy installation in tight spaces, making it ideal for applications where space is limited.

Key Features

• Compact and Low-Profile Design: The SLZ-AF09NL is designed to fit into tight spaces such as ceilings or recessed areas, offering flexibility in installation while maintaining high performance.
• High Energy Efficiency: The air handler is engineered with energy-saving features that reduce electricity consumption, making it a cost-effective option for both residential and commercial applications.
• Quiet Operation: With its advanced noise-reduction technology, the SLZ-AF09NL operates quietly, ensuring a comfortable and peaceful indoor environment.
• Advanced Filtration: The unit is equipped with a high-efficiency filter that improves indoor air quality by capturing dust, allergens, and other airborne particles.
• Flexible Drain Options: The air handler provides flexibility in installation, with options for both horizontal and vertical drainage to suit different building layouts.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 26-3/8" x 10-1/8" x 27-1/4”
• Weight: 39.7 lbs
• Refrigerant: R410A
• Airflow: 490 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF09NL allows it to fit into small or confined spaces, making it ideal for installations in apartments, small offices, or commercial settings.
• Energy Efficiency: By optimizing cooling and heating output, the SLZ-AF09NL helps reduce energy costs while maintaining high comfort levels.
• Quiet and Comfortable: The quiet operation makes it suitable for environments where noise levels need to be minimized, such as bedrooms, living rooms, or offices.
• Improved Air Quality: With its advanced filtration system, the SLZ-AF09NL enhances indoor air quality by trapping harmful particles, providing a healthier indoor environment.

Applications

• Residential Applications: Perfect for homes where space is limited, the SLZ-AF09NL provides efficient heating and cooling without taking up valuable room space.
• Light Commercial Applications: Ideal for small commercial spaces, such as small offices, retail stores, and other commercial environments requiring compact and efficient climate control.

Maintenance

• Low Maintenance: The SLZ-AF09NL air handler is designed for easy maintenance. Regular filter cleaning and occasional professional servicing ensure long-lasting performance.
• Durable Components: Built with high-quality materials, this air handler is designed to withstand regular use and provide reliable performance for many years.

The SLZ-AF09NL is an efficient, compact air handler suitable for both residential and light commercial applications. Paired with the SUZ-AA09NL outdoor unit, it provides a reliable and cost-effective solution for year-round comfort. With its advanced features, such as quiet operation, high energy efficiency, and flexible installation options, it is an excellent choice for anyone looking to enhance indoor comfort while minimizing energy consumption.

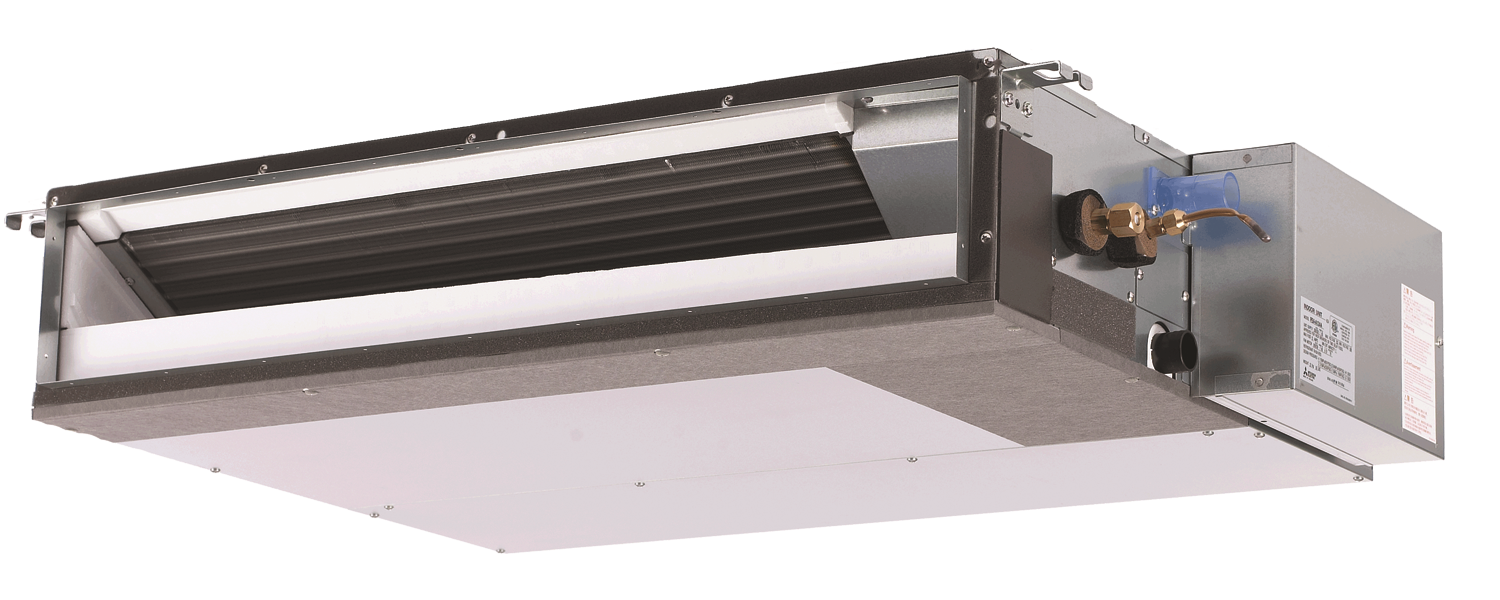

The Mitsubishi SEZ-AD09NL is a 9,000 BTU low-static, horizontal-ducted indoor unit engineered for discreet comfort. Its ultra-slim 7-7/8" profile allows installation in tight spaces, making it ideal for applications with short duct runs. Operating at sound levels as low as 23 dB, it ensures whisper-quiet performance. Compatible with both single and multi-zone systems, the SEZ-AD09NL supports multiple control options, including wired and wireless controllers, as well as app-based access. Featuring a built-in condensate lift mechanism and utilizing eco-friendly R-454B refrigerant, this unit delivers efficient, reliable climate control.

Features:

• 9,000 BTU concealed ducted air handler for flexible installation
• Ultra-slim 7-7/8" height - fits tight ceiling or soffit spaces
• Quiet operation - as low as 23 dB(A)
• Compatible with both single-zone and multi-zone Mitsubishi systems
• R-454B refrigerant - low-GWP and environmentally friendly
• Built-in condensate lift mechanism
• Multiple control options - wired, wireless, and app-based

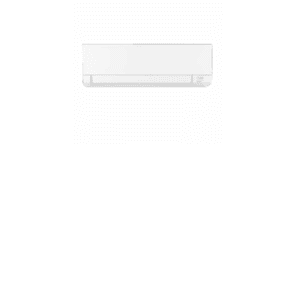

MSZ-GX30NL Air Handler Overview

The MSZ-GX30NL is a high-efficiency air handler designed to deliver both heating and cooling for residential and light commercial applications. When paired with the MUZ-GX30NL outdoor unit, it provides reliable and consistent climate control with energy-efficient performance. Equipped with inverter technology, Hyper Heating capabilities, and a quiet operation, the MSZ-GX30NL ensures that your space remains comfortable year-round while keeping energy consumption low and operational costs minimal.

Key Features

• Energy Efficiency: The MSZ-GX30NL is designed with energy savings in mind. Featuring advanced inverter technology, this air handler dynamically adjusts the compressor speed to meet the real-time cooling and heating demands, resulting in optimized energy usage and lower utility bills.
• Quiet Operation: This unit is engineered for quiet performance, making it an ideal solution for bedrooms, offices, and other environments where minimal noise is essential. The MSZ-GX30NL ensures that you enjoy a comfortable climate without disruptions from loud HVAC systems.
• Compact and Stylish Design: The MSZ-GX30NL boasts a sleek, modern design that fits seamlessly into various indoor environments. Its compact dimensions and contemporary look make it suitable for installations where space is at a premium while still delivering outstanding performance.
• Improved Air Quality: With its advanced filtration system, the MSZ-GX30NL helps to improve indoor air quality by capturing dust, allergens, and other particulate matter, ensuring that the air in your home or office remains clean and healthy.
• Durability: Built with durable materials and a corrosion-resistant coating, the MSZ-GX30NL is designed to withstand a variety of environmental conditions, ensuring long-lasting performance and reliability in various climates.

Specifications

• Cooling Capacity: 30,000 BTU/h
• Heating Capacity: 34,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 31 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX30NL uses inverter-driven technology, allowing the system to adjust the compressor speed according to the cooling or heating needs. This provides superior energy efficiency, consistent temperature control, and a longer system lifespan due to reduced wear and tear.
• Hyper Heating Technology: This air handler features Hyper Heating, which enables it to perform optimally even in extremely cold outdoor temperatures. This ensures that the system continues to provide efficient heating, even in climates with harsh winters.

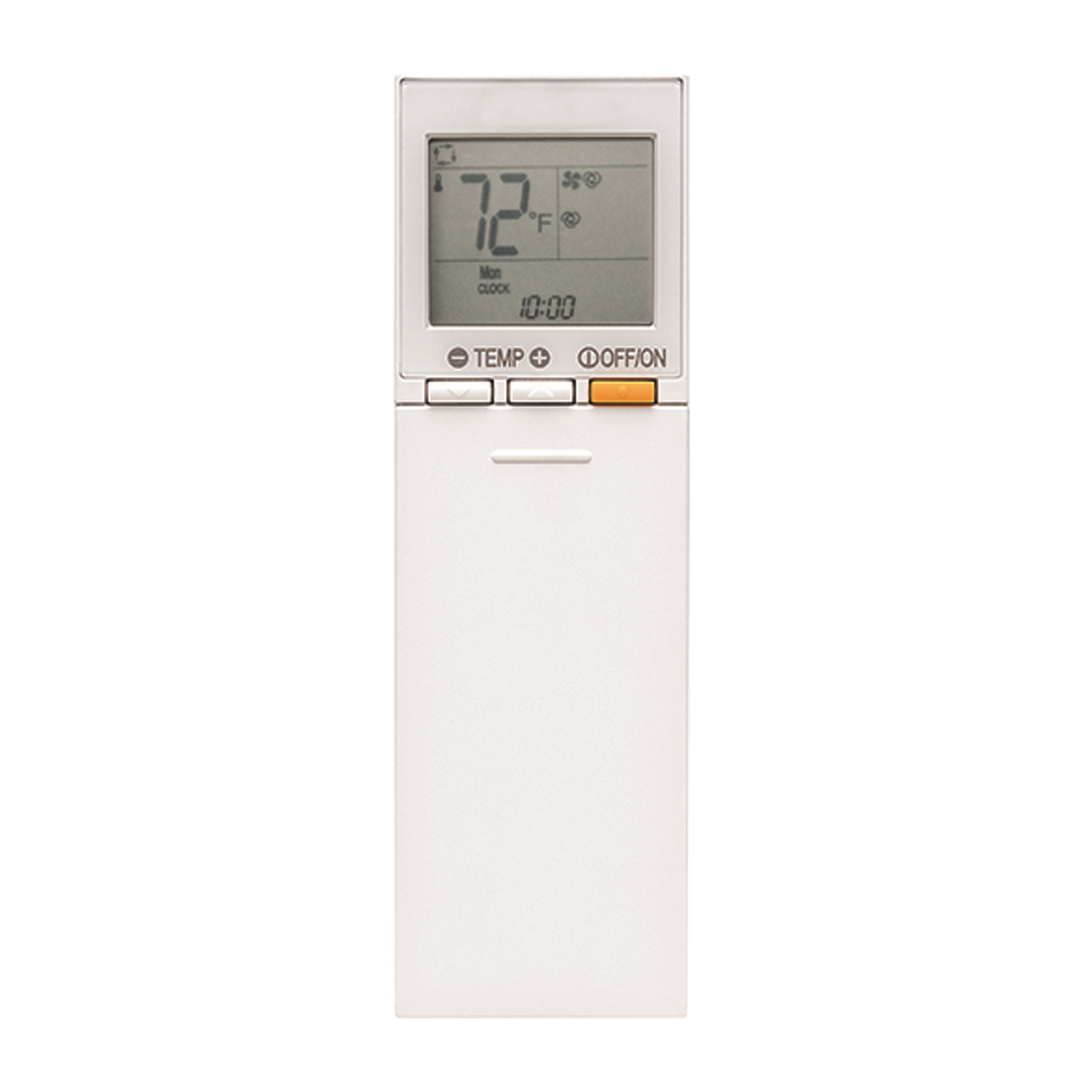

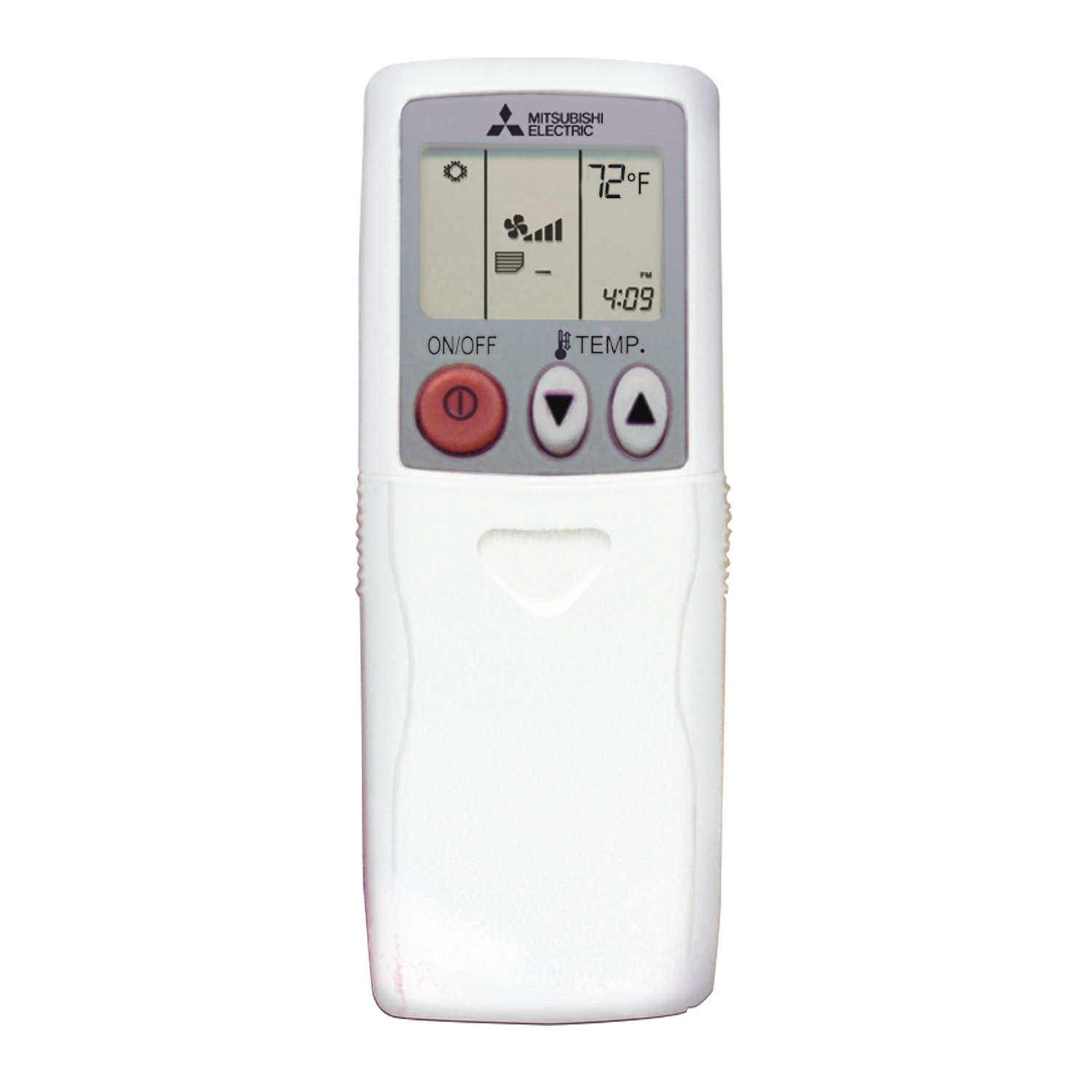

• Remote Control: The MSZ-GX30NL comes with a remote control, enabling easy management of the system's settings, including temperature adjustments, fan speeds, and operation modes. This convenient feature allows you to maintain control over your indoor climate from anywhere in the room.
• Auto Restart Function: The MSZ-GX30NL is equipped with an auto-restart function that ensures the unit automatically restores its previous settings following a power outage. This feature eliminates the need for manual intervention and ensures continuous comfort.
• Self-Diagnosis and Error Reporting: This system is equipped with a self-diagnosis function that monitors its operation and displays error codes when an issue is detected. This feature simplifies troubleshooting and reduces the time needed for repairs or maintenance.

Installation and Maintenance

• Easy Installation: The MSZ-GX30NL is designed for quick and flexible installation. Its compact size and adaptable design allow it to be installed in a variety of spaces, whether it's a residential home or a small commercial establishment.
• Low Maintenance: The MSZ-GX30NL requires minimal maintenance to keep it running at peak performance. Regular cleaning of its washable filters ensures optimal airflow and air quality, while its durable construction helps reduce the need for frequent servicing.
• Washable Filters: The MSZ-GX30NL comes with washable filters that are easy to clean, allowing for lower maintenance costs and better airflow. Clean filters also help ensure that the system operates efficiently and maintains high indoor air quality.

Applications

• Residential Use: The MSZ-GX30NL is ideal for larger homes, apartments, or individual rooms that require efficient and reliable climate control. Its quiet operation, compact design, and energy efficiency make it a perfect choice for living rooms, bedrooms, and home offices.
• Commercial Use: This air handler is also well-suited for light commercial applications such as small offices, retail spaces, or server rooms. Its high capacity and energy-efficient performance make it a valuable option for businesses seeking reliable climate control at an affordable cost.

In conclusion, the MSZ-GX30NL air handler is a robust and energy-efficient solution for both residential and light commercial applications. With features like inverter technology, Hyper Heating capabilities, and quiet operation, it ensures consistent comfort throughout the year. The air handler's compact design, improved air quality features, and minimal maintenance requirements make it a perfect choice for customers looking for long-term, cost-effective climate control solutions.

MSZ-GX09NL Air Handler Overview

The MSZ-GX09NL air handler is a high-performance HVAC system designed to provide efficient and reliable cooling and heating for both residential and light commercial applications. When paired with the MUZ-GX09NL outdoor unit, it offers exceptional comfort and energy efficiency throughout the year. Featuring advanced technologies such as Inverter-driven performance, a sleek design, and quiet operation, the MSZ-GX09NL is an ideal choice for users seeking a compact, efficient, and durable HVAC solution.

Key Features

• Energy Efficiency: The MSZ-GX09NL air handler is engineered for high energy efficiency, helping reduce electricity consumption while maintaining optimal performance and comfort levels. This results in reduced operating costs and environmental impact.
• Quiet Operation: Designed with quiet operation in mind, the MSZ-GX09NL ensures a peaceful indoor environment. Its advanced sound-reducing technology makes it ideal for bedrooms, offices, and other spaces where noise reduction is a priority.
• Compact Design: The MSZ-GX09NL features a compact, modern design that allows for flexible installation in a variety of spaces. Its sleek profile blends seamlessly into both residential and commercial interiors, maximizing usable space while providing superior performance.
• Advanced Filtration: This air handler is equipped with a high-performance filtration system that helps remove dust, allergens, and other airborne particles, ensuring improved indoor air quality and a healthier living or working environment.
• Durability and Reliability: Built with a corrosion-resistant coating, the MSZ-GX09NL is designed for long-lasting durability, even in humid or corrosive environments. This ensures reliable operation and minimal maintenance needs over the system's lifespan.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 10,900 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 24 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX09NL incorporates inverter-driven technology that adjusts the compressor speed to match cooling or heating demand. This allows for better energy efficiency, consistent indoor temperatures, and reduced wear on the system for longer-lasting performance.
• Hyper Heating Technology: This unit is designed to provide effective heating performance even in extreme outdoor temperatures, ensuring comfort in cold weather conditions. Hyper Heating technology ensures a reliable source of warmth, even during the winter months.
• Remote Control: The MSZ-GX09NL includes an intuitive remote control that allows users to easily adjust temperature settings, fan speed, and operating mode from anywhere in the room, providing convenient and flexible climate control.
• Auto Restart Function: In the event of a power failure, the MSZ-GX09NL automatically restarts with the previous settings, eliminating the need for manual reprogramming and ensuring continuous comfort without disruption.
• Self-Diagnosis and Error Reporting: The air handler features a self-diagnosis system that detects issues and displays error codes for easy troubleshooting, reducing the need for service calls and ensuring reliable operation over time.

Installation and Maintenance

• Easy Installation: The MSZ-GX09NL is designed for easy installation in a variety of residential and commercial spaces. Its compact design and flexible mounting options make it suitable for installations in tight or hard-to-reach areas.
• Low Maintenance Requirements: With its durable construction and washable filters, the MSZ-GX09NL requires minimal maintenance. Regular cleaning of the filters helps maintain optimal airflow and air quality, reducing the need for frequent maintenance or part replacements.
• Washable Filters: The air handler features washable filters, which can be easily removed and cleaned to maintain efficient performance and improve air quality. This feature helps reduce ongoing maintenance costs and enhances the system's lifespan.

Applications

• Residential Use: The MSZ-GX09NL is ideal for cooling and heating small to medium-sized homes, apartments, or individual rooms. Its energy-efficient operation, quiet performance, and compact design make it a great fit for living rooms, bedrooms, or home offices.
• Commercial Use: This air handler is also well-suited for light commercial applications such as small offices, retail spaces, or server rooms, where energy efficiency and reliable climate control are necessary to maintain a comfortable environment.

In conclusion, the MSZ-GX09NL air handler offers a highly efficient and reliable solution for both residential and light commercial climate control needs. With advanced features such as inverter technology, Hyper Heating, and quiet operation, it ensures consistent comfort year-round while keeping energy costs low. Its compact design, durable construction, and ease of maintenance make it an excellent choice for anyone seeking a high-quality, energy-efficient HVAC system.

MSZ-GX12NL Air Handler Overview

The MSZ-GX12NL air handler is a high-performance, energy-efficient HVAC system designed to deliver consistent and reliable heating and cooling for both residential and light commercial applications. When paired with the MUZ-GX12NL outdoor unit, it provides optimal comfort throughout the year, ensuring an energy-efficient and reliable solution for diverse environments. With features such as inverter-driven technology, Hyper Heating capabilities, and quiet operation, the MSZ-GX12NL is ideal for users seeking superior comfort, efficiency, and long-term durability.

Key Features

• Energy Efficiency: The MSZ-GX12NL is engineered to maximize energy efficiency, helping to reduce overall electricity consumption while maintaining consistent and reliable performance, which ultimately lowers operating costs and environmental impact.
• Quiet Operation: The air handler operates quietly, ensuring minimal disruption to indoor environments. This feature makes it suitable for bedrooms, offices, and other spaces where maintaining a peaceful atmosphere is important.
• Compact and Stylish Design: The MSZ-GX12NL features a compact, modern design that allows for flexible installation. Its sleek profile ensures it integrates well with a variety of residential and commercial spaces, saving space while providing efficient climate control.
• High-Performance Filtration: Equipped with a high-performance filtration system, this air handler helps reduce airborne allergens, dust, and other particulate matter, improving indoor air quality and creating a healthier living or working environment.
• Corrosion-Resistant Coating: Built to withstand harsh environments, the MSZ-GX12NL features a corrosion-resistant coating that ensures long-lasting durability and dependable operation, even in humid or corrosive conditions.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 14,300 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 26 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX12NL utilizes inverter-driven technology, allowing the system to adjust the compressor speed based on real-time cooling and heating demands. This results in higher energy efficiency, stable room temperatures, and lower wear on components for a longer-lasting system.
• Hyper Heating Technology: Hyper Heating ensures the air handler continues to provide effective heating even in extremely low outdoor temperatures. This makes the MSZ-GX12NL suitable for use in colder climates, providing warmth during the winter months when other systems may struggle.
• Remote Control: The MSZ-GX12NL is equipped with an easy-to-use remote control that allows users to adjust the temperature, fan speed, and operational modes from anywhere in the room, providing convenience and flexibility in managing indoor comfort.
• Auto Restart Function: The air handler includes an auto-restart function, which automatically restores the previous settings after a power interruption. This ensures that the system continues to provide comfort without requiring manual intervention after power is restored.
• Self-Diagnosis and Error Reporting: The MSZ-GX12NL features a self-diagnosis function that detects faults and displays error codes for easy troubleshooting. This feature helps reduce service calls and downtime, ensuring the system operates smoothly for longer periods.

Installation and Maintenance

• Easy Installation: The MSZ-GX12NL is designed for flexible and straightforward installation. Its compact design and versatile mounting options make it an excellent choice for various residential and commercial spaces, where installation space may be limited.
• Low Maintenance Requirements: The air handler is designed to require minimal maintenance. Regular cleaning of the washable filters ensures optimal performance, improves air quality, and reduces the need for professional maintenance.
• Washable Filters: The MSZ-GX12NL comes with washable filters, which can be easily removed and cleaned. This feature reduces the frequency of filter replacements, lowering maintenance costs and ensuring better airflow and air quality over time.

Applications

• Residential Use: The MSZ-GX12NL is perfect for cooling and heating medium-sized homes, apartments, or individual rooms. It provides energy-efficient climate control, quiet operation, and a compact design that fits seamlessly into modern living spaces.
• Commercial Use: This air handler is also suitable for light commercial applications, including small offices, retail spaces, and server rooms, where quiet, efficient, and reliable climate control is essential for maintaining a comfortable and productive environment.

In conclusion, the MSZ-GX12NL air handler is a high-performance, energy-efficient solution for cooling and heating needs in both residential and light commercial applications. With its advanced inverter technology, Hyper Heating capabilities, quiet operation, and superior filtration, this system ensures year-round comfort while minimizing energy consumption. Its compact design, corrosion-resistant construction, and low maintenance requirements make it an excellent choice for those looking for a durable and efficient HVAC system.

MSZ-GX15NL Air Handler Overview

The MSZ-GX15NL air handler is a highly efficient and reliable HVAC system designed to deliver both heating and cooling solutions for residential and light commercial applications. When paired with the MUZ-GX15NL outdoor unit, it provides energy-efficient, consistent, and reliable comfort throughout the year. With features such as inverter-driven technology, quiet operation, and Hyper Heating capabilities, the MSZ-GX15NL is an ideal choice for users seeking efficient and long-lasting climate control in their indoor spaces.

Key Features

• Energy Efficiency: The MSZ-GX15NL air handler is engineered to provide exceptional energy efficiency, helping reduce electricity consumption while ensuring optimal performance. This leads to lower operating costs and contributes to a greener, more sustainable environment.
• Quiet Operation: The MSZ-GX15NL operates at minimal sound levels, ensuring a quiet and peaceful indoor environment. This feature makes it perfect for bedrooms, offices, and other areas where maintaining a tranquil atmosphere is important.
• Compact and Modern Design: Featuring a sleek and compact design, the MSZ-GX15NL blends seamlessly into a variety of residential and commercial environments. Its space-saving construction makes it ideal for areas with limited installation space while still providing optimal performance.
• Improved Air Quality: The MSZ-GX15NL includes a high-performance filtration system that helps to reduce allergens, dust, and other airborne particles, ensuring improved air quality and a healthier indoor environment for users.
• Corrosion-Resistant Coating: Built to withstand harsh environmental conditions, the MSZ-GX15NL features a corrosion-resistant coating that ensures long-lasting durability, even in humid or corrosive environments, making it a reliable solution for a wide range of applications.

Specifications

• Cooling Capacity: 15,000 BTU/h
• Heating Capacity: 17,200 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 26 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX15NL is equipped with inverter-driven technology, allowing the compressor speed to be adjusted according to the cooling or heating demand. This technology enhances energy efficiency, maintains consistent indoor temperatures, and reduces wear on the system for longer lifespan.
• Hyper Heating Technology: The MSZ-GX15NL features Hyper Heating technology, providing effective heating performance even in extremely low outdoor temperatures. This ensures that the air handler continues to perform optimally during cold weather, offering reliable heating even in challenging climates.
• Remote Control: The MSZ-GX15NL comes with an intuitive remote control that makes it easy for users to adjust settings such as temperature, fan speed, and operation mode. This provides flexibility and convenience in managing the indoor climate from anywhere in the room.
• Auto Restart Function: If there is a power failure, the MSZ-GX15NL features an auto-restart function that restores the previous settings once power is restored. This eliminates the need for manual intervention, ensuring that the system continues to operate without disruption.
• Self-Diagnosis and Error Reporting: The air handler includes a self-diagnosis system that detects faults and displays error codes for easy troubleshooting. This feature helps minimize downtime and reduces the need for service calls, ensuring reliable operation for long periods.

Installation and Maintenance

• Easy Installation: The MSZ-GX15NL is designed for straightforward installation in a variety of residential and light commercial settings. Its compact size and versatile design allow for flexible mounting options, making it suitable for spaces with limited room for installation.
• Low Maintenance Requirements: This air handler is built with ease of maintenance in mind. Regular cleaning of the washable filters helps ensure optimal performance and air quality, reducing the need for professional maintenance and lowering long-term operational costs.
• Washable Filters: The MSZ-GX15NL comes equipped with washable filters that can be easily removed and cleaned. This feature eliminates the need for frequent filter replacements and ensures that the system operates efficiently over its lifespan.

Applications

• Residential Use: The MSZ-GX15NL is perfect for cooling and heating medium to large-sized homes, apartments, and individual rooms. Its quiet operation, energy efficiency, and compact design make it ideal for living spaces, bedrooms, or home offices.
• Commercial Use: This air handler is also suitable for light commercial applications such as small offices, retail stores, or server rooms, where efficient climate control and energy savings are important considerations for maintaining a comfortable environment.

In conclusion, the MSZ-GX15NL air handler is an efficient, reliable, and high-performance solution for a variety of residential and light commercial applications. With advanced features such as inverter technology, Hyper Heating capabilities, and quiet operation, this system ensures comfort in any season. Its compact design, corrosion-resistant construction, and low maintenance requirements make it a durable and cost-effective choice for anyone looking for a high-quality HVAC system.

MSZ-GX18NL Air Handler Overview

The MSZ-GX18NL air handler is a high-efficiency, reliable HVAC system designed for residential and light commercial use. When paired with the MUZ-GX18NL outdoor unit, it delivers consistent and effective heating and cooling performance throughout the year. The system incorporates advanced technologies such as inverter-driven operation, Hyper Heating capabilities, and quiet performance, making it an excellent choice for users seeking energy efficiency, comfort, and long-lasting durability in their indoor environments.

Key Features

• Energy Efficiency: The MSZ-GX18NL is engineered to optimize energy usage, reducing electricity consumption while maintaining high performance. This results in lower energy costs and a smaller environmental footprint, making it a sustainable solution for climate control.
• Quiet Operation: Designed with a focus on reducing sound levels, the MSZ-GX18NL operates quietly, ensuring a peaceful indoor environment. Its quiet operation is ideal for bedrooms, living rooms, offices, or any space where minimizing noise is essential.
• Compact and Stylish Design: The MSZ-GX18NL features a sleek and compact design that fits seamlessly into modern living spaces. Its space-saving profile is perfect for installations in smaller areas while providing efficient cooling and heating performance.
• Advanced Filtration System: The air handler includes a high-performance filtration system that helps reduce allergens, dust, and other particulate matter, improving indoor air quality and creating a healthier living or working environment.
• Durability: With a corrosion-resistant coating, the MSZ-GX18NL is built to withstand harsh environmental conditions, ensuring long-lasting reliability, even in humid or corrosive environments.

Specifications

• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 20,600 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 29 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX18NL utilizes inverter-driven technology, allowing the system to adjust the compressor speed according to the real-time cooling and heating demands. This provides improved energy efficiency, ensures consistent indoor temperatures, and reduces wear on the system for longer lifespan.
• Hyper Heating Technology: The MSZ-GX18NL is equipped with Hyper Heating technology, which allows the air handler to maintain efficient heating performance even in extremely low outdoor temperatures. This ensures a reliable and consistent source of warmth even in harsh winter conditions.
• Remote Control: The MSZ-GX18NL comes with an easy-to-use remote control, giving users the ability to adjust settings such as temperature, fan speed, and operating modes from anywhere in the room, offering flexibility and convenience for managing indoor comfort.
• Auto Restart Function: In the event of a power outage, the MSZ-GX18NL features an auto-restart function that restores the unit's previous settings automatically once power is resumed. This eliminates the need for manual intervention and ensures uninterrupted comfort.
• Self-Diagnosis and Error Reporting: This system includes a self-diagnosis feature that detects any faults or issues, displaying error codes for easy troubleshooting. This reduces service calls and ensures reliable operation over time.

Installation and Maintenance

• Easy Installation: The MSZ-GX18NL is designed for straightforward installation. Its compact size and flexible mounting options make it ideal for installation in various residential and commercial spaces where space may be limited.
• Low Maintenance Requirements: With its durable construction and washable filters, the MSZ-GX18NL requires minimal maintenance. Regular cleaning of the filters helps ensure optimal performance, reducing the need for professional servicing.
• Washable Filters: The MSZ-GX18NL comes with washable filters that are easy to remove and clean. This feature helps to reduce maintenance costs and improve the system's overall efficiency by ensuring better airflow and air quality.

Applications

• Residential Use: The MSZ-GX18NL is perfect for cooling and heating larger homes, apartments, or individual rooms. Its quiet operation, energy efficiency, and sleek design make it an excellent choice for living spaces, bedrooms, or home offices.
• Commercial Use: This air handler is also suitable for light commercial applications, including small offices, retail spaces, or server rooms. Its efficient operation and ability to maintain a consistent temperature make it a valuable addition to any commercial environment.

In conclusion, the MSZ-GX18NL air handler is an efficient and reliable solution for both residential and light commercial climate control needs. Featuring advanced technologies such as inverter-driven operation, Hyper Heating, and quiet operation, it ensures consistent comfort throughout the year while reducing energy costs. Its compact design, durability, and low maintenance requirements make it an excellent choice for users seeking long-lasting, energy-efficient HVAC solutions.

MSZ-GX36NL Air Handler Overview

The MSZ-GX36NL is a high-performance air handler designed to provide both heating and cooling in larger residential and light commercial spaces. Paired with the MUZ-GX36NL outdoor unit, it delivers exceptional comfort, superior energy efficiency, and reliable performance. Featuring cutting-edge inverter technology and Hyper Heating capabilities, the MSZ-GX36NL ensures optimal climate control even in extreme temperatures, while its quiet operation and advanced filtration system guarantee an enhanced indoor environment.

Key Features

• Energy Efficiency: The MSZ-GX36NL air handler is designed with energy efficiency in mind. Thanks to its inverter technology, the unit adjusts its cooling and heating output to meet the exact demands of the space, resulting in lower energy consumption and reduced utility bills.
• Quiet Operation: This unit operates quietly, providing a peaceful atmosphere without compromising on performance. Its low noise level makes it an excellent choice for environments where noise reduction is a priority, such as bedrooms, offices, and living spaces.
• Compact and Modern Design: The MSZ-GX36NL features a compact, sleek design that blends seamlessly with modern interiors. Its small footprint and stylish appearance make it ideal for spaces with limited room for installation, without sacrificing performance or comfort.
• Improved Air Quality: The MSZ-GX36NL is equipped with advanced filters that help reduce airborne pollutants, such as dust, allergens, and bacteria. This helps to improve indoor air quality, providing a healthier environment for occupants.
• Durability: Constructed with high-quality materials and corrosion-resistant coatings, the MSZ-GX36NL is built to withstand harsh conditions. Its durability ensures long-lasting performance, even in challenging environments like coastal areas with high humidity.

Specifications

• Cooling Capacity: 36,000 BTU/h
• Heating Capacity: 41,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 37-1/2" (W) x 12-5/8" (H) x 28-1/4" (D)
• Weight: 33 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX36NL uses advanced inverter-driven technology that adjusts the compressor speed in real-time. This allows for more precise control over the temperature, reduced energy consumption, and enhanced comfort throughout the space.
• Hyper Heating Technology: Hyper Heating ensures that the MSZ-GX36NL continues to operate efficiently even in extremely cold weather. This feature allows the air handler to maintain reliable heating performance even when outdoor temperatures drop significantly, making it ideal for colder climates.
• Remote Control: The unit comes with a user-friendly remote control, allowing for easy management of temperature, fan speed, and operating modes from the comfort of the room. This feature gives you full control over your indoor environment without the need to manually adjust the system.
• Auto Restart Function: In the event of a power outage, the MSZ-GX36NL's auto restart function ensures that the system returns to its previous settings once power is restored. This feature eliminates the need for manual intervention and ensures continuous comfort.
• Self-Diagnosis and Error Reporting: The MSZ-GX36NL is equipped with a self-diagnosis feature that detects system errors and displays them as error codes. This simplifies troubleshooting and allows for faster and more efficient repairs or maintenance.

Installation and Maintenance

• Easy Installation: The MSZ-GX36NL is designed for easy and flexible installation. Its compact size and versatile mounting options make it suitable for a wide range of installation scenarios, even in spaces with limited room.
• Low Maintenance: With minimal maintenance requirements, the MSZ-GX36NL offers long-term, hassle-free performance. Routine maintenance primarily involves cleaning the washable filters to ensure optimal system efficiency and indoor air quality.
• Washable Filters: The MSZ-GX36NL features washable filters that can be easily removed and cleaned. This reduces the need for frequent filter replacements and ensures that the system continues to run efficiently over time.

Applications

• Residential Use: The MSZ-GX36NL is ideal for larger homes, apartments, or individual rooms in need of powerful yet energy-efficient climate control. Its quiet operation, compact design, and reliable performance make it an excellent choice for living rooms, bedrooms, and home offices.
• Commercial Use: This air handler is also well-suited for light commercial applications such as small offices, retail stores, and other commercial spaces. Its high capacity and energy-efficient design make it a cost-effective solution for businesses seeking reliable climate control.

In conclusion, the MSZ-GX36NL air handler provides an excellent solution for maintaining comfort in both residential and light commercial environments. With advanced features such as inverter technology, Hyper Heating, quiet operation, and energy efficiency, this unit offers reliable performance year-round. Its durable construction, easy installation, and improved air quality capabilities make it an ideal choice for customers looking for a long-term, low-maintenance climate control solution.

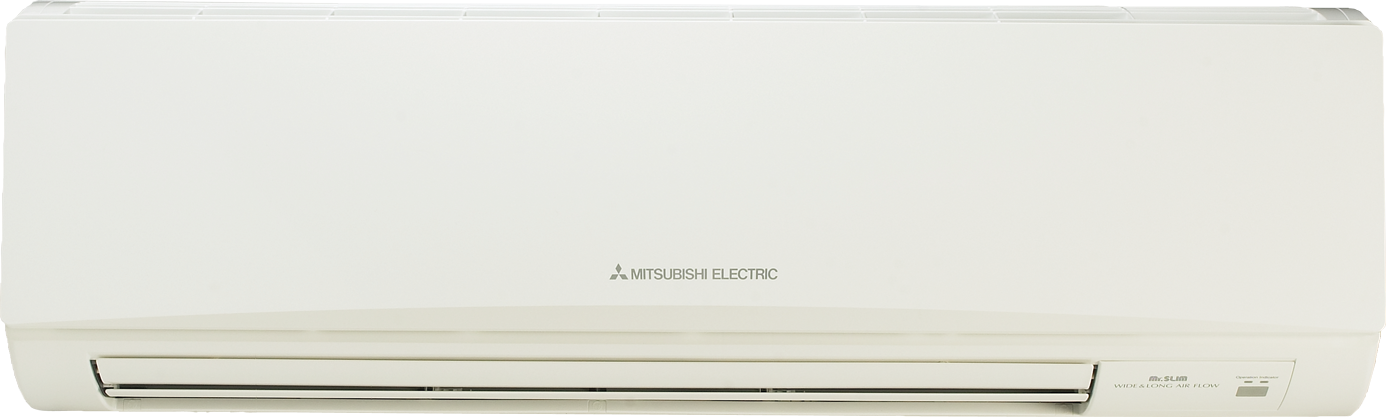

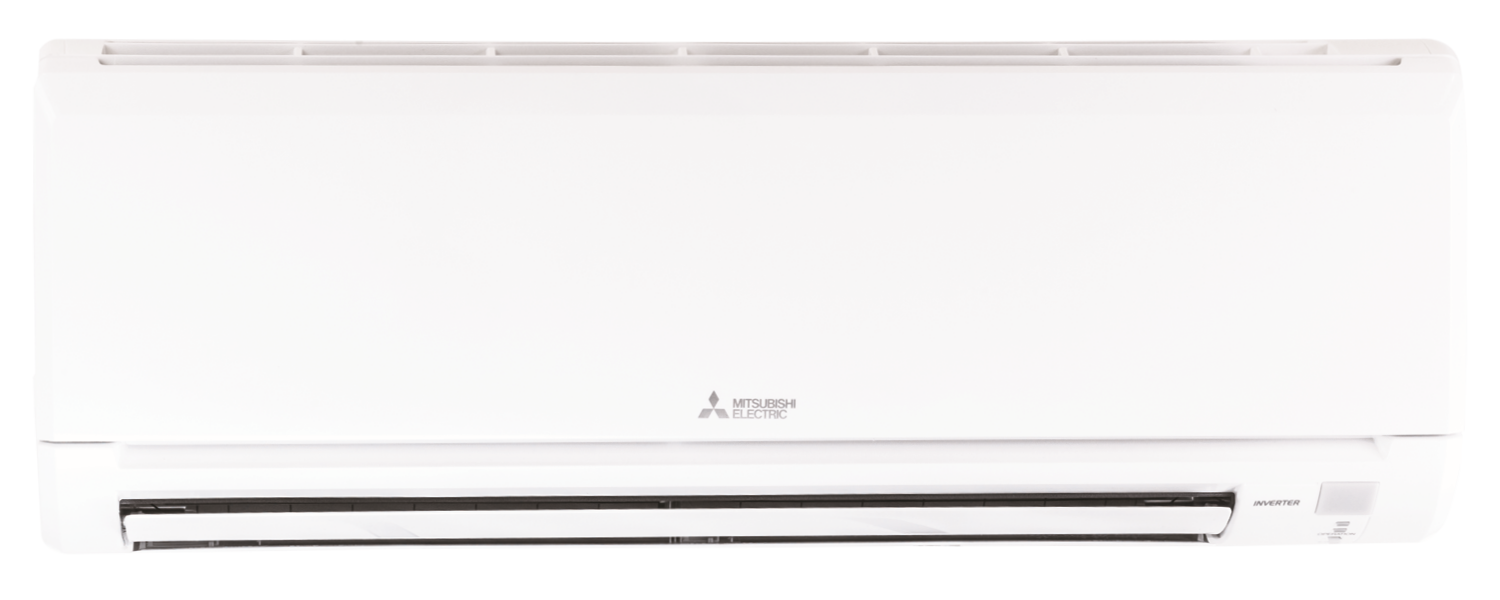

MSZ-GX06NL 6,000 BTU/H Wall-Mounted Indoor Unit

The MSZ-GX06NL is a 6,000 BTU/H wall-mounted indoor unit designed to provide efficient cooling and heating solutions. Its advanced features ensure both comfort and energy savings for residential or light commercial spaces.

• Cooling Capacity: 6,000 BTU/h
• Heating Capacity: 7,200 BTU/h
• Electrical Specifications: 208/230 V, 1 Phase, 60 Hz
• Airflow Rate (Cooling, Dry): 151-448 CFM
• Airflow Rate (Heating, Dry): 151-459 CFM
• Unit Dimensions: 31-13/32 x 9-21/32 x 11-25/32 inches (798 x 245 x 299 mm)
• Weight: 23 lbs (10.4 kg)
• Piping: Liquid pipe size 1/4 inch (6.35 mm), Gas pipe size 3/8 inch (9.52 mm)
• Drain Pipe: 5/8 inch (16 mm)

Key Features

• Dual Barrier Coating: Prevents dust, fibers, and smoke from collecting on the heat pump's inner surface, ensuring optimal airflow.
• Econo Cool: Adjusts the airflow based on heat exchanger temperature to save energy while maintaining comfort.
• Electrostatic Enzyme Filter: Attracts charged particles, including airborne non-living particulates like dust and smoke.
• Quiet Operation: Both the indoor and outdoor units operate quietly, providing a peaceful environment.
• Powerful Mode: Temporarily increases fan speed to quickly bring the room to the desired temperature.
• Smart Dry Mode: Improves humidity control with minimal over-cooling.
• Wi-Fi Enabled: Pairs with the Comfort app for remote control over temperature, fan speeds, and settings.
• Multiple Control Options: Includes a back-lit remote controller, comfort app, and both wired and wireless controllers.

Indoor Unit Accessories

• Wireless Remote Controller: RCMKP1CB
• Microparticle Filter: MAC-EMF515FT-E
• Condensate Pump Options: Blue Diamond Advanced Mini Condensate Pump X87-721, Refco Condensate Pump COMBI
