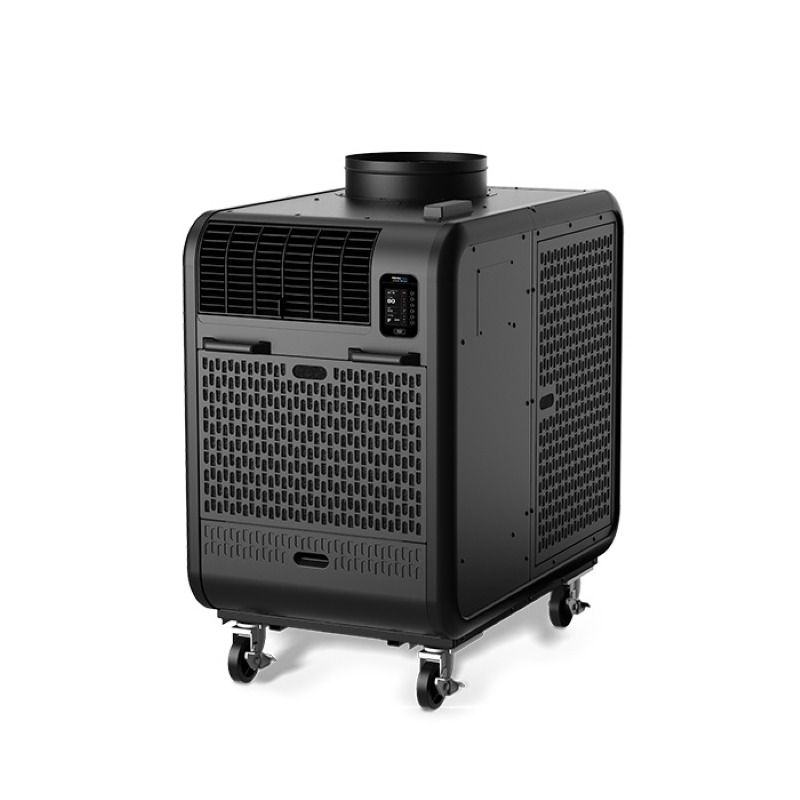

MovinCool Climate Pro 3 Ton 36,000 BTU Portable Air Conditioner | 208/230V - R410

High-Capacity 3 Ton Portable Spot Cooler with 36,000 BTU/h Cooling Capacity for Commercial and Industrial Applications – MovinCool Climate Pro K36

The MovinCool Climate Pro K36 is a 36,000 BTU/h portable air conditioner designed to provide targeted supplemental cooling for commercial, industrial, and temporary cooling applications. Combining a high-capacity refrigeration system, programmable electronic controls, three-speed airflow, and compatibility with optional supply-air ducting, this self-contained cooling system provides localized temperature control for employees, equipment, and heat-generating work areas. Its compact footprint of less than 12 square feet, dual condensate collection tanks, protective cabinet design, and flexible exhaust ducting options support deployment in warehouses, manufacturing facilities, offices, server rooms, laboratories, and other environments where supplemental cooling is required without a permanent HVAC installation.

Key Benefits

• 36,000 BTU/h Cooling Capacity – Provides 3 tons of nominal cooling capacity for commercial and industrial supplemental cooling applications.
• Programmable Electronic Controls – Support automatic operation during after-hours periods and weekends to accommodate changing cooling schedules.
• Targeted Spot Cooling – Supports optional supply-air nozzles and ducting to direct conditioned air toward employees, equipment, and concentrated heat loads.
• Three-Speed Airflow – Delivers evaporator airflow of up to 920 CFM, with medium- and low-speed settings for different application requirements.
• Compact Portable Design – Occupies less than 12 square feet of floor space, allowing flexible placement in suitable commercial and industrial environments.
• Dual Condensate Tanks – Includes two condensate collection tanks with a combined nominal capacity of 10 gallons to help reduce the frequency of manual emptying.
• 208/230V Electrical Connection – Operates on a single-phase, 208/230V power supply with a NEMA 6-30P plug and a recommended 30-amp fuse size.
• Wireless Connectivity-Ready – Supports compatible connectivity features for remote monitoring and electronic notifications when the required service is available.

High-Capacity Cooling Performance

The MovinCool Climate Pro K36 delivers a rated cooling capacity of 36,000 BTU/h (approximately 10.55 kW), equivalent to 3 tons of refrigeration, under manufacturer-specified rating conditions of 95°F and 60% relative humidity. The original K36 model uses R-410A refrigerant and features a hermetic scroll compressor. Manufacturer specifications list total power consumption of approximately 4.3 kW, rated current consumption of 19.9 amps, and a recommended 30-amp fuse size. The unit is designed to operate in ambient temperatures ranging from 65°F to 95°F at 50% relative humidity. Its cooling capacity makes it suitable for supplemental cooling in equipment rooms, manufacturing facilities, and other spaces with concentrated heat loads. Actual cooling performance depends on ambient conditions, heat load, ventilation, exhaust duct configuration, and installation.

Spot Cooling and Targeted Temperature Control

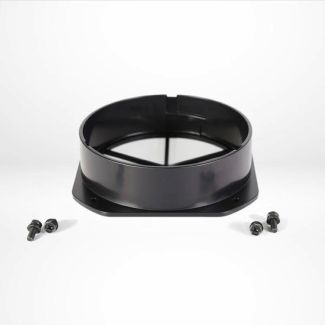

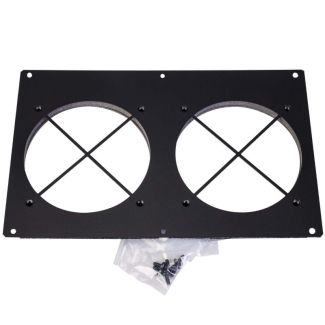

The MovinCool Climate Pro K36 is designed to provide supplemental cooling where localized temperature control is required. Its programmable control panel supports scheduled operation, while optional supply-air nozzle and duct accessories allow conditioned air to be directed toward specific workstations, equipment, or heat-generating processes. The unit can be deployed to supplement existing HVAC systems or provide temporary cooling when permanent equipment is unavailable or insufficient. Compatible accessories include 6-inch and 8-inch supply-air flange options, adjustable supply-air ducts, flexible ducting, and nozzle adapters. Verify the required accessory combination and installation configuration against the official MovinCool documentation before ordering.

Airflow and Distribution

The MovinCool Climate Pro K36 uses centrifugal evaporator and condenser fans to distribute conditioned air and reject heat. Manufacturer specifications list maximum evaporator airflow of 920 CFM on high, 880 CFM on medium, and 840 CFM on low, with a maximum external static pressure of 0.6 inches water gauge (IWG). The condenser airflow is rated at up to 1,390 CFM on high and 990 CFM on low, with a maximum external static pressure of 0.5 IWG. Optional supply-air ducting and nozzle accessories support targeted cooling for remote work areas. The maximum specified cold-air duct length is 40 feet per duct hose, and the maximum hot-air exhaust duct length is 60 feet. Proper exhaust routing is essential to remove heat from the conditioned space and maintain cooling performance. Keep air intake and discharge openings unobstructed and follow the manufacturer's ducting and clearance requirements.

Portable Design and Flexible Installation

The MovinCool Climate Pro K36 features a rugged cabinet with a wraparound protective bumper system designed to help guard against scratches and dents during handling. Manufacturer specifications list cabinet dimensions of approximately 31 inches wide, 55 inches deep, and 53 inches high, with a net weight of approximately 454 pounds and a shipping weight of 570 pounds. The unit occupies less than 12 square feet of floor space and includes built-in exhaust flanges with protective grilles, a concealed condensate tank access door, and a rear power-cord storage compartment. Its portable configuration supports supplemental cooling where permanent HVAC installation is impractical. The unit requires suitable condenser exhaust routing, adequate service clearances, and a stable floor capable of supporting its weight. Follow the manufacturer's installation and handling instructions to ensure safe deployment.

Condensate Management

The MovinCool Climate Pro K36 incorporates two condensate collection tanks with a combined nominal capacity of 10 gallons. Moisture removed from the air during cooling operation collects in the tanks and must be managed according to the manufacturer's instructions. The dual-tank arrangement helps reduce the frequency of manual emptying during operation. For applications requiring automatic condensate removal, the manufacturer lists an optional 230V condensate pump kit, part number 484789-0240, with a 3/8-inch-diameter, 20-foot discharge hose and a maximum lift of 17 feet. Confirm accessory compatibility and the required drainage configuration before installation. Inspect the tanks, float components, drain hose, and connections periodically to help prevent overflow, blockages, and water-related operating problems.

Controls, Comfort and Electrical Connection

The MovinCool Climate Pro K36 features a programmable electronic control panel for scheduled cooling and automatic operation. Its three-speed evaporator fan allows airflow adjustment according to application requirements. The manufacturer identifies wireless connectivity readiness for remote monitoring and electronic performance notifications when compatible connectivity services are available. Protective functions include compressor overload protection, fan motor protection, compressor short-cycle protection, a return-air thermostat, and automatic restart following a power interruption. The unit requires a 208/230V, single-phase, 60Hz electrical supply and uses a NEMA 6-30P plug. Manufacturer specifications list total power consumption of approximately 4.3 kW, rated current consumption of 19.9 amps, a recommended 30-amp fuse size, and a 12 AWG three-conductor power cord measuring 6 feet long. The specified acceptable voltage range is 198V to 253V. Connect the unit to a compatible, properly grounded receptacle and verify circuit protection, disconnect requirements, and electrical connections against the equipment nameplate and official installation documentation.

Commercial and Industrial Applications

The MovinCool Climate Pro K36 is designed for supplemental cooling in commercial and industrial environments, including server rooms, telecommunications rooms, laboratories, offices, hospitals, retail spaces, schools, warehouses, and manufacturing facilities. Its 36,000 BTU/h cooling capacity supports localized temperature control for employees and equipment where existing HVAC systems require assistance or temporary cooling is necessary. Programmable controls allow scheduled operation, while optional supply-air ducting supports cooling directed toward specific equipment or work areas. The air-cooled configuration requires an appropriate arrangement for removing warm condenser air from the conditioned space. Application suitability depends on the calculated heat load, ambient temperature, available electrical service, ventilation, and exhaust duct configuration.

Mobility and Deployment

The MovinCool Climate Pro K36 is designed for portable deployment in suitable commercial and industrial environments. Its protective wraparound bumper helps reduce the risk of cabinet damage during routine handling. With a net weight of approximately 454 pounds, the unit requires appropriate material-handling equipment, a suitable transport route, and a floor surface rated for its weight. Before relocation, switch off the unit, disconnect the electrical supply, and safely secure or disconnect installed ducting and condensate connections as required. After repositioning, ensure that the unit is stable, intake and discharge openings are unobstructed, and the exhaust and electrical connections are correctly restored before restarting operation.

Service and Maintenance

The MovinCool Climate Pro K36 incorporates accessible condensate tanks, protective operating controls, and serviceable air filtration to support routine maintenance. Inspect and clean the air filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep the evaporator and condenser air passages clear of dust and debris, inspect exhaust and supply-air duct connections, and periodically check the condensate tanks, float components, and drainage system. Review operating indications and follow the official service manual's troubleshooting procedures if abnormal operation occurs. Before cleaning or servicing the unit, switch it off and isolate the electrical supply. Refrigeration-system repairs and electrical servicing should be performed by qualified personnel trained to work with R-410A refrigerant and the applicable equipment.

Warranty

MovinCool offers a limited warranty covering eligible portable air conditioners, including the Climate Pro K36. Under the manufacturer's published warranty terms, portable units registered by the original end user within 90 days of purchase qualify for three years of parts and labor coverage. Units that are not registered are covered for one year. Warranty coverage is subject to the manufacturer's terms, conditions, and exclusions. Consult the official MovinCool warranty documentation and complete any required registration within the specified period to confirm eligibility.

Recommended Accessories

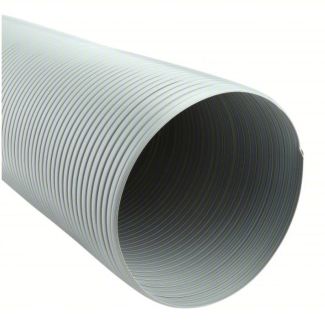

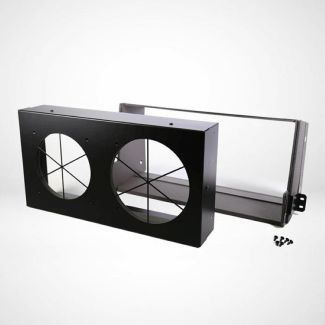

• 8-Inch Duct Adapter Kit – Supports compatible 8-inch self-supported or flexible supply-air duct installations; confirm the required flange and duct combination before ordering.

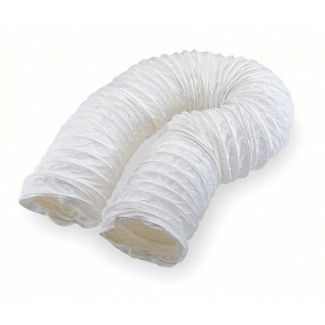

• Flexible Exhaust Air Duct – Provides a 16-inch-diameter wire-reinforced flexible duct in 25-foot lengths for compatible condenser exhaust arrangements.
• Ceiling Tile Kit – Provides a 24-inch-by-24-inch metal ceiling tile with a 16-inch opening and built-in flange for compatible exhaust duct installations.

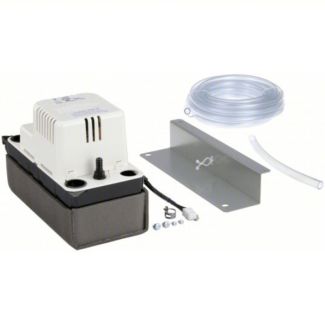

• Condensate Pump Kit – Provides a 230V condensate pump, 3/8-inch-diameter, 20-foot discharge hose, and installation hardware; maximum listed lift is 17 feet.

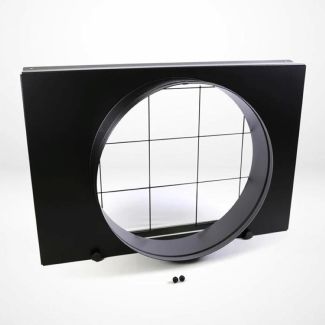

• Indoor Heat Exchanger Plenum – Provides a compatible return-air plenum for the evaporator section.

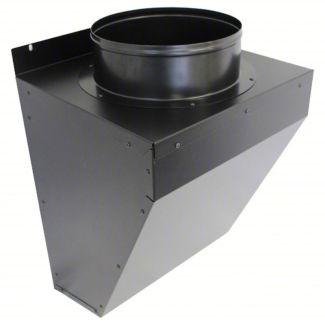

• Outdoor Heat Exchanger Plenum – Supports compatible outdoor heat exchanger air-intake configurations when installed with the required exhaust duct and ceiling accessories.
• Storage Cover – Provides a durable black nylon cover for protecting the unit during storage and transportation.

Powerful, Flexible Spot Cooling with the MovinCool Climate Pro K36

Experience high-capacity supplemental cooling with the MovinCool Climate Pro K36 portable air conditioner. Combining 36,000 BTU/h of cooling capacity with programmable electronic controls, three-speed airflow, dual condensate tanks, and optional supply-air and exhaust ducting, this portable spot cooler provides flexible temperature control for commercial facilities, server rooms, laboratories, warehouses, manufacturing plants, and other environments requiring reliable supplemental cooling.
