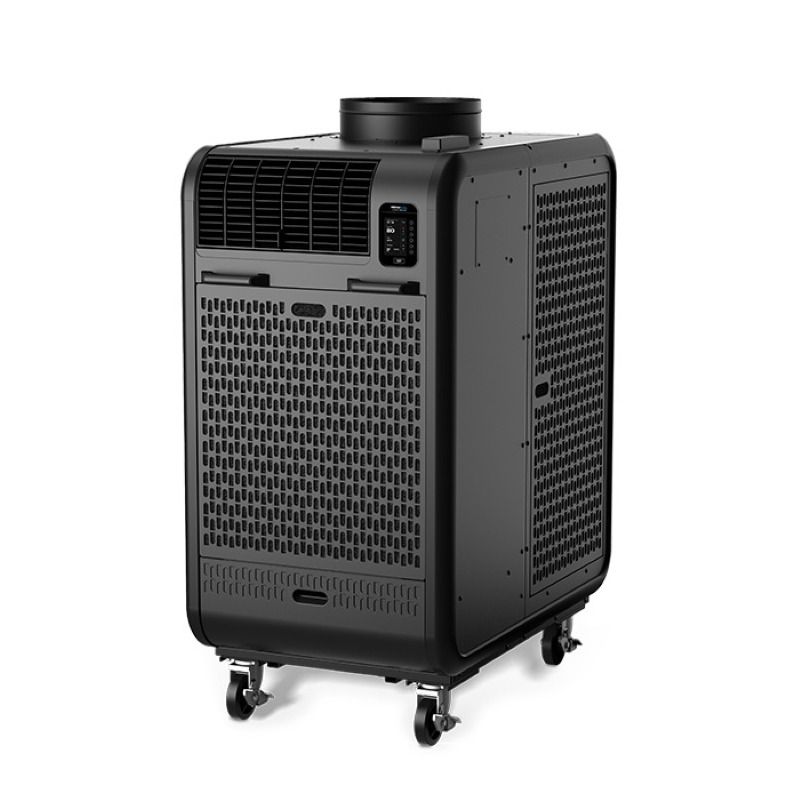

MovinCool Climate Pro 5 Ton 60,000 BTU Portable Spot Cooler | 208/230V - R-410A

High-Capacity 5 Ton Portable Air Conditioner with 60,000 BTU/h Cooling Capacity for Commercial and Industrial Spot Cooling – MovinCool Climate Pro K60

The MovinCool Climate Pro K60 is a 60,000 BTU/h portable air conditioner designed to provide high-capacity supplemental cooling for commercial, industrial, and temporary cooling applications. Combining a powerful air-cooled refrigeration system, programmable electronic controls, dual condenser fans, and compatibility with optional supply-air ducting, this self-contained cooling system delivers targeted temperature control for employees, electronics, and heat-generating equipment. Its compact footprint, integrated automatic condensate pump, heavy-duty cabinet, and flexible exhaust ducting options support deployment in server rooms, manufacturing facilities, warehouses, offices, laboratories, and other environments where supplemental cooling is needed without a permanent HVAC installation.

Key Benefits

• 60,000 BTU/h Cooling Capacity – Provides 5 tons of nominal cooling capacity for demanding commercial and industrial supplemental cooling applications.
• Air-Cooled Refrigeration System – Provides high-capacity cooling without requiring a dedicated condenser water supply.
• Programmable Electronic Controls – Support scheduled operation for after-hours cooling, weekend operation, and supplemental temperature control.
• High-Volume Airflow – Delivers evaporator airflow of up to 1,770 CFM to distribute conditioned air throughout the intended space.
• Flexible Spot Cooling – Supports optional supply-air nozzles and ducting to direct conditioned air toward employees, equipment, and concentrated heat loads.
• Integrated Condensate Pump – Automatically removes collected condensate through a drainage connection, eliminating the need for routine manual tank emptying during normal pump operation.
• Heavy-Duty Portable Construction – Occupies approximately 12 square feet of floor space and supports deployment in suitable commercial and industrial environments.
• 208/230V Electrical Connection – Operates on a single-phase, 208/230V power supply with a NEMA 6-50 plug configuration and a recommended 50-amp fuse size.

High-Capacity Cooling Performance

The MovinCool Climate Pro K60 delivers a rated cooling capacity of 60,000 BTU/h (approximately 17.58 kW), equivalent to 5 tons of refrigeration, under manufacturer-specified rating conditions of 95°F and 60% relative humidity. The original K60 model uses R-410A refrigerant and features a hermetic rotary compressor. Manufacturer specifications list total power consumption of 6.6 kW, rated current consumption of 31.5 amps at 230V, and a recommended 50-amp fuse size. The specified operating temperature range is 65°F to 105°F at 50% relative humidity. This cooling capacity supports substantial heat loads in commercial and industrial environments where supplemental or temporary cooling is required. Actual cooling performance depends on ambient conditions, heat load, ventilation, exhaust duct configuration, and installation.

Spot Cooling and Targeted Temperature Control

The MovinCool Climate Pro K60 is designed to provide supplemental cooling where localized temperature control is required. Its programmable electronic controls support scheduled operation, while optional supply-air nozzle and duct accessories allow conditioned air to be directed toward specific workstations, electronic equipment, and heat-generating processes. The system can supplement existing HVAC equipment or provide temporary cooling when permanent cooling infrastructure is unavailable or insufficient. Compatible accessories include 6-inch and 8-inch supply-air flange kits, adjustable supply-air ducts, flexible ducting, and nozzle adapters. Verify the required accessory combination and installation configuration against the official MovinCool documentation before ordering.

Airflow and Distribution

The MovinCool Climate Pro K60 uses centrifugal evaporator and condenser fans to distribute conditioned air and reject heat. Manufacturer specifications list maximum evaporator airflow of 1,770 CFM on high, 1,710 CFM on medium, and 1,650 CFM on low, with a maximum external static pressure of 0.9 inches water gauge (IWG). The condenser airflow is rated at up to 2,400 CFM, with a maximum external static pressure of 0.85 IWG. Optional supply-air ducting and nozzle accessories support targeted cooling for remote work areas. The maximum specified cold-air duct length is 40 feet per duct hose, and the maximum hot-air exhaust duct length is 100 feet. Proper condenser exhaust routing is essential to remove heat from the conditioned space and maintain cooling performance. Keep air intake and discharge openings unobstructed and follow the manufacturer's ducting and clearance requirements.

Portable Design and Flexible Installation

The MovinCool Climate Pro K60 features a heavy-duty cabinet measuring approximately 31 inches wide, 55 inches deep, and 64 inches high. Manufacturer specifications list a net weight of approximately 582 pounds and a shipping weight of 683 pounds. Its approximately 12-square-foot footprint supports installation in suitable commercial and industrial work areas. The portable configuration allows supplemental cooling to be deployed where permanent HVAC installation is impractical. The unit requires appropriate condenser exhaust routing to remove warm air from the conditioned space. Optional accessories include flexible exhaust ducting, compatible ceiling tiles, outdoor heat exchanger plenums, and supply-air duct components for specific installation arrangements. Verify accessory compatibility and maintain the manufacturer's required service clearances before installation. Position the unit on a stable surface capable of supporting its operating weight and follow the manufacturer's handling and installation instructions.

Condensate Management

The MovinCool Climate Pro K60 incorporates an automatic condensate pump to remove moisture collected during cooling operation. As warm air passes over the evaporator coil, moisture condenses and is collected for discharge through the pump and drainage connection. The integrated pump reduces the need for routine manual emptying of a condensate tank. Manufacturer accessory documentation also identifies a condensate tank and float components for compatible configurations. The drainage line must be routed according to the manufacturer's instructions, with appropriate consideration for discharge height and hose routing. Inspect the pump, float components, and drainage connections periodically for blockages, leaks, or abnormal operation to help prevent water-related problems.

Controls, Comfort and Electrical Connection

The MovinCool Climate Pro K60 features a programmable electronic control panel for scheduled operation and supplemental temperature control. Its three-speed evaporator fan allows airflow adjustment according to application requirements. The manufacturer identifies wireless connectivity readiness for remote monitoring, geolocation, and electronic performance notifications, with a subscription required for applicable connected services. Protective functions include compressor overload protection, fan motor protection, compressor short-cycle protection, a return-air thermostat, and automatic restart following a power interruption. The unit requires a 208/230V, single-phase, 60Hz electrical supply and uses a NEMA 6-50 plug configuration. Manufacturer specifications list total power consumption of 6.6 kW, rated current consumption of 31.5 amps at 230V, a recommended 50-amp fuse size, and a 6 AWG three-conductor power cord measuring 6 feet long. The specified acceptable voltage range is 198V to 253V. Connect the unit to a compatible, properly grounded receptacle and verify circuit protection, disconnect requirements, and electrical connections against the equipment nameplate and official installation documentation.

Commercial and Industrial Applications

The MovinCool Climate Pro K60 is designed for high-capacity supplemental cooling in commercial and industrial environments, including server rooms, computer and telecommunications rooms, hospitals, schools, laboratories, offices, retail spaces, manufacturing facilities, and warehouses. Its 60,000 BTU/h cooling capacity supports substantial heat loads where existing HVAC systems require assistance or temporary cooling is necessary. Programmable controls support scheduled operation, while optional supply-air ducting provides flexibility for directing cooling toward specific equipment or work areas. The air-cooled refrigeration system requires an appropriate arrangement for removing warm condenser air from the conditioned space. Application suitability depends on the calculated heat load, ambient temperature, ventilation, available electrical service, and exhaust duct configuration.

Mobility and Deployment

The MovinCool Climate Pro K60 is designed for portable deployment in suitable commercial and industrial environments. Its compact footprint helps accommodate installations where floor space is limited relative to the required cooling capacity. With a net weight of approximately 582 pounds, the unit requires appropriate material-handling equipment, a suitable transport route, and a floor surface rated for its weight. Before relocation, switch off the unit, disconnect the electrical supply, and safely secure or disconnect installed ducting and condensate connections as required. After repositioning, ensure the unit is stable, air passages are unobstructed, and all required exhaust, drainage, and electrical connections are correctly restored before restarting operation.

Service and Maintenance

The MovinCool Climate Pro K60 incorporates protective operating controls, accessible service components, and an automatic condensate pump to support routine maintenance. Inspect and clean the air filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep the evaporator and condenser air passages clear of dust and debris, inspect exhaust and supply-air duct connections, and periodically check the condensate pump, float components, and drainage line. Review operating indications and follow the official service manual's troubleshooting procedures if abnormal operation occurs. Before cleaning or servicing the unit, switch it off and isolate the electrical supply. Refrigeration-system repairs and electrical servicing should be performed by qualified personnel trained to work with R-410A refrigerant and the applicable equipment.

Warranty

MovinCool offers a limited warranty covering eligible portable air conditioners, subject to the manufacturer's applicable terms, conditions, and exclusions. Warranty duration, parts and labor coverage, registration requirements, and service procedures should be confirmed using the official MovinCool warranty documentation applicable to the K60. Warranty eligibility may depend on the purchase date, registration, installation, and other conditions specified by the manufacturer.

Recommended Accessories

• 6-Inch Supply-Air Flange Kit – Provides a 6-inch-diameter metal flange, wire clamp, and mounting screws for compatible supply-air duct installations.
• 8-Inch Supply-Air Flange Kit – Provides an 8-inch-diameter metal flange for compatible self-supported or flexible supply-air ducting.
• Quick-Connect Supply-Air Flange Kit – Provides a 6-inch-diameter quick-connect flange for compatible nozzle and supply-air duct configurations.
• Flexible Supply-Air Duct – Provides an 8-inch-diameter flexible duct for compatible supply-air distribution; verify the supplied length and installation requirements.
• Supply-Air Nozzle Adapter Kit – Supports compatible 6-inch supply-air nozzle or duct connections for targeted cooling applications.
• 8-Inch Duct Adapter Kit – Supports compatible 8-inch self-supported or flexible supply-air duct installations.
• Flexible Exhaust Air Duct – Provides a 16-inch-diameter flexible duct for compatible condenser exhaust arrangements.
• Ceiling Tile Kit – Provides a metal ceiling tile with a 16-inch opening and built-in flange for compatible exhaust duct installations.
• Outdoor Heat Exchanger Plenum – Supports compatible outdoor heat exchanger air-intake configurations when installed with the required ducting and ceiling accessories.
• Indoor Heat Exchanger Plenum – Provides a compatible return-air plenum for specified indoor heat exchanger configurations.
• Storage Cover – LA484420-0860 – Provides a durable black nylon cover for protecting the unit during storage and transportation.

High-Capacity Portable Spot Cooling with the MovinCool Climate Pro K60

Experience powerful supplemental cooling with the MovinCool Climate Pro K60 portable air conditioner. Combining 60,000 BTU/h of cooling capacity with programmable electronic controls, high-volume airflow, an integrated automatic condensate pump, and optional supply-air and exhaust ducting, this portable spot cooler provides flexible temperature control for server rooms, hospitals, laboratories, warehouses, manufacturing facilities, and other commercial and industrial environments requiring high-capacity supplemental cooling.
