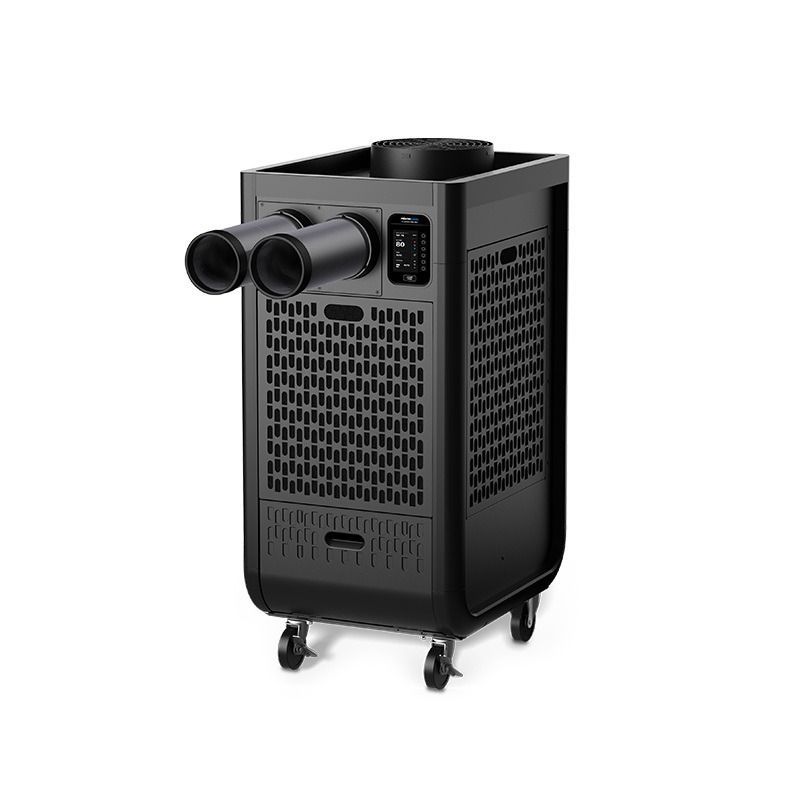

MovinCool Climate Pro 1 Ton 13,200 BTU Portable Air Conditioner | 115V - R32

Energy Efficient 1 Ton Portable Spot Cooler with 13,200 BTU/h Cooling Capacity for Warehouses, Factories, and Industrial Workspaces – MovinCool Climate Pro X14e

The MovinCool Climate Pro X14e is a 13,200 BTU/h portable air conditioner designed to provide targeted spot cooling for commercial, industrial, and temporary cooling applications. Combining an energy-efficient refrigeration system, programmable electronic controls, three-speed airflow, and adjustable cold-air nozzles, this self-contained cooling unit delivers localized temperature control for employees, production processes, and heat-generating equipment. Its compact footprint, quick-connect nozzle design, and compatibility with optional exhaust ducting and condensate pump accessories support flexible installation in warehouses, assembly lines, manufacturing plants, construction sites, and other environments where supplemental cooling is needed without a permanent HVAC installation.

Key Benefits

• 13,200 BTU/h Cooling Capacity – Provides approximately 1 tons of cooling capacity for targeted cooling in commercial and industrial workspaces.
• Energy-Efficient Performance – Delivers a manufacturer-rated energy efficiency ratio (EER) of 11.2 to support efficient spot-cooling operation.
• Three-Speed Airflow – Offers adjustable evaporator airflow of up to 440 CFM to accommodate different cooling requirements.
• Adjustable Cold-Air Nozzles – Direct conditioned air toward employees, equipment, and localized heat loads.
• Programmable Electronic Controls – Support scheduled operation and automatic cooling to help maintain comfortable working conditions.
• Compact Portable Design – Occupies approximately 4.5 square feet of floor space, allowing flexible placement in work areas.
• Condensate Collection System – Includes an approximately 5-gallon condensate tank, with an optional pump kit available for automatic condensate removal.
• Standard 115V Electrical Connection – Operates on a single-phase 115V power supply and uses a standard NEMA 5-15P plug.

Cooling Performance and Energy Efficiency

The MovinCool Climate Pro X14e delivers a rated cooling capacity of 13,200 BTU/h under manufacturer-specified rating conditions of 95°F and 60% relative humidity. Its refrigeration system uses R-32 refrigerant, with a specified refrigerant charge of 0.97 lb (approximately 15.5 oz). The manufacturer lists an energy efficiency ratio (EER) of 11.2, total power consumption of 1.2 kW, and rated current consumption of 11 amps. The unit is designed to operate in ambient temperatures ranging from 70°F to 113°F at 50% relative humidity. This performance makes the X14e suitable for localized cooling in industrial environments where heat-generating equipment or production activities create concentrated cooling demands. Actual cooling performance depends on ambient conditions, heat load, ventilation, duct configuration, and installation.

Spot Cooling and Targeted Temperature Control

The MovinCool Climate Pro X14e is designed to deliver conditioned air directly to employees, equipment, and designated work areas rather than relying exclusively on whole-room cooling. Its adjustable cold-air nozzles allow airflow to be directed toward the areas requiring temperature control, making the unit useful for assembly lines, production stations, warehouse workspaces, and process-cooling applications. The electronic thermostat supports temperature regulation, while programmable controls allow scheduled operation to support after-hours cooling and supplemental operation when central HVAC systems are unavailable. Optional supply-air duct accessories can extend cooling to remote locations when a compatible configuration is used.

Airflow and Distribution

The MovinCool Climate Pro X14e features a centrifugal evaporator fan with three selectable speeds. Manufacturer specifications list maximum evaporator airflow of 440 CFM on high, 410 CFM on medium, and 385 CFM on low, with a maximum external static pressure of 0.31 inches water gauge (IWG). The condenser fan provides maximum airflow of 830 CFM on high, 770 CFM on medium, and 720 CFM on low. Adjustable cold-air nozzles support targeted cooling, while optional supply-air duct accessories provide additional flexibility for remote cooling applications. The manufacturer specifies a maximum equivalent cold-air duct length of 30 feet per duct hose and a maximum hot-air exhaust duct length of 60 feet. Keep air passages unobstructed and follow the manufacturer's ducting requirements to maintain airflow and cooling performance.

Portable Design and Flexible Installation

The MovinCool Climate Pro X14e features a compact cabinet measuring approximately 22 inches wide, 29 inches deep, and 48 inches high. Manufacturer specifications list a net weight of 177 pounds and a shipping weight of 216 pounds. Its approximately 4.5-square-foot footprint supports placement in areas where floor space is limited. The portable configuration allows supplemental cooling to be deployed where permanent HVAC installation is impractical. The unit requires appropriate condenser exhaust routing to remove heat from the conditioned space. Optional duct accessories include a 12-inch flexible exhaust duct kit, compatible ceiling panels, and an outdoor heat exchanger plenum for specific installation arrangements. Verify accessory compatibility and maintain the manufacturer's required service clearances before installation.

Condensate Management

The MovinCool Climate Pro X14e incorporates a condensate collection tank with an approximate capacity of 5 gallons. Moisture removed from the air during cooling operation collects in the tank and must be managed according to the manufacturer's instructions. For applications requiring automatic condensate removal, the optional MovinCool condensate pump kit, part number 484789-0320, is specified for compatible X14e configurations. The manufacturer lists a 115V pump, a 3/8-inch-diameter, 20-foot discharge hose, and a maximum lift of 20 feet for this accessory. Confirm the required drainage arrangement and accessory compatibility before installation. Inspect the condensate tank and drainage components periodically to help prevent overflow, blockages, and water-related operating problems.

Controls, Comfort and Electrical Connection

The MovinCool Climate Pro X14e features programmable electronic controls and electronic thermostat operation to support scheduled cooling and temperature regulation. Its three-speed fan allows airflow adjustment according to the application. The manufacturer identifies wireless connectivity readiness for remote monitoring, geolocation, and performance notifications, with a subscription required for applicable connected services. Protective features include compressor overload protection, fan motor protection, compressor short-cycle protection, a return-air thermostat, and automatic restart following a power interruption. The unit requires a 115V, single-phase, 60Hz electrical supply and uses a NEMA 5-15P plug. Manufacturer specifications list total power consumption of 1.2 kW, current consumption of 11 amps, a recommended 15-amp fuse size, and a 14 AWG three-conductor power cord measuring 10 feet long. The specified acceptable voltage range is 104V to 127V. Connect the unit to a properly grounded receptacle and verify circuit requirements against the nameplate and official installation instructions.

Commercial and Industrial Applications

The MovinCool Climate Pro X14e is designed for supplemental cooling in commercial and industrial environments, including warehouses, assembly lines, manufacturing plants, production workstations, construction sites, process-cooling applications, and temporary work areas. Its 13,200 BTU/h cooling capacity provides localized temperature control for employees and equipment in areas where central HVAC systems may not deliver sufficient cooling. The adjustable nozzles, programmable controls, and optional ducting accessories provide flexibility for changing cooling requirements. The unit can also support moisture-removal applications in suitable environments. Application suitability depends on the heat load, ambient temperature, ventilation, condenser exhaust arrangement, and available electrical supply.

Mobility and Deployment

The MovinCool Climate Pro X14e's portable cabinet and compact footprint support deployment in different suitable work areas as cooling needs change. With a net weight of approximately 177 pounds, the unit should be moved using appropriate handling procedures and equipment when necessary. Before relocation, switch off the unit, disconnect the electrical supply, and safely secure or disconnect any installed exhaust ducts, supply-air ducts, and condensate connections. After positioning, ensure the unit is stable, intake and discharge openings are unobstructed, and all required connections are correctly restored before restarting operation.

Service and Maintenance

The MovinCool Climate Pro X14e incorporates serviceable air filtration and protective operating controls to support routine maintenance. Inspect and clean or replace air filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep the evaporator and condenser air passages clear of dust and debris, inspect duct connections for secure installation, and periodically check the condensate tank or optional pump drainage system. Review operating indications and follow the official service manual's troubleshooting procedures if abnormal operation occurs. Before cleaning or servicing the unit, switch it off and disconnect the electrical supply. Refrigeration-system repairs and electrical servicing should be performed by qualified personnel trained to work with R-32 refrigerant and A2L-classified equipment.

Warranty

MovinCool publishes a standard warranty covering the complete unit and compressor for 12 months. Extended warranty coverage may be available through the manufacturer's registration program, subject to applicable eligibility requirements, terms, and conditions. Review the current official MovinCool warranty documentation and complete any required registration within the specified period to confirm the coverage applicable to the Climate Pro X14e.

Recommended Accessories

• Condensate Pump Kit – Optional 115V pump kit with a 3/8-inch-diameter, 20-foot discharge hose and installation hardware for automatic condensate removal; maximum listed lift is 20 feet.
• Dual Duct Accessory – Divides a compatible 5-inch outlet into two 4-inch air outlets to provide additional flexibility for targeted cooling.
• Self-Supported Supply Air Duct – Provides a compatible 5-inch-diameter duct option for remote supply-air distribution.

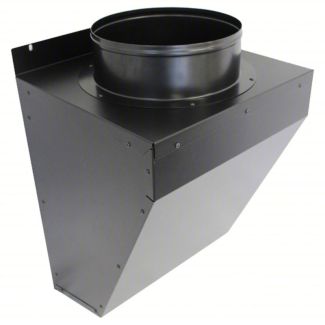

• Outdoor Heat Exchanger Plenum – Supports compatible outdoor heat exchanger air-routing configurations when used with the required ducting and installation accessories.
• Indoor Heat Exchanger Plenum – Provides an accessory option for compatible indoor heat exchanger return-air configurations; verify the required arrangement before ordering.

Efficient, Flexible Spot Cooling with the MovinCool Climate Pro X14e

Experience flexible, targeted cooling with the MovinCool Climate Pro X14e portable air conditioner. Combining 13,200 BTU/h of cooling capacity with an EER of 11.2, programmable electronic controls, three-speed airflow, adjustable cold-air nozzles, and optional automatic condensate removal, this compact spot cooler provides practical supplemental cooling for warehouses, manufacturing plants, assembly lines, construction sites, and other commercial and industrial environments.
