MRCOOL Design Your Own Tri Zone Heat Pump System R454B
Required Fields *
Customer reviews
Rating:
4.9 out of 5
In Stock - 90 Ready to Ship
Free Shipping
By
MRCOOL
In stock
Model
MRCOOL DIY Tri Zone R454b
ID
201817
Was $1,710.50
Your Low Price $1,555.00
LOWER PRICE AVAILABLE
Add to Cart for Today's Special Price
Pricing shown instantly in cart. No checkout required.
Â
- days
- Hours
- Minutes
- Seconds

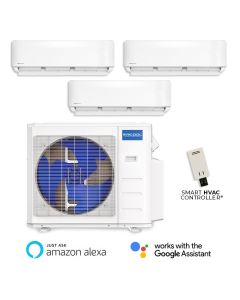

MRCOOL 3 Zone Mini Split Systems
MRCOOL 3 Zone Mini Split Systems are advanced ductless heat pump solutions that provide efficient heating and cooling for three separate zones in your home. With high SEER performance and inverter technology, MRCOOL helps lower energy costs while ensuring year-round comfort. Each zone operates independently with its own indoor unit and controller for truly personalized comfort.
Indoor Units
Wall-Mounted Air Handlers
- Sleek, space-saving design with whisper-quiet operation
- Auto-restart, sleep mode, and programmable settings
- Precise temperature control for targeted comfort in each zone
Ceiling Cassette Units
- Wide, even air distribution in a discreet, flush-mount style
- Ideal for 2’ × 2’ drop ceilings and finished living spaces
- Built-in condensate pump for hassle-free drainage management
Outdoor Units
The MRCOOL multi-zone condenser uses an inverter-driven compressor to efficiently heat or cool refrigerant and distribute it to up to three indoor units through small line sets. Each room or zone operates independently with its own wireless remote or via smart app control.
- Inverter technology ensures efficient, stable performance
- Supports multiple indoor unit styles and sizes
- Independent 3-zone control lets each space set its own temperature
- Smart control with MRCOOL SmartHVAC app; Alexa & Google Assistant compatible
Why Choose MRCOOL 3 Zone?
- Customized comfort for three separate living spaces
- Energy-efficient operation reduces monthly utility bills
- Flexible indoor unit options: wall-mounted, floor-mounted, cassette, or concealed ducted
- DIY-friendly installation with long-lasting reliability
| MRCOOL 48,000 BTU DIY 5th Generation 6 Zone Multi-Zone Mini Split Condenser - R454B| 230V | |
|---|---|
| Feature | Spec |
| SKU | DIY-MULTI6-48HP230D-O |
| Refrigerant Charge | 6.55 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 223.77 |
| AHRI Certificate Number | 216032595 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587471 |
| Cooling BTU | 43,000 BTU |
| Heating BTU | 48,000 BTU |
| Decibel Level (dBA) | 64 dBA |
| Energy Star | Yes |
| Refrigerant | R454B |
| HSPF2 | 10 |
| SEER2 (Efficiency) | 21.8 |
| EER2 | 12 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 45 Amps |
| Min. Breaker Size | 40 Amps |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Zone Compatibility | Multi Zone |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 36,000 BTU DIY 5th Generation 5 Zone Multi-Zone Mini Split Condenser - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-MULTI5-36HP230D-O |
| Refrigerant Charge | 6.56 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 169.75 |
| AHRI Certificate Number | 216032592 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587464 |
| Cooling BTU | 34,000 BTU |
| Heating BTU | 36,000 BTU |
| Decibel Level (dBA) | 64 dBA |
| Energy Star | Yes |
| Refrigerant | R454B |
| HSPF2 | 9.9 |
| SEER2 (Efficiency) | 23 |
| EER2 | 12 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 35 Amps |
| Min. Breaker Size | 30.5 Amps |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Zone Compatibility | Multi Zone |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 27,000 BTU DIY 5th Generation 4 Zone Multi-Zone Mini Split Condenser - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-MULTI4-27HP230D-O |
| Refrigerant Charge | 3.86 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 140.21 |
| AHRI Certificate Number | 216032589 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587457 |
| Cooling BTU | 26,000 BTU |
| Heating BTU | 26,000 BTU |
| Decibel Level (dBA) | 61 dBA |
| Energy Star | Yes |
| Refrigerant | R454B |
| HSPF2 | 9.5 |
| SEER2 (Efficiency) | 23 |
| EER2 | 12 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 23 Amps |
| BTU/Tonnage | 27,000 BTU/2.25 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Zone Compatibility | Multi Zone |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 55,000 BTU DIY 5th Generation 6 Zone Multi-Zone Mini Split Condenser - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-MULTI6-55HP230D-O |
| Refrigerant Charge | 9.48 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 245.81 |
| AHRI Certificate Number | 216032598 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587488 |
| Cooling BTU | 47,000 BTU |
| Heating BTU | 55,000 BTU |
| Decibel Level (dBA) | 64 dBA |
| Energy Star | Yes |
| Refrigerant | R454B |
| HSPF2 | 10.6 |
| SEER2 (Efficiency) | 22 |
| EER2 | 12 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 45 Amps |
| Min. Breaker Size | 43 Amps |
| BTU/Tonnage | 55,000 BTU/4.5 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F -122°F |
| Zone Compatibility | Multi Zone |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation 3 Zone Multi-Zone Mini Split Condenser -R454B | 230V | |
| Feature | Spec |
| SKU | DIY-MULTI3-18HP230D-O |
| Refrigerant Charge | 3.86 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 101.63 |
| AHRI Certificate Number | 216032588 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587617 |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Decibel Level (dBA) | 60 dBA |
| Energy Star | Yes |
| Refrigerant | R454B |
| HSPF2 | 10 |
| SEER2 (Efficiency) | 23.9 |
| EER2 | 13 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 16 Amps |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Zone Compatibility | Multi Zone |
| Height | 26.5" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-12-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-12-HP-WMAH-230C25 |
| UPC | 840255587037 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.63" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 24,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-24-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-24-HP-WMAH-230C25 |
| UPC | 810063868536 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 941 Turbo / 765 Hi / 618 Med / 500 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60HZ |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-06-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587013 |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-09-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-09-HP-WMAH-230C25 |
| UPC | 840255587020 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69 |
| Width | 31.57 |
| Depth | 7.44 |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE06HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587495 |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Decibel Level (dBA) | 23.5 - 46.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE09HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE09HP-230C25 |
| UPC | 840255587501 |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Decibel Level (dBA) | 24 - 38 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler -R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE12HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE12HP-230C25 |
| UPC | 840255587518 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Decibel Level (dBA) | 24 - 41 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V | 1 Phase | 60 Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE18HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE18HP-230C25 |
| UPC | 840255587525 |
| Decibel Level (dBA) | 41.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 1/2 |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-18-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-18-HP-WMAH-230C25 |
| UPC | 810063868512 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 706 Turbo / 618 Hi / 530 Med / 430 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 24,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-24-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-24-HP-WMAH-230C25 |
| UPC | 810063868536 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 941 Turbo / 765 Hi / 618 Med / 500 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60HZ |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-18-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-18-HP-WMAH-230C25 |
| UPC | 810063868512 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 706 Turbo / 618 Hi / 530 Med / 430 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 24,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-24-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-24-HP-WMAH-230C25 |
| UPC | 810063868536 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 941 Turbo / 765 Hi / 618 Med / 500 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60HZ |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-18-HP-WMAH-230D25-O |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-18-HP-WMAH-230C25 |
| UPC | 810063868512 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 706 Turbo / 618 Hi / 530 Med / 430 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.9" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE18HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE18HP-230C25 |
| UPC | 840255587525 |
| Decibel Level (dBA) | 41.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 1/2 |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler -R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE12HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE12HP-230C25 |
| UPC | 840255587518 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Decibel Level (dBA) | 24 - 41 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V | 1 Phase | 60 Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE09HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE09HP-230C25 |
| UPC | 840255587501 |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Decibel Level (dBA) | 24 - 38 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE06HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587495 |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Decibel Level (dBA) | 23.5 - 46.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-09-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-09-HP-WMAH-230C25 |
| UPC | 840255587020 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69 |
| Width | 31.57 |
| Depth | 7.44 |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-06-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587013 |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-12-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-12-HP-WMAH-230C25 |
| UPC | 840255587037 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.63" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 18,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE18HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE18HP-230C25 |
| UPC | 840255587525 |
| Decibel Level (dBA) | 41.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 1/2 |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler -R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE12HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE12HP-230C25 |
| UPC | 840255587518 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Decibel Level (dBA) | 24 - 41 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V | 1 Phase | 60 Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE09HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIYCASSETTE09HP-230C25 |
| UPC | 840255587501 |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Decibel Level (dBA) | 24 - 38 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 230V |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIYCASSETTE06HP-230D25-O |
| Weight (in lbs) | 45 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587495 |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Decibel Level (dBA) | 23.5 - 46.5 dBA |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 5-Year Part/7-Year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 9,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-09-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-09-HP-WMAH-230C25 |
| UPC | 840255587020 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69 |
| Width | 31.57 |
| Depth | 7.44 |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 6,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-06-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| UPC | 840255587013 |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL 12,000 BTU DIY 5th Generation Single Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | DIY-12-HP-WMAH-230D25-O |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | MRCOOL |
| Replaces | DIY-12-HP-WMAH-230C25 |
| UPC | 840255587037 |
| Refrigerant | R454B |
| Liquid Valve Size | 1/4" |
| Suction Valve Size | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.63" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Customer reviews
99% of 100
4.9 out of 55 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Review this product
Share your thoughts with other customers
Write a customer reviewTop reviews
- I made a good decisionQuality100%Service100%Price100%I am thrilled so far with my new Mr Cool Dual zone system. When it turned out that the unit I wanted was out of stock hvac direct upgraded me to the next size up at no charge. During installation I contacted Mr Cool twice and they were super helpful and did not judge me when it turned out the parts I was missing was in the box I had left in the garage and later I had one unit not working and they asked me to text them a picture and they were able to tell me immediatly what I had done wrong. Fixed my mistake in minutes and have had cold air ever since. I highly recommend havac direct and Mr Cool.
Review by Jeff
Posted on
- Very niceQuality100%Service100%Price100%Works great, have it set at 74 and cools the house. Dogs love it!
Review by Pauly
Posted on
- Great for a DIYerQuality100%Service100%Price80%Not my first mr. Cool unit i've installed but it was still pretty easy and quick.
Review by Wrld Dog
Posted on
- Great product, install level medium.Quality100%Service100%Price100%Installed a 2 zone system in my beach cottage and it was fairly straight forward install, definitely took longer than I expected but taking the extra time to double and triple check measurements and location of the units was well worth it. The equipment itself is well made and I really like the design except for one thing. The USB port access for the smart HVAC dongle has a very stubborn cover that is difficult to remove without cracking the plastic lock tab. I broke it on one and got lucky with the second one. This could definitely be made a little bit better. It didn’t affect the function of it and I was able to close it back up ok, but hated that I cracked off a piece of a brand new machine. I have been able to test both the heat and AC function and so far so good. Love that I can control it from the app when I’m not at the house since I live 2 hours away. Overall a great product and price and HVAC direct was very easy to deal with and answered quickly when I had questions about separate shipping of some of the components. Thanks!
Review by Heaven on the Bay
Posted on
- good unit, easy install, very nice smart appQuality100%Service100%Price100%support was excellent, got by a minor issue. unit has been trouble free since install.
Review by Rick
Posted on
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
WE'RE OPEN — CALL FOR
HELP & SAVINGS!
HELP & SAVINGS!
Get expert help now + extra price discounts available
📞
1-800-397-1392
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
- URL
