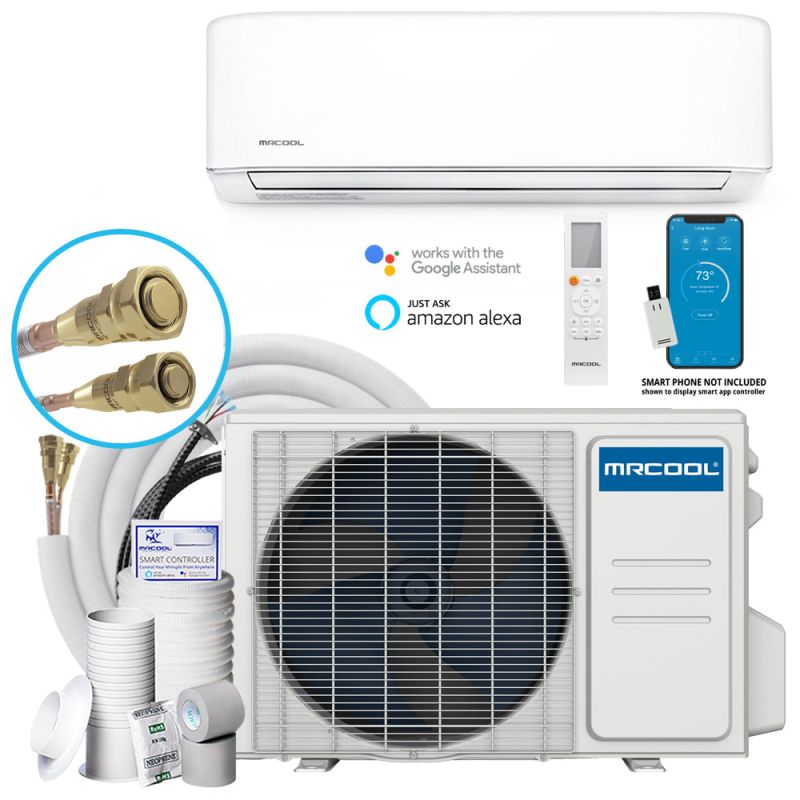

MRCOOL DIY Easy Pro 9,000 BTU 20 SEER Ductless Mini Split AC and Heat Pump with Wireless-Enabled Smart Controller

By

MRCOOL

Out of stock

Model

EZPRO-09-HP-11516

ID

189012

Rating:
100% of 100
Discontinued
MRCOOL

Authorized MRCOOL Dealer

Infinity Living Platinum EZ Connect 12,000 BTU 22 SEER Ductless Mini Split AC and Heat Pump | 25ft DIYCOOL Install Kit - 115v
SAVE $794.43
Easy Install
Infinity Living EZ Connect 12,000 BTU 20 SEER Ductless Mini Split AC and Heat Pump | 16ft DIYCOOL Install Kit - 115v
SAVE $498.96
Easy Install
Infinity Living EZ Connect 18,000 BTU 19.3 SEER2 Ductless Mini Split AC and Heat Pump | 16ft DIYCOOL Install Kit
SAVE $570.36
Easy Install
Infinity Living EZ Connect 9,000 BTU 20 SEER Ductless Mini Split AC and Heat Pump | 16ft DIYCOOL Install Kit - 115v
SAVE $461.16
Easy Install

Description

Experience the convenience and comfort of the MRCOOL Easy Pro 9,000 BTU Ductless Mini Split Heat Pump System. This user-friendly system effortlessly heats or cools spaces up to 350 square feet, boasting an impressive 20 SEER rating. With its 16-foot pre-charged line set featuring Fast Connection fittings, installation is a breeze.

Stay comfortable with the Follow Me feature, ensuring personalized comfort no matter where you are in the room. Choose from various operational modes, including Sleep mode, Auto mode, and Timer mode, to suit your preferences. Maintenance is a breeze, with easily rinsable and replaceable air filters, as well as hassle-free cleaning of the indoor and outdoor units using just a damp or dry cloth.

Take control of your comfort with the included remote, the SmartHVAC app, or even your Amazon Alexa or Google Assistant. Enjoy peace of mind with a 1-year compressor warranty and 2-year parts warranty. Experience energy-efficient and feature-packed HVAC performance with the MRCOOL Easy Pro 9,000 BTU Ductless Mini Split Heat Pump System, designed for easy installation and ultimate comfort.

Features

  • Up to 20 SEER for energy-efficient performance
  • Gold Fin condenser: Resistant to corrosion, making it suitable for coastal areas
  • Energy Efficient DC Inverter technology for optimized operation
  • Low ambient cooling: Capable of cooling down to 5°F exterior temperatures, ideal for server rooms, greenhouses, and year-round cooling needs
  • Includes timer mode, refrigerant leakage detection, and other convenient features
  • Equipped with the SmartHVAC Wi-Fi Control Module, providing improved setup and enhanced functionality for Apple and Android smart devices
  • Compatible with Amazon Alexa and Google Assistant for seamless voice control
  • Operates quietly for a peaceful environment.
MRCOOL DIY Easy Pro 9,000 BTU 20 SEER Ductless Mini-Split Heat Pump Condenser

The MRCOOL Easy Pro® 9,000 BTU Single Zone Mini-Split Heat Pump System delivers efficient, user-friendly heating and cooling for spaces up to 350 square feet. Key features include:

  • High Efficiency:
    • Up to 20 SEER rating for exceptional energy savings.
    • Advanced DC inverter technology ensures consistent performance and reduced energy use.
  • Durable Design:
    • Gold Fin® condenser resists corrosion, even in coastal environments.
  • Year-Round Comfort:
    • Operates in outdoor temperatures as low as 5°F, making it ideal for server rooms, greenhouses, and spaces requiring constant cooling.
  • Advanced Features:
    • Timer mode and refrigerant leakage detection for convenience and safety.
    • SmartHVAC Wi-Fi Control Module for seamless setup and control via Apple and Android devices.
    • Compatible with Amazon Alexa and Google Assistant for hands-free operation.
  • Quiet Operation:
    • Runs quietly to maintain comfort without disruption.

This ductless mini-split system combines innovative technology, reliable performance, and ease of use, making it an excellent choice for energy-efficient climate control in smaller residential and commercial spaces.

MRCOOL DIY Easy Pro 9,000 BTU Ductless Mini-Split Heat Pump Air Handler

MRCOOL Easy Pro 9,000 BTU Single Zone Air Handler

The MRCOOL Easy Pro 9,000 BTU Single Zone Air Handler provides efficient heating and cooling in a compact design, making it ideal for year-round comfort in smaller spaces. With advanced features and energy-saving technology, it delivers reliable performance while keeping energy costs low.

Key Features:

  • Up to 20 SEER Energy Efficiency: Save on energy costs while maintaining optimal performance.
  • Gold Fin® Condenser: Corrosion-resistant and built to last, perfect for coastal climates and harsh conditions.
  • Energy-Efficient DC Inverter: Offers consistent temperature control with reduced energy consumption.
  • Low Ambient Cooling: Operates effectively in outdoor temperatures as low as 5°F, ideal for applications like server rooms and greenhouses.
  • Smart Features: Includes timer mode, refrigerant leakage detection, and more for added convenience and peace of mind.
  • SmartHVAC Wi-Fi Control: Allows control from Apple and Android devices, Amazon Alexa, and Google Assistant for ultimate convenience.
  • Quiet Operation: Designed to operate with minimal noise, maintaining comfort without disruption.

The MRCOOL Easy Pro 9,000 BTU Single Zone Air Handler offers a reliable, energy-efficient solution for heating and cooling in a variety of settings, from homes to small commercial spaces. Experience performance, durability, and convenience all in one compact unit.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

All-in-One Kit: Includes key accessories for a professional-grade installation.
Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Wall Mount Bracket for Condensers 30"

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

  • Steel: 10 GA
  • Powder-coated grey Finish
  • Load rating: 600 lbs per pair
  • Holes will accommodate anchors for installation
  • Warranty: 1 year
  • ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib

Product Specifications

More Information
MRCOOL DIY Easy Pro 9,000 BTU 20 SEER Ductless Mini-Split Heat Pump Condenser
SKUEZPRO-09-HP-C-11516
Refrigerant Charge27.87 (oz.)
Weight54.450000
ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Decibel Level (dBA)55
RefrigerantR410A
SEER20
EER11.5
Liquid Line1/4"
Suction Line1/2"
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size30 A
Amperage Requirement20 A
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height19.49"
Width28.35"
Depth10.63"
Warranty2-year Parts/1-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY Easy Pro 9,000 BTU Ductless Mini-Split Heat Pump Air Handler
SKUEZPRO-09-HP-WMAH-115
Weight17.340000
ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
HSPFHSPF4/HSPF5 : 10.3/8.5
Maximum CFM238.82
Decibel Level (dBA)34
RefrigerantR410A
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.5"
Width28.7"
Depth7.87"
Warranty2-year Parts/1-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
