Today's Hours 8am - 11pm estMRCOOL 24,000 BTU EasyPro 5th Generation Single Zone Mini Split Condenser - R454B | 230V
By
MRCOOL
In stock
Model
EZPRO-24-HP-C-23016D-O
ID
198368
Was $2,115.38 Your Low Price Special Price $1,375.00
- Easy DIY installation
- Gold Fin Condenser
- Includes features such as timer mode
- AHRI certified
- Wi-Fi Enabled
- R-454B refrigerant

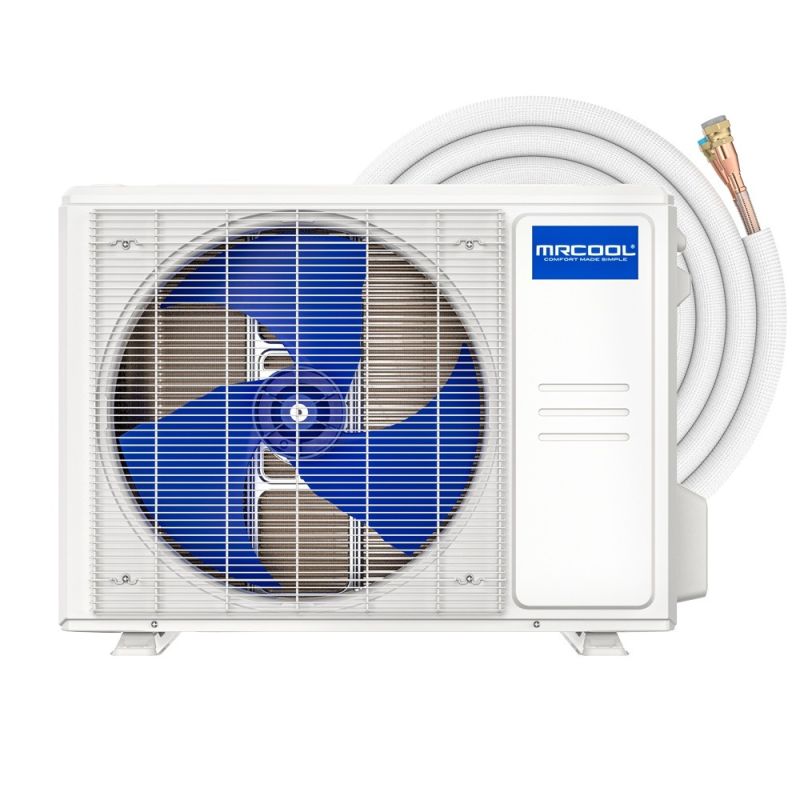

MRCOOL EasyPro 5th Generation 24,000 BTU 230V Condenser (Model: EZPRO-24-HP-C-23016D-O)
Experience year-round comfort with the MRCOOL EasyPro 5th Generation 24,000 BTU 230V Condenser. Designed for spaces up to 1,050 square feet, this unit offers efficient heating and cooling with a user-friendly DIY installation process.
Key Features
- DIY Installation: Comes with a 16-foot pre-charged Fast Connection® line set, allowing for quick and easy setup without professional assistance.
- Smart Connectivity: Integrated Wi-Fi control via the MRCOOL Smart HVAC Controller App, compatible with Amazon Alexa and Google Assistant for voice control.
- Reliable Performance: Features Auto Restart to restore settings after power loss and Low Ambient Cooling for operation down to 5°F, ideal for year-round use.
- Quiet Operation: Operates at a low 61 dB(A), ensuring a peaceful environment.
- Durable Design: Gold Fin® coating provides corrosion resistance, making it suitable for coastal and high-humidity areas.
- Eco-Friendly Refrigerant: Utilizes R-454B refrigerant for improved efficiency and reduced environmental impact.
- Certified Efficiency: AHRI certified and NEEP ccASHP listed, meeting high energy efficiency standards.
Specifications
- Cooling Capacity: 24,000 BTU
- Heating Capacity: 25,000 BTU
- SEER2: 18.9
- HSPF2-4: 8.7
- Voltage: 208-230V, 1 Phase, 60 Hz
- Max Fuse Breaker: 20 A
- Min Circuit Ampacity: 19 A
- Refrigerant Type: R-454B
- Refrigerant Volume: 50.44 oz
- Noise Level: 61 dB(A)
- Line Set Length: 16 ft (included), Max Length: 164 ft
- Liquid Line Size: 3/8 in
- Suction Line Size: 5/8 in
- Compressor Type: Rotary
- Dimensions (W x D x H): 35.04 in x 13.46 in x 26.5 in
- Weight: 95.9 lbs
Warranty
- Parts Warranty: 1 Years
- Compressor Warranty: 2 Years
The MRCOOL EasyPro 5th Generation 24,000 BTU 230V Condenser combines efficiency, convenience, and durability, making it an excellent choice for those seeking reliable climate control with the ease of DIY installation.
Top reviews
- Easy installWe are nearing the end of building our retirement home and we installed this to cool our open floor plan. I have watched a ton of YouTube videos on these, they are just that simple to install. Don't hesitate to purchase this. The unit has been working excellent.
Posted on
- 24k BTU MRCOOLBeen running for a few days. Heavily insulated 1700SF room under my garage, with one wall exposed to the outside but 75% below grade. Boiler fires up during summer to heat domestic hot water and the radiant heat off the pipes had nowhere to go so the room was over 85 degrees. Hardest part of the install was drilling a 3” hole through a 10” concrete wall. For a regular stud wall we could have had this up in a few hours provided your electric hookup is ready to go. Mini split is very quiet - both the outdoor unit and the head on the inside. In one day brought the room from 85 plus down to 70 where I had the thermostat set at. Can’t speak to the endurance of this unit but so far I’m very happy with it - it seems well made. I’d recommend.
Posted on
- reviewI purchased 12 btu. Installation was ok except the outside wall hanger was not compatible with the unit. The holes would not align and had to drill new holes. The rubber pads were 3" and the rails were 1". Look bad. Not that happy.
Posted on
- Keeps my garage coolJust installed a 24000 btu unit in my 24x36 hot rod garage with 13 ft ceilings. It took me about 3 days in 95 degree weather to install by myself and it was definitely worth it. The unit easily and quickly got the garage down to 73 degrees with an outside temp of 96 The kit is very complete There are a lot of videos to help guide you on YouTube but make sure to watch a bunch and read the comments because the are not all installed correctly The only complaint I have is the mounting bracket attachment bolt holes are 14” apart when the industry standard for studs is 16” makes it a little bit harder to mount but the bracket is very sturdy. Also I requested a 16ft line instead of 25ft so I would not have to coil the line.
Posted on
- OutstandingGreat service and an incredible product. The unit system is perfect.
Posted on
- Working greatInstalled in half day was easy and simple to install
Posted on
Customer Questions
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
