MRCOOL Olympus 27,000 BTU Ducted Heat Pump Split System Tri Zone Concealed Duct 9 + 9 + 9-R410A

MRCOOL Olympus 27,000 BTU Ducted Heat Pump Split System Tri Zone Concealed Duct 9 + 9 + 9-R410A
SAVE $0.00

Required Fields *

By

MRCOOL

Out of stock

Model

MULTI3-27HP230V1 / 3-DUCT09HP

ID

29179

The MRCOOL Olympus is THE whole house mini-split solution. Up to 3 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don't like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER2 and 10.3 HSPF. This 2 ton 27,000 BTU condenser can support up to three zones simultaneously.

Configured for a space-saving footprint, Olympus outdoor units include advanced Inverter variable speed compressor technology. MRCOOL Olympus series ductless heating and cooling systems are a convenient, multi room solution for homes or offices that formerly relied on electric baseboard heaters in the winter and window air conditioning units in the summer. The digital controls give the unit a sleek and aesthetically pleasing appearance.

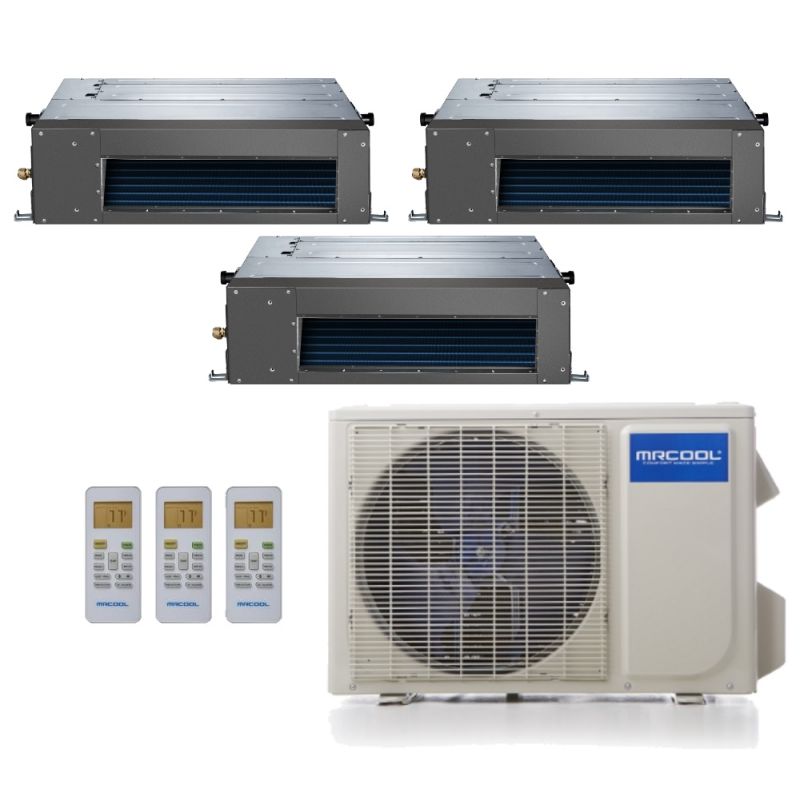

MRCOOL Olympus series multi-zone systems can support two, three, four, or five indoor units for extreme design flexibility. This package Includes: MRCOOL 27K BTU Multi-Zone Condenser, 3 9K BTU Concealed Duct Air Handlers, 3 Remotes.


Features:


  • 7-year compressor, 5-year parts and 1-year remote warranty when registered and when installed by a licensed professional
  • High efficiency, 23 SEER2
  • Self diagnostic featured, such as leak detect, included
  • Versatile multi-zone installation
  • Features include: sleep mode, auto swing and louver position memory
  • ENERGY STAR
  • Installation by a licensed professional required where applicable
More Information
MRCOOL Olympus 27,000 BTU Ductless Mini Split Heat Pump-R410A
FeatureSpec
SKUMULTI3-27HP230V1
Weight (in lbs)150
AHRI Certificate Number204462368
Brand/ManufacturerMRCOOL
UPC856536005848
Cooling BTU28000 BTU
Heating BTU28000 BTU
Maximum CFM2130
RefrigerantR410A
HSPF10
SEER2 (Efficiency)23
EER12.5
Liquid Line1/4"
Suction Line3/8"
Electrical208-230 V. 1 Phase 60 Hz
Max Breaker Size35 amps
Min. Breaker Size25 amps
BTU/Tonnage27,000 BTU/2.25 Ton
Height31.89"
Width37.24"
Depth16.14"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Recessed Duct Air Handler-R410A
FeatureSpec
SKUDUCT-09HP-230
Weight (in lbs)39.9
Brand/ManufacturerMRCOOL
UPC853962006517
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM176.57/282.52/353.15
Decibel Level (dBA)39/37/33
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size1.2 amps
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Height8.27 in
Width27.56 in
Depth25 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Recessed Duct Air Handler-R410A
FeatureSpec
SKUDUCT-09HP-230
Weight (in lbs)39.9
Brand/ManufacturerMRCOOL
UPC853962006517
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM176.57/282.52/353.15
Decibel Level (dBA)39/37/33
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size1.2 amps
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Height8.27 in
Width27.56 in
Depth25 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Recessed Duct Air Handler-R410A
FeatureSpec
SKUDUCT-09HP-230
Weight (in lbs)39.9
Brand/ManufacturerMRCOOL
UPC853962006517
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM176.57/282.52/353.15
Decibel Level (dBA)39/37/33
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size1.2 amps
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Height8.27 in
Width27.56 in
Depth25 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
