MRCOOL Olympus 27,000 BTU Ductless Heat Pump Split System Dual Zone Wall Mounted 9 + 12-R410A

MRCOOL Olympus 27,000 BTU Ductless Heat Pump Split System Dual Zone Wall Mounted 9 + 12-R410A
SAVE $0.00

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

MRCOOL

Out of stock

Model

MULTI3-27HP230V1 / MULTI09HP / MULTI12HP

ID

15608

The MRCOOL Olympus is THE whole house mini-split solution. Up to 3 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don't like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER2 and 10.3 HSPF. This 2 ton 27,000 BTU condenser can support up to three zones simultaneously.

Configured for a space-saving footprint, Olympus outdoor units include advanced Inverter variable speed compressor technology. MRCOOL Olympus series ductless heating and cooling systems are a convenient, multi room solution for homes or offices that formerly relied on electric baseboard heaters in the winter and window air conditioning units in the summer. The digital controls give the unit a sleek and aesthetically pleasing appearance.

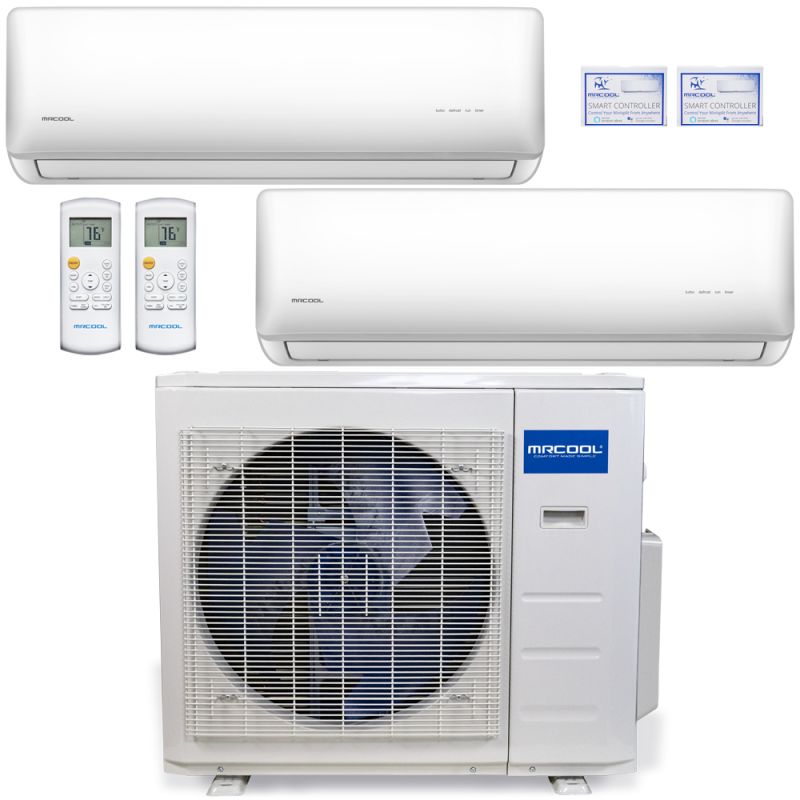

MRCOOL Olympus series multi-zone systems can support two, three, four or five indoor units for extreme design flexibility. This package Includes: MRCOOL 27K BTU Multi-Zone Condenser, 9K BTU Wall Mounted Air Handlers, 12K BTU Wall Mounted Air Handlers, 2 Remotes.


Features:


  • 7-year compressor, 5-year parts and 1-year remote warranty when registered and when installed by a licensed professional
  • High efficiency, 23 SEER2
  • Self diagnostic featured, such as leak detect, included
  • Versatile multi-zone installation
  • Features include: sleep mode, auto swing and louver position memory
  • ENERGY STAR
  • Installation by a licensed professional required where applicable
More Information
MRCOOL Olympus 27,000 BTU Ductless Mini Split Heat Pump-R410A
FeatureSpec
SKUMULTI3-27HP230V1
Weight (in lbs)150
AHRI Certificate Number204462368
Brand/ManufacturerMRCOOL
UPC856536005848
Cooling BTU28000 BTU
Heating BTU28000 BTU
Maximum CFM2130
RefrigerantR410A
HSPF10
SEER2 (Efficiency)23
EER12.5
Liquid Line1/4"
Suction Line3/8"
Electrical208-230 V. 1 Phase 60 Hz
Max Breaker Size35 amps
Min. Breaker Size25 amps
BTU/Tonnage27,000 BTU/2.25 Ton
Height31.89"
Width37.24"
Depth16.14"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Ductless Mini Split Wall Mounted Air Handler 230 V | R410A
FeatureSpec
SKUO-09-HP-WMAH-230A
Weight (in lbs)18.88
Brand/ManufacturerMRCOOL
Cooling BTU9000 BTU
Heating BTU9000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line3/8 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amp
Min. Breaker Size3 amp
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
CertificationEnergy Star, ETL Listed, cUL/UL Listed, Prop65
Dimensions2.87 W x 7.80 D x 11.02 H
Height11.02 in
Width32.87 in
Depth7.8 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 12,000 BTU Ductless Mini Split Wall Mounted Air Handler-R410A
FeatureSpec
SKUO-12-HP-WMAH-230B
Weight (in lbs)19.8
Brand/ManufacturerMRCOOL
UPC840255522045
Cooling BTU12000 BTU
Heating BTU12000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size9 amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Height11.61 in
Width31.3 in
Depth8.86 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Great
    Quality
    100%
    Service
    100%
    Price
    100%
    Good quality easy to install works very well

    Review by

    Posted on

Customer Questions
How long are the line sets that come with the unit?
Thank you for your question. This system package includes the MRCOOL 27K BTU Multi-Zone Condenser, 9K BTU Wall Mounted Air Handlers, 12K BTU Wall Mounted Air Handlers and 2 Remotes. However it does not include the line sets. Under the accessories, 25' and 16' line set lengths can be purchased separately. For assistance, please give us a call at 1-888-295-2009.
Does the MRCOOL outdoor unit come pre-charged?
The outdoor MRCOOL condenser will come pre-charged with R410A but may require more depending on the length of your line sets. The line sets for MRCOOL will not come pre-charged. If you have any further questions we recommend that you give us a call. Thanks!
