MRCOOL Olympus 48,000 BTU Ducted Heat Pump Split System Dual Zone Concealed Duct 18 + 24

SAVE $207.99

Required Fields *

By

MRCOOL

Out of stock

Model

MULTI5-48HP230V1 / DUCT18HP / DUCT24HP

ID

29177

Limited Stock - Call for Availability

The MRCOOL Olympus is THE whole house mini-split solution. Up to 5 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don't like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER and 10.3 HSPF. This 4 ton 48,000 BTU condenser can support up to five zones simultaneously.

Configured for a space-saving footprint, Olympus outdoor units include advanced Inverter variable speed compressor technology. MRCOOL Olympus series ductless heating and cooling systems are a convenient, multi room solution for homes or offices that formerly relied on electric baseboard heaters in the winter and window air conditioning units in the summer. The digital controls give the unit a sleek and aesthetically pleasing appearance.

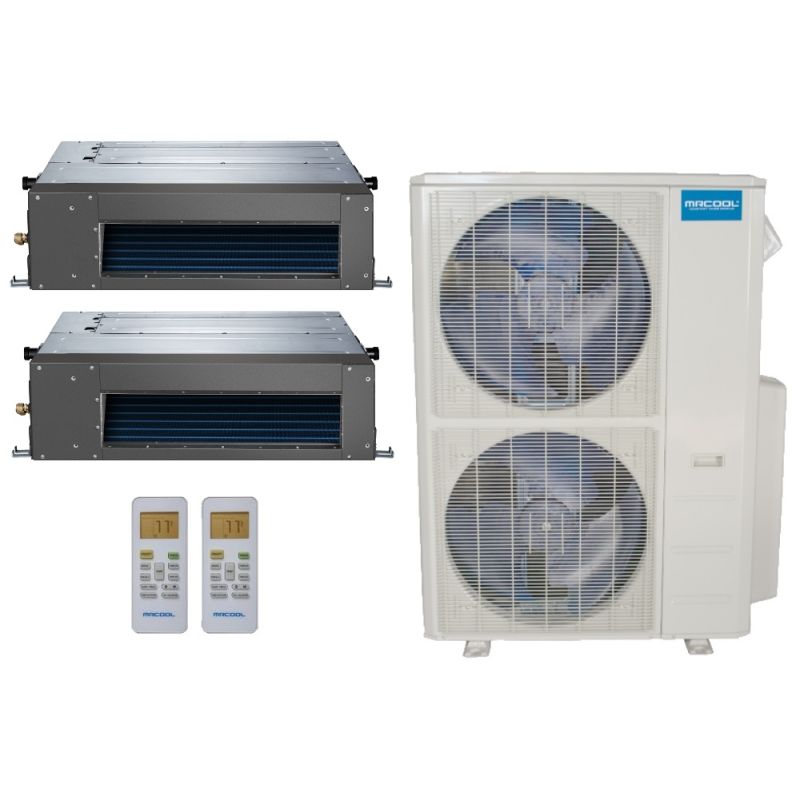

MRCOOL Olympus series multi-zone systems can support two, three, four, or five indoor units for extreme design flexibility. This package Includes: MRCOOL 48K BTU Multi-Zone Condenser, 18K BTU Concealed Duct Air Handlers, 24K BTU Concealed Duct Air Handlers, 2 Remotes.


Features:


  • 7-year compressor, 5-year parts and 1-year remote warranty when registered and when installed by a licensed professional
  • High efficiency, 22.4 SEER
  • Self diagnostic featured, such as leak detect, included
  • Versatile multi-zone installation
  • Features include: sleep mode, auto swing and louver position memory
  • ENERGY STAR
  • Installation by a licensed professional required where applicable
More Information
MRCOOL Olympus 48,000 BTU Ductless Mini Split Heat Pump
SKUMULTI5-48HP230V1
Weight224.000000
AHRI Certificate Number204462365
ManufacturerMRCOOL
HSPF10
Cooling BTU48000 BTU
Heating BTU48000 BTU
Maximum CFM4470
RefrigerantR410A
SEER21-22
EER12.5
Liquid Line1/4"
Suction Line3/8"
Electrical208-230 V. 1 Phase 60 Hz
Max Breaker Size50 amps
Min. Breaker Size35 amps
BTU/Tonnage48,000 BTU/4 Ton
Height52.48"
Width37.48"
Depth16.34"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 18,000 BTU Recessed Duct Air Handler
SKUDUCT-18HP-230
Weight50.700000
ManufacturerMRCOOL
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size1.9 amps
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeConcealed Duct
Height8.27 in
Width36.22 in
Depth25 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 24,000 BTU Recessed Duct Air Handler
SKUDUCT-24HP-230
Weight57.320000
ManufacturerMRCOOL
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
RefrigerantR410A
Liquid Line3/8"
Suction Line5/8"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size2.5 amps
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeConcealed Duct
Height10.63 in
Width36.22 in
Depth25 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
