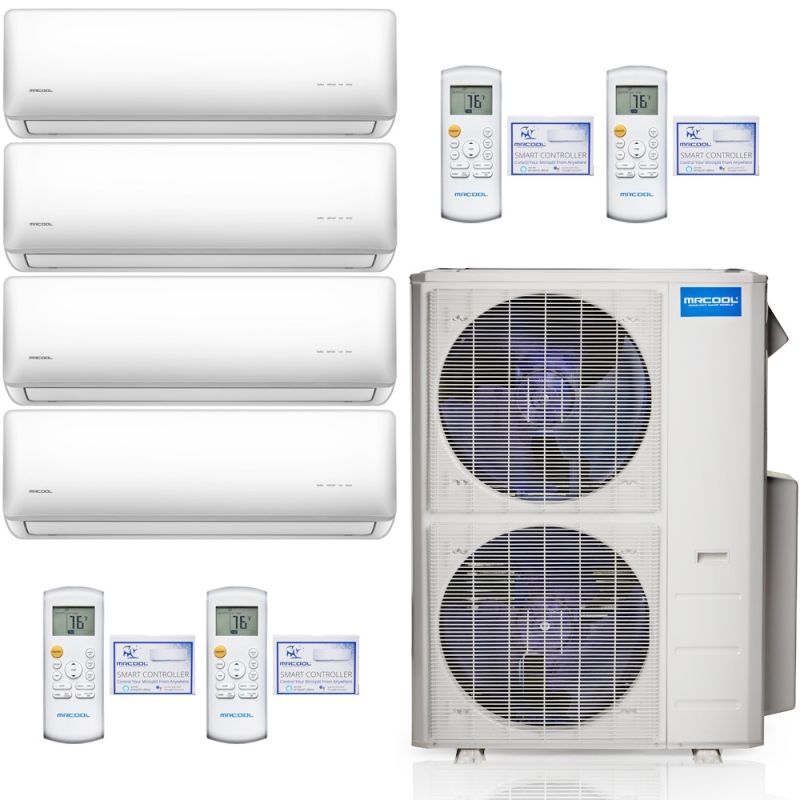

MRCOOL Olympus 48,000 BTU Ductless Heat Pump Split System Quad Zone Wall Mounted 9 + 9 + 12 + 18-R410A

MRCOOL Olympus 48,000 BTU Ductless Heat Pump Split System Quad Zone Wall Mounted 9 + 9 + 12 + 18-R410A
SAVE $0.00

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

MRCOOL

Out of stock

Model

MULTI5-48HP230V1 / 2-MULTI09HP / MULTI12HP / MULTI18HP

ID

15628

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

More Information
MRCOOL Olympus 48,000 BTU Ductless Mini Split Heat Pump-R410A
FeatureSpec
SKUMULTI5-48HP230V1
Weight (in lbs)224
AHRI Certificate Number204462365
Brand/ManufacturerMRCOOL
UPC856536005862
Cooling BTU48000 BTU
Heating BTU48000 BTU
Maximum CFM4470
RefrigerantR410A
HSPF10
SEER2 (Efficiency)23.8
EER12.5
Liquid Line1/4"
Suction Line3/8"
Electrical208-230 V. 1 Phase 60 Hz
Max Breaker Size50 amps
Min. Breaker Size35 amps
BTU/Tonnage48,000 BTU/4 Ton
Height52.48"
Width37.48"
Depth16.34"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Ductless Mini Split Wall Mounted Air Handler 230 V | R410A
FeatureSpec
SKUO-09-HP-WMAH-230A
Weight (in lbs)18.88
Brand/ManufacturerMRCOOL
Cooling BTU9000 BTU
Heating BTU9000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line3/8 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amp
Min. Breaker Size3 amp
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
CertificationEnergy Star, ETL Listed, cUL/UL Listed, Prop65
Dimensions2.87 W x 7.80 D x 11.02 H
Height11.02 in
Width32.87 in
Depth7.8 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 9,000 BTU Ductless Mini Split Wall Mounted Air Handler 230 V | R410A
FeatureSpec
SKUO-09-HP-WMAH-230A
Weight (in lbs)18.88
Brand/ManufacturerMRCOOL
Cooling BTU9000 BTU
Heating BTU9000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line3/8 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amp
Min. Breaker Size3 amp
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
CertificationEnergy Star, ETL Listed, cUL/UL Listed, Prop65
Dimensions2.87 W x 7.80 D x 11.02 H
Height11.02 in
Width32.87 in
Depth7.8 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 12,000 BTU Ductless Mini Split Wall Mounted Air Handler-R410A
FeatureSpec
SKUO-12-HP-WMAH-230B
Weight (in lbs)19.8
Brand/ManufacturerMRCOOL
UPC840255522045
Cooling BTU12000 BTU
Heating BTU12000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size9 amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Height11.61 in
Width31.3 in
Depth8.86 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL Olympus 18,000 BTU Ductless Mini Split Wall Mounted Air Handler-R410A
FeatureSpec
SKUO-18-HP-WMAH-230A
Weight (in lbs)26.9
Brand/ManufacturerMRCOOL
UPC810512031801
Cooling BTU18000 BTU
Heating BTU18000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size25 amps
Min. Breaker Size18 amps
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Height12.40 in
Width38.98 in
Depth8.58 in
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
