Closed Until MondayMultiquip High-Pressure Centrifugal Pump | 2.1 HP | Aluminum | Gas-Powered | Max 56 GPM | Max 197 ft. Head | Honda GXH50 | QP15HP
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
QP15HP
ID
240381
Was $823.00 Your Low Price Special Price $689.00
Product Features
- Trusted Honda Engine: Powered by a Honda GXH50 engine featuring low oil shutdown.
- Rotatable Discharge Port: Replaceable die-cast aluminum discharge port rotates 180° for flexible hose orientation.
- High-Pressure Impeller & Volute: Semi-open die-cast aluminum impeller and volute assembly create an impressive 86 psi system.
- Durable Mechanical Seal: Made of ceramic/carbide and 304 stainless steel to handle abrasion and high-temperature operation.
- Integrated Check Valve: Maintains prime and keeps water in the pump casing for easy startup.
- Tubular Steel Carrying Handle: Heavy-duty 0.75" (19.1 mm) tubular steel carrying handle for convenient mobility.

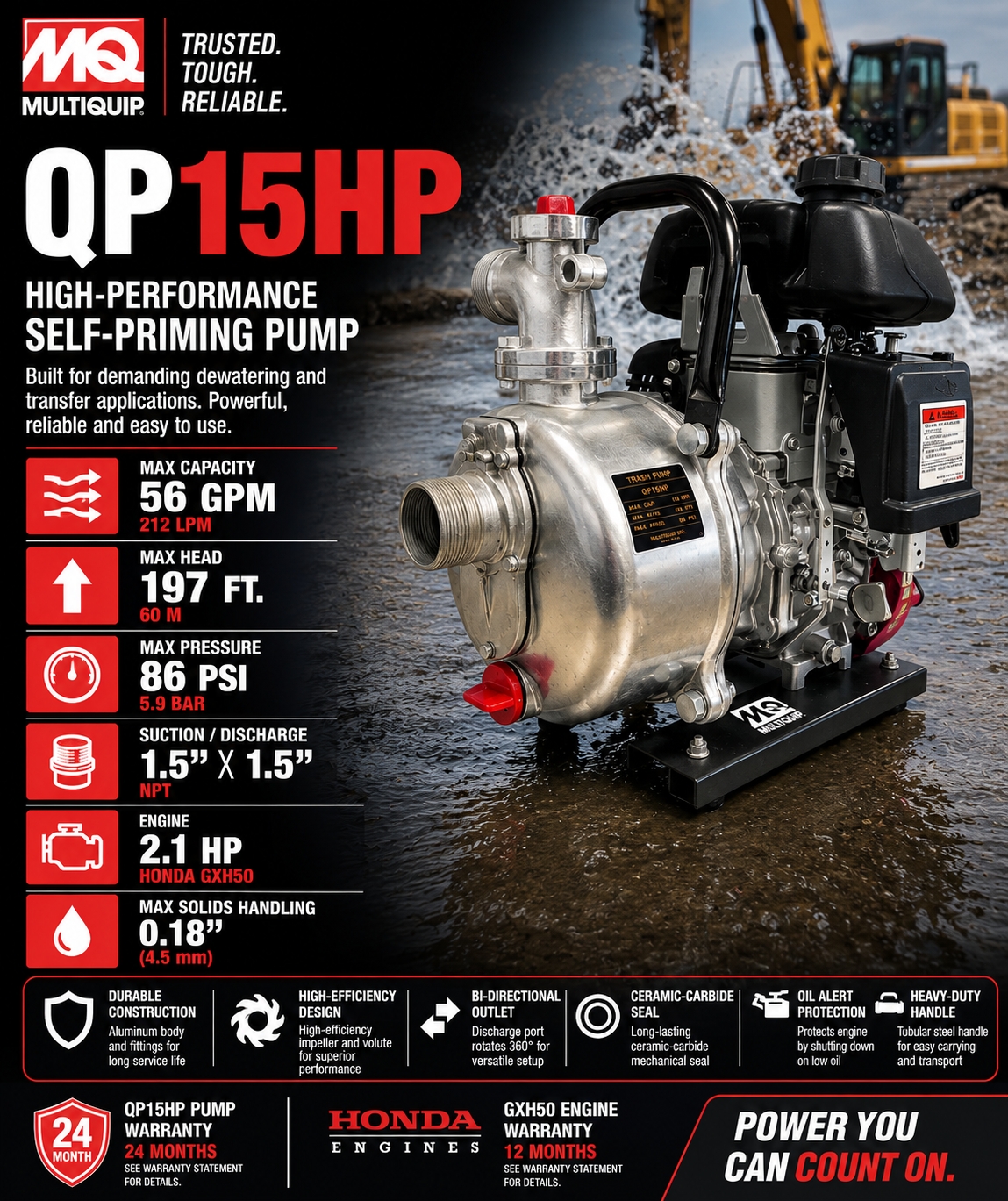

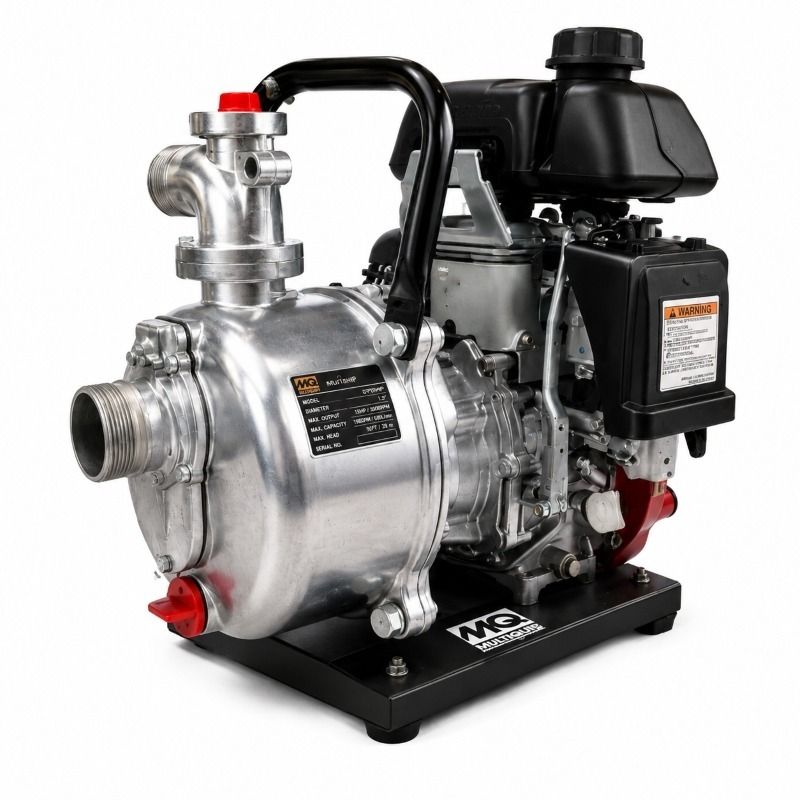

Compact 1.5-Inch High-Pressure Centrifugal Pump
The Multiquip QP15HP is a compact 1.5-inch high-pressure centrifugal pump designed for applications requiring strong water pressure and high head performance. Powered by a 2.1 HP Honda GXH50 gasoline engine, the QP15HP delivers up to 56 GPM and a maximum head of 197 feet, making it suitable for irrigation, equipment wash-down, dust control, water jetting, emergency response, excavation, drainage, farms, construction sites, and other water-transfer applications.
The QP15HP combines lightweight die-cast aluminum pump construction with a semi-open impeller and volute designed for high-pressure fluid transfer. A ceramic/carbon mechanical seal with 304 stainless steel construction provides durability under demanding operating conditions, while the compact 22-pound design and heavy-duty tubular steel carrying handle make the pump easy to transport between work areas.
Product Features:
- 56 GPM Maximum Flow: Delivers up to 56 gallons per minute for water-transfer, irrigation, drainage, and high-pressure applications.
- 197-Foot Maximum Head: Provides up to 197 feet of total head for demanding high-pressure and vertical water-transfer applications.
- 86 PSI Maximum Pressure: Generates up to 86 PSI for applications requiring elevated water pressure.
- 1.5-Inch Suction and Discharge: Features 1.5-inch NPT male suction and discharge connections for compatible hoses and fittings.
- 2.1 HP Honda GXH50 Engine: Uses a compact 49.4 cc, air-cooled, four-stroke OHV gasoline engine with recoil starting.
- Semi-Open Aluminum Impeller: Uses a die-cast aluminum semi-open impeller and volute designed for efficient high-pressure fluid transfer.
- Ceramic/Carbon Mechanical Seal: Uses a durable ceramic/carbon seal with 304 stainless steel construction for abrasion and temperature resistance.
- 180° Rotating Discharge: Allows the discharge port to rotate for greater hose-routing flexibility and jobsite adaptability.
- Low-Oil Engine Protection: Includes an engine oil-alert system designed to protect the Honda engine when oil levels become too low.
- Compact 22-Pound Design: Features a heavy-duty tubular steel carrying handle and shock-mounted pump and engine assembly for convenient transport and reduced vibration.
What Is a High-Pressure Centrifugal Pump?
A high-pressure centrifugal pump uses a rotating impeller to transfer water while generating higher pressure and head than many standard centrifugal pumps. The QP15HP is designed around this principle, combining a compact pump assembly with a high-pressure impeller and volute to move water over substantial vertical distances or through systems requiring increased pressure.
56 GPM High-Pressure Performance
The QP15HP provides a maximum pumping capacity of 56 GPM, a maximum head of 197 feet, and maximum pressure of 86 PSI. Its maximum suction lift is 25 feet, providing flexibility for drawing water from sources such as tanks, pools, lakes, rivers, and other suitable water supplies.
Aluminum Pump Construction and High-Pressure Design
The QP15HP uses a lightweight die-cast aluminum pump casing, semi-open die-cast aluminum impeller, and aluminum volute designed to promote efficient water flow and fast priming. A built-in check valve helps maintain prime by retaining water in the pump casing between operating cycles.
Honda GXH50 Gasoline Engine
The QP15HP is powered by a Honda GXH50 49.4 cc air-cooled, four-stroke OHV engine rated at 2.1 HP. The engine uses recoil starting, a mechanical governor, splash lubrication, and an oil-alert system for low-oil protection. Its 0.203-gallon fuel tank provides approximately 0.85 hours of continuous operation under the manufacturer's specified conditions.
Compact and Portable Jobsite Design
The QP15HP measures approximately 15.7 inches long by 10.8 inches wide by 14.8 inches high and weighs approximately 22 pounds dry. A heavy-duty 7/8-inch tubular steel carrying handle and integrated shock mounts make the pump practical for portable applications while helping minimize vibration and movement during operation.
Operating Conditions
The QP15HP is designed for suitable clear-water pumping applications and can handle solids up to 0.18 inches (4.5 mm). The pump is rated for liquids up to 104°F (40°C). Multiquip specifies that the pump should not be used for salt water or selected chemicals, and the engine must be operated outdoors or in an adequately ventilated area to prevent exposure to exhaust gases.
Warranty
The Multiquip QP15HP pump has a 2 Year Warranty from the date of purchase. The Honda GXH50 engine has a 1 Year Warranty, while applicable hoses have a 3-month warranty. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Compact 1.5-Inch High-Pressure Pump for Powerful Portable Water Transfer
The Multiquip QP15HP is a compact, portable high-pressure centrifugal pump engineered for applications requiring substantial pressure and head in an easy-to-carry package. Powered by an EPA-certified and CARB-preempt Honda GXH50 2.1 HP gasoline engine, the QP15HP delivers up to 56 gallons per minute with a maximum published head of 197 feet and maximum pressure of 86 PSI, providing strong performance for water jetting, equipment wash-down, dust control, irrigation, and other high-pressure water-transfer applications.
Its 1.5-inch male NPT suction and discharge ports support efficient water movement, while the semi-open impeller and die-cast aluminum pump construction combine performance with portability. The pump provides a maximum suction lift of 25 feet and can handle solids up to 0.18 inches in diameter, making it a versatile solution for relatively clean-water applications where high pressure is more important than large-solids handling.
Built for dependable field use, the QP15HP features a die-cast aluminum impeller, volute, and pump casing, along with a ceramic/carbon mechanical seal with 304 stainless steel components. Its compact hand-carry design weighs only 22 pounds, while shock-mounted pump construction helps minimize operating harmonics for dependable performance in construction, agricultural, utility, and general water-transfer applications.
Why Choose the Multiquip QP15HP High-Pressure Pump?
High-Pressure Pumping Performance
- Provides up to 56 GPM of published maximum pumping capacity.
- Delivers up to 197 feet of maximum head for demanding high-head applications.
- Produces up to 86 PSI for applications requiring strong water pressure.
Reliable Honda Gasoline Power
- Powered by a Honda GXH50 2.1 HP air-cooled gasoline engine.
- Four-stroke OHV engine provides dependable professional-grade performance.
- Standard low-oil shutdown helps protect the engine from insufficient lubrication.
Ideal for High-Pressure Applications
- Well suited for water jetting and equipment wash-down applications.
- Provides strong pressure for dust-control and irrigation applications.
- Portable design makes it useful for construction, agricultural, utility, and emergency water-transfer jobs.
Designed for Dependable Field Operation
- Shock-mounted pump design helps minimize operating harmonics.
- Recoil starting system provides straightforward operation without requiring an electrical power source.
- Maximum published fluid temperature of 104°F supports typical clean-water pumping applications.
Designed for Dependable Field Operation
- Shock-mounted pump design helps minimize operating harmonics.
- Recoil starting system provides straightforward operation without requiring an electrical power source.
- Maximum published fluid temperature of 104°F supports typical clean-water pumping applications.
Ideal for High-Pressure Applications
- Well suited for water jetting and equipment wash-down applications.
- Provides strong pressure for dust-control and irrigation applications.
- Portable design makes it useful for construction, agricultural, utility, and emergency water-transfer jobs.
