Closed Until MondayMultiquip Sound-Attenuated Trash Pump | 7.9 HP | Aluminum/Cast Iron | Recoil Start | Max 396 GPM | Max 95 ft. Head | Honda GX240 | QP3THX
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
QP3THX
ID
240460
Was $3,997.00 Your Low Price Special Price $3,149.00
Product Features
- High-Flow Performance: Pumps up to 396 GPM with 95 ft. maximum head.
- 7.9 HP Honda Engine: GX240 gasoline engine delivers dependable pumping power.
- 3" Ports: Suction and dual discharge connections support high-volume dewatering.
- 1.5" Solids Handling: Moves debris-filled water with reduced clogging.
- Quiet Operation: Sound-attenuated system limits operating noise to 71 dB(A).
- Extended Runtime: 4.2-gallon fuel tank provides up to 7.3 hours of operation.
3-Inch Sound-Attenuated Trash Pump for High-Volume Dewatering

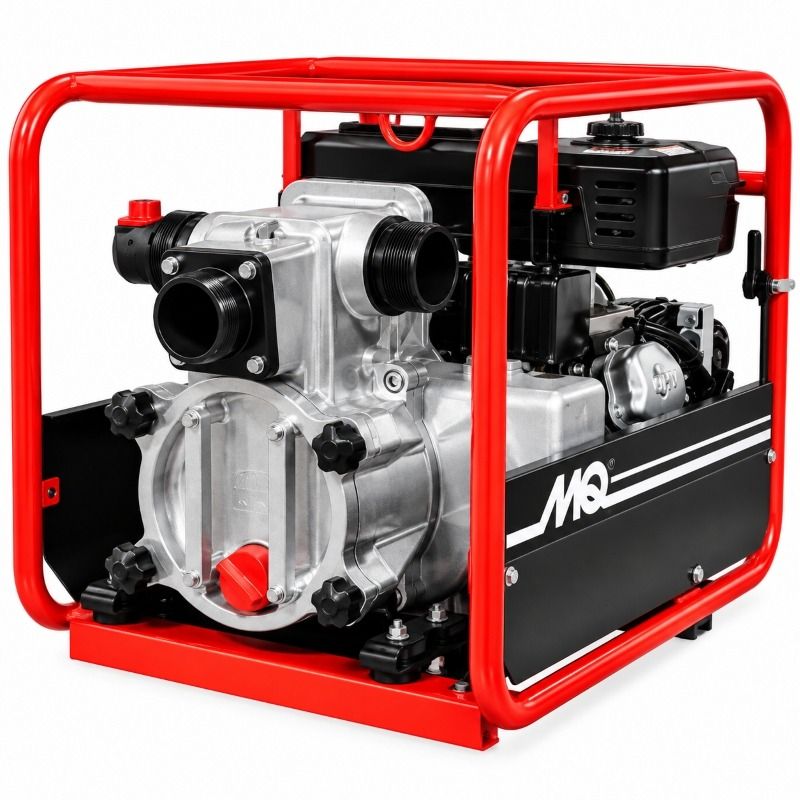

The Multiquip QP3THX is a portable 3-inch gasoline-powered trash pump designed for high-volume dewatering, water transfer, construction drainage, water tanks, water trucks, and other demanding pumping applications. It delivers up to 396 GPM with a maximum head of 95 feet and can handle solids up to 1.5 inches in diameter, providing the flow and debris-handling capability needed for demanding jobsites.

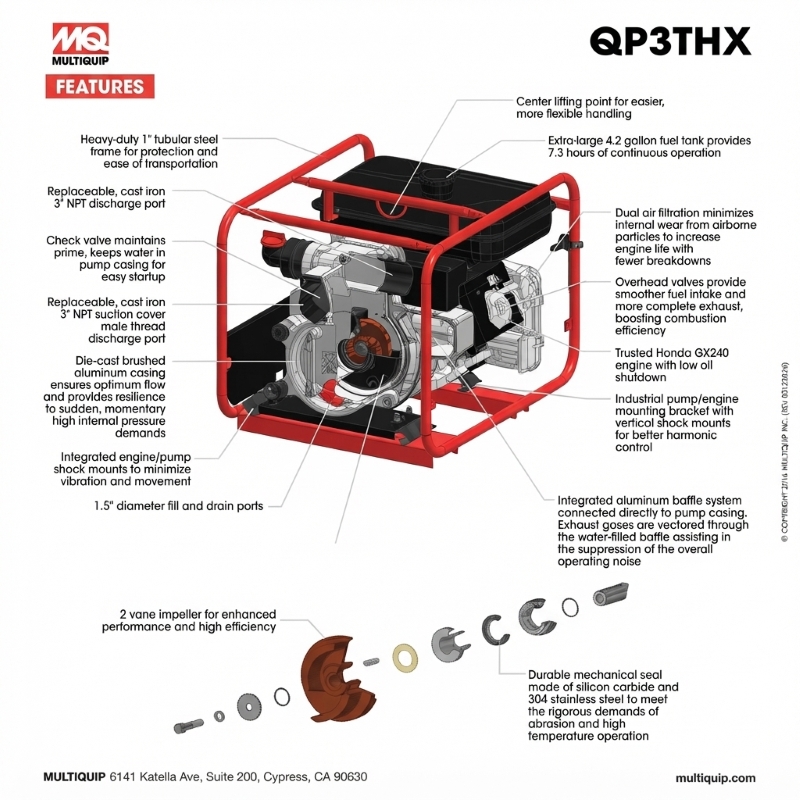

The QP3THX combines a proven trash-pump design with a 7.9 HP Honda GX240 gasoline engine, an extended-run fuel tank, and a sound-suppressing manifold system. Its dual 3-inch discharge ports, tubular steel frame, large tool-free cleanout cover, and heavy-duty cast iron pump components provide practical performance for professional dewatering applications while keeping operating noise to approximately 71 dB(A).
Product Features:
- 396 GPM Maximum Flow: Pumps up to 396 gallons per minute for high-volume dewatering and water-transfer applications.
- 95-Foot Maximum Head: Provides up to 95 feet of maximum head for demanding vertical water-transfer requirements.
- 1.5-Inch Solid Handling: Handles solids up to 1.5 inches in diameter, helping reduce clogging when pumping debris-laden water.
- 3-Inch Suction and Discharge: Uses 3-inch suction and discharge connections for high-volume pumping applications.
- 7.9 HP Honda GX240 Engine: Uses a 270 cc, air-cooled, four-stroke OHV gasoline engine operating at 3,600 RPM.
- 4.2-Gallon Fuel Tank: Provides extended operating time for longer dewatering applications with fewer refueling interruptions.
- Sound-Attenuated Design: Uses a specialized muffler and manifold system to reduce operating noise to approximately 71 dB(A).
- Dual 3-Inch Discharge Ports: Provides flexible discharge-hose routing for different jobsite configurations.
- Cast Iron Impeller and Volute: Provides durable pump-end components designed for abrasive and debris-laden water.
- Large Tool-Free Cleanout Cover: Allows quick access to the pump chamber for removing debris and performing routine maintenance.
What Is a Trash Pump?
A trash pump is designed to move water containing suspended solids and debris that could clog conventional clean-water pumps. The QP3THX combines a 3-inch pumping system with 1.5-inch solid-handling capability, allowing it to move muddy and debris-laden water during demanding dewatering operations.
396 GPM High-Volume Performance
The QP3THX provides up to 396 GPM, a maximum head of 95 feet, and maximum pressure of 41.1 PSI. Its maximum suction lift is 25 feet under suitable operating conditions, providing flexibility when positioning the pump near the water source.
Sound-Attenuated Pump Design
The QP3THX incorporates a sound-suppressing manifold system designed to reduce engine and exhaust noise while maintaining the performance of the pump. With an operating sound level of approximately 71 dB(A), it is suited to commercial, municipal, construction, and other applications where reduced operating noise is beneficial.
Honda GX240 Gasoline Engine
The QP3THX is powered by a Honda GX240RT2QMTNH1 270 cc, air-cooled, four-stroke, single-cylinder OHV gasoline engine rated at 7.9 HP at 3,600 RPM. The engine uses centrifugal flyweight speed control, recoil starting, and automatic low-oil shutdown to help protect the engine during operation.
Heavy-Duty Pump-End Construction
The QP3THX uses an aluminum pump body with cast iron fittings, a cast iron impeller, and a cast iron volute. A silicon/silicon mechanical seal is designed for durability in demanding pumping conditions, while the large cleanout cover provides quick access to the pump chamber when debris needs to be removed.
Extended-Run Fuel Capacity
The 4.2-gallon fuel tank provides substantially more fuel capacity than standard portable trash-pump configurations, supporting extended pumping periods between refueling. Multiquip identifies the QP3THX as capable of more than seven hours of run time, depending on operating conditions and load.
Flexible Discharge Configuration
Dual 3-inch discharge ports allow discharge hoses to be connected according to the requirements of the jobsite. The pump also accepts an optional UWKB wheel kit for easier movement when the equipment needs to be repositioned around the work area.
Portable Jobsite Construction
A tubular steel frame protects the pump and engine while providing a practical structure for transportation. The current Multiquip specification lists the QP3THX at approximately 30 inches long by 23.5 inches wide by 23 inches high, with an operating weight of approximately 188 pounds.
Operating Conditions
The QP3THX is intended for water-transfer and dewatering applications involving suspended solids and debris. Its maximum suction lift is 25 feet, and its maximum solid-handling capability is 1.5 inches. The pump should be operated on stable, level ground and according to Multiquip's installation, priming, operating, and maintenance requirements.
Warranty
Warranty coverage for the QP3THX is subject to Multiquip's applicable New Product Limited Warranty and the specific terms covering the pump and Honda engine. Refer to Multiquip's current warranty documentation for complete coverage periods, conditions, and exclusions.
Quiet-Running 3-Inch Trash Pump Built for Extended High-Volume Dewatering
The Multiquip QP3THX is a professional-grade gasoline-powered trash pump engineered to combine high-volume pumping performance, extended runtime, and reduced operating noise. Powered by a Honda GX240 7.9 HP gasoline engine, the QP3THX delivers up to 396 gallons per minute with a maximum head of 95 feet and maximum pressure of 41.1 PSI, making it well suited for demanding construction, agricultural, municipal, emergency-response, excavation, flood-control, irrigation, and general dewatering applications.
Designed for dirty-water applications, the QP3THX can pass solids up to 1.5 inches in diameter while providing up to 25 feet of maximum suction lift. Dual 3-inch discharge ports provide flexible hose positioning, while the semi-open ductile cast-iron impeller and cast-iron volute deliver durable abrasion-resistant performance when handling sediment, mud, and other jobsite debris.
What distinguishes the QP3THX is its integrated sound-attenuated manifold and extended-run fuel system. Multiquip publishes an operating sound level of just 71 dB(A) at 23 feet, while the large 4.2-gallon fuel tank provides approximately 7.3 hours of continuous operation. Heavy-duty construction, a durable silicon-carbide mechanical seal, large tool-free cleanout access, integrated shock mounts, and a tubular steel frame make the QP3THX a rugged, jobsite-ready pumping solution.
Why Choose the Multiquip QP3THX Trash Pump?
High-Volume Dewatering Performance
- Delivers up to 396 GPM of maximum published pumping capacity.
- Provides up to 95 feet of maximum head.
- Produces up to 41.1 PSI of maximum discharge pressure.
Quiet 71 dB(A) Operation
- Integrated sound-attenuated manifold helps reduce operating noise.
- Published sound level is approximately 71 dB(A) at 23 feet.
- Provides quieter operation than many conventional high-output gasoline trash pumps.
Designed for Professional Applications
- Suitable for construction sites, excavation, jobsite drainage, and flood removal.
- Useful for agriculture, farms, irrigation, quarries, mining, and municipal work.
- Also suitable for emergency-response and water-supply applications using lakes or rivers.
Compact Extended-Run Pump Package
- Latest published dimensions are approximately 29.1 x 23.4 x 22.8 inches.
- Latest published dry weight is approximately 187.4 pounds.
- Optional UWKB wheel kit with folding handles and flat-free tires simplifies transportation.
