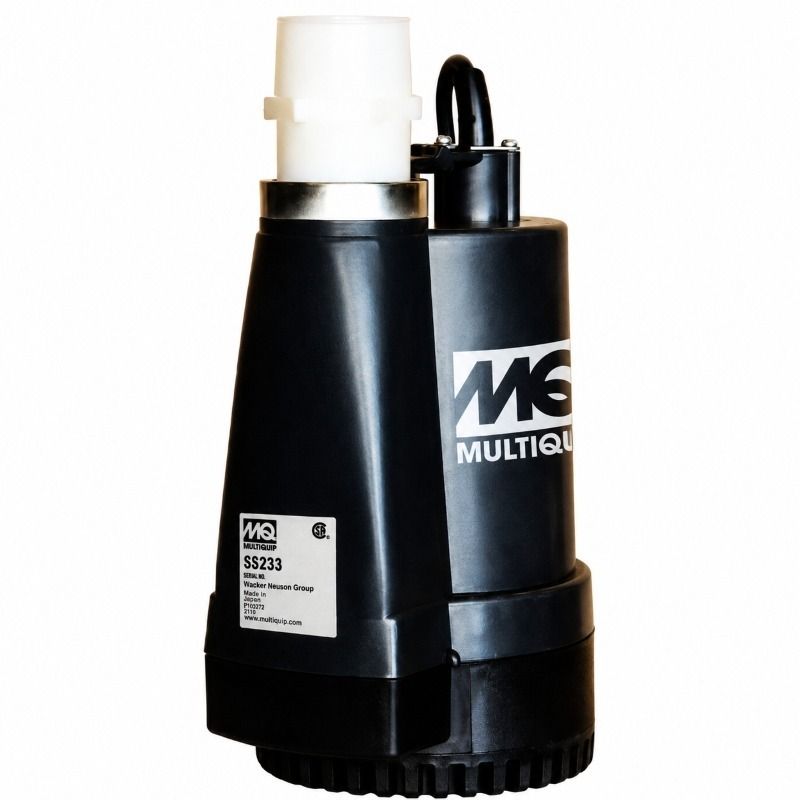

Multiquip Submersible Centrifugal Pump | 1/2 HP | Heavy Polymer | Max 55 GPM | Max 32 ft. Head | 115V | 9 ft. Cord | SS233

2-Inch Lightweight Submersible Pump for General Dewatering

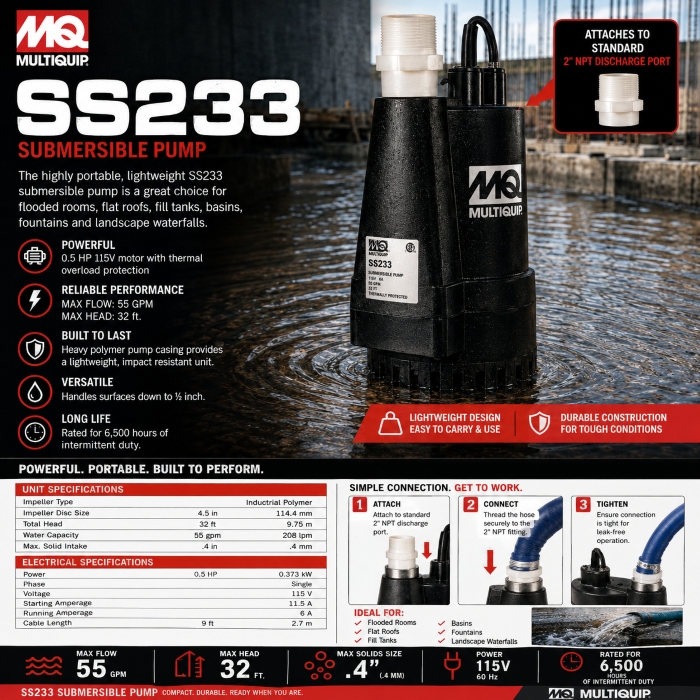

The Multiquip SS233 is a lightweight 2-inch submersible pump designed for efficient water removal in flooded rooms, flat roofs, fill tanks, basins, fountains, landscape waterfalls, and other general dewatering applications. Its 0.5 HP, 115V single-phase motor delivers up to 55 GPM with a maximum total head of 32 feet, while the compact thermoplastic construction keeps the pump easy to handle and transport.

The SS233 combines a heavy-duty polymer pump casing with stainless steel fittings, an industrial polymer impeller, internal thermal overload protection, and fully oil-lubricated shaft seals. Its 2-inch NPT discharge connection and compact design make it practical for confined spaces and surface-water removal.

Product Features:

• 55 GPM Maximum Flow: Pumps up to 55 gallons per minute for general water removal and dewatering applications.
• 32-Foot Maximum Head: Provides up to 32 feet of total head for transferring water through suitable discharge piping and hose.
• 0.5 HP Electric Motor: Uses a 115V single-phase motor with a 6A running current for convenient electrical operation.
• 2-Inch NPT Discharge: Features a 2-inch NPT discharge connection for compatible discharge hose and piping.
• Industrial Polymer Impeller: Uses a durable polymer impeller designed for dependable water movement while keeping overall pump weight low.
• Thermoplastic Pump Casing: The impact-resistant polymer casing provides a lightweight construction suitable for frequent handling and transport.
• Internal Thermal Overload Protection: Helps protect the electric motor against overheating during operation.
• Oil-Lubricated Shaft Seals: Fully oil-lubricated shaft seals help protect the motor and pump assembly during operation.
• Compact and Lightweight: Measures approximately 8.1 inches in diameter by 9.5 inches high and weighs approximately 16.5 pounds in operating configuration.
• UL/CUL Certified: Certified for applicable electrical safety requirements and designed for dependable single-phase pumping operation.

What Is a Submersible Pump?

A submersible pump operates while completely immersed in the water being removed. Instead of requiring an external suction line, the SS233 is positioned directly in the water and pushes water through its 2-inch discharge connection. This makes it well suited for flooded areas, basins, tanks, rooftops, and other locations where water needs to be removed from a confined area.

55 GPM Dewatering Performance

The SS233 provides up to 55 GPM of water capacity with a maximum total head of 32 feet. Its compact pumping design is intended for general dewatering rather than high-volume construction pumping, making it suitable for applications such as flooded rooms, flat roofs, basins, fill tanks, fountains, and landscape water features.

Lightweight Polymer Construction

The SS233 uses a heavy polymer pump casing that provides impact resistance while keeping the pump lightweight. Stainless steel fittings add durability, while the industrial polymer impeller provides efficient water movement in a compact pump assembly.

Thermal Overload Protection and Sealed Motor Design

The 0.5 HP, 115V single-phase motor includes internal thermal overload protection to help guard against overheating. Fully oil-lubricated shaft seals help protect the motor assembly and support dependable operation when the pump is continuously submerged.

Compact Design for Confined Areas

With an approximately 8.1-inch pump diameter, 9.5-inch overall height, and 16.5-pound operating weight, the SS233 can be transported and positioned easily in confined areas. The pump also provides dewatering capability down to approximately 1/2 inch of remaining surface water under suitable conditions.

Operating Conditions

The SS233 is designed to pump water with fluid temperatures up to 120°F. Multiquip specifies a maximum solid intake of approximately 0.4 inch and rates the pump for 5,500 hours of intermittent duty. The pump should be operated according to Multiquip's installation, electrical, and maintenance requirements.

Warranty

The current Multiquip New Product Limited Warranty lists the SS233 under submersible pumps with a 90-day warranty. Refer to Multiquip's current warranty terms for complete coverage, conditions, and exclusions.
