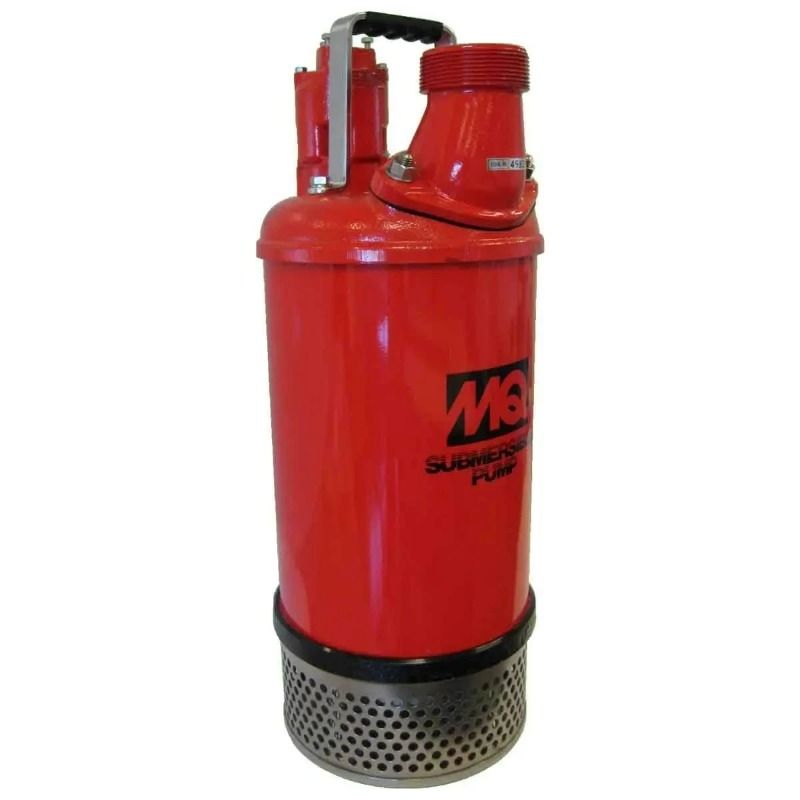

Closed Until MondayMultiquip Submersible Centrifugal Pump | 5 HP | Steel/Cast Iron | Control Box Required | Max 264 GPM | Max 86 ft. Head | 230/460V | 49.2 ft. Cord | ST3050D
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST3050D
ID
240133
Was $3,592.00 Your Low Price Special Price $3,198.00
Product Features
- Ergonomic Carry Handle: Plated steel/chloroprene rubber ergonomically designed carry handle.
- Replaceable Discharge Port: Replaceable, cast iron 3" NPT male thread discharge port.
- Voltage Adjustment System: Simple 230/460V voltage adjustment system.
- Industrial Pump Casing Design: Industrial steel/cast iron casing provides strength and a maximum cooling dynamic effect to the motor.
- Industrial Type 21 Mechanical Seal: Oil-bathed dual silicon carbide mechanical seal system.
- Ductile Iron Impeller: Durable wear-resistant ductile iron impeller, grade 80-55-06.
Heavy-Duty 3-Inch Submersible Dewatering for Demanding Applications

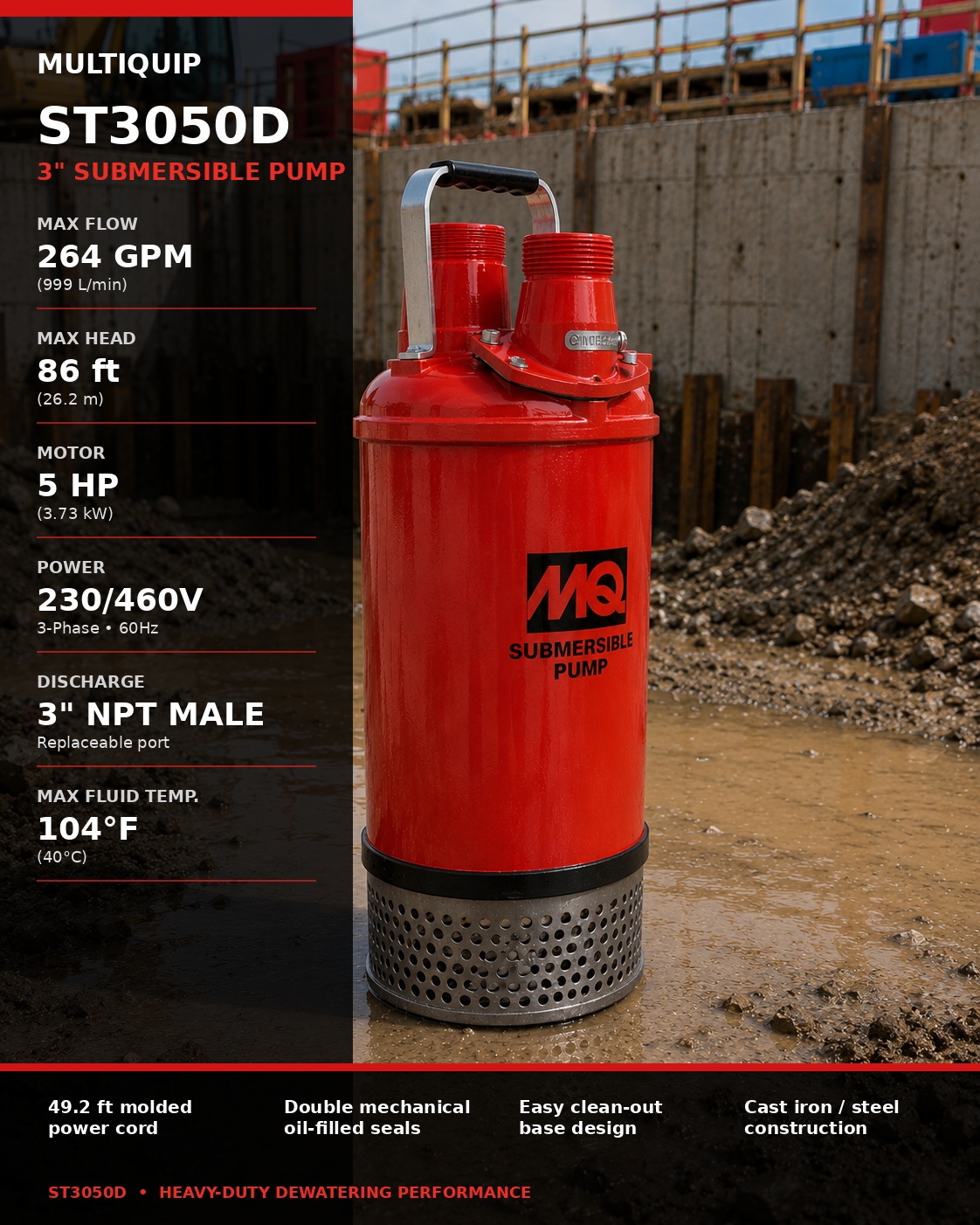

The Multiquip ST3050D is a 3-inch submersible centrifugal pump designed for high-volume water removal in construction, industrial, utility, and municipal applications. With a maximum pumping capacity of 264 GPM and a maximum head of 86 feet, the ST3050D provides dependable performance for standing water, excavations, well casings, site drainage, flooded rooftops, and other demanding dewatering applications.
Built for demanding pumping environments, the ST3050D features a durable cast-ductile-iron impeller, double mechanical oil-filled seals, a cast iron and steel motor housing, thermal overload protection, and a 49.2-foot molded power cable with strain relief. Its 5 HP, 230/460V three-phase motor provides reliable high-volume pumping performance and allows voltage selection for compatible electrical installations.
Product Features:
- 264 GPM Maximum Flow: Delivers up to 264 gallons per minute for high-volume dewatering and water-transfer applications.
- 86-Foot Maximum Head: Provides up to 86 feet of total head for demanding vertical water-transfer applications.
- 3-Inch NPT Discharge: Features a replaceable 3-inch NPT male discharge port for connection to compatible discharge hose and piping.
- 5 HP Heavy-Duty Motor: Uses a 5 HP, 230/460V three-phase motor designed for reliable high-volume pumping performance.
- Cast-Ductile-Iron Impeller: Uses a durable impeller designed for dependable centrifugal pumping performance.
- Double Mechanical Oil-Filled Seals: Provides reliable sealing and protection for internal pump components during operation.
- Thermal Overload Protection: Built-in protection helps protect the motor from excessive operating temperatures.
- 49.2-Foot Power Cable: Includes a molded power cable with strain-relief protection for extended electrical connection reach.
- 230/460V Three-Phase Operation: Supports 230V or 460V, three-phase, 60 Hz operation with the appropriate electrical configuration.
- Easy Impeller Clean-Out: The base design provides convenient access for cleaning and maintenance.
What Is a Submersible Dewatering Pump?
A submersible dewatering pump operates while submerged in the water being removed. The ST3050D uses a centrifugal impeller to move large volumes of water through its 3-inch discharge, making it suitable for construction sites, excavations, well casings, site drainage, flooded rooftops, and other water-removal applications.
264 GPM Flow Rate and 86-Foot Maximum Head
The ST3050D provides a maximum pumping capacity of 264 GPM and a maximum head of 86 feet. Its performance makes it suitable for moving substantial volumes of water through discharge hose and piping, with actual flow depending on discharge elevation, hose length, fittings, and overall system resistance.
Durable Impeller and Mechanical Seals
The ST3050D uses a cast-ductile-iron impeller for dependable pumping performance and incorporates double mechanical oil-filled seals for reliable internal protection. The pump also features a cast iron and steel motor housing designed to conduct heat away from the motor during operation.
230/460V Three-Phase Motor Operation
The ST3050D operates with a 5 HP, 230/460V three-phase, 60 Hz electric motor. The pump ships from the factory configured for 230V operation and can be switched to 460V for compatible installations. A control box is required for safe operation and provides protection functions including thermal and voltage overload protection.
Compact Construction for Dewatering Applications
The ST3050D features a compact steel and cast iron housing with a 10.2-inch diameter and 26.8-inch overall height. Its streamlined design allows the pump to fit into 10.2-inch pipes, while the 49.2-foot molded power cable provides extended reach for suitable installations. The pump has an operating weight of approximately 120 pounds.
High-Temperature Water Handling
The ST3050D is designed to pump liquids up to 104°F (40°C). Its 3-inch discharge and heavy-duty construction make it suitable for general dewatering and water-transfer applications involving construction sites, industrial areas, flooded rooftops, and other locations requiring reliable high-volume pumping.
Warranty
The Multiquip ST3050D has a 1 Year Warranty from the date of purchase. Hoses, float switches, and the CB200 control box carry separate three-month warranty periods. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Heavy-Duty 3-Inch Dewatering Power for High-Volume Applications
The Multiquip ST3050D is a heavy-duty electric submersible centrifugal pump designed for demanding construction, industrial, municipal, and residential dewatering applications. Powered by a 5 HP, 230/460V three-phase motor, the ST3050D delivers up to 264 gallons per minute with a maximum published head of 86 feet, providing powerful high-volume water removal for challenging pumping jobs.
Its replaceable 3-inch NPT male discharge port supports efficient water movement, while the compact steel and cast iron housing features a streamlined 10.2-inch overall diameter for placement in confined areas. The ST3050D is well suited for standing water, excavations, site drainage, well casings, water supply from lakes and rivers, flooded rooftops, flooded basements, swimming pools, decorative waterfalls, and fountains.
Built for demanding professional use, the ST3050D features a durable wear-resistant ductile iron impeller, an industrial oil-bathed dual silicon carbide mechanical seal system, dual sealed lubricated motor bearings, and stainless steel hardware. Its simple voltage adjustment system allows operation on either 230V or 460V three-phase power, while a 49.2-foot molded power cord with strain relief provides extended reach during installation.
Why Choose the Multiquip ST3050D Submersible Pump?
High-Volume Dewatering Performance
- Provides up to 264 GPM of published maximum pumping capacity.
- Heavy-duty 5 HP motor delivers powerful water-removal performance.
- 86-foot maximum published head supports demanding dewatering applications.
Flexible Dual-Voltage Operation
- Operates on 230V or 460V three-phase, 60Hz electrical power.
- Simple voltage adjustment system allows convenient switching between 230V and 460V.
- Pump is designed for demanding commercial, industrial, and municipal applications.
Heavy-Duty 3-Inch Water Handling
- Replaceable 3-inch NPT male discharge port supports efficient high-volume water movement.
- Strainer bottom allows debris up to 0.4 inches in diameter to pass through the pump.
- Minimum pumping level of 5 inches supports effective dewatering performance.
Rugged Industrial Construction
- Steel and cast iron housing provides strength for demanding jobsite conditions.
- Durable wear-resistant ductile iron impeller provides dependable pumping performance.
- Narrow 10.2-inch overall diameter supports placement in confined pumping areas.
