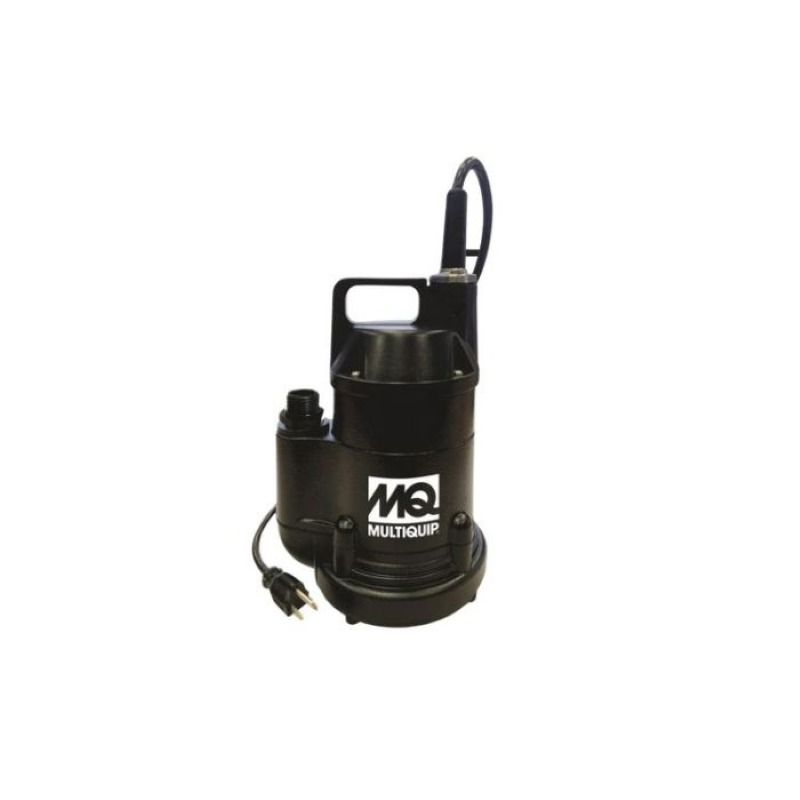

Multiquip Submersible Centrifugal Pump ST1 Series | 1/4 HP | Aluminum | Max 27 GPM | Max 23 ft. Head | 115V | 10 ft. Cord | ST1

Compact, Reliable Dewatering for Standing Water

The Multiquip ST1 1/4 HP Submersible Pump is a compact centrifugal pump designed for removing standing water from applications such as construction sites, excavations, site drainage, flooded basements, manholes, quarries, rooftops, irrigation areas, swimming pools, and other water-removal applications. Its durable aluminum construction, compact design, and reliable 115V operation make it a practical solution when dependable dewatering is needed in a portable package.

Delivering up to 18 GPM with a maximum head of 21 feet, the ST1 is designed to handle water temperatures up to 104°F while pumping down to a minimum water level of 0.25 inches. A heat-treated carbon steel shaft, hardened abrasion-resistant polyethylene impeller, permanently oil-lubricated triple lip seals, and internal thermal overload protection provide durable operation in demanding dewatering environments.

Product Features:

• 1/4 HP Motor: Heavy-duty electric motor provides reliable performance for portable dewatering applications.
• 18 GPM Maximum Capacity: Pumps up to 18 gallons per minute for efficient removal of standing water.
• 21-Foot Maximum Head: Provides up to 21 feet of total pumping head for versatile water-removal applications.
• 3/4-Inch GHT Discharge: Replaceable 3/4-inch GHT male discharge port provides a convenient hose connection.
• Compact Aluminum Housing: Corrosion-resistant aluminum casing provides durability and helps dissipate motor heat.
• Low-Level Dewatering: Designed to pump water down to a minimum level of 0.25 inches.
• 3 mm Solids Handling: Durable strainer design permits passage of debris up to 0.12 inches in diameter.
• Thermal Overload Protection: Internal protection helps prevent motor damage caused by overloading and dry-running conditions.
• Durable Sealing System: Permanently oil-lubricated triple lip seals provide long-lasting protection and durability.
• 115V Single-Phase Power: Operates on standard 115V single-phase, 60 Hz electrical power with a 10-foot molded power cord and NEMA 5-15P plug.

What Is a Submersible Dewatering Pump?

A submersible dewatering pump is designed to operate while submerged in water, allowing the pump to remove accumulated water directly from the area being drained. The Multiquip ST1 uses a centrifugal pumping design and compact submersible construction for applications where standing water needs to be removed from relatively shallow areas.

Understanding Flow Rate and Head

The ST1 provides a maximum pumping capacity of 18 GPM and a maximum total head of 21 feet. Actual flow varies according to the total head and resistance in the discharge system, so hose length, elevation, fittings, and other system restrictions can affect the amount of water the pump delivers.

Compact and Durable Pump Construction

The ST1 features an industrial aluminum outer casing designed to provide effective heat dissipation around the motor. Its hardened, abrasion-resistant polyethylene impeller, heat-treated carbon steel shaft, stainless steel hardware, and durable strainer base are designed for dependable operation in water-removal applications.

Low-Level Water Removal

The ST1 is designed for low-level dewatering with a minimum pumping level of just 0.25 inches. Its durable strainer base provides passage for debris up to 0.12 inches in diameter while helping protect the pumping components from larger material.

115V Electrical Operation

The ST1 operates on 115V single-phase, 60 Hz power and uses a 10-foot molded power cable with a NEMA 5-15P plug. The motor has Class F insulation, draws 2.8 running amps and 6.0 starting amps, and operates at 3,450 RPM 30 RPM. The manufacturer specifies a minimum generator capacity of 0.690 kW for starting and 0.322 kW for running.

Motor Protection and Sealing

Internal thermal overload protection helps protect the motor from damage caused by excessive loading and dry-running conditions. The pump also uses maintenance-free, dual-sealed lubricated motor bearings and a permanently oil-lubricated triple lip seal system for durability.

Operating Conditions

The ST1 is designed to pump fluids up to 104°F (40°C) and has a maximum submergence of 16.7 inches. The pump uses an oil-free mechanical seal system and is not specified for use with salt water or chemicals.

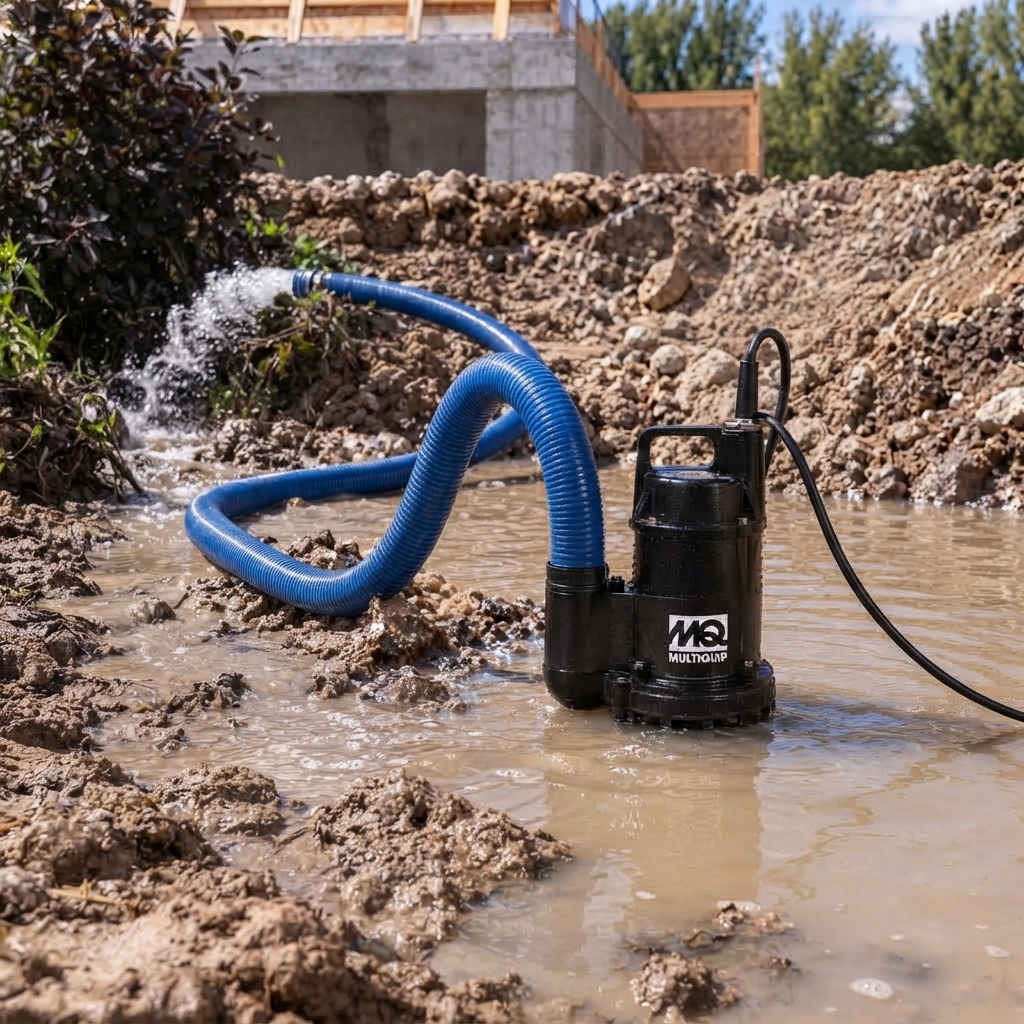

Applications

The Multiquip ST1 is designed for a range of water-removal applications, including construction, standing water, well casings, excavations, site drainage, manholes, industrial applications, water supply from lakes and rivers, wastewater, quarries, flooded rooftops, irrigation, residential areas, flooded basements, swimming pools, and decorative water applications.

Warranty

The Multiquip ST1 pump is covered by a 90-day warranty from the date of purchase. Hoses are covered for 3 months from the date of purchase. Refer to the Multiquip New Product Limited Warranty for complete terms and conditions.
