Closed Until MondayMultiquip Submersible Centrifugal Pump ST41 Series | 10 HP | Stainless Steel | Control Box Required | Max 423 GPM | Max 138 ft. Head | 230V | 49.2 ft. Cord | ST41230
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST41230
ID
240139
Was $5,117.00 Your Low Price Special Price $3,999.00

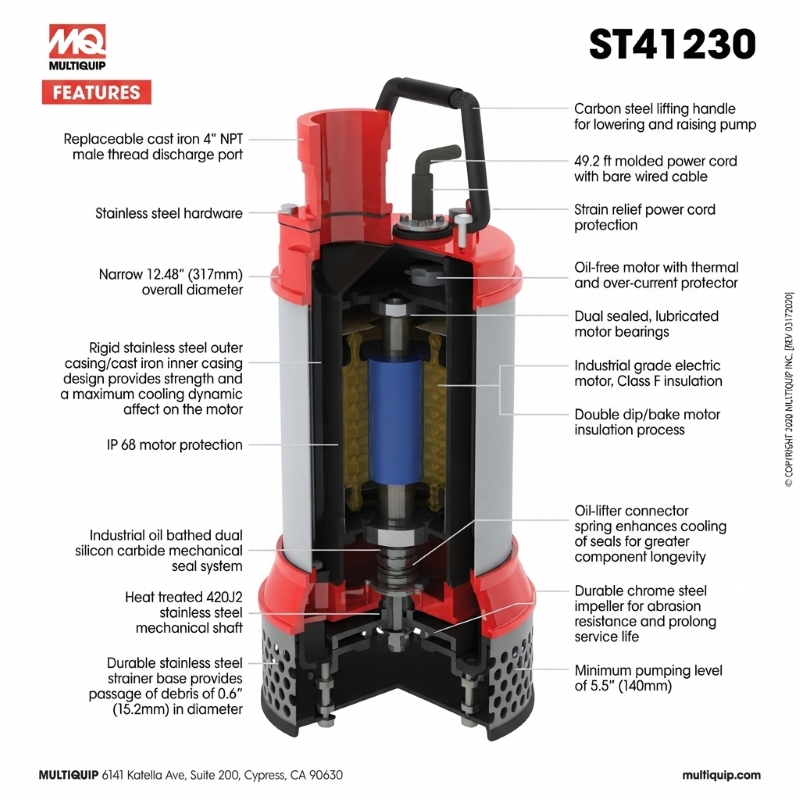

Product Features
- Carbon Steel Lifting Handle: Durable handle designed for convenient lowering and raising of the pump.
- Replaceable Discharge Port: Replaceable cast iron 4" NPT male thread discharge port.
- Dual Casing Design: Rigid stainless steel outer casing and cast iron inner casing provide strength and maximum motor cooling.
- IP68 Motor Protection: Oil-free motor featuring thermal and over-current protection with IP68 rating.
- Durable Chrome Steel Impeller: Designed for abrasion resistance and prolonged service life.
- Stainless Steel Strainer Base: Provides passage of debris up to 0.6" (15.2 mm) in diameter.
Heavy-Duty 4-Inch Submersible Dewatering for High-Volume Applications
The Multiquip ST41230 is a 4-inch submersible centrifugal pump designed for high-volume water removal in construction, industrial, utility, and municipal applications. With a maximum pumping capacity of 423 GPM and a maximum head of 138 feet, the ST41230 provides powerful performance for standing water, excavations, well casings, site drainage, manholes, wastewater, quarries, and irrigation.
Built for demanding pumping environments, the ST41230 features a rugged stainless steel housing and strainer, dynamically balanced high-chrome impeller, oil-filled double mechanical seals, a heat-treated 420J2 stainless steel output shaft, thermal and over-current motor protection, and a 49.2-foot molded power cable. Its 10 HP, 230V three-phase motor provides high-capacity pumping for demanding dewatering applications.
Product Features:
- 423 GPM Maximum Flow: Delivers up to 423 gallons per minute for high-volume dewatering and water-transfer applications.
- 138-Foot Maximum Head: Provides up to 138 feet of total head for demanding vertical water-transfer applications.
- 4-Inch NPT Discharge: Features a 4-inch NPT male discharge port for connection to compatible discharge hose and piping.
- 10 HP Heavy-Duty Motor: Uses a 10 HP, 230V three-phase motor designed for high-volume pumping performance.
- High-Chrome Steel Impeller: Uses a dynamically balanced high-chrome impeller designed for abrasion resistance and reliable pumping performance.
- Oil-Filled Double Mechanical Seals: Provides reliable sealing and protection for demanding pumping conditions.
- Stainless Steel Construction: Features a stainless steel outer casing and strainer for durability in water-pumping applications.
- 420J2 Stainless Steel Shaft: Uses a heat-treated stainless steel output shaft for strength and corrosion resistance.
- 49.2-Foot Power Cable: Includes a molded power cable with strain-relief protection for extended electrical connection reach.
- Three-Phase Operation: Operates at 230V, three-phase, 60 Hz and requires a compatible control box for safe operation.
What Is a Submersible Dewatering Pump?
A submersible dewatering pump operates while submerged in the water being removed. The ST41230 uses a centrifugal impeller to move large volumes of water through its 4-inch discharge, making it suitable for construction, industrial, municipal, and other high-volume dewatering applications.
High-Volume 423 GPM Pumping
The ST41230 provides a maximum pumping capacity of 423 GPM and a maximum head of 138 feet. Its performance makes it suitable for moving substantial volumes of water from excavations, well casings, manholes, drainage areas, quarries, and other demanding locations.
High-Chrome Impeller and Double Mechanical Seals
The ST41230 uses a dynamically balanced high-chrome steel impeller designed for abrasion resistance. Its oil-filled double mechanical seal system provides reliable protection for internal pump components, while the heat-treated 420J2 stainless steel output shaft supports durability during demanding operation.
Three-Phase Motor and Control Box Operation
The ST41230 operates at 230V, three-phase, 60 Hz with a 10 HP motor. A compatible control box is required to provide safe operation and protection against conditions such as thermal and voltage overloads. Float switches can also be connected through the control box when automatic water-level control is required.
Durable Stainless Steel Construction
The ST41230 features a stainless steel outer casing and stainless steel strainer for durable construction. Its compact housing and streamlined design allow the pump to fit into pipes as small as 14 inches in diameter, while the 49.2-foot molded power cable provides extended reach for suitable installations.
Large Solid Handling Capacity
The ST41230 can pass spherical solids up to 0.6 inches in diameter, making it suitable for a variety of general dewatering applications. The pump is designed to handle liquids up to 104°F (40°C) and is intended for appropriate water-pumping applications rather than salt water or chemical service.
Warranty
The Multiquip ST41230 has a 1 Year Warranty from the date of purchase. Hoses, float switches, and the CB12A6974 control box carry separate three-month warranty periods. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Heavy-Duty 4-Inch Submersible Pumping Power for High-Head Dewatering
The Multiquip ST41230 is a heavy-duty electric submersible centrifugal pump engineered for high-head, high-volume water removal in demanding construction, utility, and municipal applications. Powered by a 10 HP, 230V three-phase motor, the ST41230 delivers up to 423 gallons per minute with a maximum published head of 138 feet, providing powerful performance for challenging dewatering and water-transfer jobs.
Its 4-inch discharge provides efficient high-volume water movement, while the rugged construction is designed to withstand demanding jobsite conditions. The ST41230 is particularly well suited for clear-water applications where substantial flow at high head is required, making it a dependable solution for contractors, service utilities, municipalities, and other professional users.
Built for long-lasting operation, the ST41230 features a durable chrome steel impeller, stainless steel hardware, a stainless steel mechanical shaft, and an oil-bathed double mechanical seal system. The pump can pass spherical solids up to 0.6 inches in diameter, while its 5.5-inch minimum pumping level supports effective dewatering in demanding applications.
Why Choose the Multiquip ST41230 Submersible Pump?
High-Head, High-Volume Performance
- Provides up to 423 GPM of published maximum pumping capacity.
- Heavy-duty 10 HP motor delivers powerful professional-grade pumping performance.
- 138-foot maximum published head makes the pump ideal for demanding high-head applications.
Heavy-Duty 4-Inch Water Handling
- 4-inch discharge supports efficient high-volume water movement.
- Passes spherical solids up to 0.6 inches in diameter.
- 5.5-inch minimum pumping level supports effective dewatering performance.
Reliable Mechanical Seal System
- Oil-bathed double mechanical seal system helps protect critical pump components.
- Lower silicon carbide-to-silicon carbide mechanical seal provides durable sealing performance.
- Upper carbon-to-ceramic mechanical seal provides additional protection within the oil chamber.
Designed for High-Head Applications
- Designed for clear-water applications requiring substantial flow at high head.
- Ideal for contractors, service utilities, municipalities, and professional dewatering operations.
- Provides a powerful solution for both confined and open-area water-removal applications.
