Closed Until MondayMultiquip Submersible Centrifugal Pump ST41 Series | 10 HP | Stainless Steel | Control Box Required | Max 423 GPM | Max 138 ft. Head | 460V | 49.2 ft. Cord | ST41460
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST41460
ID
240145
Was $5,117.00 Your Low Price Special Price $4,399.00
Product Features
- High-Volume Performance: Pumps up to 423 GPM with 138 ft. total head.
- 10 HP Motor: 460V three-phase motor handles demanding dewatering applications.
- 4" Discharge: Male NPT port supports high-volume water removal.
- Heavy-Duty Construction: Stainless steel housing and high-chrome impeller provide durability.
- Double Mechanical Seals: Oil-filled seals help protect the motor from water intrusion.
- Control Box Required: Provides thermal and voltage overload protection for safe operation.
Heavy-Duty 4-Inch Submersible Dewatering for High-Volume Applications

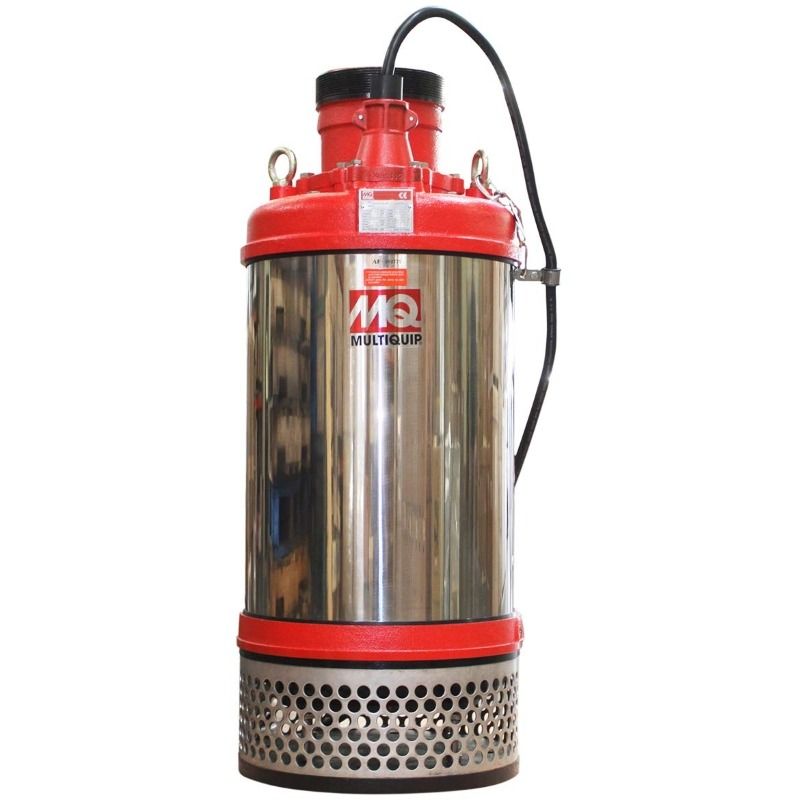

The Multiquip ST41460 is a 4-inch submersible centrifugal pump designed for high-volume water removal in construction, industrial, utility, and municipal applications. With a maximum pumping capacity of 423 GPM and a maximum head of 138 feet, the ST41460 provides dependable performance for standing water, excavations, well casings, site drainage, manholes, wastewater, quarries, and irrigation.
Built for demanding pumping environments, the ST41460 features a rugged stainless steel outer casing and strainer, dynamically balanced chrome steel impeller, oil-bathed dual silicon carbide mechanical seals, heat-treated 420J2 stainless steel mechanical shaft, thermal and over-current protection, and a 49.2-foot molded power cable. Its 10 HP, 460V three-phase motor provides high-capacity pumping for demanding dewatering applications.
Product Features:
- 423 GPM Maximum Flow: Delivers up to 423 gallons per minute for high-volume dewatering and water-transfer applications.
- 138-Foot Maximum Head: Provides up to 138 feet of total head for demanding vertical water-transfer applications.
- 4-Inch NPT Discharge: Features a replaceable 4-inch NPT male discharge port for connection to compatible discharge hose and piping.
- 10 HP Heavy-Duty Motor: Uses a 10 HP, 460V three-phase motor designed for reliable high-volume pumping performance.
- Chrome Steel Impeller: Uses a dynamically balanced chrome steel impeller designed for abrasion resistance and extended service life.
- Dual Silicon Carbide Mechanical Seals: Features an oil-bathed dual mechanical seal system for dependable protection of internal pump components.
- Stainless Steel Construction: Features a stainless steel outer casing and strainer for durable construction in demanding water-pumping applications.
- 420J2 Stainless Steel Shaft: Uses a heat-treated stainless steel mechanical shaft for strength and corrosion resistance.
- 49.2-Foot Power Cable: Includes a molded power cable with strain-relief protection for extended electrical connection reach.
- 460V Three-Phase Operation: Operates at 460V, three-phase, 60 Hz and is designed for use with the compatible control box.
What Is a Submersible Dewatering Pump?
A submersible dewatering pump operates while submerged in the water being removed. The ST41460 uses a centrifugal impeller to move large volumes of water through its 4-inch discharge, making it suitable for construction, industrial, utility, and municipal dewatering applications.
High-Volume 423 GPM Pumping
The ST41460 provides a maximum pumping capacity of 423 GPM and a maximum head of 138 feet. Its high-capacity design is suitable for moving substantial volumes of water from excavations, well casings, drainage areas, manholes, quarries, and other demanding locations.
Chrome Steel Impeller and Dual Mechanical Seals
The ST41460 uses a dynamically balanced chrome steel impeller designed for abrasion resistance and extended service life. Its oil-bathed dual silicon carbide mechanical seal system provides reliable protection for internal pump components, while the heat-treated 420J2 stainless steel mechanical shaft supports durability during demanding operation.
460V Three-Phase Motor and Control Box Operation
The ST41460 operates at 460V, three-phase, 60 Hz with a 10 HP motor. The pump has a 15.0-amp running current and requires a compatible control box for safe operation, including thermal, over-current, power spike, and short-circuit protection. The CB14A5663 control box also supports float-switch connections for automatic water-level control.

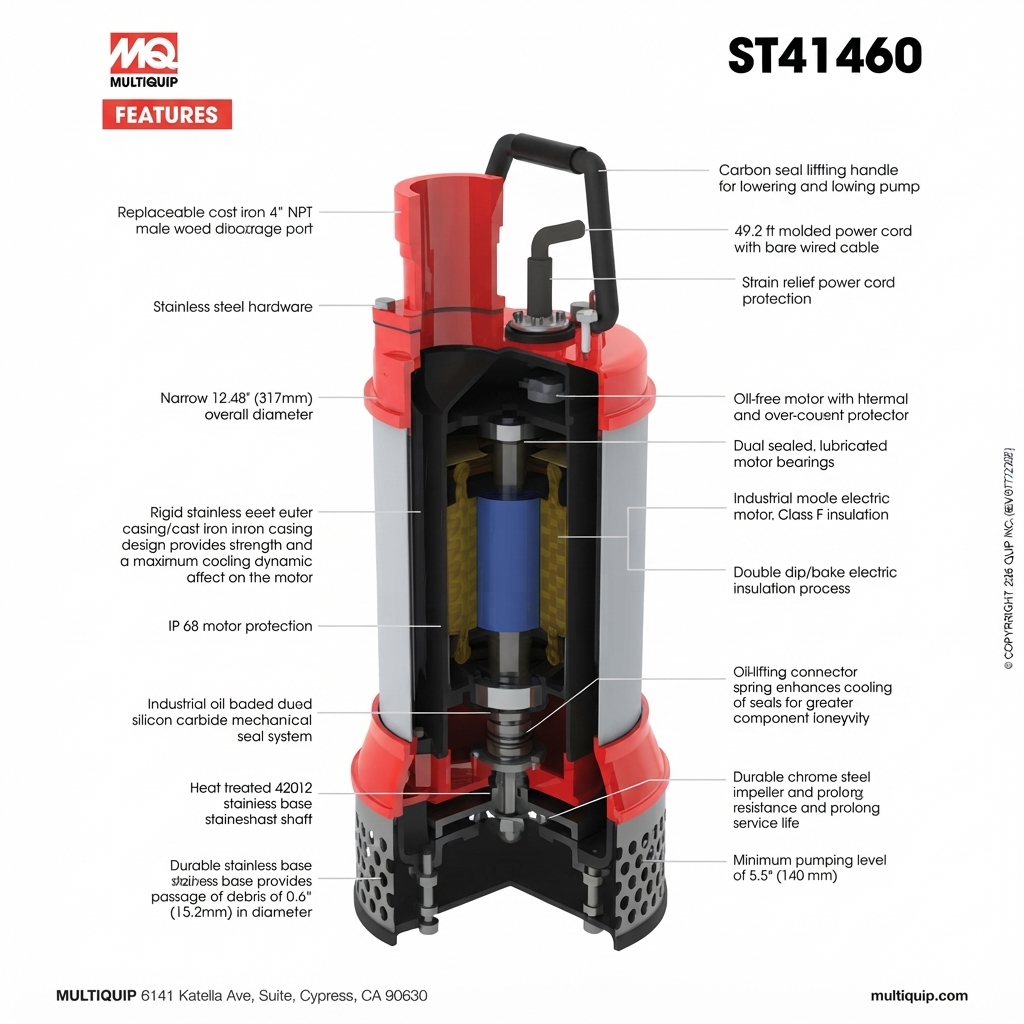

Durable Construction for Demanding Applications
The ST41460 features a rigid stainless steel outer casing with a cast iron inner casing, stainless steel hardware, and a stainless steel strainer base. Its narrow 12.48-inch diameter allows the pump to fit into pipes as small as 14 inches, while the 49.2-foot molded power cable provides extended reach for suitable installations.
Large Solid Handling Capacity
The ST41460 can pass spherical solids up to 0.6 inches (15.2 mm) in diameter, making it suitable for a variety of demanding dewatering applications. The pump is designed to handle liquids up to 104°F (40°C) and is not intended for pumping salt water or chemicals.
Warranty
The Multiquip ST41460 has a 1 Year Warranty from the date of purchase. Hoses, float switches, and the CB14A5663 control box carry separate three-month warranty periods. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Heavy-Duty 4-Inch Submersible Pumping Power for High-Head Dewatering
The Multiquip ST41460 is a heavy-duty electric submersible centrifugal pump engineered for high-head, high-volume water removal in demanding construction, utility, and municipal applications. Powered by a 10 HP, 460V three-phase motor, the ST41460 delivers up to 423 gallons per minute with a maximum published head of 138 feet, providing powerful pumping performance for challenging dewatering and water-transfer jobs.
Its 4-inch discharge supports efficient high-volume water movement, while the rugged pump design is built to withstand demanding professional applications. The ST41460 is especially well suited for clear-water pumping where substantial flow at high head is required, making it a dependable solution for contractors, service utilities, municipalities, and other professional users.
Built for long-lasting operation, the ST41460 features a durable chrome steel impeller, stainless steel mechanical shaft and hardware, and an oil-bathed double mechanical seal system. The pump can pass spherical solids up to 0.6 inches in diameter and provides a minimum pumping level of 5.5 inches, combining high-capacity performance with rugged construction for demanding dewatering environments.
Why Choose the Multiquip ST41460 Submersible Pump?
High-Head, High-Volume Performance
- Provides up to 423 GPM of published maximum pumping capacity.
- Heavy-duty 10 HP motor delivers powerful professional-grade pumping performance.
- 138-foot maximum published head supports demanding high-head applications.
Heavy-Duty 4-Inch Water Handling
- 4-inch discharge supports efficient high-volume water movement.
- Passes spherical solids up to 0.6 inches in diameter.
- 5.5-inch minimum pumping level supports effective dewatering performance.
Rugged Professional Construction
- Chrome steel impeller provides durable performance in demanding pumping environments.
- Stainless steel mechanical shaft and hardware provide added durability.
- Heavy-duty construction is designed for demanding construction, utility, and municipal applications.
Extended Reach and Jobsite Convenience
- 49.2-foot power cable provides extended reach during pump placement.
- Bare-wire cable termination supports connection to the appropriate electrical control system.
- Strain-relief cable protection helps protect the power connection during demanding operation.
