Closed Until MondayMultiquip Submersible Centrifugal Pump ST61 Series | 15 HP | Stainless Steel | Control Box Required | Max 674 GPM | Max 105 ft. Head | 230V | 49.2 ft. Cord | ST61230
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST61230
ID
240326
Was $7,063.00 Your Low Price Special Price $5,899.00
Product Features

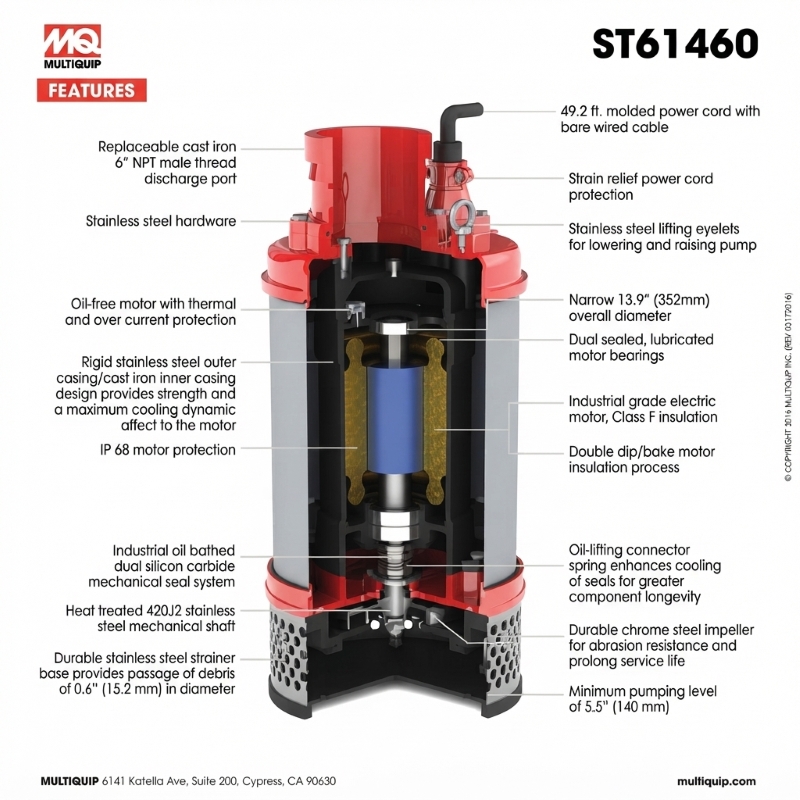

- Stainless Steel Lifting Eyelets: Stainless steel lifting eyelets for convenient lowering and raising of the pump.
- Replaceable Discharge Port: Replaceable, cast iron 6" NPT male thread discharge port.
- Dual Casing Design: Rigid stainless steel outer casing and cast iron inner casing provide strength and maximum motor cooling.
- IP68 Motor Protection: Oil-free motor featuring thermal and over-current protection with IP68 rating.
- Durable Chrome Steel Impeller: Designed for abrasion resistance and prolonged service life.
- Stainless Steel Strainer Base: Durable stainless steel strainer base provides passage of debris up to 0.6" (15.2 mm) in diameter.
Heavy-Duty 6-Inch Submersible Dewatering for High-Volume Applications

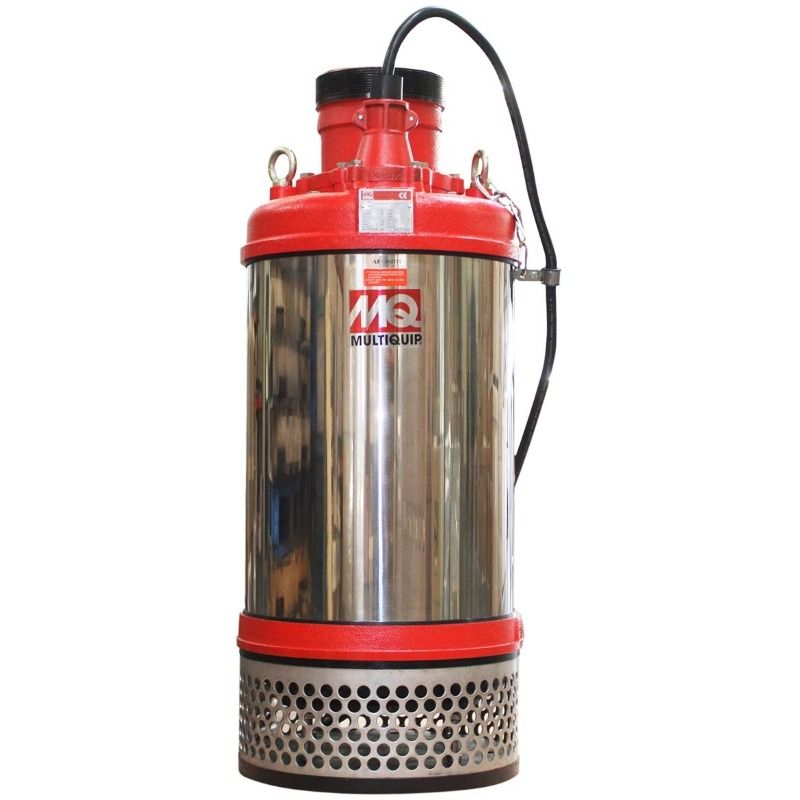

The Multiquip ST61230 is a 6-inch submersible centrifugal pump designed for high-volume water removal in construction, industrial, utility, and municipal applications. With a maximum pumping capacity of 647 GPM and a maximum head of 105 feet, the ST61230 provides powerful performance for standing water, excavations, site drainage, manholes, wastewater, quarries, irrigation, and other demanding dewatering applications.
Built for demanding pumping environments, the ST61230 features a rugged stainless steel outer casing, cast iron inner casing, dynamically balanced high-chrome steel impeller, oil-bathed dual silicon carbide mechanical seals, heat-treated 420J2 stainless steel shaft, thermal and over-current protection, and a 49.2-foot molded power cable. Its 15 HP, 230V three-phase motor provides high-capacity pumping for demanding water-removal applications.
Product Features:
- 647 GPM Maximum Flow: Delivers up to 647 gallons per minute for high-volume dewatering and water-transfer applications.
- 105-Foot Maximum Head: Provides up to 105 feet of total head for demanding vertical water-transfer applications.
- 6-Inch NPT Discharge: Features a replaceable 6-inch NPT male discharge port for connection to compatible discharge hose and piping.
- 15 HP Heavy-Duty Motor: Uses a 15 HP, 230V three-phase motor designed for high-volume pumping performance.
- High-Chrome Steel Impeller: Uses a dynamically balanced chrome steel impeller designed for abrasion resistance and extended service life.
- Dual Silicon Carbide Mechanical Seals: Features an oil-bathed double mechanical seal system for reliable protection of internal pump components.
- Stainless Steel Construction: Features a rigid stainless steel outer casing and stainless steel strainer for durable operation.
- 420J2 Stainless Steel Shaft: Uses a heat-treated stainless steel mechanical shaft for strength and corrosion resistance.
- 49.2-Foot Power Cable: Includes a molded power cable with strain-relief protection for extended electrical connection reach.
- 230V Three-Phase Operation: Operates at 230V, three-phase, 60 Hz and requires a compatible control box for safe operation.
What Is a Submersible Dewatering Pump?
A submersible dewatering pump operates while submerged in the water being removed. The ST61230 uses a centrifugal impeller to move large volumes of water through its 6-inch discharge, making it suitable for construction, industrial, utility, and municipal applications where high-capacity water removal is required.
High-Volume 647 GPM Pumping
The ST61230 provides a maximum pumping capacity of 647 GPM and a maximum head of 105 feet. Its high-capacity design is suitable for moving substantial volumes of water from excavations, standing-water areas, site drainage, manholes, quarries, wastewater applications, and irrigation systems.
High-Chrome Impeller and Double Mechanical Seals
The ST61230 uses a dynamically balanced high-chrome steel impeller designed for abrasion resistance and extended service life. Its oil-bathed double mechanical seal system uses silicon carbide sealing surfaces, while the heat-treated 420J2 stainless steel mechanical shaft provides durable operation in demanding pumping conditions.
230V Three-Phase Motor and Control Box Operation
The ST61230 operates at 230V, three-phase, 60 Hz with a 15 HP motor. The pump has a 45.2-amp running current and requires a compatible control box for safe operation and protection. The CB12A6974 control box provides electronic overload, power-spike, and short-circuit protection and supports compatible float-switch connections for automatic water-level control.
Durable Construction for Demanding Applications
The ST61230 features a rigid stainless steel outer casing with a cast iron inner casing, stainless steel hardware, and a stainless steel strainer base. Its 13.9-inch diameter and streamlined housing provide a durable configuration for high-volume dewatering applications, while the 49.2-foot molded power cable provides extended reach.
Large Solid Handling Capacity
The ST61230 can pass spherical solids up to 0.6 inches (15.2 mm) in diameter. It has a minimum pumping level of 5.5 inches and a minimum submergence of 31.3 inches. The pump is designed for liquids up to 104°F (40°C) and is not intended for pumping salt water or chemicals.
Warranty
The Multiquip ST61230 has a 1 Year Warranty from the date of purchase. Hoses, float switches, and the CB12A6974 control box carry separate three-month warranty periods. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Heavy-Duty 6-Inch Submersible Pumping Power for High-Volume Dewatering
The Multiquip ST61230 is a heavy-duty electric submersible centrifugal pump engineered for high-volume water removal in demanding construction, utility, and municipal applications. Powered by a 15 HP, 230V three-phase motor, the ST61230 delivers up to 674 gallons per minute with a maximum published head of 105 feet, providing powerful professional-grade pumping performance for challenging dewatering and water-transfer jobs.
Its 6-inch NPT male discharge supports efficient high-volume water movement, while the rugged ST61 Series design is built for demanding confined-area and open-area pumping applications. The ST61230 is especially well suited for water-removal applications requiring substantial flow at higher head, making it a dependable solution for contractors, service utilities, municipalities, and other professional users.
Built for long-lasting operation, the ST61230 features a dynamically balanced high-chrome steel impeller, heat-treated 410 stainless steel output shaft, 304 stainless steel suction strainer, and reliable oil-filled double mechanical seals. The pump can pass spherical solids up to 0.6 inches in diameter and handles liquids up to 140°F within a published pH range of 4–10, combining high-capacity performance with rugged construction for demanding dewatering environments.
Why Choose the Multiquip ST61230 Submersible Pump?
High-Volume Professional Performance
- Provides up to 674 GPM of published maximum pumping capacity.
- Heavy-duty 15 HP motor delivers powerful professional-grade pumping performance.
- 105-foot maximum published head supports demanding dewatering and water-transfer applications.
Heavy-Duty 6-Inch Water Handling
- 6-inch NPT male discharge supports efficient high-volume water movement.
- Passes spherical solids up to 0.6 inches in diameter.
- High-capacity design makes it well suited for moving large volumes of water efficiently.
Rugged Professional Construction
- Dynamically balanced high-chrome steel impeller provides durable pumping performance.
- Heat-treated 410 stainless steel output shaft provides strength and durability.
- 304 stainless steel suction strainer provides corrosion-resistant protection at the pump inlet.
Extended Reach and Jobsite Convenience
- 33-foot molded power cable provides practical reach during pump placement.
- Strain-relief cable protection helps protect the power connection during demanding operation.
- 230V three-phase electrical configuration is designed for professional and industrial power systems.
