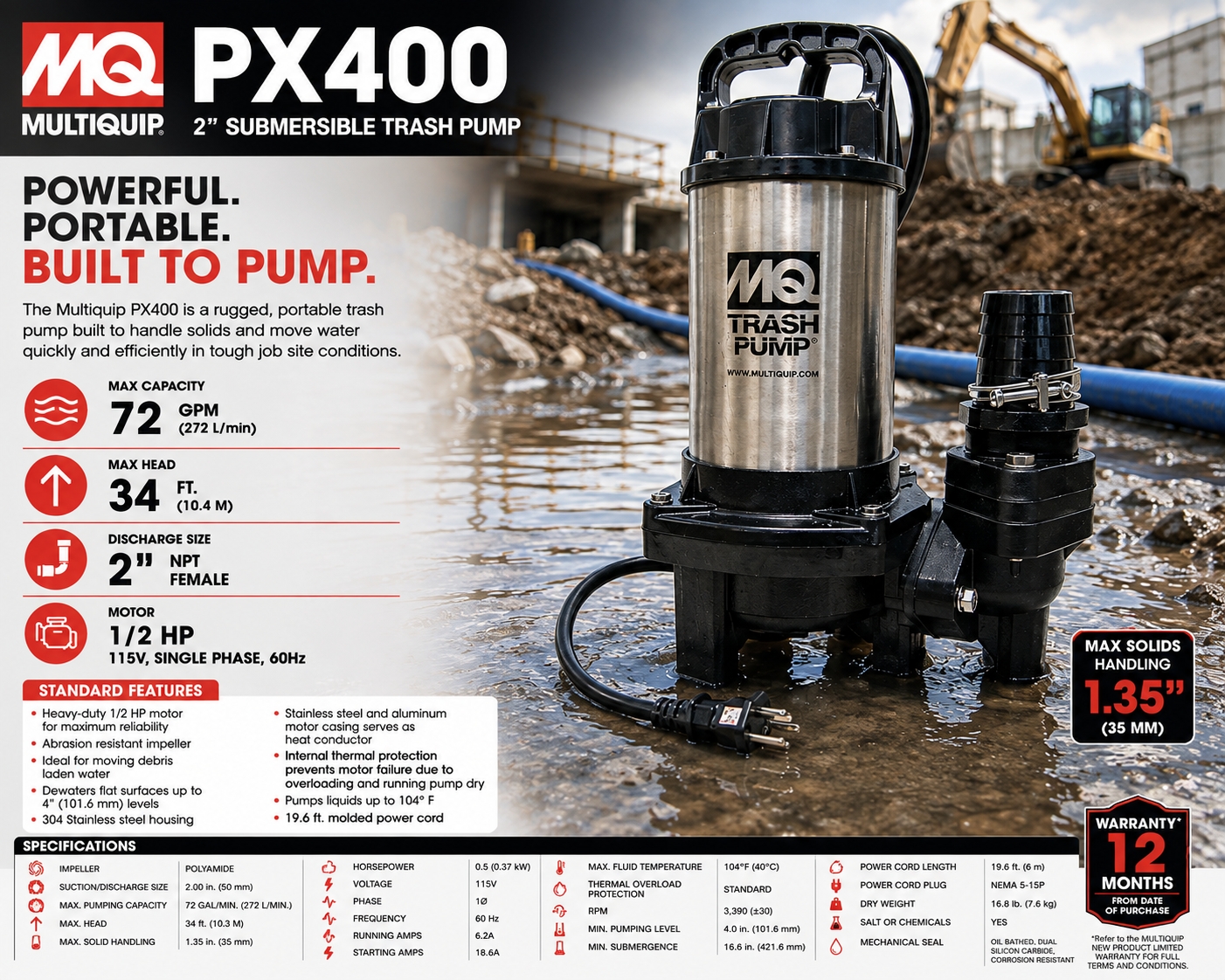

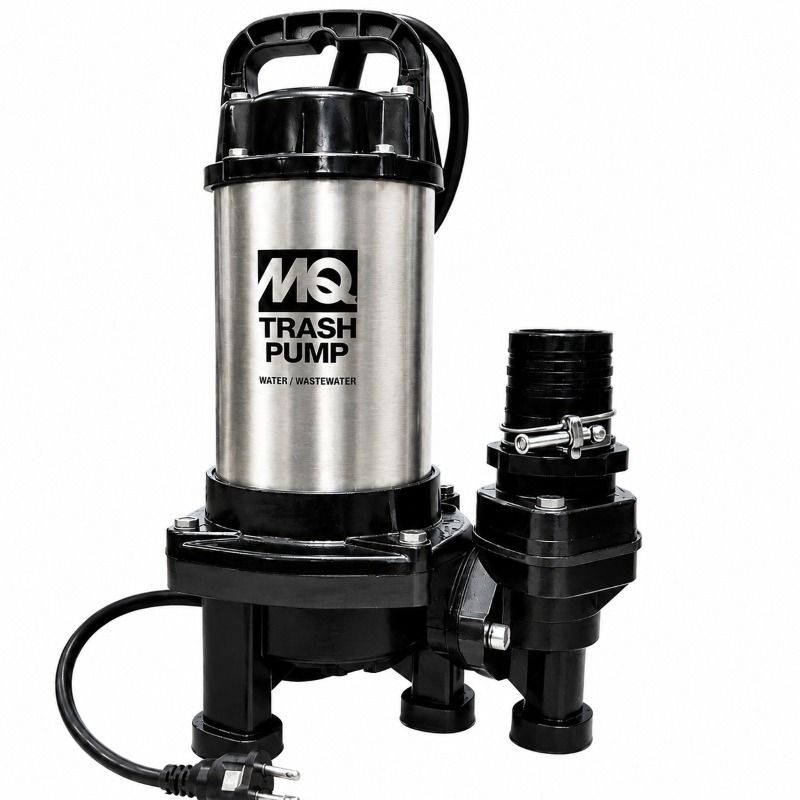

Closed Until MondayMultiquip Submersible Trash Pump | 1/2 HP | 304 Stainless Steel | Max 72 GPM | Max 34 ft. Head | 115V | 19.6 ft. Cord | PX400
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
PX400
ID
240331
Was $678.00 Your Low Price Special Price $599.00
Product Features
- Ergonomic Carry Handle: Polypropylene sulfide ergonomically designed carry handle.
- Salt & Chemical Protective Casing: Stainless steel/aluminum casing design provides salt and chemical protection while maximizing motor cooling.
- Replaceable Discharge Port: Replaceable, polypropylene 2" NPT female thread discharge port.
- Industrial Type 21 Mechanical Seal: Oil-bathed dual silicon carbide mechanical seal system.
- Abrasive-Resistant Impeller: Polyamide resin abrasive-resistant impeller for long-lasting performance.
- Easy Clean-Out Base Bowl: Removable base bowl allows for fast and simple debris clean-out.
Compact 2-Inch Submersible Trash Pump for Debris-Laden Water
The Multiquip PX400 is a compact 2-inch submersible trash pump designed for moving debris-laden water in construction, industrial, marine, residential, and general dewatering applications. With a maximum pumping capacity of 72 GPM and a maximum head of 34 feet, the PX400 provides dependable water removal from excavations, manholes, flooded areas, basements, rooftops, quarries, irrigation systems, and other applications where water may contain debris.
The PX400 combines a lightweight design with a corrosion-resistant 304 stainless steel housing, abrasion-resistant polyamide impeller, dual silicon carbide mechanical seals, internal thermal overload protection, and a 19.6-foot molded power cable. Its 1/2 HP, 115V single-phase motor allows the pump to operate from standard electrical power for convenient jobsite dewatering.
Product Features:
- 72 GPM Maximum Flow: Delivers up to 72 gallons per minute for general dewatering and water-transfer applications.
- 34-Foot Maximum Head: Provides up to 34 feet of maximum head for vertical water-transfer requirements.
- 2-Inch Discharge: Features a 2-inch NPT female discharge with a barb hose adapter and hose clamp for compatible discharge connections.
- 1/2 HP Motor: Uses a 1/2 HP, 115V single-phase motor operating at 60 Hz for convenient electrical operation.
- 1.35-Inch Solid Handling: Handles spherical solids up to 1.35 inches (35 mm), making it suitable for debris-laden water.
- Polyamide Impeller: Uses an abrasion-resistant impeller designed to withstand demanding pumping conditions.
- 304 Stainless Steel Housing: Provides corrosion-resistant construction for demanding water-removal applications, including suitable marine and selected chemical applications.
- Dual Silicon Carbide Seals: Uses oil-bathed, corrosion-resistant mechanical seals to help protect internal pump components.
- Thermal Overload Protection: Built-in thermal protection helps prevent motor damage from overheating and overloading.
- 19.6-Foot Power Cable: Includes a molded power cable for convenient connection to the electrical supply.
What Is a Submersible Trash Pump?
A submersible trash pump operates while submerged in the water being removed and is designed to handle water containing larger debris than a conventional clean-water pump. The PX400 uses a centrifugal pumping design with a 2-inch discharge and 1.35-inch solid-handling capability, making it suitable for construction, drainage, and other debris-laden water applications.
72 GPM Pumping Performance
The PX400 provides up to 72 GPM of pumping capacity with a maximum head of 34 feet. Its performance is suited to removing standing water from excavations, manholes, flooded rooftops, basements, swimming pools, quarries, irrigation areas, and other dewatering locations.
Corrosion-Resistant Construction and Debris Handling
The PX400 features a 304 stainless steel pump housing and abrasion-resistant polyamide impeller for durability in demanding environments. The pump can handle spherical solids up to 1.35 inches (35 mm) and is suitable for salt water and selected chemical applications where compatible with the pumped liquid.
115V Single-Phase Motor and Protection
The PX400 operates with a 1/2 HP, 115V single-phase, 60 Hz motor drawing 6.2 amps during normal operation. Internal thermal overload protection helps protect the motor from excessive operating temperatures and overload conditions. For unattended operation, the pump can be used with a compatible CB3 control box and float-switch configuration.
Compact Design for Confined Dewatering Areas
The PX400 has a compact 10-inch diameter and 17-inch overall height, making it suitable for confined areas where larger pumps may be difficult to position. Its dry weight is approximately 16.8 pounds, while the 19.6-foot molded power cable provides additional reach during installation.
Operating Conditions
The PX400 is designed to pump liquids up to 104°F (40°C) and can dewater flat surfaces down to approximately 4 inches (101.6 mm) according to the current product specification. The pump should be positioned and operated according to Multiquip's installation and operating requirements.
Warranty
The Multiquip PX400 has a 1 Year Warranty from the date of purchase. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Compact 2-Inch Submersible Trash Pump for Debris-Laden Water
The Multiquip PX400 is a compact, lightweight electric submersible trash pump designed for moving debris-laden water in construction, industrial, marine, and residential applications. Powered by a heavy-duty 1/2 HP, 115V single-phase motor, the PX400 delivers up to 72 gallons per minute with a maximum published head of 34 feet, providing dependable pumping performance for standing water, excavations, site drainage, manholes, flooded basements, pools, and other water-removal jobs.
Its 2-inch NPT female discharge includes a barb hose adapter and hose clamp for convenient hose connection, while the abrasion-resistant polyamide resin impeller is designed to handle demanding water containing debris. The PX400 can pass solids up to 1.35 inches in diameter and dewater flat surfaces down to approximately 4 inches, making it a practical choice for jobs where conventional clean-water pumps may not provide sufficient debris handling.
Built for demanding environments, the PX400 features a 304 stainless steel pump housing, stainless steel and aluminum motor casing, stainless steel shaft and hardware, and an oil-bathed dual silicon-carbide mechanical seal system. Internal thermal overload protection helps protect the motor against overloading and dry-running conditions, while the corrosion-resistant construction supports applications including marine salt water and selected chemicals.
Why Choose the Multiquip PX400 Submersible Trash Pump?
Compact, High-Performance Pumping
- Provides up to 72 GPM of published maximum pumping capacity.
- Heavy-duty 1/2 HP motor delivers dependable pumping performance.
- 34-foot maximum published head supports a wide range of dewatering applications.
Designed for Debris-Laden Water
- Handles solids up to 1.35 inches in diameter.
- Abrasion-resistant polyamide resin impeller helps withstand debris-heavy pumping conditions.
- 2-inch NPT female discharge supports efficient water and debris movement.
Rugged Corrosion-Resistant Construction
- 304 stainless steel pump housing provides durability and corrosion resistance.
- Stainless steel and aluminum motor casing helps transfer heat away from the motor.
- Stainless steel shaft and hardware provide added durability in demanding environments.
Convenient 115V Jobsite Operation
- Operates on 115V, single-phase, 60 Hz electrical power.
- NEMA 5-15P plug supports convenient connection to compatible power sources.
- 19.6-foot molded power cord provides practical reach during pump placement.
