Closed Until MondayMultiquip Submersible Trash Pump | 1 HP | Cast Iron | Max 95 GPM | Max 45 ft. Head | 115V | 49.2 ft. Cord | ST2010TCUL
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST2010TCUL
ID
240351
$1,461.00

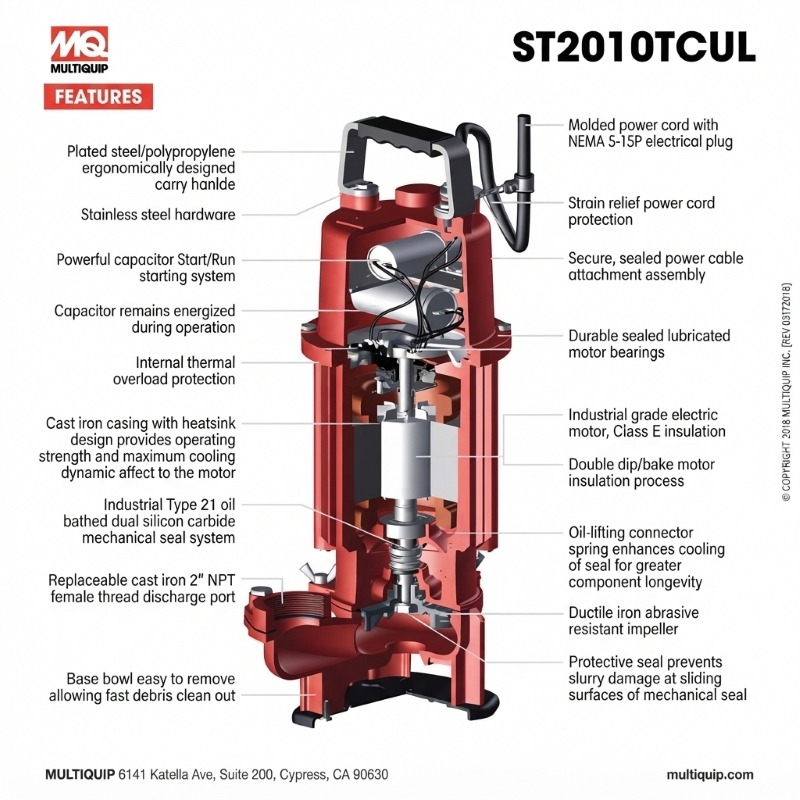

Product Features
- Ergonomic Carry Handle: Plated steel/polypropylene ergonomically designed carry handle.
- Cast Iron Heatsink Casing: Casing design provides operating strength and maximum cooling dynamic effect to the motor.
- Replaceable Discharge Port: Replaceable cast iron 2" NPT female thread discharge port.
- Industrial Type 21 Mechanical Seal: Oil-bathed dual silicon carbide mechanical seal system.
- Ductile Iron Impeller: Durable abrasive-resistant ductile iron impeller built for harsh conditions.
- Easy-to-Remove Base Bowl: Allows for fast and simple debris clean out.
Heavy-Duty 2-Inch Submersible Trash Pump for Debris-Laden Water

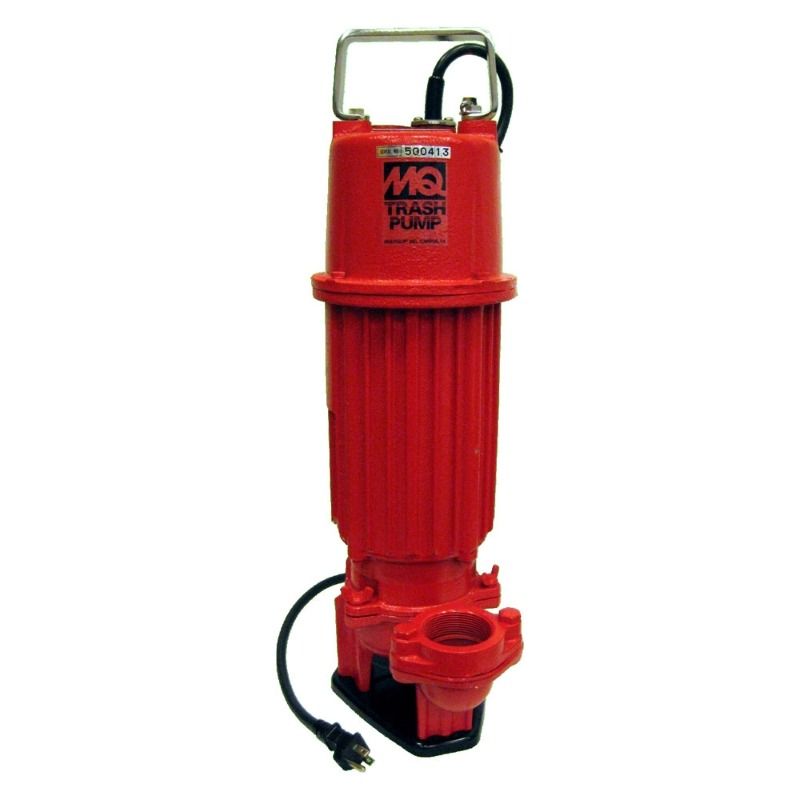

The Multiquip ST2010TCUL is a 2-inch submersible trash pump designed for moving water containing solids and debris in construction, industrial, and residential dewatering applications. With a maximum pumping capacity of 90 GPM and a maximum head of 45 feet, the ST2010TCUL is suited for standing water, excavations, site drainage, manholes, flooded basements, swimming pools, quarries, irrigation systems, and other demanding water-removal applications.
Built for heavy-duty pumping, the ST2010TCUL features durable cast iron inner and outer casings, a ductile iron abrasion-resistant impeller, oil-bathed dual silicon carbide mechanical seals, stainless steel shaft and hardware, internal thermal overload protection, and a 49.2-foot molded power cable. Its 1 HP, 115V single-phase motor is UL/CUL listed for dependable operation in appropriate dewatering applications.
Product Features:
- 90 GPM Maximum Flow: Delivers up to 90 gallons per minute for demanding dewatering and water-transfer applications.
- 45-Foot Maximum Head: Provides up to 45 feet of maximum head for vertical water-transfer requirements.
- 2-Inch Discharge: Features a replaceable 2-inch NPT cast iron female discharge port for compatible discharge hose and piping.
- 1 HP Motor: Uses a 1 HP, 115V single-phase, 60 Hz motor for dependable pumping performance.
- 0.79-Inch Solid Handling: Handles spherical solids up to 0.79 inches (20 mm) for pumping water containing debris.
- Ductile Iron Impeller: Uses an abrasion-resistant cast ductile iron impeller for demanding trash-pumping applications.
- Dual Silicon Carbide Seals: Features an oil-bathed dual mechanical seal system designed to help protect internal pump components.
- Cast Iron Construction: Durable inner and outer cast iron casings provide strength and help dissipate motor heat during operation.
- Thermal Overload Protection: Internal protection helps prevent motor damage from excessive heat, overloading, and dry-running conditions.
- 49.2-Foot Power Cable: Includes a molded power cable with strain-relief protection and a NEMA 5-15P electrical plug.
What Is a Submersible Trash Pump?
A submersible trash pump operates while submerged in the water being removed and is designed to handle water containing solids and debris. The ST2010TCUL uses a centrifugal pumping design with a 2-inch discharge and 0.79-inch solid-handling capability, making it suitable for construction, industrial, and residential dewatering applications.
90 GPM Pumping Performance
The ST2010TCUL provides up to 90 GPM of pumping capacity with a maximum head of 45 feet. Its high-capacity design is suitable for removing water from excavations, standing-water areas, site drainage, manholes, flooded basements, swimming pools, quarries, wastewater applications, and irrigation areas where compatible with the pumped liquid.
Ductile Iron Impeller and Sealing System
The ST2010TCUL uses an abrasion-resistant cast ductile iron impeller designed for durable trash-pumping performance. Its oil-bathed dual silicon carbide mechanical seal system provides lubrication and helps protect the motor and bearing areas from pumped water, while the stainless steel shaft and hardware provide durable internal construction.
115V Motor and Thermal Protection
The ST2010TCUL operates at 115V, single-phase, 60 Hz with a 1 HP motor, 48.1 amps of starting current, and 9.4 amps of running current. Internal thermal overload protection helps protect the motor from excessive operating temperatures and overload conditions. The pump uses a NEMA 5-15P electrical plug for connection to a suitable grounded power supply.
Durable Construction for Demanding Dewatering
The ST2010TCUL features durable inner and outer cast iron casings with a heatsink design that helps transfer motor heat. Its 10.23-inch diameter and 23.82-inch overall height provide a relatively compact footprint for a heavy-duty trash pump, while the 77-pound dry weight reflects its robust cast iron construction.
Operating Conditions
The ST2010TCUL can pump liquids up to 104°F (40°C), handle spherical solids up to 0.79 inches (20 mm), and dewater flat surfaces to approximately 5 inches (127 mm) according to the 2026 product specification. Minimum pumping level is 12.2 inches (311 mm), with a minimum submergence of 20.3 inches (515.6 mm). The pump is intended for appropriate water-pumping applications and should not be used with salt water or chemicals.
Warranty
The Multiquip ST2010TCUL has a 1 Year Warranty from the date of purchase. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Heavy-Duty 2-Inch Submersible Trash Pump for Debris-Laden Dewatering
The Multiquip ST2010TCUL is a heavy-duty electric submersible trash pump engineered for demanding construction, industrial, and general dewatering applications. Powered by a 1 HP, 115V single-phase motor, the ST2010TCUL delivers up to 95 gallons per minute with a maximum published head of 45 feet, providing dependable pumping performance for sumps, excavations, construction sites, and other water-removal applications.
Its 2-inch NPT female discharge supports efficient water movement, while the rugged trash-pump design allows the ST2010TCUL to handle spherical solids up to 1 inch in diameter. This debris-handling capability makes it especially useful for jobsite water containing dirt, sediment, and other solids that can challenge conventional clean-water pumps.
Why Choose the Multiquip ST2010TCUL Submersible Trash Pump?
Designed for Debris-Laden Water
- Handles spherical solids up to 1 inch in diameter.
- Cast ductile-iron impeller provides rugged performance in demanding pumping conditions.
- 2-inch NPT female discharge supports efficient movement of water and debris.
Heavy-Duty Cast-Iron Construction
- Industrial-grade cast-iron housing is designed for tough jobsite environments.
- Cast ductile-iron impeller provides strength and abrasion resistance.
- Corrosion-resistant stainless steel hardware adds durability for long-term use.
High-Capacity Dewatering Performance
- Provides up to 95 GPM of published maximum pumping capacity.
- Heavy-duty 1 HP motor delivers reliable professional-grade performance.
- 45-foot maximum published head supports demanding water-removal applications.
Extended Reach and Jobsite Convenience
- 50-foot molded power cable provides extended reach during pump placement.
- Strain-relief cable protection helps protect the electrical connection during operation.
- Integrated carrying handle makes transportation and positioning easier.
