Closed Until MondayMultiquip Submersible Trash Pump | 2/3 HP | Aluminum/Cast Iron | Max 79 GPM | Max 40 ft. Head | 115V | 25 ft. Cord | ST2040T
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST2040T
ID
240335
Was $506.00 Your Low Price Special Price $479.00

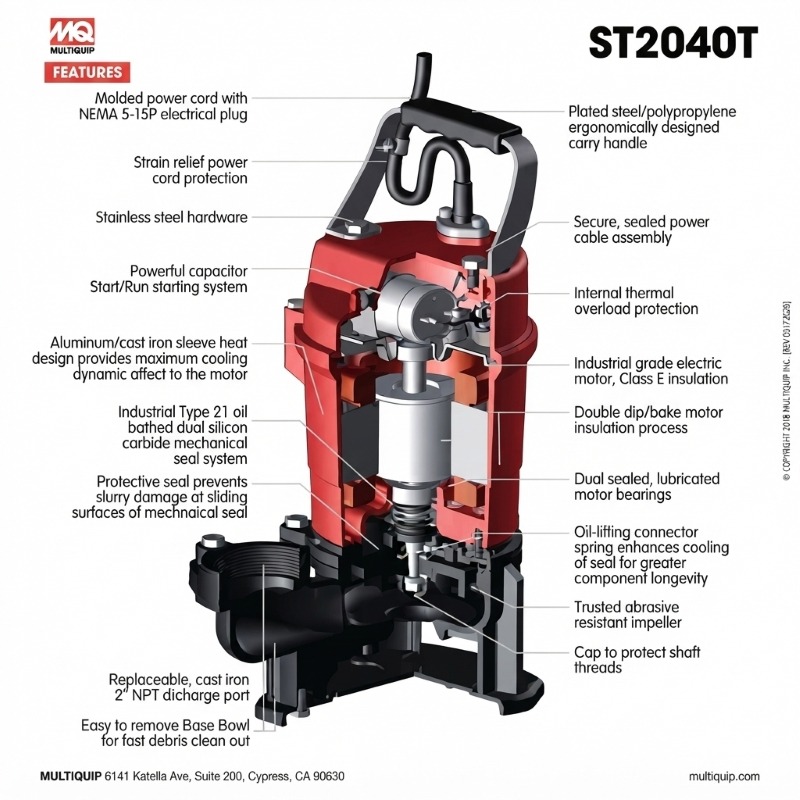

Product Features
- Ergonomic Carry Handle: Plated steel/polypropylene ergonomically designed carry handle.
- Replaceable Discharge Port: Replaceable, cast iron 2" NPT female thread discharge port.
- Slurry Protective Seal: Protective seal prevents slurry damage at sliding surfaces of mechanical seal.
- Aluminum/Cast Iron Cooling Sleeve: Heat-conducting design provides maximum cooling dynamic effect to the motor.
- Industrial Type 21 Mechanical Seal: Oil-bathed dual silicon carbide mechanical seal system.
- Easy-to-Remove Base Bowl: Designed for fast debris clean out.
Heavy-Duty 2-Inch Submersible Trash Pump for Debris-Laden Water

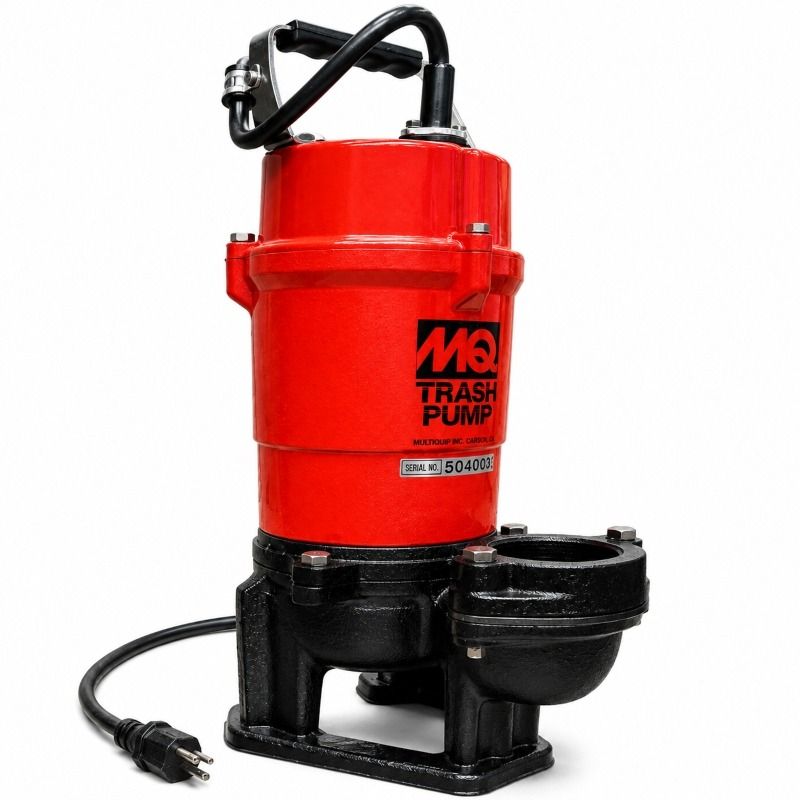

The Multiquip ST2040T is a 2-inch submersible trash pump designed for moving water containing solids and debris in construction, industrial, residential, and general dewatering applications. With a maximum pumping capacity of 79 GPM and a maximum head of 40 feet, the ST2040T provides dependable water removal from excavations, standing-water areas, site drainage, manholes, flooded basements, swimming pools, quarries, irrigation systems, and other demanding applications.
Built for heavy-duty dewatering, the ST2040T features a durable cast iron housing, neoprene rubber-over-steel impeller, dual silicon carbide mechanical seals, stainless steel shaft, internal thermal overload protection, and a 26.2-foot molded power cable with strain relief. Its 2/3 HP, 115V single-phase motor provides convenient operation from standard electrical power.
Product Features:
- 79 GPM Maximum Flow: Delivers up to 79 gallons per minute for general dewatering and water-transfer applications.
- 40-Foot Maximum Head: Provides up to 40 feet of total head for vertical water-transfer requirements.
- 2-Inch Discharge: Features a replaceable 2-inch NPT cast iron female discharge port for compatible discharge hose and piping.
- 2/3 HP Motor: Uses a 2/3 HP, 115V single-phase motor operating at 60 Hz for dependable pumping performance.
- Debris Handling: Handles spherical solids up to 0.71 inches (18 mm) for pumping water containing debris.
- Neoprene Rubber-Over-Steel Impeller: Provides abrasion-resistant construction for demanding trash-pumping applications.
- Dual Silicon Carbide Seals: Uses oil-bathed, corrosion-resistant mechanical seals to help protect internal pump components.
- Heavy-Duty Construction: Combines a cast iron pump housing with a cast iron/steel motor casing for durability and heat transfer.
- Thermal Overload Protection: Internal protection helps prevent motor damage from overloading and dry-running conditions.
- 26.2-Foot Power Cable: Includes a molded power cable with strain-relief protection for convenient electrical connection.
What Is a Submersible Trash Pump?
A submersible trash pump operates while submerged in the water being removed and is designed to handle water containing larger debris than a conventional clean-water pump. The ST2040T uses a centrifugal pumping design with a 2-inch discharge and 0.71-inch solid-handling capability, making it suitable for construction, industrial, residential, and other debris-laden water applications.
79 GPM Pumping Performance
The ST2040T provides up to 79 GPM of pumping capacity with a maximum head of 40 feet. Its performance is suited to removing standing water from excavations, manholes, basements, swimming pools, drainage areas, quarries, irrigation systems, and other locations where water contains solids or debris.
Durable Impeller and Sealing System
The ST2040T uses a neoprene rubber-over-steel impeller designed for abrasion resistance and dependable trash-pumping performance. Its oil-bathed dual silicon carbide mechanical seals help protect the motor and bearing areas from pumped water, while the stainless steel shaft provides durable operation.
115V Motor and Thermal Protection
The ST2040T operates at 115V, single-phase, 60 Hz with a 2/3 HP motor and a running current of 6.8 amps. Internal thermal overload protection helps protect the motor from excessive heat, overloading, and dry-running conditions. A compatible CB3 control box and float-switch configuration can be used when automatic water-level control is required.
Compact Construction for Dewatering Applications
The ST2040T has a 10.3-inch diameter and 16.8-inch overall height, providing a compact configuration for jobsite dewatering. Its 34-pound dry weight and integrated carrying handle make the pump practical to position and relocate as pumping requirements change.
Operating Conditions
The ST2040T can pump liquids up to 104°F (40°C) and can dewater flat surfaces down to approximately 6.3 inches (160 mm). The pump requires a minimum submergence of 18 inches (457 mm) and is designed for appropriate water-pumping applications according to Multiquip's installation and operating requirements.
Warranty
The Multiquip ST2040T has a 1 Year Warranty from the date of purchase. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Rugged 2-Inch Submersible Trash Pump for Debris-Laden Dewatering
The Multiquip ST2040T is a heavy-duty electric submersible trash pump designed for moving water containing solids and debris in demanding construction, industrial, and residential applications. Powered by a 2/3 HP, 115V single-phase motor, the ST2040T delivers up to 79 gallons per minute with a maximum published head of 40 feet, providing dependable pumping performance for standing water, excavations, site drainage, manholes, wastewater, quarries, irrigation, flooded basements, and other challenging dewatering applications.
Its replaceable 2-inch NPT female discharge supports efficient water movement, while the abrasion-resistant neoprene-rubber-over-steel impeller is designed for demanding trash-pump applications. The ST2040T can handle solids up to 0.71 inches in diameter and dewater flat surfaces to a published minimum pumping level of 6.3 inches, making it a practical solution for water containing debris that may be unsuitable for conventional clean-water pumps.
Why Choose the Multiquip ST2040T Submersible Trash Pump?
Dependable Dewatering Performance
- Provides up to 79 GPM of published maximum pumping capacity.
- Heavy-duty 2/3 HP motor delivers reliable pumping performance.
- 40-foot maximum published head supports demanding water-removal applications.
Designed for Water with Solids and Debris
- Handles solids up to 0.71 inches in diameter.
- Abrasion-resistant neoprene-rubber-over-steel impeller withstands demanding pumping conditions.
- 2-inch NPT female discharge supports efficient movement of debris-laden water.
Rugged Professional Construction
- Durable aluminum outer casing provides lightweight protection and strength.
- Cast-iron inner casing helps conduct heat away from the motor.
- Stainless steel shaft and hardware provide added durability for demanding jobsite use.
Convenient 115V Operation
- Operates on 115V, single-phase, 60 Hz electrical power.
- NEMA 5-15P plug supports convenient connection to compatible power sources.
- 26.2-foot molded power cord with strain relief provides practical reach and connection protection.
