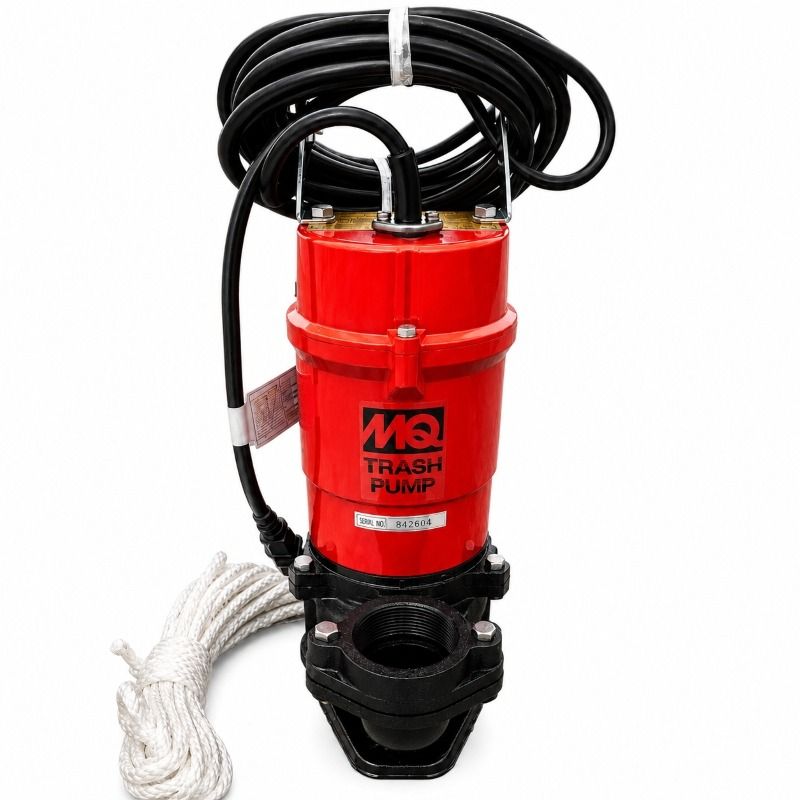

Closed Until MondayMultiquip Submersible Trash Pump | 2/3 HP | Cast Iron | Tethered Mechanical Float Switch | Max 79 GPM | Max 40 ft. Head | 115V | 25 ft. Cord | ST2040TF
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
ST2040TF
ID
240347
Was $595.00 Your Low Price Special Price $549.00

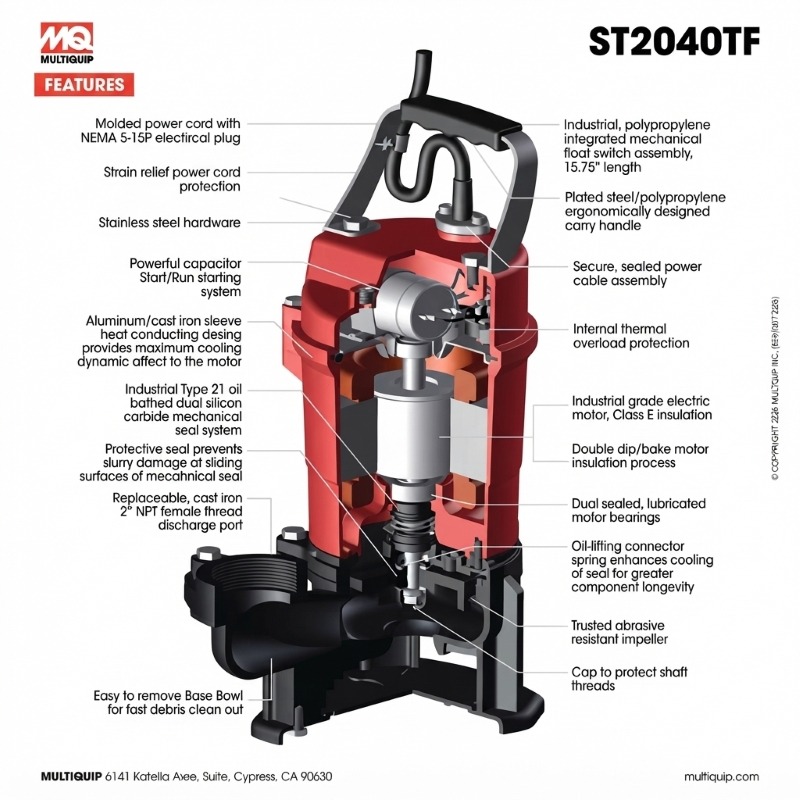

Product Features
- Integrated Mechanical Float Switch: Industrial, polypropylene integrated mechanical float switch assembly, 15.75" length.
- Ergonomic Carry Handle: Plated steel/polypropylene ergonomically designed carry handle.
- Replaceable Discharge Port: Replaceable, cast iron 2" NPT female thread discharge port.
- Slurry Protective Seal: Protective seal prevents slurry damage at sliding surfaces of mechanical seal.
- Aluminum/Cast Iron Cooling Sleeve: Heat-conducting design provides maximum cooling dynamic effect to the motor.
- Easy-to-Remove Base Bowl: Designed for fast debris clean out.
2-Inch Submersible Trash Pump with Tethered Float Switch
The Multiquip ST2040TF is a 2-inch submersible trash pump with an integrated tethered mechanical float switch designed for automatic water removal in construction, industrial, residential, and general dewatering applications. With a maximum pumping capacity of 79 GPM and a maximum head of 40 feet, the ST2040TF is suited for standing water, excavations, site drainage, manholes, flooded basements, swimming pools, quarries, irrigation, and other applications involving water with solids or debris.
The ST2040TF combines a heavy-duty cast iron pump assembly with a neoprene rubber-over-steel impeller, dual silicon carbide mechanical seals, stainless steel shaft, internal thermal overload protection, and a molded power cable with strain relief. Its tethered industrial mechanical float switch allows the pump to cycle automatically as water levels change, making it useful for unattended dewatering applications.
Product Features:
- 79 GPM Maximum Flow: Delivers up to 79 gallons per minute for demanding dewatering and water-transfer applications.
- 40-Foot Maximum Head: Provides up to 40 feet of maximum head for vertical water-transfer requirements.
- 2-Inch Discharge: Features a replaceable 2-inch NPT female cast iron discharge port for compatible discharge hose and piping.
- 2/3 HP Motor: Uses a 115V single-phase motor for dependable pumping performance from a compatible electrical supply.
- 0.71-Inch Solid Handling: Handles spherical solids up to 0.71 inches (18 mm) for pumping debris-laden water.
- Neoprene Rubber-Over-Steel Impeller: Provides abrasion-resistant construction for demanding trash-pumping applications.
- Dual Silicon Carbide Seals: Uses an oil-bathed mechanical seal system to help protect internal pump components from pumped water.
- Thermal Overload Protection: Internal protection helps prevent motor damage from overloading and dry-running conditions.
- Tethered Mechanical Float: Provides automatic pump activation and shutoff as water levels rise and fall.
- 26.2-Foot Power Cable: Includes a molded power cable with strain-relief protection and a NEMA 5-15P plug.
What Is a Submersible Trash Pump?
A submersible trash pump operates while submerged in the water being removed and is designed to handle water containing solids and debris. The ST2040TF uses a centrifugal pumping design with a 2-inch discharge and solid-handling capability, while its tethered float switch provides automatic operation when water levels reach the activation point.
79 GPM Pumping Performance
The ST2040TF provides up to 79 GPM of pumping capacity with a maximum head of 40 feet. Its pumping performance is suitable for removing water from excavations, manholes, drainage areas, flooded basements, swimming pools, quarries, irrigation systems, and other dewatering locations.
Tethered Float Switch for Automatic Operation
The ST2040TF is equipped with a tethered industrial mechanical float switch assembly for automatic water-level control. As the water level changes, the float switch cycles the pump on and off within its operating range, reducing the need for continuous manual monitoring during suitable unattended dewatering applications.
Durable Pump Construction
The ST2040TF uses a heavy-duty cast iron housing and a neoprene rubber-over-steel impeller designed for demanding pumping conditions. Its oil-bathed dual silicon carbide mechanical seals, stainless steel shaft, sealed bearings, and stainless steel hardware provide durable construction for regular dewatering service.
115V Motor and Thermal Protection
The ST2040TF operates at 115V, single-phase, 60 Hz with a 25-amp starting current and 6.8-amp running current. Internal thermal overload protection helps protect the motor from excessive operating temperatures and overload conditions. The pump uses a NEMA 5-15P power plug for connection to a suitable grounded electrical supply.
Compact Design for Jobsite Dewatering
The ST2040TF has a 10.3-inch pump diameter and 16.8-inch overall height, providing a compact configuration for confined dewatering areas. Its dry weight is approximately 34 pounds, and the 26.2-foot molded power cable provides additional reach during setup.
Operating Conditions
The ST2040TF is designed to pump liquids up to 104°F (40°C), handle spherical solids up to 0.71 inches (18 mm), and dewater flat surfaces to approximately 6.3 inches (160 mm) of water level. Minimum submergence is 18 inches (457 mm). The pump should be operated according to Multiquip's installation, electrical, and operating requirements.
Warranty
The Multiquip ST2040TF pump has a 1 Year Warranty from the date of purchase. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Automatic 2-Inch Submersible Trash Pump for Debris-Laden Dewatering
The Multiquip ST2040TF is a heavy-duty electric submersible trash pump designed for automatic water removal in construction, industrial, and residential applications. Powered by a 2/3 HP, 115V single-phase motor, the ST2040TF delivers up to 79 gallons per minute with a maximum published head of 40 feet, providing dependable pumping performance for standing water, excavations, site drainage, manholes, wastewater, quarries, irrigation, flooded basements, and other demanding dewatering applications.
Unlike the standard ST2040T, the ST2040TF includes an integrated tethered industrial mechanical float switch that automatically starts and stops the pump as water levels rise and fall. Its 2-inch NPT female discharge supports efficient water movement, while the abrasion-resistant neoprene-rubber-over-steel impeller is designed for handling water containing solids and debris. The pump can pass solids up to 0.71 inches in diameter and has a published minimum pumping level of 6.3 inches.
Why Choose the Multiquip ST2040TF Submersible Trash Pump?
Automatic Float-Switch Operation
- Integrated tethered mechanical float switch provides automatic pump operation.
- Pump automatically starts and stops as the surrounding water level changes.
- Float-switch design helps reduce the need for continuous manual monitoring.
Dependable Dewatering Performance
- Provides up to 79 GPM of published maximum pumping capacity.
- Heavy-duty 2/3 HP motor delivers reliable professional-grade performance.
- 40-foot maximum published head supports demanding water-removal applications.
Designed for Water with Solids and Debris
- Handles solids up to 0.71 inches in diameter.
- Abrasion-resistant neoprene-rubber-over-steel impeller withstands demanding pumping conditions.
- 2-inch NPT female discharge supports efficient movement of debris-laden water.
Convenient 115V Operation
- Operates on 115V, single-phase, 60 Hz electrical power.
- NEMA 5-15P plug supports convenient connection to compatible grounded power sources.
- 26.2-foot molded power cord with strain relief provides practical reach and connection protection.
