Closed Until MondayMultiquip Trash Pump | 4.8 HP | Aluminum/Cast Iron | Recoil Start | Max 211 GPM | Max 98 ft. Head | Honda GX160 | QP2TH
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
QP2TH
ID
240422
Was $1,878.00 Your Low Price Special Price $1,629.00
Product Features
- Trusted Honda Engine: Powered by a Honda GX160 engine with low oil shutdown.
- Versatile Tri-Discharge Ports: Features one 1.5" NPT and two 1.0" NPT ports that can be used independently or simultaneously.
- High-Pressure Performance: Closed sand-cast aluminum impeller and die-cast aluminum volute create an impressive 100 psi system.
- Durable Mechanical Seal: Made of silicon carbide and 304 stainless steel to handle abrasion and high-temperature operation.
- Heavy-Duty Steel Frame: 0.87" (22.2 mm) tubular steel frame for protection and ease of transportation.
- Extended Run Time: 0.82 gallon fuel tank provides 2.2 hours of continuous operation.
2-Inch Submersible-Style Trash Pump for High-Volume Debris-Laden Water

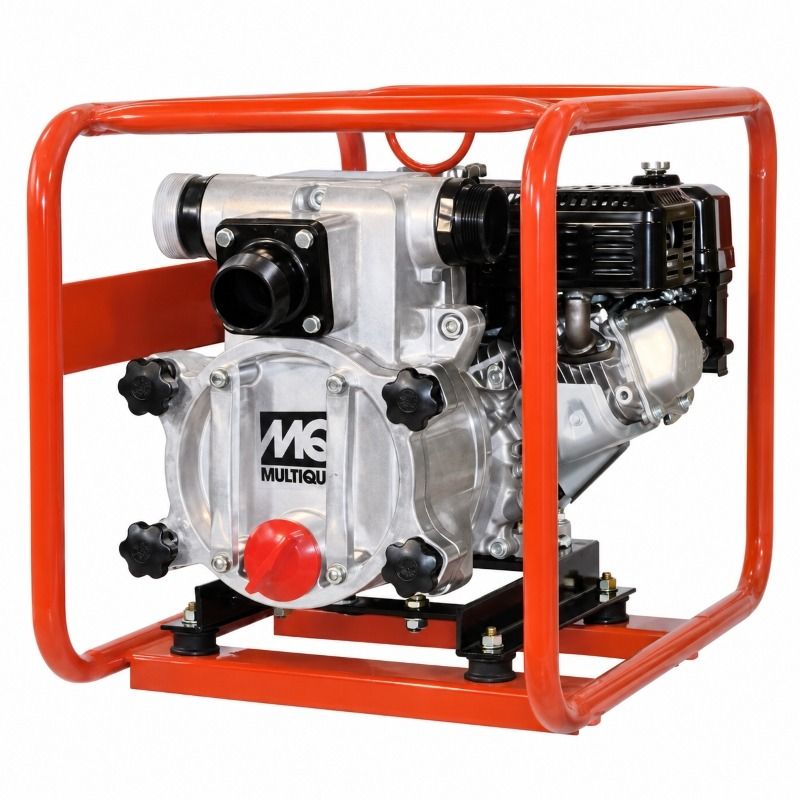

The Multiquip QP2TH is a 2-inch gasoline-powered trash pump designed for high-volume water removal in construction, agricultural, industrial, municipal, and general dewatering applications. With a maximum pumping capacity of 211 GPM and a maximum head of 98 feet, the QP2TH is suited for standing water, floods, excavations, jobsite drainage, irrigation, farms, quarries, mining, swimming pools, and other applications where water may contain solids and debris.
The QP2TH combines a durable die-cast aluminum pump body with cast iron fittings, a ductile iron semi-open impeller, cast iron volute, silicon carbide/304 stainless steel mechanical seal, large cleanout cover, and heavy-duty tubular steel frame. Its 4.8 HP Honda GX160 gasoline engine provides reliable portable pumping performance, while the dual 2-inch discharge ports provide flexibility when routing discharge hoses.
Product Features:
- 211 GPM Maximum Flow: Delivers up to 211 gallons per minute for high-volume dewatering and water-transfer applications.
- 98-Foot Maximum Head: Provides up to 98 feet of maximum head for demanding vertical water-transfer requirements.
- 42.4 PSI Maximum Pressure: Produces up to 42.4 PSI for water-transfer and pressure applications.
- 2-Inch Suction and Discharge: Uses 2-inch NPT male suction and discharge connections for compatible hoses and fittings.
- 1-Inch Solid Handling: Handles spherical solids up to 1 inch (25.4 mm), making it suitable for debris-laden water.
- 4.8 HP Honda GX160 Engine: Uses a 163 cc, air-cooled, four-stroke OHV gasoline engine with recoil starting and low-oil shutdown.
- Ductile Iron Impeller: Uses a durable semi-open ductile iron impeller designed for abrasion resistance and long service life.
- Cast Iron Volute: Provides a rugged pumping chamber designed to withstand demanding trash-pumping conditions.
- Dual 2-Inch Discharge Ports: Provides two discharge connections for flexible hose orientation and jobsite setup.
- Large Cleanout Cover: Allows quick access to the pump chamber for convenient removal of debris and maintenance.
What Is a Trash Pump?
A trash pump is designed to move water containing solids, debris, and suspended material that could clog conventional clean-water pumps. The QP2TH uses a semi-open impeller and large 1-inch solid-handling capability to move debris-laden water efficiently during demanding dewatering applications.
211 GPM High-Volume Performance
The QP2TH provides up to 211 GPM of pumping capacity, 98 feet of maximum head, and 42.4 PSI of maximum pressure. Its maximum suction lift is 25 feet, allowing the pump to draw water from suitable sources such as ponds, lakes, rivers, tanks, reservoirs, and other water supplies.
Heavy-Duty Trash Pump Construction
The QP2TH uses a die-cast aluminum pump body with cast iron fittings, a ductile iron semi-open impeller, and a cast iron volute. The silicon carbide/304 stainless steel mechanical seal is designed for abrasion resistance and high-temperature operation, while stainless steel hardware supports durability in demanding pumping environments.
Honda GX160 Gasoline Engine
The QP2TH is powered by a Honda GX160 163 cc, air-cooled, four-stroke, single-cylinder OHV gasoline engine rated at 4.8 HP and operating at 3,600 RPM. The engine uses recoil starting, centrifugal governing, dual-element air filtration, splash lubrication, and an oil-alert system that shuts down the engine when oil levels become too low.
Flexible Discharge and Easy Cleanout
The QP2TH features dual 2-inch discharge ports that allow flexible hose orientation and connection options for different jobsite layouts. A large cleanout cover provides quick access to the pump chamber, making it easier to remove debris and restore pumping performance when necessary.
Portable Jobsite Design
The QP2TH uses a heavy-duty 1-inch tubular steel frame that helps protect the pump and engine while providing a convenient structure for transportation. The pump has an overall size of approximately 25.3 inches long by 17.2 inches wide by 18.8 inches high and a dry weight of approximately 97 pounds.
Operating Conditions
The QP2TH is designed for suitable water-pumping applications and can handle spherical solids up to 1 inch (25.4 mm). The maximum fluid temperature is 104°F (40°C), and the maximum suction lift is 25 feet. Multiquip specifies that its trash pumps are not designed for pumping salt water or selected chemicals.
Warranty
The Multiquip QP2TH pump has a 2 Year Warranty from the date of purchase. The Honda GX160 engine has a 3 Year Warranty, while applicable hoses have a 3-month warranty. Refer to Multiquip's warranty terms for complete coverage, conditions, and exclusions.
Compact 2-Inch Trash Pump for Fast Debris-Laden Dewatering
The Multiquip QP2TH is a portable gasoline-powered trash pump designed for fast water removal in construction, agricultural, municipal, emergency-response, and general dewatering applications. Powered by a reliable Honda GX160 4.8 HP gasoline engine, the QP2TH delivers up to 211 gallons per minute with a maximum published head of 98 feet and up to 42.4 PSI, providing strong pumping performance for standing water, excavations, floods, irrigation, jobsite drainage, and other demanding water-transfer jobs.
Its 2-inch suction and dual 2-inch discharge ports provide flexible hose positioning while supporting efficient water movement. The QP2TH can handle solids up to 1 inch in diameter, making it well suited for dirty water containing mud, sediment, gravel, and other jobsite debris that may clog conventional clean-water pumps.
Built for demanding field use, the QP2TH features a die-cast aluminum pump casing, ductile-iron impeller, cast-iron volute, durable silicon-carbide mechanical seal with 304 stainless steel components, and a heavy-duty tubular steel frame. The large cleanout cover provides quick access for debris removal, while the integrated check valve helps maintain prime for easier restarting between pumping cycles.
Why Choose the Multiquip QP2TH Trash Pump?
High-Flow Dewatering Performance
- Delivers up to 211 GPM of published maximum pumping capacity.
- Provides up to 98 feet of maximum head for demanding water-transfer applications.
- Produces up to 42.4 PSI of maximum published pressure.
Handles Dirty Water and Large Debris
- Passes solids up to 1 inch in diameter.
- Designed for dirty-water applications containing mud, sediment, gravel, and other debris.
- Trash-pump configuration helps reduce clogging compared with conventional clean-water pumps.
Efficient Portable Gas-Powered Operation
- 0.82-gallon fuel tank provides approximately 2.2 hours of published operating time.
- Published fuel consumption is approximately 0.37 gallons per hour.
- Recoil starting allows operation in remote locations without an external electrical supply.
Compact and Transportable Design
- Latest published dimensions are approximately 25.3 x 17.2 x 18.8 inches.
- 97-pound dry weight provides a rugged yet portable professional pumping package.
- Optional UWKB wheel kit is available to simplify transportation around jobsites.
