Closed Until MondayMultiquip Trash Pump | 6 HP | Die-Cast Aluminum | Electric Start | Max 172 GPM | Max 85 ft. Head | Kubota OC60-E4 Diesel | QP2TK
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
QP2TK
ID
240443
Was $4,427.00 Your Low Price Special Price $3,549.00

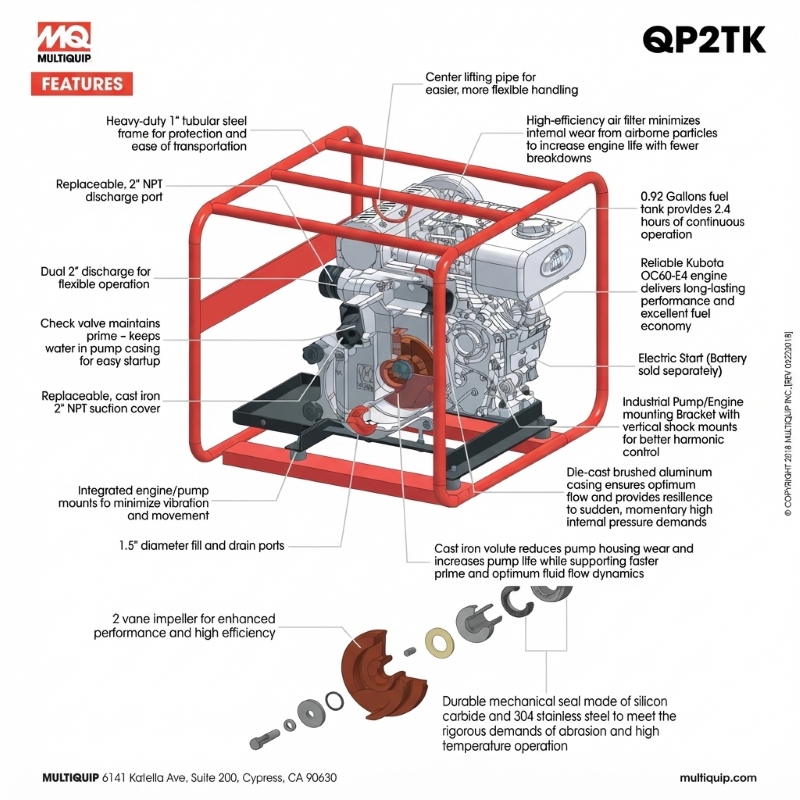

Product Features
- Reliable Kubota Engine: Reliable Kubota OC60-E4 engine delivers long-lasting performance and excellent fuel economy.
- Flexible Dual Discharge: Features dual 2" discharge ports for versatile operation.
- Cast Iron Volute: Reduces pump housing wear and increases pump life while supporting faster prime and optimum fluid flow dynamics.
- High-Efficiency Impeller: Features a 2 vane impeller designed for enhanced performance and high efficiency.
- Durable Mechanical Seal: Made of silicon carbide and 304 stainless steel to meet rigorous demands of abrasion and high-temperature operation.
- Heavy-Duty Steel Frame: Heavy-duty 1" tubular steel frame with center lifting pipe for protection and easier handling.

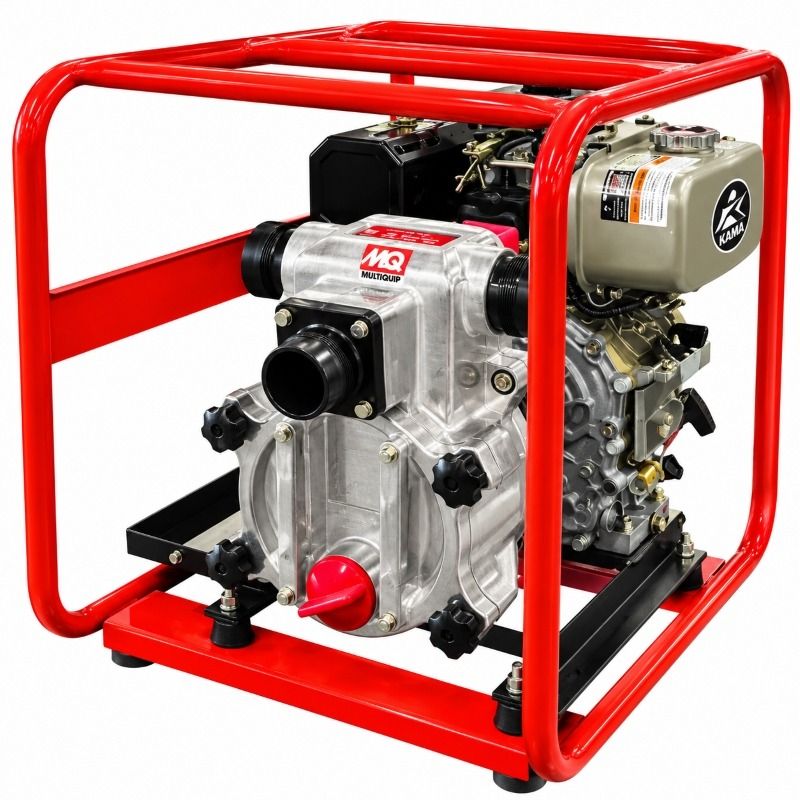

2-Inch Diesel Trash Pump for High-Volume Dewatering
The Multiquip QP2TK is a compact 2-inch diesel-powered trash pump designed for demanding dewatering and water-transfer applications. With a maximum pumping capacity of 172 GPM, 85 feet of maximum head, and the ability to handle solids up to 1 inch in diameter, it is suited for excavations, floodwater removal, sewage bypass, ponds, ditches, muddy water, construction drainage, and other debris-laden water applications.
The QP2TK combines a die-cast aluminum pump casing with a #45 ductile iron impeller and volute, a silicon/carbon mechanical seal, dual 2-inch discharge ports, and a tubular steel protective frame. Its 6.0 HP Kubota OC60-E4 diesel engine uses electric starting for convenient operation where gasoline-powered equipment is not preferred.
Product Features:
- 172 GPM Maximum Flow: Moves up to 172 gallons of water per minute for efficient dewatering and water-transfer applications.
- 85-Foot Maximum Head: Provides up to 85 feet of maximum head for demanding water-transfer requirements.
- 25-Foot Maximum Suction Lift: Can draw water from sources located up to 25 feet below the pump under suitable operating conditions.
- 1-Inch Solid Handling: Handles solids up to 1 inch in diameter, making it suitable for water containing mud, debris, and other suspended material.
- 6.0 HP Kubota Diesel Engine: Uses a Kubota OC60-E4 oil- and air-cooled diesel engine rated at 6.0 HP at 3,600 RPM.
- Electric Start: Provides convenient engine starting with a 12V electrical starting system.
- Dual 2-Inch Discharge Ports: Provides two discharge connections for flexible hose positioning and jobsite setup.
- Ductile Iron Pump Components: Uses a #45 ductile iron impeller and volute designed for abrasion resistance and long service life.
- Large Cleanout Chamber: Allows the pump chamber to be accessed for convenient debris removal and maintenance.
- Shock-Mounted Tubular Steel Frame: Protects the pump and engine while helping reduce operating vibration.
What Is a Trash Pump?
A trash pump is designed to move water containing suspended solids and debris that can clog conventional clean-water pumps. The QP2TK uses a 2-inch pumping system with 1-inch maximum solid handling, allowing it to move muddy water, silt, ditch water, ponds, floodwater, and other debris-laden water more effectively than a typical clean-water pump.
172 GPM Dewatering Performance
The QP2TK provides up to 172 GPM of flow with a maximum head of 85 feet and maximum pressure of 37.7 PSI. Its 25-foot maximum suction lift provides flexibility when positioning the pump near a water source for dewatering and water-transfer applications.
Durable Pump Construction
The QP2TK features die-cast aluminum pump-end casings designed for fast priming and reduced overall weight. A #45 ductile iron impeller and volute provide abrasion resistance for demanding trash-pumping applications, while the silicon/carbon mechanical seal is designed for durability during operation with debris-laden water.
Kubota OC60-E4 Diesel Engine
The QP2TK is powered by a 6.0 HP Kubota OC60-E4 diesel engine operating at 3,600 RPM. The oil- and forced-air-cooled engine uses diesel fuel and an electric/recoil starting system, with a 12V, 27Ah battery supporting the electric-start configuration.
Flexible Discharge and Easy Cleanout
Two 2-inch male NPT discharge ports are positioned on opposite sides of the pump, allowing discharge hose or pipe to be routed according to the jobsite configuration. The large cleanout chamber provides convenient access when debris needs to be removed from the pump.
Portable Jobsite Design
The QP2TK is built around a tubular steel frame that helps protect the engine and pump assembly during transportation and operation. The unit measures approximately 26.5 inches long by 23.5 inches wide by 24 inches high and has an operating weight of approximately 157 pounds. An optional UWKA wheel kit is available for easier movement.
Operating Conditions
The QP2TK is intended for dewatering applications involving water with debris and suspended solids. The pump casing must be filled with water before initial operation to support self-priming. For best suction performance, Multiquip recommends keeping the suction line as short as practical and positioning the pump as close to the water source as possible.
Warranty
Warranty coverage is subject to Multiquip's New Product Limited Warranty and the applicable manufacturer terms for the pump and Kubota engine. Refer to the current Multiquip warranty documentation for the applicable coverage period and complete warranty conditions.
Compact 2-Inch Diesel Trash Pump for Heavy-Duty Dewatering
The Multiquip QP2TK is a professional-grade diesel-powered centrifugal trash pump engineered for demanding construction, industrial, municipal, and emergency dewatering applications. Powered by a rugged Kubota OC60-E4 6.0 HP diesel engine, the QP2TK delivers up to 172 gallons per minute with a maximum published head of 85 feet and maximum pressure of 37.7 PSI, providing dependable performance for excavations, flood water removal, sewage bypass, water transfer, and other challenging pumping jobs.
Its 2-inch suction connection and dual 2-inch discharge ports provide flexible hose positioning while supporting efficient water movement. The QP2TK can handle solids up to 1 inch in diameter, making it well suited for dirty water containing mud, sediment, gravel, and other debris that can challenge conventional clean-water pumps. A maximum suction lift of 25 feet also provides flexibility when the water source is positioned below the pump.
Built for tough professional use, the QP2TK features Multiquip's rugged die-cast aluminum pump-end casing, #45 ductile-iron impeller and volute, durable silicon/carbon mechanical seal, large clean-out chamber, and protective tubular steel frame. Shock-mounted construction helps reduce operating vibration, while electric starting provides convenient diesel-powered operation for demanding jobsites.
Why Choose the Multiquip QP2TK Trash Pump?
Dependable High-Flow Dewatering
- Delivers up to 172 GPM of published maximum pumping capacity.
- Provides up to 85 feet of maximum head for demanding water-transfer applications.
- Produces up to 37.7 PSI of maximum published pressure.
Handles Dirty Water and Debris
- Passes solids up to 1 inch in diameter.
- Designed for challenging water containing mud, sediment, and jobsite debris.
- Trash-pump configuration helps reduce clogging compared with conventional clean-water pumps.
Versatile Professional Applications
- Ideal for excavation and construction-site dewatering.
- Suitable for flood-water removal, sewage bypass, and general water transfer.
- Also well suited for industrial cleanup and barge-cleaning applications.
Compact Diesel-Powered Package
- Measures approximately 26.5 inches long by 23.5 inches wide by 24 inches high.
- Published operating weight is approximately 157 pounds.
- Optional UWKA wheel kit can improve mobility around jobsites.
