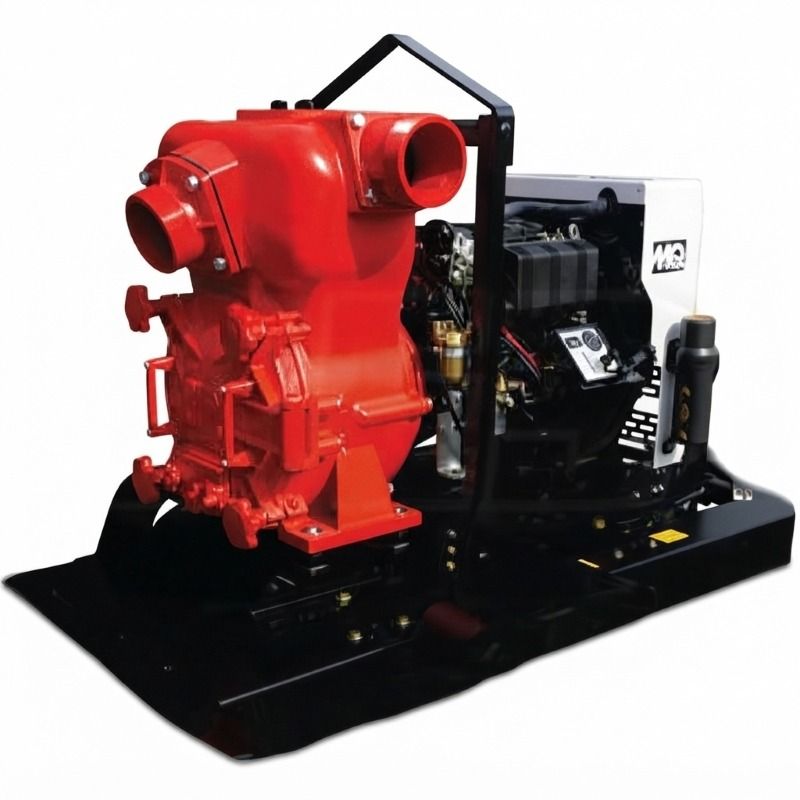

Closed Until MondayMultiquip Trash Pump MQ62 Series | 24.3 HP | Cast Iron | Electric Start | Max 1,190 GPM | Max 111 ft. Head | Kohler Diesel | Skid Mount | MQ62TKS
Ships in 3-5 Business Days
By
Multiquip
In stock
Model
MQ62TKS
ID
240411
Was $29,276.00 Your Low Price Special Price $23,399.00
Product Features
- High-Volume Performance: Pumps up to 1,190 GPM with 111 ft. maximum head.
- 24.3 HP Diesel Engine: Kohler KDW1404 delivers dependable heavy-duty power.
- 6" Ports: Large suction and discharge support high-volume dewatering.
- 3" Solids Handling: Moves debris-laden water with reduced clogging.
- Industrial Pump Body: Grey iron casing and ductile iron impeller provide durability.
- Skid-Mount Design: Heavy-duty frame supports demanding jobsite applications.

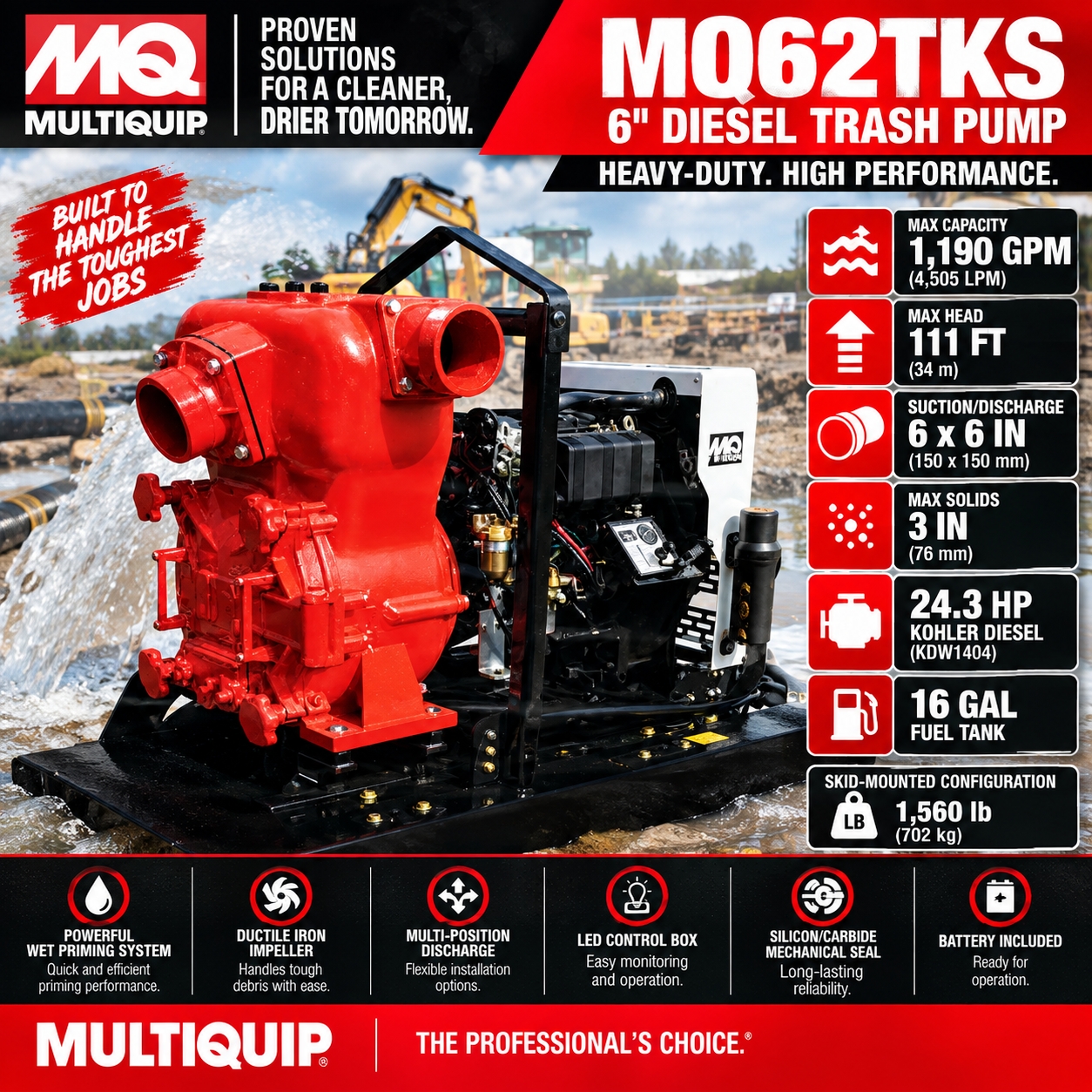

6-Inch Skid-Mounted Diesel Trash Pump for High-Volume Dewatering
The Multiquip MQ62TKS is a heavy-duty 6-inch skid-mounted trash pump designed for high-volume dewatering in demanding construction, municipal, industrial, mining, agricultural, and emergency water-removal applications. With a maximum pumping capacity of 1,190 GPM, 111 feet of maximum head, and the ability to pass solids up to 3 inches in diameter, the MQ62TKS is built for moving large volumes of debris-laden water while minimizing clogging and downtime.
The MQ62TKS combines a wet-priming pump system with rugged No. 30 grey iron pump construction, ductile iron impeller and volute components, a stainless steel wear plate, and an abrasion-resistant lubricated mechanical seal system. Its skid-mounted configuration and integrated 16-gallon fuel tank provide a durable pumping platform that can be transported to demanding dewatering locations.
Product Features:
- 1,190 GPM Maximum Flow: Moves up to 1,190 gallons of water per minute for high-volume dewatering applications.
- 111-Foot Maximum Head: Provides up to 111 feet of maximum head for demanding water-transfer requirements.
- 25-Foot Maximum Suction Lift: Provides up to 25 feet of suction lift under suitable operating conditions at sea level.
- 3-Inch Solid Handling: Passes solids up to 3 inches in diameter, helping reduce clogging when pumping debris-laden water.
- 6-Inch Suction and Discharge: Uses 6-inch male NPT threaded suction and discharge connections for high-volume hose and piping systems.
- 24.3 HP Kohler Diesel Engine: Uses a four-cylinder Kohler KDW1404 diesel engine rated at 24.3 HP at 2,700 RPM.
- Wet-Priming System: Provides automatic priming capability for faster startup and continued dewatering operation.
- Ductile Iron Impeller and Volute: Provides durable pump-end components designed for abrasive, debris-laden water.
- Stainless Steel Wear Plate: Provides a replaceable wear surface designed to help maintain pump-end performance during demanding operation.
- 16-Gallon Fuel Tank: Provides an integrated fuel supply for extended unattended or remote pumping applications.
What Is a Trash Pump?
A trash pump is designed to move water containing suspended solids, mud, sticks, stones, and other debris that can clog conventional clean-water pumps. The MQ62TKS combines a large 6-inch pumping passage with 3-inch solid-handling capability, making it suitable for demanding dewatering where both high flow and debris handling are important.
1,190 GPM High-Volume Performance
The MQ62TKS delivers up to 1,190 GPM with a maximum head of 111 feet and maximum pressure of approximately 48 PSI. Its 25-foot maximum suction lift allows the pump to be positioned near suitable water sources while providing substantial capacity for large excavation, flood-control, and construction dewatering operations.
Heavy-Duty Pump-End Construction
The MQ62TKS uses a rugged No. 30 grey iron pump housing with a ductile iron impeller and volute assembly. A stainless steel wear plate helps protect the pump-end components from abrasion, while the large cleanout cover provides access for maintenance and removal of accumulated debris.
Kohler Diesel Power
The MQ62TKS is powered by a four-cylinder Kohler KDW1404-5010 liquid-cooled diesel engine with 1,372 cc displacement and a rated output of 35.2 HP at 2,700 RPM. The engine specification used for the pump is 24.3 HP, with 12V electric starting and a full-pressure lubrication system with a full-flow oil filter.
Wet Priming and Debris Handling
The wet-priming system helps the MQ62TKS establish pumping operation without requiring the manual priming process associated with many conventional centrifugal pumps. The large pump passages and 3-inch solid-handling capacity allow debris-laden water to pass through the pump while reducing the likelihood of clogging during demanding dewatering work.
Skid-Mounted Jobsite Design
The MQ62TKS is configured as a skid-mounted unit for transportation on a suitable flatbed or other equipment carrier. It measures approximately 80 inches long by 39 inches wide, with the complete pumping package listed at approximately 1,560 pounds. An integrated lifting bale provides a designated point for handling the equipment.
Diesel Fuel and Control System
The skid-mounted MQ62TKS incorporates a 16-gallon fuel tank and 12V electric starting system. A shock-mounted LOFA EL240 control panel provides engine monitoring and operating controls, while the engine incorporates a water/fuel separation filtration system for diesel fuel management.
Mechanical Seal System
The MQ62TKS uses an abrasion-resistant, oil-lubricated mechanical seal system designed for demanding trash-pumping applications. The seal system is engineered to withstand the heat and abrasive conditions associated with moving debris-laden water over extended operating periods.
Operating Conditions
The MQ62TKS is designed for water-transfer and dewatering applications involving substantial amounts of suspended solids and debris. Its maximum suction lift is based on operation at sea level and decreases at higher elevations. The pump is not intended for pumping salt water or selected chemicals.
Warranty
Warranty coverage for the MQ62TKS is subject to Multiquip's applicable New Product Limited Warranty and the specific terms covering the pump and engine. Refer to Multiquip's current warranty documentation for complete coverage periods, conditions, and exclusions.
Heavy-Duty 6-Inch Diesel Trash Pump for High-Volume Dewatering
The Multiquip MQ62TKS is a heavy-duty skid-mounted diesel trash pump engineered for demanding construction, municipal, industrial, and emergency dewatering applications. Its powerful 6-inch pump end delivers up to 1,190 gallons per minute with a maximum published head of 111 feet, providing the high-volume performance needed for large excavations, bypass pumping, flood control, and other demanding water-removal jobs.
Designed for debris-laden water, the MQ62TKS can pass solids up to 3 inches in diameter and handles water containing substantial suspended debris. Its 6-inch suction and discharge ports support rapid water movement, while the wet self-priming centrifugal design provides dependable operation when the pump casing is properly primed before use.
Power is supplied by a liquid-cooled Kohler KDW1404 diesel engine, while the heavy-duty pump assembly uses industrial grey-iron casings, a ductile-iron impeller, and a rugged mechanical seal system for demanding professional service. The entire unit is mounted on a reinforced steel skid with a 16-gallon fuel tank, creating a durable, stationary pumping package designed for extended field operation.
Why Choose the Multiquip MQ62TKS Trash Pump?
High-Volume Dewatering Performance
- Delivers up to 1,190 GPM of published maximum pumping capacity.
- Provides up to 111 feet of maximum head for demanding water-transfer applications.
- 6-inch suction and discharge connections support rapid high-volume water movement.
Handles Large Solids and Debris
- Passes solids up to 3 inches in diameter.
- Designed for debris-laden water commonly found on construction and industrial jobsites.
- Trash-pump design helps reduce clogging compared with conventional clean-water pumps.
Designed for Demanding Professional Applications
- Well suited for large excavations, flood control, bypass pumping, and construction dewatering.
- High flow and large-solids capability make it useful for municipal and utility applications.
- Combines diesel power, rugged construction, and high-capacity pumping for heavy-duty field use.
Rugged Controls and Field-Ready Design
- Heavy-duty control box and throttle assembly support straightforward engine operation.
- Electric starting provides convenient startup for professional field use.
- Battery is included as standard equipment on Multiquip 6-inch trash pumps.
