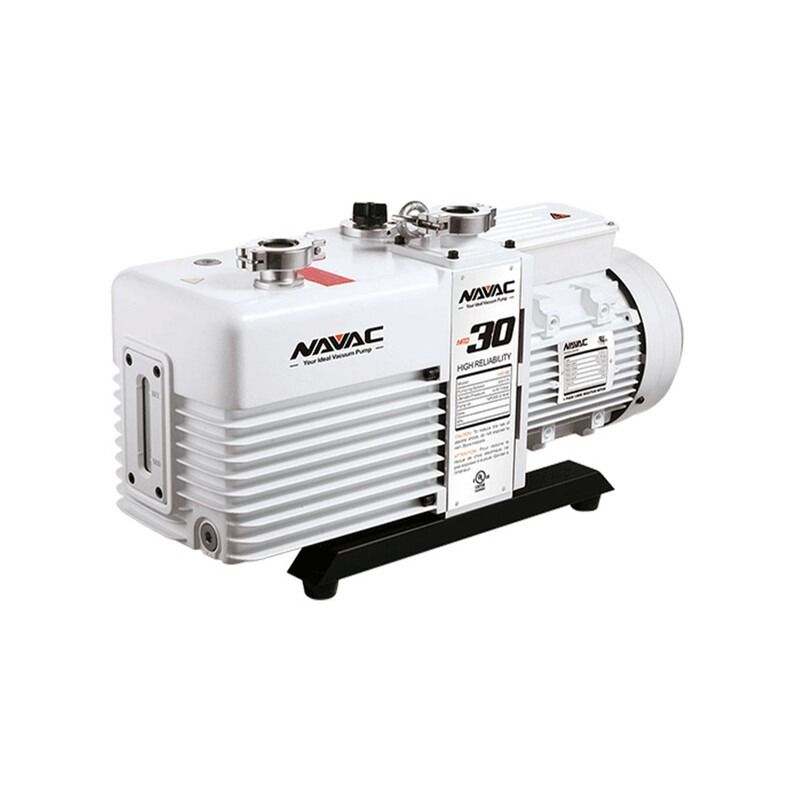

Navac Industrial Vacuum Pump 23 CFM 3 Microns

The NAVAC NRD30M is a high-performance, dual-stage, oil-sealed rotary vane vacuum pump designed for demanding industrial applications. With a displacement speed of 30 m³/h (approximately 21.2 CFM at 60Hz) and an ultimate vacuum of 3 microns, it delivers exceptional performance for tasks requiring deep vacuum levels. This pump features a 1.5 HP motor operating on a 115V/60Hz single-phase power supply, ensuring reliable and efficient operation. Its corrosion-resistant design makes it suitable for applications involving mildly corrosive substances, such as hydrogen peroxide. Additional features include a two-shift adjustable gas ballast valve, dual automatic anti-suckback design, and a forced oil circulation system, all contributing to enhanced durability and performance. The NRD30M is ideal for heavy-duty industrial tasks, including coating, refrigeration, freeze drying, sterilization, and as a backing pump for turbo and diffusion pumps.

Features

• Displacement: 30 m³/h (approx. 21.2 CFM)
• Ultimate Vacuum: 3 microns
• Motor: 1.5 HP, 115V/60Hz single-phase
• Features: Corrosion-resistant design, dual automatic anti-suckback, forced oil circulation, adjustable gas ballast valve
• Applications: Coating, refrigeration, freeze drying, sterilization, backing pump for turbo/diffusion pumps
