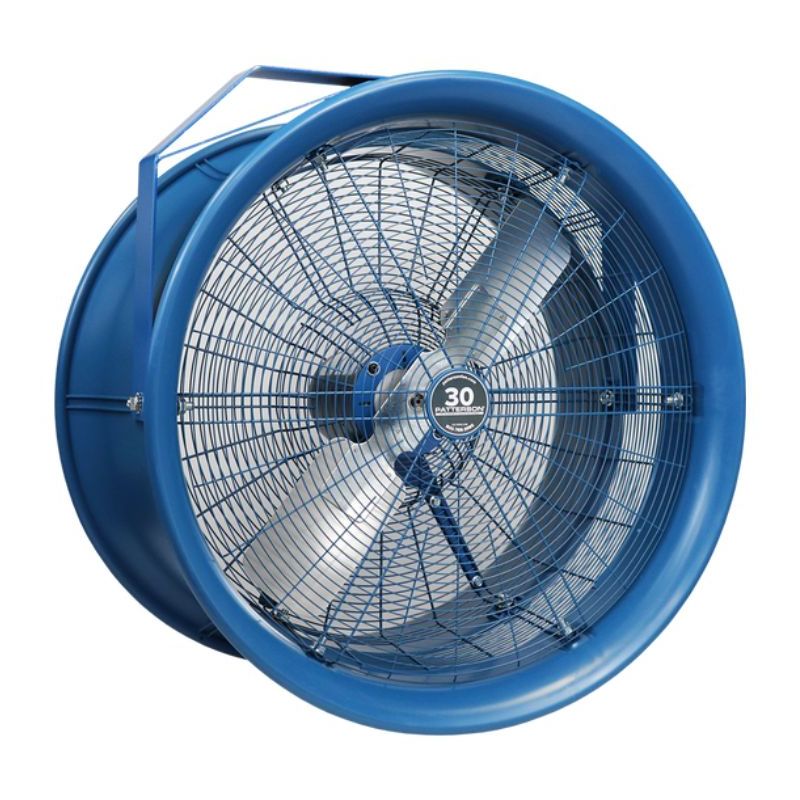

Patterson 30" High Velocity Industrial Yoke Barrel Fans

Required Fields *

By

Patterson

Out of stock

Model

H30A/H30B

ID

147976

These robust industrial fans are well-suited for various locations within your factory or warehouse. Whether your requirements include air circulation or ventilation for tasks such as truck cooling, supporting pick modules, enhancing workstations, improving aisles, optimizing shipping and staging zones, regulating conditions at loading docks, managing parking garages, providing personal comfort cooling, or effectively controlling condensation, you can rely on these proven high-velocity fans to meet your needs effectively.

Features:

  • Motor Type: TEAO
  • Fan Inlet/Outlet: High Impact Polypropylene
  • Equipped with a 1 horsepower motor.
  • Capable of delivering an airflow of 7650 cubic feet per minute (CFM).
  • Finger Guards: OSHA Compliant
  • Features a totally enclosed motor for enhanced safety.
  • Thermally protected to prevent overheating or damage.
  • Includes a 12-inch power cord for added convenience.
More Information
Patterson 30" High Velocity Industrial Yoke Barrel Fan - H30A
FeatureSpec
SKUH30A
Weight (in lbs)125
Brand/ManufacturerPatterson
Additional InformationTotally Enclosed Motor
Additional InformationThermally Protected
Maximum CFM12000
Decibel Level (dBA)82.2
Propeller Diameter30 inches
Motor RPM1800
Horsepower1 HP
Speed2 Speed
Electrical115 / 208 / 230V | 60 Hertz | Single Phase
Amperage Requirement12.9 / 6.6
Height37"
Width37"
Depth22"
Warranty2 Year Limited
Safety InformationPROPOSITION 65 WARNING
Patterson 30" High Velocity Industrial Yoke Barrel Fan - H30B
FeatureSpec
SKUH30B
Weight (in lbs)125
Brand/ManufacturerPatterson
Additional InformationTotally Enclosed Motor
Additional InformationThermally Protected
Maximum CFM12000
Decibel Level (dBA)82.2
Propeller Diameter30 inches
Motor RPM1800
Horsepower1 HP
Speed2 Speed
Electrical208 / 230 / 460V | 60 Hertz | Three Phase
Amperage Requirement3.4 / 1.7
Height37"
Width37"
Depth22"
Warranty2 Year Limited
Safety InformationPROPOSITION 65 WARNING
Patterson Fan CW Blue Column 26" Thru 30" Wall Mount
FeatureSpec
SKUCW Blue
Weight (in lbs)29
Brand/ManufacturerPatterson
Length27"
Width27"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Patterson Fan TC Blue Wall Mount
FeatureSpec
SKUTC Blue
Weight (in lbs)16
Brand/ManufacturerPatterson
Height11"
Width36"
Depth10.5"
Safety InformationPROPOSITION 65 WARNING
Patterson Fan PS Blue Pedestal Stroller Mount
FeatureSpec
SKUPS Blue
Weight (in lbs)36.3
Brand/ManufacturerPatterson
Height32"
Width32"
Depth35"
Safety InformationPROPOSITION 65 WARNING
