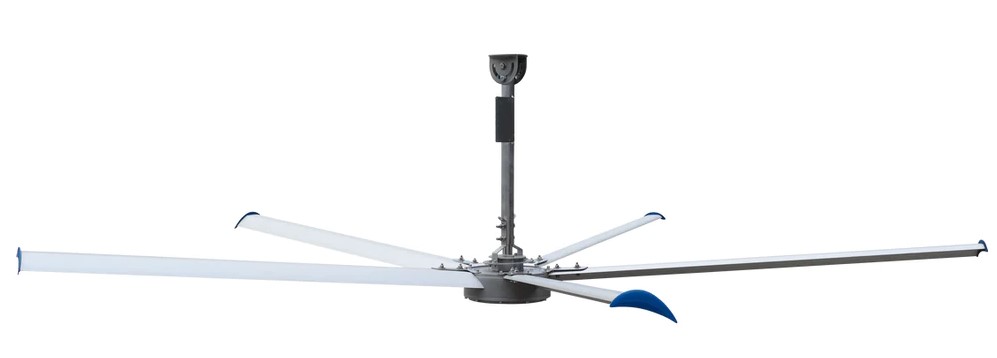

Today's Hours 8am - 11pm estPatterson HVLS Fan, V-Series 16FT Ceiling Fan, 0.7 kW
Required Fields *
In Stock - Ready to Ship
By
Patterson
In stock
Model
V16B-460/ V16A-220 / V16B-230
ID
146637
Was $4,859.00
Your Low Price $4,859.00
Product Features
- Made with Aluminum and Steel frame for enhanced durability
- Ideal for large, open spaces such as staging and shipping areas
- Forward, Reverse and Variable Speed
- Operated less than 42 decibels, delivers near-quite performance
High-Volume HVLS Fan Delivering Powerful Airflow with Quiet, Maintenance-Free Direct Drive Performance
Create a comfortable environment in your industrial facility with the Patterson V-Series Gearless HVLS Ceiling Fan. This fan is designed with a powder-coated welded steel frame and cast aluminum hub assembly. The blades are extruded magnesium aluminum alloy with injection molded plastic wingtips. These blades angle upward to provide coverage in wider areas and maximize airflow.
This fan has a forward, reverse, and variable speed controller. The V-Series is ideal for environments with sound concerns using less than 42 decibels. This fan is a high-volume, low-speed industrial fan that circulates air at a slow speed. The V-Series can provide comfort all year round. If put at a slow speed, it will bring the warm air trapped near the ceiling down to floor level.
Patterson V-Series HVLS Fan Features & Benefits
- Gearless Direct-Drive Design: Eliminates the need for gears, reducing mechanical components and maintenance requirements.
- Included 2-Foot Downrod: Comes standard with a 2-foot downrod for proper fan positioning and installation.
- Airflow-Optimized Wingtips: Helps reduce airflow loss at the blade tips and directs more air downward for effective circulation.
- 80 RPM Air Circulation: Operates at 80 RPM to provide consistent air movement across large spaces.
- Industrial-Rated Protection: Features an IP66-rated VFD and IP54-rated motor for indoor and covered outdoor environments.
- Multi-Level Safety Protection: Incorporates multiple layers of protection to support safe and reliable operation in demanding industrial environments.
- Lifetime Frame & Hub Coverage: Includes a lifetime warranty on the fan frame and blade hub.
- Two-Year Component Coverage: Includes a two-year warranty on the motor, controller, and other fan components.
What's Included
Each Patterson V-Series HVLS fan package includes a universal/bar joist bracket, a standard 2 ft downrod, a safety cable, a mounting bracket, and a controller for secure installation and convenient fan operation.
Safety Features
- Secure Structural Mounting – Install the fan using the specified mounting components and attach it only to a building structure capable of safely supporting the fan.
- Safety Cable Installation – Install and securely fasten the supplied safety cable according to the installation instructions.
- Required Installation Clearances – Maintain the minimum clearances specified in the installation manual to ensure safe blade rotation and proper fan operation.
- Electrical Code Compliance – Complete all electrical wiring in accordance with the manufacturer's instructions and applicable electrical codes.
- Power-Off Installation and Servicing – Disconnect power before installing, inspecting, maintaining, or servicing the fan.
Warranty Information
Patterson Fan Company provides a lifetime warranty on V-Series fan frames, blades, and blade hubs, and a 2-year warranty on the motor, controller, and all other fan components from the date of purchase.
The warranty applies only to the original end user and requires the fan to be installed, operated, and maintained in accordance with Patterson Ventilation Company’s instructions and procedures. Warranty coverage is subject to the terms, conditions, and exclusions outlined in the official warranty document.
For complete warranty details, terms, conditions, exclusions, and warranty procedures, please refer to the Patterson V-Series HVLS Fan Warranty.
Fan Controller Features:
- Simple On/Off Operation: Easily start or stop the fan using the integrated controller for quick and reliable operation.
- Variable Speed Control: Adjust fan speed smoothly to match your comfort needs, from gentle air movement to maximum circulation.
- Forward and Reverse Function: Switch airflow direction to provide cooling in warm conditions or redistribute heat during colder seasons.
- Advanced Digital Interface: Features a fully backlit LCD display with an embedded keypad for easy operation, monitoring, and setup.
- Flexible Control Options: Supports configurable interfaces with fieldbus capability, allowing integration into building management systems.
Premium Materials & Construction
The Patterson V-Series HVLS Ceiling Fan is built with industrial-grade materials to ensure long-lasting durability in demanding environments. Its aerospace-grade aluminum blades are precision-balanced to reduce vibration while maximizing airflow. The heavy-duty steel hub and motor housing are powder-coated for corrosion resistance, making the fan suitable even in high-moisture or dusty conditions. With a robust, direct-drive motor and sealed bearings, the V-Series is engineered to deliver years of maintenance-free operation. This superior construction guarantees both reliability and efficiency, making it a long-term investment for facilities of all sizes.
This fan moves massive amounts of air while operating quietly and efficiently, creating a more consistent environment that reduces hot and cold spots, minimizes humidity, and improves overall air quality.
Suitable Applications for Patterson V-Series HVLS Fann
The Patterson V-Series HVLS Fan is versatile and effective across a wide range of applications, including:
- Warehouses & Distribution Centers – Consistent airflow for staff comfort and product protection.
- Manufacturing & Production Floors – Reduce heat and improve ventilation for workers.
- Greenhouses – Maintain airflow and humidity for healthy plant growth.
- Gyms & Sports Complexes – Provide cooling and odor control during activities.
- Retail Stores & Showrooms – Enhance comfort and protect products from stagnant air.
- Auditoriums & Community Halls – Ensure quiet, efficient airflow in gathering spaces.
- Workshops, Garages & Storage – Improve ventilation and manage dust, fumes, and temperature.
